VS9-EX1RTEX1-R Bluetooth Headset with NC

EX1 - RT BLUETOOTH HEADSET INSTRUCTION MANUAL FITTING YOUR HEADSET CONNECTING TO YOUR PHONE SEARCH FOR NEW DEVICES ENTER PASSKEY 0000 (FOUR ZEROS) TURN ON BLUETOOTH SELECT EX1-RT ‘HOLD’ POWER BUTTON 345 2 1 3s EX1-RT Volume Decrease / Mute Volume Increase Power / Answer / Reconnect POWER ON : Hold for 2 secs until all LED’s turn Red. [Voice Prompt: Power On] POWER OFF : Hold for 3 secs until LED turns Red, then off. [Voice Prompt: Power Off] TAKE A CALL : Press once. REJECT A CALL : Hold 2 secs. END A CALL : Press once. REDIAL : Press twice. (Re-dialing is only available for the first device if two are connected.) VOICE-DIALING : Press once then say ‘Call’ along with the name of the person you want to ring. (Voice Dialing is only available for the first device if two are connected.) For further details on voice dialling, refer to your phone manual). CALL-WAITING END CURRENT CALL : Press once. PUT CURRENT CALL ON HOLD : Hold for 2 seconds. This can also be used during multi-connection of 2 devices. LOW BATTERY All LED’s will flash Red once every minute. [Voice Prompt: Battery Low] VOLUME INCREASE Tap to increase the volume in increments. VOLUME DECREASE Tap to decrease the volume in increments. MUTE Hold down for 2 seconds. A tone will sound every 10 seconds when in mute mode. Repeat to un-mute. IMPORTANT: Please ensure you read the ‘For your Safety’ section before using this product. For technical assistance: www.gioteck.com/ contact-support FUNCTIONALITY DISTANCE The EX1-RT headset has a range up to 10 metres (33 ft) from a device before audio degrades or loses connection. LESS THAN 10M / 33FT Complies with IDA Standards DB100398 The Bluetooth word mark and logos are owned by the Bluetooth sig, inc. and any use of such marks by Gioteck is under licence. Charging indication will be delayed if the headset has not been used for a long time. The Power LED will be red during charging and all LED’s will light when charged. CHARGING 2h EN CONNECTING DEVICES If pairing is not completed within 2 minutes the headset will turn off. If this happens, please repeat the pairing process. MULTI-CONNECTION TO 2 DEVICES Follow the instructions above to pair the EX1-RT to 2 devices. Switch the headset off and on again, and it will connect to both devices automatically. When the headset is turned on, it will connect to the last device you were connected to. STREAMING AUDIO Audio will stream automatically once the EX1-RT is wirelessly connected to a device. Streaming will pause during an incoming/outgoing call and resume when the call ends. To use the headset for the first time you must pair it with a Bluetooth® enabled device. 1. Ensure the headset is within 1 meter of the device. 2. Activate Bluetooth on the device (Settings >Bluetooth > ON) 3. With the EX1-RT Off, hold the Power button for 3 secs until all the LED’s illuminate to a solid state. [Voice Prompt: Pairing ] 4. Select ‘EX1-RT’ from the list of Bluetooth devices, or select ‘Scan for new devices’. 5. If the device asks for a passcode, enter four zeros (0000). 6. The LEDs will flash every 3 seconds once pairing is successful. [Voice Prompt: Pairing Successful] [Voice Prompt: Phone Connected] The headset will now connect to your device automatically. The headset will turn off automatically after 10 minutes of inactivity. EN Exposure to high volume sound levels may cause temporary or permanent damage to your hearing. You should always set your volume to moderate levels and avoid long exposure to high volume levels. Please help to conserve the environment by recycling the packaging of this product. This product should NOT be disposed of in normal household waste. Please take it to an electrical waste collection point. FOR YOUR SAFETY To help ensure risk-free operation please read these Operational and Safety Guidelines before use: • Contains small parts. Not suitable for children under 3 years of age. • Store in a dry and dust free area. • Do not store in areas of extreme low (0°C) or high (40°C) temperatures. • Avoid direct sunlight and heat sources. • Do not allow the product to get wet or dirty; doing so may cause damage. • Do not clean with benzene, paint thinner, acetone, alcohol, or other such solvents. • Do not take the product apart; doing so will void your warranty and may cause electrical shock or damage to internal components. • Do not allow the battery or battery compartment to get into contact with metal objects such as keys or coins. • Charge the product as specified and only use the charger supplied. • Avoid charging the product while unattended. • Check local laws regarding using a headset while driving. • Keep earbuds clean and free of ear wax to maintain product performance. This product is covered by a one [1] year warranty. For full Terms and Conditions, and for Technical Assistance, go to : www.gioteck.com/ contact-support a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the …

Text truncated - open the document above for the full version.

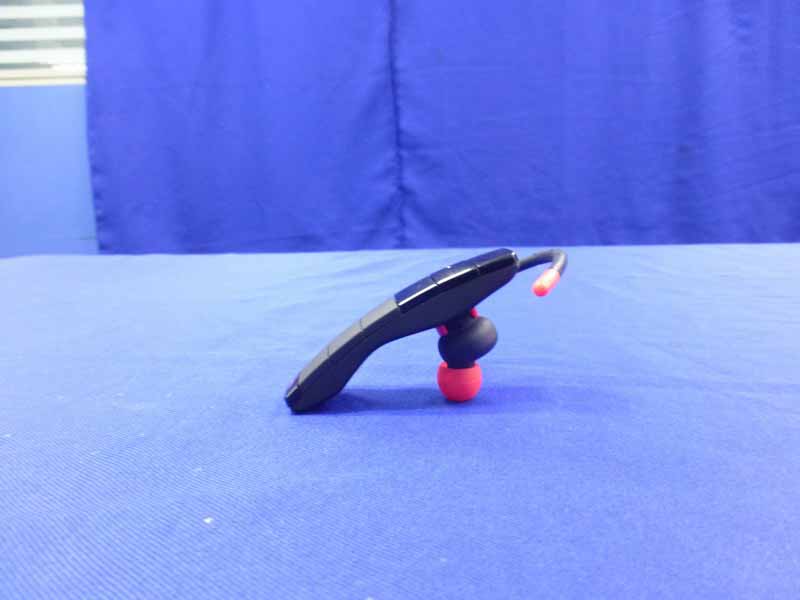

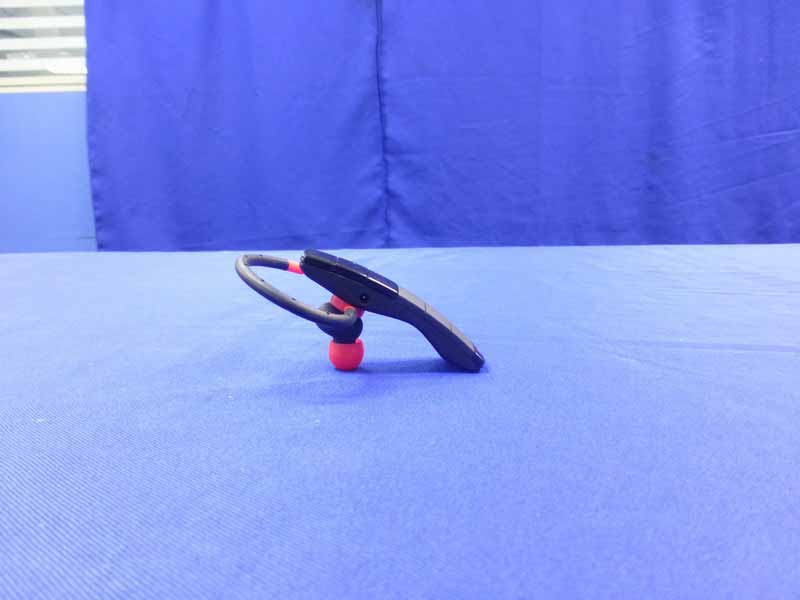

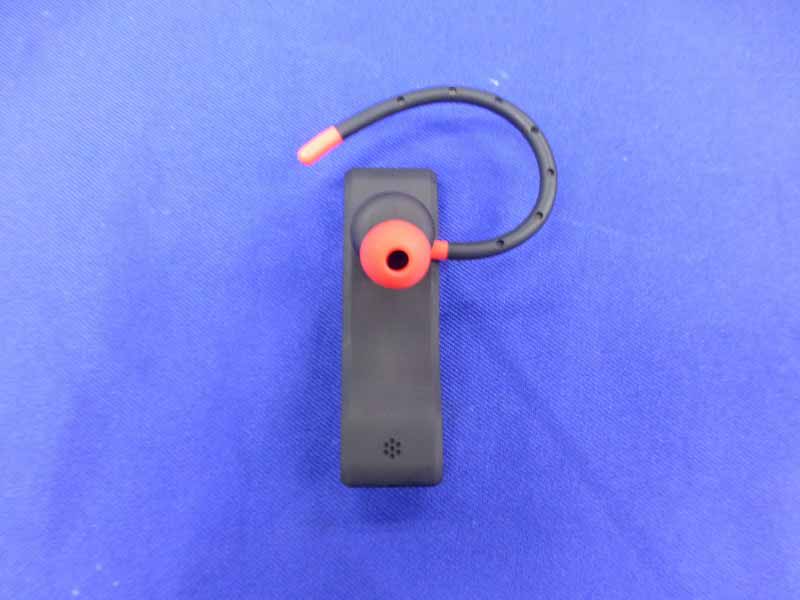

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 14-1 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

MODEL: E1RMOB-21 FCC ID: VS9-EX1RT IC ID: 10670A-EX1RT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 14-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 14-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 14-6 Figure 11 Battery Figure 12 USB Cable

Product Name：EX1-R Bluetooth Headset with NC Model Number: E1RMOB-21 FCCID: VS9-EX1RT RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 D01 V05 Since maximum peak output power of the transmitter is<10mW, i.e. 3.083mW<10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01:General RF Exposure Guidance V05.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Goodbetterbest Limited EX1-R Bluetooth Headset with NC Model Number: E1RMOB-21 FCC ID: VS9-EX1RT Prepared for : Goodbetterbest Limited Suites 103-107, Devonshire Business Centre, Works Road, Letchworth, SG6 1GJ, United Kingdom Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13340 Date of Test ： Aug.22~Nov.21, 2013 Date of Report ： Dec.09, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. Block Diagram of connection between EUT and simulators ............................................... 2-2 2.4. Test information ................................................................................................................... 2-2 2.5. Test Facility.......................................................................................................................... 2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION MEASUREMENT ................................. 3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-1 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Conducted Emission at Mains Terminals Test Results ........................................................ 3-2 4. RADIATED EMISSION MEASUREMENT ................................................................ 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit Standard: FCC 15.209 ................................................................. 4-3 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Procedure...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. CARRIER FREQUENCY SEPARATION TEST ........................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Results. ......................................................................................................................... 6-1 7. 20 DB BANDWIDTH TEST ........................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit..................................................................................................................................... 7-1 7.3. Test Results .......................................................................................................................... 7-1 8. NUMBER OF HOPPING FREQUENCY TEST .......................................................... 8-1 8.1. Test Equipment .................................................................................................................... 8-1 8.2. Limit.....…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 13-1 13. HOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 13-2 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-EX1RT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13340 13-3 Above 1000MHz
