EX - 03 BLUETOOTH ® HEADSET FOR PS3™ EXCLUSIVELY DESIGNED FOR GAMING ON PS3™ thank you Thank you for purchasing the EX - 03 Bluetooth® Headset for PS3™ from Gioteck. We hope that this product will go beyond your expectations for a quality made accessory. Please read this booklet thoroughly before using the product and review the PS3™ manual for additional details regarding PS3™ operation. Thank you & enjoy! precautions This product has been designed with the highest concern for safety. However, any electrical device, if used improperly, has the potential to cause harm. To help ensure risk-free operation please pay attention to the following guidelines. • Use only as intended. This is a precision product, handle with care. • Contains small parts. Not suitable for children under 3 years of age. • Store in a dry & dust free area. Do not store in areas of extreme heat or cold, and avoid direct sunlight or heat sources eg. heaters. • Do not allow the product to get wet or dirty; doing so may cause damage. • Do not clean with benzene, paint thinner, acetone, alcohol, or other such solvents. • Do not take the product apart; doing so will void your warranty and may cause electrical shock. warnings This symbol indicates important installation, operational or maintenance instructions. Always follow these instructions closely. environment Please help to conserve the environment by recycling the inner cardboard packaging of this product. This headset should NOT be disposed of in normal household waste. It should be disposed of separately. Please take it to an electrical waste collection point. 02 | CONTENTS & PRECAUTIONS CONTENTS 02 | Contents & Precautions 03 | Features & Details 04 | Pairing 06 | Setup 08 | Charging 09 | Operation 10 | Troubleshooting 11 | Legals features & details When it comes to online game & chat, the EX-03 is a natural gaming partner. Comfortable, lightweight & ergonomic, the EX-03 features the latest Next Gen Chipset with built-in noise cancelling technology and superior enhanced voice clarity. 01 | Flexible Wired Earhook 02 | LED Feedback 03 | Volume Up 04 | Power Button 05 | Volume Down 06 | Microphone 07 | Earbud FEATURES & DETAILS | 03 01 02 03 04 05 06 07 pairing your headset 04 | PAIRING 1. Within the Settings' menu, press X on Accessory Settings. 4. At the next screen, prepare your headset (from off) to be paired by holding down the power button continuously until the LEDs flash alternate Blue & Red. When it is connected the LEDs will flash Blue every 2 seconds. If not connected, it will flash blue every 4 seconds. 2. Press X on the icon labelled: Manage Bluetooth® Device. 5. Press X to Start Scanning. Once the scan is complete, the PS3™ will recognise all Bluetooth® wireless technology devices within range. 3. Press X on Yes to register your Bluetooth® Device. 6. Locate PS3 EX-03 from the list of available devices and press X. 3 SECONDS PAIRING | 05 7. Press X, enter 0000 (four zeros) as the Pass Key & press X on OK. 10. Scroll down and press X on Audio Device Settings. 8. You will be taken to a new screen stating: Register completed. 11. Choose PS3 EX-03 as your input and output device from the lists. Press X to confirm your choices. 9. Press O twice on your controller to go back to Accessory Settings. 12. Scroll down and press X on OK. Your EX-03 Bluetooth® Headset is now ready to use.. Enjoy :) set up The EX-03 Bluetooth® headset is designed for maximum flexibility and comfort. You can mold the earhook to size and choose from 3 different earbuds for the perfect fit. Simply follow the instructions below for details. 06 | SET UP ear bud fitting Take the size of ear bud that you want to use and place the ear bud on the back edge of the stalk (01). Apply pressure then roll the ear bud onto the stalk of the earpiece (02). 01 02 03 SET UP | 07 headset positioning For a comfortable fit, hold the EX-03 body (01) and flex the earhook upwards (02) looping it around your ear (03). Once the earhook is in position, carefully place the speaker into your ear (04) and make any final adjustments so that the headset is firmly in position. Finally, maneuver the microphone arm into place where you feel it offers maximum voice clarity. 01 02 04 EX-03 BODY 08 | CHARGING charging your headset The headset contains a rechargeable Lithium-ion battery. Prior to using the headset for the first time, it is strongly recommended to fully charge the battery for 3 hours. Connect the USB cable to your PS3™ (01) and insert the DC connector (02) into the headset (03). The LED will illuminate red during the charging process and will be blue when fully charged. NOTE: Charging indication will be delayed for a few minutes if the headset has not been used for a long time. game time The fully charged battery offers up to 6 hours continuous use. It is advisable to always recharge after lengthy gameplay so the headset is fully charged for the next round. charging time Normally the battery will be fully recharged within 3 hours. As soon as the battery is fully charged, the LED will be Blue. Do not try to pair the headset to the console, when the headset is charging. If it is charging, it will not pair to the PS3™. 01 02 03 operating your headset 1. To power on your headset, press and hold the power button until the LED flashes Blue. NOTE: If the LED flashes Red only, the battery will need to be charged. A low battery is also denoted by a low tone repeated every 20 seconds. 2. To power off your headset, press and hold the power button until the LED flashes Red. OPERATION | 09 adjusting volume Tap the + button to increase the volume in increments until the headset reaches your desired volume level. Tap the - button to decrease the volume in increments until the headset reaches your desired volume level. muting Press the power button briefly (less than 1 second) to mute the headset; repeat the process to un-mute. When in mute mode the LED will flash Red & Blue every 5 seconds. If at any point the headset dis…

Text truncated - open the document above for the full version.

BC6130 SINGLE BLUETOOTH CHIP AUDIO CODEC Crystal MCU I/O 1.5V Regulator 1.8V Regulator Charger Manager LED MMI LI-POLY BATTERY USB 5V INPUT Crystal 16MHz RF Front Class 2 ANT Speaker Microphone MIC BIAS

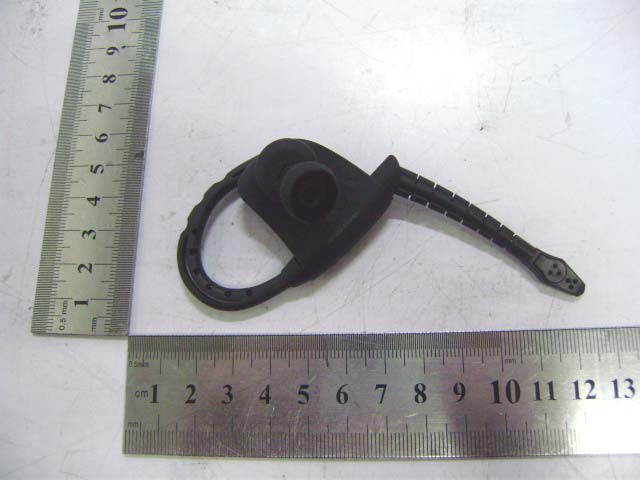

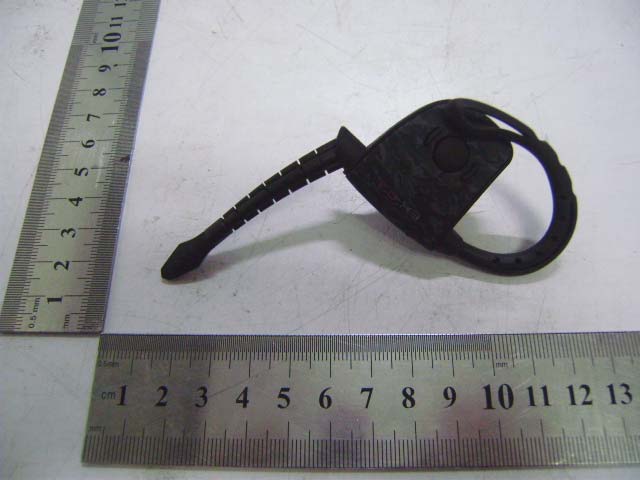

Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 EUT View 3

Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VS9-EX3PS3 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VS9-EX3PS3 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 Solder Board-Component View 2

CIRCUIT DESCRIPTION 1. Schematic diagram description The EX3PS3 Bluetooth headset based on CSR BC6130A04 QFN chipset, It is support the headset profile and handfree profile. It is compliant to Bluetooth v2.1 + EDR specification. References to the document <The EX3PS3 Bluetooth Headset schematic diagram> U1(BC6130A04) is a single chip Radio and baseband IC for Bluetooth 2.4GHZ systems. it provides Bluetooth RF of the 2402-2480MHz Tx frequency, baseband and some power regulator functions. It is integrated DC +1.8V power supply. +1.8V uses for the PIO pull up such as the buttons. U2 is serial EERPOM, it use for store the configurations of MMI. XT1 is a crystal oscillator, provides 16M clock reference. EX3PS3 uses PCB copper antenna for RF transceiver. EX3PS3 has Blue and Red indicator lights to show different working state, and has MFB, Volume up, Volume Down buttons to operation the headset. 2．The Signal Path description When the EX3PS3 headset connects to a mobile phone , the built-in MCU will control the RF modem to process the baseband signal, indicate the working state by the LED. When uses the headset, the voice can be picked by microphone. There are Multi-function Button, Volume up button and Volume Down button for you to increase the volume or decrease the volume of the speaker.

1V5 115MA LINEAR 200MA 1V9 LINEAR MIC BIAS 1V5 200MA SMP CHARGE 7 RF_P 8 RF_N 49 VSS 4 SPK_P 3 SPK_N 1 MIC_P 2 MIC_N 5 AU_REF 15 LO_REF 29 LED[0] 28 LED[1] 47 MIC_BIAS 13 XTAL_IN 14 XTAL_OUT 16 AIO[1] 17 AIO[0] 26 RESET 25 TEST_EN 18 UART_RX 19 UART_TX 42 SPI_DEBUG_EN 40 CSB 38 MOSI 41 MISO 39 CLK 27 PIO[11] 44 PIO[8] 45 PIO[7] 46 PIO[6] 21 PIO[3] 22 PIO[2] 23 PIO[1] 24 PIO[0] 37 VDD_CHG 36 BATT_P 35 LX 34 SMP_SENSE 33 VREG_EN_H 32 VREG_IN_H 31 VREGOUT_H 11 VREGIN_L 10 VREGEN_L 20 VDD_PADS[0] 43 VDD_PADS[1] 48 VDD_AUDIO 30 VDD_CORE 9 VDD_LO 6 VDD_RADIO 12 VDD_ANA U1 BC6130A04 SPK_P SPK_N C1 47n C2 47n C3 47n R1 1k MIC+ MIC- C5 47n C6 1uF 1 2 3 4 CRY1 16MHz C7 10p C8 15p E B C Q1 R3 100k R4 360K C9 220n MISO CLK MOSI CSB POWER VOL+ VOL- R8 4K7 R9 4K7 R10 4K7 C10 220nF 0603 C11 2u2 0603 C12 2u2 L1 22u 0603 C13 4u7 C15 220n C17 47n C4 47n ANT DC+ DC- 5V R19 2K2 0603 C21 4u7 0603 R6 2R2 1 A0 2 A1 3 A2 4 VSS 7 WP 5 SDA 6 SCL 8 VCC U2 24AA32 C19 15p DEBUG R2 1k5 R7 470R L-R L-B C20 15p 1 UNBAL 2 DC 3 NC 4 BAL 5 GND 6 BAL 7 GND 8 GND BAL JAK1 L2 22n C14 1u R5 2r2 5V PIO-2 BAT 1V5 PWR 1V9 1V5 1V9 1V5 BAT PIO-3 5V 1V9 1V9 PIO-3 PIO-2 PWR BAT BAT

Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I PAGE 1 OF 36 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Good Better Best Ltd. 61-63 The Green, Stotfold Herts, SG5 4AN United Kingdom. FCC ID: VS9-EX3PS3 Report Concerns: Original Report Equipment Type: Bluetooth headset Model: EX3PS3 Report No.: STR11088190I Test Date: 2011-08-18 to 2011-09-07 Issue Date: 2011-09-08 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I PAGE 2 OF 36 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................5 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................5 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................7 3.1 STANDARD APPLICABLE.........................................................................................................................................7 3.2 TEST RESULT..........................................................................................................................................................7 4. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING .................................................................8 4.1 STANDARD APPLICABLE.........................................................................................................................................8 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.3 TEST PROCEDURE...................................................................................................................................................8 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. 20-DB BANDWIDTH ..............................................................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................14 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................14 7. POWER OUTPUT...................................................................................................................................................17 7.1 STANDARD APPLICABLE.................................................................................................................…

Text truncated - open the document above for the full version.

Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Transmitting Mode Charging Mode Good Better Best Ltd. Model: EX3PS3 REPORT NO.: STR11088190I FCC Part 15.247 Radiation Emission Test Setup (Above 1GHz) Transmitting Mode Conducted Emission Test Setup Charging Mode
