VS9-GC2PS3-11GC-2 Wireless Controller

Goodbetterbest Limited Suites 103-107, Devonshire Business Centre, Works Road, Letchworth, SG6 1GJ, United Kingdom Tel: +44(0) 1462 472390 Email: [email protected] GC2PS3-11 GC-2 GC-2 Wireless Controller operational Manual Feature : - 8 functional buttons: O, X, , □, L1, R1 - x Triggers L2, R2 - Select / Start Button - Home Button - Directional Pad - 2 x Rumble Motors - mini joystick buttons, L3, R3 - Mini USB Jack for USB mode and battery charging - Powered by built-in Li-ion Battery - Channel LED, Turbo LED - Turbo feature - Thumb stick sensitivity - USB mode and BT(Bluetooth) mode - In BT mode, it supports tablets with Android 3.2+ and complaint to the SIXAXIS Controller APK. - In USB mode, it supports tablets with Android 3.2+ and complaint to the SIXAXIS Controller APK - Connects to PC via USB cable and functions as a USB game controller A) Connecting the GC2PS3 game pad To connect the GC2PS3 game pad 1. Plug in the USB cable to GC2PS3 game pad mini USB port, then connect the USB Port #1 on the PS3 Console. This can be done with PS3 already be turned on. 2. Press the “Home” Button on the GC2PS3 game pad. The GC2PS3 will select the port automatically, and the corresponding LEDs light. LED PORT 1 1 2 2 3 3 4 4 1+4 5 2+4 6 3+4 7 3. Now, you can enjoy the game play with Gioteck wireless game pad in USB mode. 4. Unplug the USB cable, the GC2PS3 will automatically connect to PS3 console by BT mode, and the corresponding LEDs light. 5. The GC2PS3 game pad is properly set up for PS3 connection. Simply press the “Home” button once to link up to PS3 for all subsequent connection. B) Turbo function Buttons support turbo feature are O, , □, X, L1, L2, R1, R2 All turbo buttons are synchronized All turbo buttons are with the same speed of 8Hz. To program a button with Turbo function, press [TURBO] and the [button] at the same time. LED flashes in 8Hz Press again the [TURBO] and the [button] at the same time to cancel the turbo function. LED remains OFF. Once power off, all buttons returns to default without Turbo function. C) Thumb stick sensitivity 4 levels settings are available. Level 1 is normal in 100% Level 2 is with 75%, moves the thumb stick 1.5 times faster in speed Level 3 is with 50%, moves the thumb stick 2 times faster in speed Level 4 is with 25%, moves the thumb stick 4 times faster in speed To set up the sensitivity, press and hold the [Turbo] button, flick the thumb stick left and right to toggle and advance to the next faster speed settings. During the set up process, LED 1 lights up to indicate for level 1, LED 2 lights up to indicate for level 2, LED 3 to indicate for level 3, LED 4 lights up to indicate level 4 Flicks the left thumb stick to set up the left thumb stick sensitivity Flicks the right thumb stick to set up the right thumb stick sensitivity Once power off, all thumb sticks returns to default with 100% setting D) Power Management System The GC2PS3 game pad turns off if it is connected to the PS3 console and is not used for 10 minutes. The GC2PS3 game pad automatically turns off if it is not connected to the PS3 console for 10 seconds. To turn off the GC2PS3 game pad, press and hold Home button for 15 seconds to force it to turn off. To turn on the GC2PS3 game pad, press Home button once. The GC2PS3 game pad turns on and the LED lights. E) Low battery indication When the built-in Li-ion battery in low power, the corresponding port LED flashes in 4Hz, and shuts down the motors, to remind user to recharge the battery. F) Battery charging indication When the GC2PS3 game pad is connected to PS3, the corresponding port LED flashes in 1Hz. When charging is finished, the LED lights on. When the GC2PS3 game pad is not connected to PS3, the 4 LEDs flash in 1Hz during charging. The 4 LEDs will be turned off when the charging is finished. When the GC2PS3 game pad is not connected to PS3 and is connected to a USB port with power only, the 4 LEDs remains turned off during charging and when charging is completed. G) Troubleshooting i) The game pad does not response when another Bluetooth headset is connected to PS3 Please make sure only the GC2PS3 Bluetooth game pad is linked to PS3. ii) The game pad does not wake up when USB cable is connected The USB port is for battery charging only. It does not wake up the game pad. iii) In the BT mode, the USB cable does not improve the wireless interference problem The USB cable is for battery charging. The wireless data communication with PS3 remains through the Bluetooth. iv) The thumb stick sensitivity resets to normal during power up The thumb stick sensitivity reset to default every time the controller is power up v) The programmed button with turbo feature functions without turbo feature All buttons programmed with turbo feature are reset to default without turbo during power up vi) Cannot set up thumb stick sensitivity To continue the thumb stick sensitivity set up, the [Turbo] button must be pressed and hold during the set up. The set up process is terminated whenever the [Turbo] button is released. vii) The Player ID LED indication is incorrect The LED indicates the Player ID at all times except during the thumb stick sensitivity programming. During the thumb stick sensitivity set up process, the LED indicates the different sensitivity level. LED 1 represents normal in 100%. LED 2 represents 1.5 times faster, LED 3 represents 2 times faster, LED 4 epresents 4 times faster. Left and right thumb sticks sensitivity setting will be indicated through the 4 LEDs separately during the sensitivity set up process. viii) The motors do not vibrate during game play. Please check the LED indication. If it is flashing in 4Hz, then it is in low battery level and motor will not vibrate when battery is in low level Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED B…

Text truncated - open the document above for the full version.

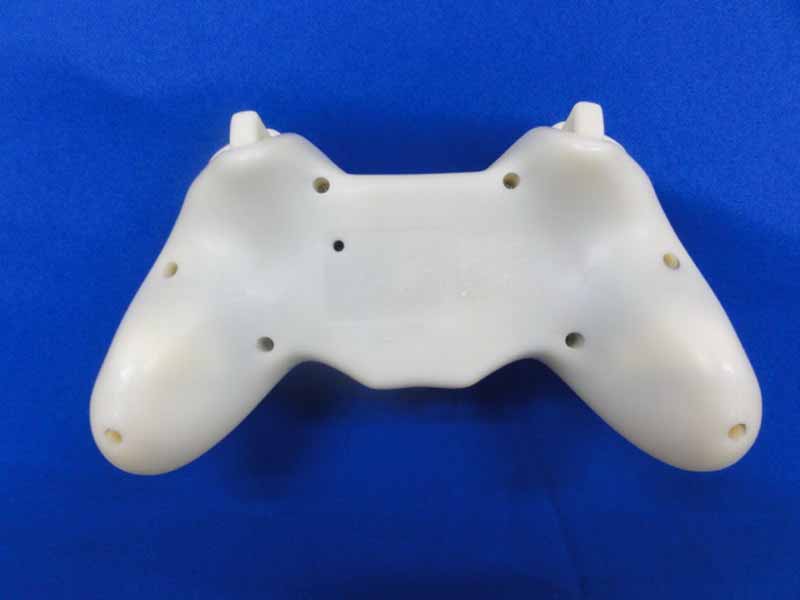

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

GC2 Wireless Controller MODEL: GC2PS3-11 DC 3.7V 70mA FCC ID.: VS9-GC2PS3-11 IC: 10670A- GC2PS3 R5012SP-A MADE IN CHINA 36*24 MM N28707 GC2 Wireless Controller MODEL: GC2PS3-11 DC 3.7V 70mA FCC ID.: VS9-GC2PS3-11 IC: 10670A- GC2PS3 R5012SP-A MADE IN CHINA N28707

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-2 Figure 3 General Appearance of the EUT Figure 4 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-3 Figure 5 Components Side of the PCB Figure 6 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-4 Figure 7 Components Side of the PCB Figure 8 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-6 Figure 11 Components Side of the PCB Figure 12 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-7 Figure 13 Battery of the EUT Figure 14 Battery of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 14-8 Figure 15 USB Cable

R 52 Block Shenzhen, Science & Industry Park, 信華科技 ( 深圳 ) 有限公司 Nantou, Shenzhen, Guangdong, China. Audix Technology (shenzhen) Co.,Ltd Tel:(0755)26639495~7 Fax:(0755)26637289 EUT: GC-2 Wireless Controller M/N: GC2PS3-11 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is<60/f(GHz)mW, i.e.1.00mW<25(=60/2.4)mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01:Mobile Portable RF Exposure.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Goodbetterbest Limited GC-2 Wireless Controller Model Number: GC2PS3-11 FCC ID: VS9-GC2PS3-11 Prepared for : Goodbetterbest Limited Suites 103-107, Devonshire Business Centre, Works Road, Letchworth, SG6 1GJ, United Kingdom Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12262 Date of Test ： Nov.05~Dec.04, 2012 Date of Report ： Dec.12, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. Block Diagram of connection between EUT and simulators ............................................... 2-2 2.4. Test Facility ......................................................................................................................... 2-3 2.5. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-1 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Conducted Disturbance at Mains Terminals Test Results.................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.247 .............................................. 4-2 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-3 5. CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Procedure...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. CARRIER FREQUENCY SEPARATION TEST ........................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Results. ......................................................................................................................... 6-1 7. 20 DB BANDWIDTH TEST ........................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit..................................................................................................................................... 7-1 7.3. Test Results .......................................................................................................................... 7-1 8. NUMBER OF HOPPING FREQUENCY TEST .......................................................... 8-1 8.1. Test Equipment .................................................................................................................... 8-1 8.2. Limit..................................................................................................................................... 8-1 8.3. Test Results .............................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Conducted Disturbance at Mains Terminals Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 13-2 13.2.Photos of Radiated Emission Test (30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:VS9-GC2PS3-11 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12262 13-3 (Above 1000MHz)
