VS9FR1PS31EPFR-1 FREEDOM WHEEL FOR PS3

14 0405 07 09 11 08 10 12 13 15 16 17 02 01 06 03 120° STEERING TO THE RIGHT . GB 01 | Directional Pad 02 | Action Buttons 03 | Home Button 04 | Select Button 05 | Start Button 06 | Channel LED 07 | Power LED 08 | Sensitivity Switch 09 | R2 Button 10 | L2 Button 11 | X Trigger 12 | Trigger 13 | R1 Button 14 | L1 Button 15 | Mini USB Port 16 | Battery Compartment 17 | USB Dongle precautions This product has been designed with the highest concern for safety. However, any electrical device, if used improperly, has the potential to cause harm. To help ensure risk-free operation please pay attention to the following guidelines. • Use only as intended. This is a precision product, handle with care. • Contains small parts. Not suitable for c hildren under 3 years of age. • Store in a dry & dust free area. • Do not store in areas of extreme heat or cold, and avoid direct sunlight or heat sources eg. heaters. • Do not allow the product to get wet or dirty; doing so may cause damage. • Do not clean with benzene, paint thinner, a cetone, alcohol, or other such solvents. • Do not take the product apart; doing so will v oid your warranty and may cause e lectrical shock. warninGs Always follow these instructions closely. This symbol indicates important installation, operational or m aintenance instructions. (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the e quipment and receiver. • Connect the equipment into an outlet on a c ircuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV t echnician for help. set up 1) Plug the USB Dongle into USB Port #1 on the PS3 console. 2) T urn on the console. 3) Open the battery compartment and i nsert 2 x AA batteries. 4) P ress the “Home” Button to power o n the Freedom Racing Wheel. 5) T he FR-1 will automatically select a channel and an LED will light. 6) Now you can enjoy all of your racing games with a Gioteck Freedom Wheel! Press & hold the “Home” button for 5 seconds to activate pairing at any time. environment Please help to conserve the environment by recycling the cardboard packaging of this product. This product should NOT be disposed of in normal household waste. It should be disposed of separately. Please take it to an electrical waste collection point. leGals This product complies with the following legal regulations. For further information go to www.gioteck.com Gioteck hereby declares that this c ontroller is in compliance with the essential requirements and other provisions of Directive 2004/108/EC. To view the full version of the Declaration of Conformity please go online to doc.gioteck.com Caution: The user is cautioned that c hanges or modifications not e xpressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and motion sensinG caliBration To calibrate your FR1 follow the instructions below: 1) Place it on a flat surface. 2) Press and hold the “Select” & “Home” buttons simultaneously for 5 seconds 3) A ll four channel LED's will light. 4) Press the “Start” button to calibrate. 5) Once calibration is complete, the LED's will turn OFF and the a ssigned channel LED will light. motion steerinG control 1) Tilt the wheel above 30° to activate m otion sensing steering technology. 2) Turn 120° Left/Right for an effective s teering angle. (Note: If you turn the w heel more than 120°, the steering will default back to the neutral position.) 3) Tilt between 30° to 145° horizontally for an effective operational angle. Lay the FR-1 flat during menu operation to prevent motion sen sor interference. opera tion POWER ON To turn on the FR-1, press Home button once and the LED will light. POWER OFF To turn off, press & hold “Select” & the “O” button simultaneously for 5 seconds. Note: The FR-1 will automatically turn off if it is disconnected from the PS3 for 30 seconds or more. SLEEP MODE The FR-1 will enter sleep mode if it is inactive for 5 minutes. To exit sleep mode, press Home button once. SENSITIVITY ADJUSTMENT To adjust the sensitivity, slide the Sensitivity Switch to your desired level. Note: Sensitivity Adjustment does not work during Six Axis Mode. LOW BATTERY The Channel LEDs will flash rapidly when the battery charge is low. You will need to replace with new batteries. trouBleshootinG i) In some games the racing wheel must be assigned to Port 1. To assign The FR-1 to Port 1, press and hold the“Home” button. The Channel LED will indicate when the channel assignment is successful. ii) The Pedals do not seem to work. Make sure the trigger pedals have not been reprogrammed – Please follow the instructions in the “Reassigning Trigger Pedals” section. For further assistance please contact our customer support team on our website: www.gioteck.com Thank you for purchasing the FR-1 Freedom Racing Wheel from Gioteck. We hope that this product will go beyond your expectat…

Text truncated - open the document above for the full version.

Goodbetterbest Limited Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VS9FR1PS31EP. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram VS9FR1PS31EP Block Diagram.pdf Schematics VS9FR1PS31EP Schematics.pdf Operational Description VS9FR1PS31EP Operational Description.pdf Part List VS9FR1PS31EP BOM.pdf PCB Layout VS9FR1PS31EP PCB Layout.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------- Carol Hanson / Commercial Director Company Name: Goodbetterbest Limited Address: Suites 103-107 Devonshire Business Centre Works Road Letchworth Herts SG6 1GJ United Kingdom Tel: +44(0) 1462472390 Fax: +44(0)208 965 7703 Email: [email protected]

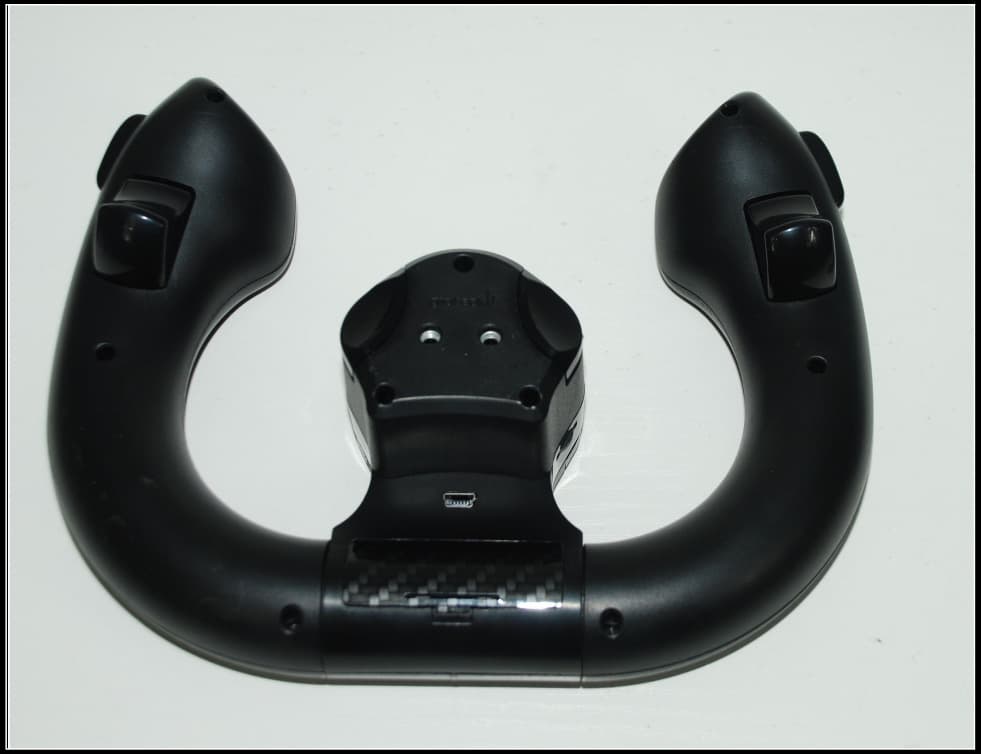

External Photos

Lab and size Product : FR-1 Core Label Item # : FR1PS3-11 Date : 27 Jul, 2012 Designed by :

Internal Photos

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM120900372101 Page: 1 of 28 FCC ID: VS9FR1PS31EP Strong Yao Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1209003721RF Applicant: Goodbetterbest Limited FCC ID: VS9FR1PS31EP Product Name: FR-1 Freedom Wheel For PS3 Product Description: Radio controller and dongle with 2.4 GHz as carrier. Model No.: FR1PS3-11 Standards: 47 CFR PART 15 Subpart C: 2011 section 15.249 Date of Receipt: 2012-09-22 Date of Test: 2012-09-22 to 2012-10-30 Date of Issue: 2012-11-07 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM120900372101 Page: 2 of 28 FCC ID: VS9FR1PS31EP This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2012-11-07 Original Authorized for issue by: Tested By 2012-09-22 to 2012-10-30 (Daniel He) / Project Engineer Date Prepared By 2012-11-02 (Daniel He) / Project Engineer Date Checked By 2012-11-07 Strong Yao/ Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM120900372101 Page: 3 of 28 FCC ID: VS9FR1PS31EP This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary TEST TEST REQUIREMENT TEST METHOD RESULT Field Strength of Fundamental FCC PART 15 C section 15.249 (a) ANSI C63.10: Clause 6.6 PASS Field Strength of Unwanted Emissions FCC PART 15 C section 15.249 (a) section 15.249 (d) ANSI C63.10: Clause 6.4, 6.6 and 6.7 PASS** Band Edges FCC PART 15 C section 15.249 (d) ANSI C63.10: Clause 6.9.2 PASS Occupied Bandwidth FCC PART 15 C secti…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission Test Setup 9 KHz to 30MHz: 30MHz to 1G: Above 1G:(full anechoic chamber)
