VS9HC5UNIDSWHC5 Dongle

21 43 AV MULTI OUT AV RCA CABLE (SUPPLIED WITH PS3 CONSOLE) YELLOW/ VIDEO CONNECT INTO THE FRONT OF PS3 TV / MONITOR AUDIO IN REDWHITE HDMI OUTPUT CONNECT INTO THE FRONT OF PS3 HDMI CABLE (NOT SUPPLIED) TV/MONITOR HDMI INPUT TV / MONITOR AUDIO OUT 65 TV/MONITOR HDMI INPUT HDMI OUTPUTAV MULTI OUT AV RCA CABLE (SUPPLIED WITH PS3 CONSOLE) HDMI CABLE (NOT SUPPLIED) CONNECT INTO THE FRONT OF PS3 AV MULTI OUTUSB PORT AV RCA CABLE (SUPPLIED WITH XBOX CONSOLE) YELLOW/ VIDEO TV / MONITOR AUDIO IN HDMI CABLE (NOT SUPPLIED) TV/MONITOR HDMI INPUT AV RCA ADAPTOR (NOT SUPPLIED) AV MULTI OUTUSB PORTHDMI OUTPUT REDWHITE HDMI CABLE (NOT SUPPLIED) TV/MONITOR HDMI INPUT TV / MONITOR AUDIO OUT USB PORTHDMI OUTPUT 109 REDWHITE HDMI CABLE (NOT SUPPLIED) TV/MONITOR HDMI INPUT TV / MONITOR AUDIO OUT USB PORTHDMI OUTPUT REDWHITE HDMI CABLE (NOT SUPPLIED) TV/MONITOR HDMI INPUT TV / MONITOR AUDIO OUT USB PORTHDMI OUTPUT 1211 REDWHITE HDMI CABLE (NOT SUPPLIED) TV/MONITOR HDMI INPUT TV / MONITOR AUDIO OUT USB PORTHDMI OUTPUT 1413 1615 1817 LEGALS This product complies with the following legal regulations. For further information go to www.gioteck.com This device complies with Industry Canada RSS 210 standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. However, there is no guarantee that interference will not occur in a particular installation. The device and its antenna must not be co-located or operating in conjunction with any other antenna or Dongle. Gioteck are not responsible for any interference caused by un-authorized changes to this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed correctly, may cause harmful interference to radio communications. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. If this equipment does cause harmful interference to radio/television reception try the following: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This Dongle must not be co-located or operating in conjunction with any other antenna or Dongle. Gioteck hereby declares that this product is in compliance with the essential requirements and other provisions of Directive 2004/108/EC and R&TTe 1999/5/ EC. To view the full version of the Declaration of Conformity go online to gioteck.com/declaration-of-conformity WARRANTY Australia only This product is manufactured by GoodBetterBest (“GBB”) of the United Kingdom. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. GBB warrants to the original consumer purchaser that the product will be free of defects in materials and/or workmanship for the length of time specified in the warranty period from the date of purchase, this being 1 Year, as set forth at : www.gioteck.com/contact-support If a defect covered by this warranty occurs during the warranty period, GoodBetterBest at its option will repair or replace, at no charge, any part that GoodBetterBest determines to be defective. To make a warranty claim please contact GBB’s Australian distributor, Turn Left Distribution at : [email protected] Turn Left Distribution is responsible for the servicing of warranty claims for purchases made in Australia. The purchaser will be required to bear the expense of sending the product back to the Australian distributor to claim the warranty. If you are unable to satisfactorily resolve your issue with the retailer, please contact GBB through its website at : www.gioteck.com/contact-support or alternatively, you can contact GBB directly at: GBB Limited, 103 Devonshire Business Centre, Works Road, Letchworth, SG6 1GJ, United Kingdom. This warranty shall not apply if the product has been damaged by abuse, misuse, negligence, accident, modification, tampering or by any causes unrelated to defective materials and/or workmanship. Repair or replacement as provided under this warranty is GoodBetterBest exclusive prerogative. In order to obtain warranty services under certain circumstances (particularly when the retailer will not accept the return of the defective product), you may be required by GBB to return the product directly to GBB in the United Kingdom for inspection and evaluation, along with evidence of purchase (including the price paid and the date the item was purchased), for a determination of whether the warranty applies. If you have been asked by GBB to return the product to GBB in the United Kingdom, and the product is defective and covered under t…

Text truncated - open the document above for the full version.

Goodbetterbest Ltd

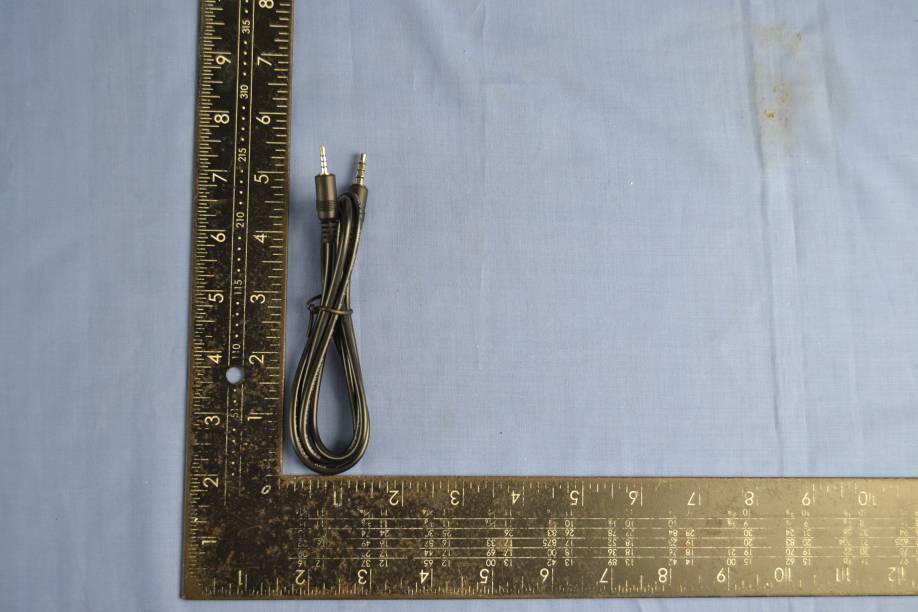

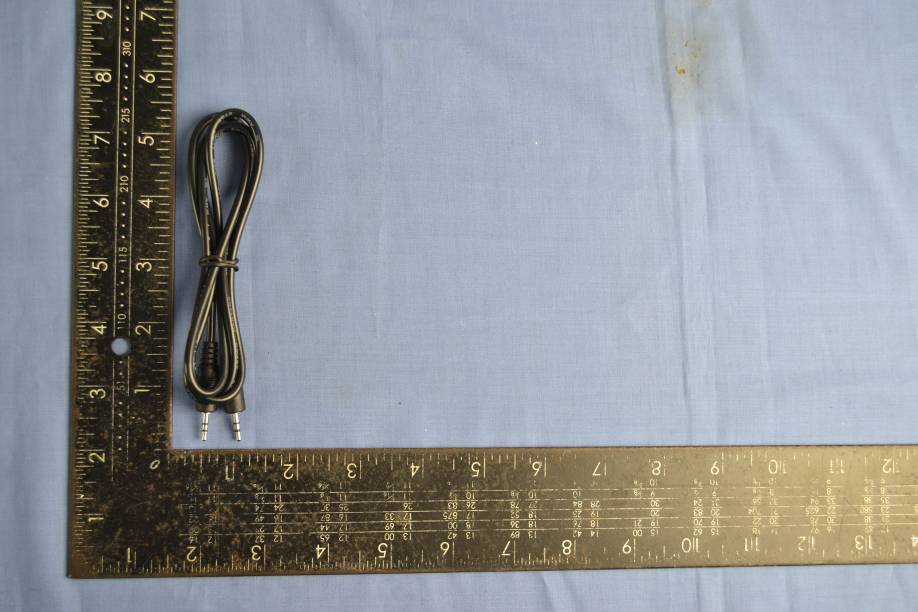

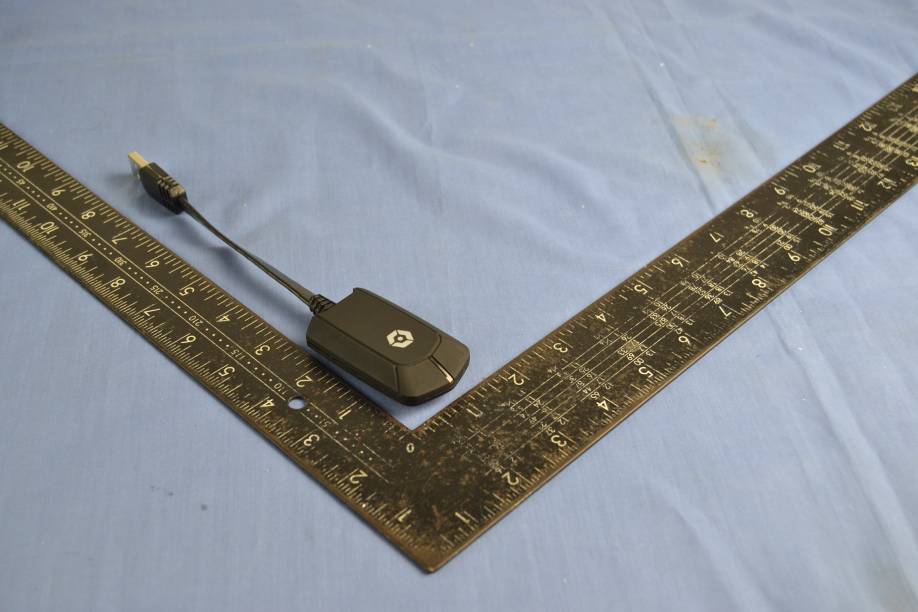

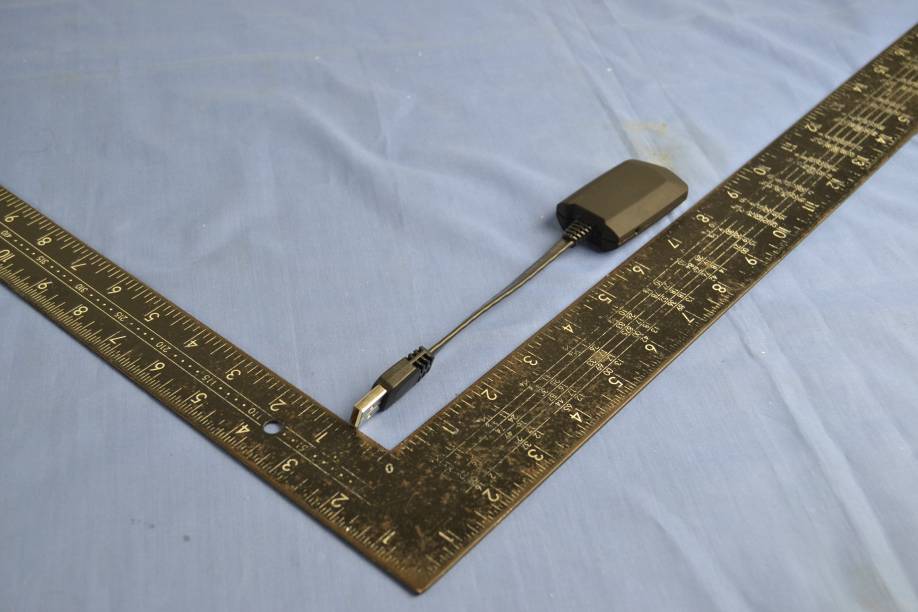

Report No.: C140718Z03 Page 1/3 External Photos of EUT Report No.: C140718Z03 Page 2/3 Report No.: C140718Z03 Page 3/3

Report No.: C140718Z03 Page 1/3 Internal Photos of EUT RF Module Report No.: C140718Z03 Page 2/3 Antenna 1 Antenna 2 Report No.: C140718Z03 Page 3/3

Report No.: C140718Z03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: VS9HC5UNIDSW Page 1 / 58 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HC5 Dongle Model: HC5UNI-D Brand: N/A Test Report Number: C140718Z03-RP1 Prepared for Goodbetterbest Limited Suites 103-107 Devonshire Business Centre, Works Road, Letchworth, SG6 1GJ UK Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: August 15, 2014 检 测 CNAS L4818 Report No.: C140718Z03-RP1 FCC ID: VS9HC5UNIDSW Page 2 of 58 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Data Revisions Effect Page Revised By 00 August 15, 2014 Initial Issue ALL Sabrina Wang Report No.: C140718Z03-RP1 FCC ID: VS9HC5UNIDSW Page 3 of 58 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20dB BANDWIDTH........................................................................................................9 6.2 PEAK POWER.............................................................................................................14 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................16 6.4 BAND EDGES MEASUREMENT ................................................................................17 6.5 FREQUENCY SEPARATION ......................................................................................27 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................30 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................33 6.8 SPURIOUS EMISSIONS .............................................................................................37 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................55 Report No.: C140718Z03-RP1 FCC ID: VS9HC5UNIDSW Page 4 of 58 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: HC5 Dongle Model: HC5UNI-D Brand: N/A Tested: July 18~August 14, 2014 Applicant: Goodbetterbest Limited Suites 103-107 Devonshire Business Centre, Works Road, Letchworth,SG6 1GJ UK Manufacturer: SKYWING COMMUNICATION ELECTRONICS CO., LTD No.10 Road 63#, Longyan, Humen Town, Dongguan City, Guangdong, China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140718Z03-RP1 FCC ID: VS9HC5UNIDSW Page 5 of 58 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product HC5 Dongle Model Number HC5UNI-D Brand N/A Model Discrepancy N/A Identify Number C140718Z03-RP1 Power Supply DC5V supplied by the notebook Received Date July 18, 2014 Frequency Range 2403-2477MHz Transmit Power Antenna 1: -7.31dBm Antenna 2: -6.78dBm Modulation Technique FHSS Number of Channels 38 Channels Antenna Specification Antenna 1: PCB Antenna with -3dBi (Max) Antenna 2: Linear Antenna with -3dBi (Max) Temperature Range -20°C ~ +60°C Hardware Version 2011-07-26 Software Version 2014-07-03 Note: Th…

Text truncated - open the document above for the full version.

Report No.: C140718Z03-RP1 FCC ID: VS9HC5UNIDSW Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Below 1GHz Above 1GHz Report No.: C140718Z03-RP1 FCC ID: VS9HC5UNIDSW Page 2/2 CONDUCTED EMISSION TEST
