VTIS24PED24 PORT FAST ETHERNET POE SWITCH

FULLRIVER (HONGKONG) CO.,LTD Shenzhen Branch Office: Room 0708,QIURUI Building, Minkang Road, Minzhi Avenue, Longhua Town, Baoan District, Shenzhen, China Http://www.prolink-cn.com 24 Port 10/100Mbps POE Unmanaged Fast Ethernet Switch PE6224 Description PE6224 24-port 10/100M Desktop POE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. These POE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. PE6224 is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the 24-port 10/100M Desktop POE Switch is a great selection for expanding your home or office network. Features ¾ Supports PoE power up to 15.4W for each PoE port ¾ Supports PoE power up to 138W for all PoE ports ¾ Supports PoE IEEE802.3af compliant PDs ¾ Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode ¾ 8K entry MAC address table of the SW-1024P with auto-learning and auto-aging ¾ LED indicators for monitoring power, link, activity and speed ¾ External power adapter supply FULLRIVER (HONGKONG) CO.,LTD Shenzhen Branch Office: Room 0708,QIURUI Building, Minkang Road, Minzhi Avenue, Longhua Town, Baoan District, Shenzhen, China Http://www.prolink-cn.com Specification Model PE6224 Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX Network Media (Cable) 10BASE-T:UTP category 3,5 cable(maximum 100m) 100BASE-T: UTP category 3,5 cable (maximum 100m) Number of Ports 24 x 10/100Mbps Auto-Negotiation ports 10/100M Link/Act LED indicators Other Power Transfer Method Store-and-Forward Switching Capacity 4.8G MAC Address Learning Automatically learning, automatically Update 8K Frame Filtering and Forward Rate 10Mbps: 14880pps, 100Mbps: 148800pps Dimensions (W × D × H) 442*208*44 mm Environment Operating Temperature: 0°C - 40°C Storage Temperature: -40°C - 70°C Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing Gross Weight Net weight Qty Certificate CE, FCC FULLRIVER (HONGKONG) CO.,LTD Shenzhen Branch Office: Room 0708,QIURUI Building, Minkang Road, Minzhi Avenue, Longhua Town, Baoan District, Shenzhen, China Http://www.prolink-cn.com FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram 24 Port 10M/100Mbps MCU IP1725 XTAL 25MHz LED Circuit EEPROM Port 1 ~24 RJ45 with POE Power AC 100-240V Power Supply

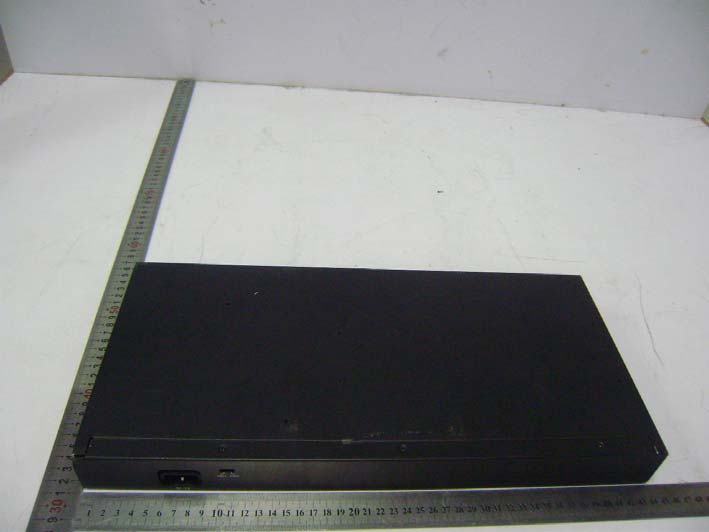

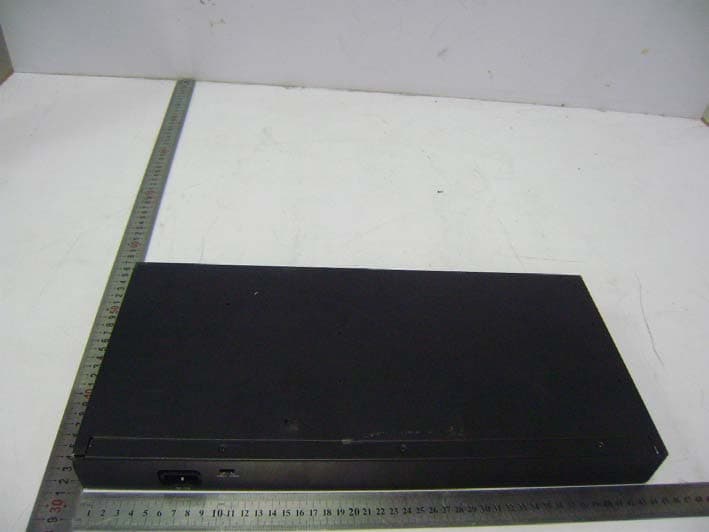

FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VTIS24PED This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VTIS24PED This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B Solder Board-Component View 2 Solder Board-Component View 3 FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B Solder Board-Component View 4 Solder Board-Component View 5 FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B Solder Board-Component View 6

Circuit Description The product is a fast ethernet switch with maximum 10M/100Mbps transmission rate,the IC-IP1725 is a master control unit with a 25 MHz oscillator as base clock frequency, and the master function as follows: 1. To processing the communication data for uplink and downlink. 2. Link to computer network terminal via port 1~24 RJ45 with PoE power supply. 3. The power supply is AC100-240V.

55 44 33 22 11 D D C C B B A A VCC1VCC19VCC33GNDP0RD-P0RD+P1RD+P1RD-P2RD+P2RD-P3RD+P3RD-P4RD+P4RD-P5RD+P5RD-P6RD+P6RD-P7RD+P7RD-P11RD+P10RD+P8RD+P15RD+P10RD-P13RD+P13RD-P9RD-P11RD-P12RD+P15RD-P9RD+P12RD-P8RD-P14RD-P14RD+P19RD+P18RD+P16RD+P23RD+P18RD-P21RD+P21RD-P17RD-P19RD-P20RD+P23RD-P17RD+P20RD-P16RD-P22RD-P22RD+ P0TD-P0TD+P1TD+P1TD-P2TD+P2TD-P3TD+P3TD-P4TD+P4TD-P5TD+P5TD-P6TD+P6TD-P7TD+P7TD-P10TD+P13TD-P12TD+P8TD+P15TD-P12TD-P11TD+P13TD+P11TD-P10TD-P9TD-P14TD-P8TD-P9TD+P14TD+P15TD+P18TD+P21TD-P20TD+P16TD+P23TD-P20TD-P19TD+P21TD+P19TD-P18TD-P17TD-P22TD-P16TD-P17TD+P22TD+P23TD+ EEDAT P23_LINKSCAN_MODEP3_LINKP2_LINKP1_LINKP0_LINKP4_LINKP12_LINKP13_LINKP14_LINKP15_LINKP16_LINKP17_LINKP18_LINKP19_LINKP20_LINKP21_LINKP22_LINKP11_LINK X2 CPUDAT P21TD+P20TD- P11RD+ P4RD- P20_LINK P0RD- P22TD+ P14RD+ P10TD+ P8TD- P1RD+ SELF_TEST P13_LINK P18RD+P17TD-P16RD+ P15TD+ P12TD+ P12RD- P15_LINK SCAN_MODE P19_LINK P15TD- P6TD-P5RD+P2TD+ P14_LINK P23RD-P19TD+P19TD- P11TD- P9TD+ P3RD+P0TD+ P5_LINK P11_LINK EECLK P18_LINK P21TD-P20TD+P22RD+ P10RD+ P8TD+ P1TD+ P8_LINK P19RD+P18RD-P16TD- P15RD- P13TD+ P11RD- P10TD- P8RD- P4TD-P4TD+ P22_LINK P6TD+P5TD+P2RD+ P17_LINK P10_LINK P23TD-X1 P0RD+ P22RD-P19RD-P18TD- P13RD+ P13TD- P3TD+ P16_LINK P6_LINK EEDAT X1 P20RD+P16RD- P7TD+P3TD- P9_LINK P12_LINK P11TD+ P10RD- P9TD- P8RD+ P2RD-P1TD- P23RD+P21RD+P17RD-P17RD+ P12RD+ P4RD+ P23_LINK CPUCLK P22TD- P14TD+ P7RD+P6RD+P1RD- P7_LINK P21RD-P20RD-P18TD+P17TD+P16TD+ P15RD+ P14RD- P12TD- P6RD-P5TD- P21_LINK P23TD+ HW_RESET X2 P7RD-P7TD-P5RD-P3RD-P2TD- P13RD- P9RD- P9RD+ P0TD- P2_LINK MDIO MDC AVDD_1 AVDD_2 AVDD_3 AVDD_4 DVDDAVDD_5AVDD_6DVDDAVDD_7AVDD_8 AVDD_9AVDD_10DVDDAVDD_11AVDD_12 DVDD DVDD VDDIO DVDD DVDD VDDIO DVDD P14TD- VDDIO P4_LINK P3_LINK P1_LINK P0_LINK DVDD PJ_GND P0_LINKP1_LINKP2_LINKP3_LINKP4_LINKP5_LINKP6_LINKP7_LINKP8_LINKP9_LINKP10_LINKP11_LINKP12_LINKP13_LINKP14_LINKP15_LINKP16_LINKP17_LINKP18_LINKP19_LINKP20_LINKP21_LINKP23_LINKP22_LINK SELF_TEST HW_RESET MDCMDIO EECLK EECLK CPUCLKCPUDAT DVDD AVDD AVDD_1AVDD_2AVDD_3AVDD_4AVDD_5AVDD_6AVDD_7AVDD_8AVDD_9AVDD_10AVDD_11AVDD_12 VCC33 VCC33 VCC33VCC33 VCC33 VCC33 VCC19 VCC1 AVDD VCC1 4 VCC19 2,4 GND 2,3,4 VCC33 3,4 P0RD- 2 P1RD- 2 P1RD+ 2 P2RD- 2 P2RD+ 2 P3RD- 2 P3RD+ 2 P4RD- 2 P4RD+ 2 P5RD- 2 P5RD+ 2 P6RD- 2 P6RD+ 2 P7RD- 2 P7RD+ 2 P14RD+ 2 P9RD+ 2 P13RD- 2 P12RD+ 2 P8RD- 2 P14RD- 2 P8RD+ 2 P13RD+ 2 P12RD- 2 P10RD+ 2 P15RD- 2 P15RD+ 2 P9RD- 2 P10RD- 2 P11RD- 2 P11RD+ 2 P22RD+ 2 P17RD+ 2 P21RD- 2 P20RD+ 2 P16RD- 2 P22RD- 2 P16RD+ 2 P21RD+ 2 P20RD- 2 P18RD+ 2 P23RD- 2 P23RD+ 2 P17RD- 2 P18RD- 2 P19RD- 2 P19RD+ 2 P0TD- 2P0TD+ 2P1TD- 2P1TD+ 2P2TD- 2P2TD+ 2P3TD- 2P3TD+ 2P4TD- 2P4TD+ 2P5TD- 2P5TD+ 2P6TD- 2P6TD+ 2P7TD- 2P7TD+ 2P13TD+ 2P12TD- 2P15TD- 2P11TD- 2P9TD- 2P8TD- 2P10TD- 2P11TD+ 2P10TD+ 2P12TD+ 2P14TD- 2P13TD- 2P15TD+ 2P14TD+ 2P9TD+ 2P8TD+ 2P21TD+ 2P20TD- 2P23TD- 2P19TD- 2P17TD- 2P16TD- 2P18TD- 2P19TD+ 2P18TD+ 2P20TD+ 2P22TD- 2P21TD- 2P23TD+ 2P22TD+ 2P17TD+ 2P16TD+ 2 P0RD+ 2 PJ_GND 2,5 P0_LINK 3P1_LINK 3P2_LINK 3P3_LINK 3P4_LINK 3P5_LINK 3P6_LINK 3P7_LINK 3P8_LINK 3P9_LINK 3P10_LINK 3P11_LINK 3P12_LINK 3P13_LINK 3P14_LINK 3P15_LINK 3P16_LINK 3P17_LINK 3P18_LINK 3P19_LINK 3P20_LINK 3P21_LINK 3P22_LINK 3P23_LINK 3 TitleSize Document Number Rev Date: Sheet of IP1725D2V04 0.1 IP1725 Dumb Demo Board - IP1725 1 5 Wednesday, August 04, 2010 TitleSize Document Number Rev Date: Sheet of IP1725D2V04 0.1 IP1725 Dumb Demo Board - IP1725 1 5 Wednesday, August 04, 2010 TitleSize Document Number Rev Date: Sheet of IP1725D2V04 0.1 IP1725 Dumb Demo Board - IP1725 1 5 Wednesday, August 04, 2010 EEPROM Crystal Pin_Setting Near IP1725 Near IP1725 Near IP1725 Near IP1725 Near IP1725 IC Plus Corp. SELF_TEST SELF_TEST R26 led_mode1R35 home_vlan_disR28 bpdu_bcst_onR33 port_pri_mode1R32 port_pri_mode0R37 p25_full_duplexR21 blink_time R30 tag_pri_disR19 test mode enableR23 rg_xen_onR29 igmp_disR20 valid_learnR36 auto_slewR31 ip_pri_disR34 bcst_control_disR24 n_p25_force_linkR27 mode_selectR17 scan_modeR25 led_mode0R22 oq_aging_dis Reset AME8500AEETAE29 Reset MDIOGNDMDC CPUCLKGNDCPUDAT RC Reset Add R9,C35,S1 Remove UX1   Reset IC Add UX1 Remove R9,C35,S1   1.0V_Digital 1.9V_Analog 3.3V_IO AVDD DVDD VDDIO Near IP1725 GMLB-160808-0300A-N2Reference Bead Part No. R5 10K R5 10K R10R10 L13 60ohm120MHz2A L13 60ohm120MHz2A CG4 1nF(2kv) CG4 1nF(2kv) C12 0.1uF C12 0.1uF JP2 CON3 JP2 CON3 1 1 2 2 3 3 U2AT24C16/SMD/NCU2AT24C16/SMD/NC A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 C31 22uF C31 22uF C80.1uFC80.1uF C20 0.1uF C20 0.1uF C10 0.1uF C10 0.1uF R7 4.7K/NC R7 4.7K/NC L15 300ohm100MHz L15 300ohm100MHz C33 0.1uF C33 0.1uF H10CHASSIS_GNDH10CHASSIS_GND 1 C30 220uF(6.3V) C30 220uF(6.3V) C18 22pF C18 22pF C32 10nF C32 10nF R8 4.7K/NC R8 4.7K/NC L14 300ohm100MHz L14 300ohm100MHz CG9 1nF(2kv) CG9 1nF(2kv) R296.19K/1%R296.19K/1% C1 0.1uFC1 0.1uF JP1 CON3 JP1 CON3 1 1 2 2 3 3 C2 0.1uFC2 0.1uF L10 300ohm100MHz L10 300ohm100MHz C19 0.1uF C19 0.1uF R3 470KR3 470K C26 0.1uF C26 0.1uF C3 0.1uFC3 0.1uF CG6 1nF(2kv) CG6 1nF(2kv) C4 0.1uFC4 0.1uF L9 300ohm100MHz L9 300ohm100MHz C5 0.1uFC5 0.1uF CG8 1nF(2kv)/NC CG8 1nF(2kv)/NC CG16 1nF(2kv)/NC CG16 1nF(2kv)/NC C6 0.1uFC6 0.1uF R25 4.7K R25 4.7K C7 0.1uFC7 0.1uF C16 22pF C16 22pF L12 60ohm120MHz2A L12 60ohm120MHz2A CG12 1nF(2kv) CG12 1nF(2kv) L8 300ohm100MHz L8 300ohm100MHz R24 4.7K/NC R24 4.7K/NC R23 4.7K/NC R23 4.7K/NC C25 0.1uF C25 0.1uF C35 22uF C35 22uF R22 4.7K/NC R22 4.7K/NC C13 0.1uF C13 0.1uF L7 300ohm100MHz L7 300ohm100MHz R21 4.7K/NC R21 4.7K/NC H5 CHASSIS_GND H5 CHASSIS_GND 1 C17 0.1uF C17 0.1uF R4 1K/NC R4 1K/NC R20 4.7K/NC R20 4.7K/NC C9 0.1uF C9 0.1uF CG3 1nF(2kv) CG3 1nF(2kv) CG5 1nF(2kv) CG5 1nF(2kv) C3730pFC3730pF R30 1.5K R30 1.5K R19 4.7K/NC R19 4.7K/NC CG17 1nF(2kv) CG17 1nF(2kv) C14 0.1uF C14 0.1uF C29 10nF C29 10nF L6 300ohm100MHz L6 300ohm100MHz C210.1uFC210.1uF R18 4.7K/NC R18 4.7K/NC R271KR271K R17 4.7K/NC R17 4.7K/NC R31NCR31NC R26 4.7K/NC R26 4.7K/NC H4CHASSIS_GNDH4CHASSIS_GND 1 R16 4.7K/NC R16 4.7K/NC L5 300ohm100MHz L5 300ohm100M…

Text truncated - open the document above for the full version.

FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I PAGE 1 OF 13 FCC PART 15B FCC PART 15B MEASUREMENT AND TEST REPORT FOR FULL RIVER (HONGKONG) LIMITED Room 0708, QiuRui Building, MinKang Rd., MinZhi DaDao, LongHua Town, BaoAn District, ShenZhen, China FCC ID: VTIS24PED Report Concerns: Original Report Equipment Type: 24 Port Fast Ethernet PoE Switch Model: SW1024P Report No.: STR10118120I Test Date: 2010-11-11 to 2010-12-25 Issue Date: 2011-01-07 Tested By: Breeze Jiang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I PAGE 2 OF 13 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107 (A)- CONDUCTED EMISSION .................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 TEST RECEIVER SETUP...........................................................................................................................................7 3.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 TEST RECEIVER SETUP.........................................................................................................................................11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................11 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................11 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I PAGE 3 OF 13 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: FULL RIVER (HONGKONG) LIMITED Address of applicant: Room 0708, QiuRui Building, MinKang Rd., MinZhi DaDao, LongHua Town, BaoAn District, ShenZhen, China Manufacturer: FULL RIVER (HONGKONG) LIMITED Address of manufacturer: FullRiver Industrial Ceramics Estate Garden Area LiLing City HuNan Province China General Description of E.U.T Items Description EUT Description: 24 Port Fast Ethernet PoE Switch Trade Name: FullRiver Model No.: SW1024P, POEFE24T Rated Voltage: AC 100-240V Rated Current: / Packaging Size: 44.2X20.7X4.3 cm For more information refer to the circuit diagram form and the user’s manual. The test data is gathered from a produc…

Text truncated - open the document above for the full version.

FULL RIVER (HONGKONG) LIMITED Model: SW1024P REPORT NO.: STR10118120I FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission Test Setup Radiation Emission Test Setup
