VTIWL03U04UWireless Lan Card

Quick Installation Guide 11N USB Quick Installation Guide Product Name: Wireless Lan Card Model No.: WL03U, (WL04U) FCC ID: VTI WL03U04U A：Install elucidation: "The CD installs a method" belongs to general use installs method, concretely as follows: 1、Before device installation, please install the software from the CD，Click on the “Setup exe” link to begin the installation. (Figure 1) (Figure 1) Quick Installation Guide 2、The Setup Program will detect automatically the install drivers and correct software by itself. The customer is according to "drive to install a guide to carry on to gradually install ". (Figure 2, 3,4 ) (Figure 2) Quick Installation Guide (Figure 3) (Figure 4) Quick Installation Guide 3、Click on “Finish”. The setup is already done. 4、Please, restart your computer and when Windows is loaded, insert the USB Adapter into an empty USB slot of your computer. (Figure 5) (Figure 5) B：OPERATION MODES: 1、When the wireless net card drives allocation completion, this icon right the table's top in computer is appear as follows a diagram mark .(Figure 6) (Figure 6) 2、click that diagram mark will be appear as follows interface, (figure 7) Quick Installation Guide (Figure 7) 2、Choose a “Network” item, then click a “Rescan” options, the net card will search and can use a network and as follows the diagram show: (Figure 8) Quick Installation Guide (Figure 8) 3、First, choice demand of wireless network，Then click a“Connect”options, the wireless network connects a chain success, and will be appear as follows interface .(figure 9) Quick Installation Guide (Figure9) C: SECURITY OPTIONS: 1、WEP: If the other wireless device has this function activated, ask the WLAN Administrator to get the key password. Think about the type and size of the password (Hex or ASCII and 64/128 bit) 2、WPA: If the other wireless device has this function activated, ask the WLAN Administrator to get the key password. The whole allocation process has been already complete. D: Caution 1、FCC Caution This device complies with part 15 of the FCC rules. Quick Installation Guide Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. 2、RF warning statement : The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. E: Statement changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, Quick Installation Guide which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Rt8188 RT8191/ CAT7103 ANT ANT LED EEPROM 2.4G TX/RX CHAIN0 2.4G RX CHAIN 1 FULLRIVER TECH INC 01-102031 ANT: ANTENNA PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Full River (Hongkong) Ltd. Full River Industrial Zone, Ceramics Estate Garden Area, Liling City, Hunan Province, China (2009-12-22) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _ Full River (Hongkong) Ltd. __hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: Wireless Lan Card Model No.: WL03U, WL04U We affirm that between SIEMIC and _ Full River (Hongkong) Ltd. __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title Tely Zhu Contact information / address Full River (Hongkong) Ltd. Full River Industrial Zone, Ceramics Estate Garden Area, Liling City, Hunan Province, China

Full River (Hongkong) Ltd. Full River Industrial Zone, Ceramics Estate Garden Area, Liling City, Hunan Province, China (2009-12-22) To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: To Whom It May Concern: This letter is to ascertain that _Full River (Hongkong) Ltd. Product name: Wireless Lan Card Model No.: WL03U, WL04U has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature: Client’s name / title Tely Zhu Contact information / address Full River (Hongkong) Ltd. Full River Industrial Zone, Ceramics Estate Garden Area, Liling City, Hunan Province, China

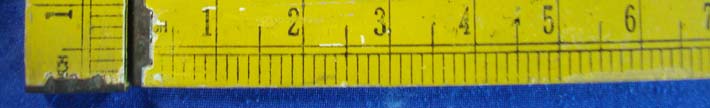

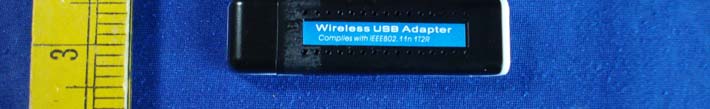

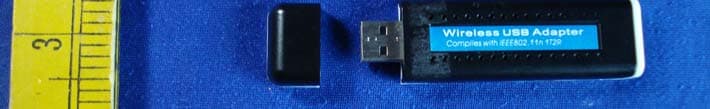

External photos

Label Information Wireless Lan Card Model No.: WU04U FCC ID: VTIWL03U04U Country of Origin: China Full River (Hongkong) Ltd. FCC Caution: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless Lan Card Model No.: WL03U FCC ID: VTIWL03U04U Country of Origin: China Full River (Hongkong) Ltd. FCC Caution: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Location FCC ID Label Location

Internal Photos

Operational De scription Overview This device is a WLAN 11n USB C lient Adapter which operates in the, 2 4GHz ISM band The system is compliant with IEEE Wireless LAN.. standards 802 11b g n draft 2 0. / /. . It uses OFDM technique that the maximum data rate could up to 300Mbps If the signal to noise ratio is too poor which could not support. 150/300Mbps the 11Mbps data rate with DSSS technique w ill be applied,. System Structure The RT8188/RT8191 integrates a media access control MAC a baseband(), processor analog to digital and digital to analog converters USB2 0,- -- -,. client controller and transceiver in one QFN package. Together with multiple input output MIMO radio chip RT8188/RT8191 for/() 2 4GHz to enable 802 11b g n solution.. / /. The RT8188/RT8191 implements multiple inputs multiple output MIMO,(), half duplex OFDM CCK and DSSS baseband processing supporting-,,, 130 Mbps and 300 Mbps for 20 MHz and 40 MHz channel operations respectively and all IEEE 802 11b g data rates,. /. The RT8188/RT8191 supports two simultaneous traffic streams using up to two integrated transmit chains and receive chains for high throughput and range performance Transmit chains combine baseband in phase I and.-( ) quadrature Q signals convert them to the desired frequency and drive( ),, the RF signal to multiple antennas Receiver chains use integrated dual. conversion architecture and require no off chip intermediate frequency IF-( ) filters The frequency synthesizer supports one MHz steps to match.- frequencies defined by IEEE 802 11b g n specification. / /. The 40MHz crystal osc illator feeds to the RT8188/RT8191. The antennas are dipole antenna with reverse SMA connector. Power Supply The EUT is powered by 5Vdc from the host equipment. For more detailed information please take a look at the user,. PDF !"# "pdfFactory Pro" $#%&'(www.fineprint.cn

RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Range Low Frequency (MHz) High Frequency (MHz) Center Frequency (MHz) 60/f SAR Limitation (mW) 2412 2462 2437 24.62 2422 2452 2437 24.62 Maximum measured transmitter power: Conducted Power (mW) Max Antenna Gain (dBi) EIRP (mW) 18.102 ( 802.11b Mode) 0 18.102 12.746 ( 802.11g Mode) 0 12.746 9.731( 802.11n HT20 Mode) 0 9.731 9.792( 802.11n HT40 Mode) 0 9.792 Threshold at which no SAR required is 24.62 mw. Maximum Tx power is 18.102mW EIRP. Conclusion: No SAR is required.

12345678 A B C D 87654321 D C B A 12 34 X1 40MHz C36 20pF C35 20pF RTL8191SU - R43 EECS VDD33 VDD18 VDD33 VDD18 VDD33VDD18VDD15 VDD12 VDD18 VDD25 VDD33 VDD33VDD33VDD12 R3 24KR XI_40MXO_40M XI_40M XO_40M C4 1p2F C3 1p2F L5 2n7H L4 2n7H C1 1u0F TX2G_PA[0]- TX2G_PA[0]+ RX2G[0]+ RX2G[0]- C18 1u0F C15 1u0F C11 1u0F L8 6n8H C5 1u0F C6 0u1F C9 0u1F C10 0u1F C17 0u1F C12 0u1F C13 1u0F C14 0u1F C20 NP C21 22uF C2 0u1F L2 6u8H VDD18 C16 0u1F L9 6n8H C25 10pF C26 10pF VDD33 VDD33 C27 2p2F C28 2p2F L6 2n2H C31 0R C32 0R L12 4n7H C23 1p0F C24 0p8F L3 3n3H C22 NP VDD33 EN 1 GND 2 SW 3 VIN 4 FB 5 U3 CAT7103 L33 4u7H C38 22uF R6 680KR R7 150KR C40 10nF 5VVDD33 C37 10uF R5 100KR C39 10nF 5V HSDM HSDP R8 NP R9 10KR C41 NP GPIO[0]GPIO[1] VDD33VDD33 VDD33 R10 1K0R C8 10pF R12 6K2R EESKEEDIEEDO ANT_1 R22 0R R21 NP R23 NP LED1 LED LED0 LED R2 560R R1 560R LED[0]LED[1] VDD33 C48 100pF CHIP_SELECT 1 DATA_ CLK 2 DATA_IN 3 DATA_OUT 4 GND 5 ORG 6 X 7 VCC 8 U2 NP EECS EESK EEDI EEDO VDD33 TRSWP[0] 2 VD33PA 3 PAPE[0] 1 TX2G_PAON[0] 4 TX2G_PAOP[0] 5 NC 10 RX2G_IN[0] 9 XO 26 ANT_SEL_P 17 EECS 63 TRSWN[0] 6 VD33R 11 NC 12 EESK 62 EEDI / GPIO[7] 61 EEDO / GPIO[6] 60 RX2G_IP[0] 8 NC 13 VD18R[1] 14 VD18D 34 VD12_D 58 NC 46 GND_D 28 VD33IO 55 GGPIO[4] 56 VD33U 36 PDn 48 NC 54 NC 53 GND_D 59 TSSI _0 64 HSDP 38 RX2G_IN[1] 16 RX2G_IP[1] 15 ANT_SEL_N 18 BT_PRI / GPIO[3] / USIN 32 LED[1] 20 NC 44 LED[0] 19 VD12S 40 NC 42 VD33A 21 GND_SPS_0 49 REXT 22 XI 25 NC 27 WL_ACT / GPIO[0] / EEPROM 29 HSDM 39 NC 52 VD33_SPS_0 51 NC 47 LX_SPS_0 50 VD18A 23 VD15A 24 GPIO[5] 57 BT_FREQ / GPIO[1] / HCI_SEL / USOUT 30 VD25E 35 VD12D 33 RREF 37 GND_S 41 NC 43 NC 45 BT_STA / GPIO[2] 31 VD18R[0] 7 GND_RF 65 U1 RTL8191SU RX2G[1]+ RX2G[1]- C30 1p2F C29 1p2F L11 2n7H L10 2n7H C33 1n0H C34 1n0H L7 2n2H ANT_2 R25 0R R24 NP R26 NP IO 1 SW 2 GND 3 GND 4 GND 5 GND 6 CON1 MURATA IO 1 SW 2 GND 3 GND 4 GND 5 GND 6 CON2 MURATA GPIO[4] SW1 SW SPST R11 1K0R C7 10nF VDD33 1 2 3 4 CON3 USB 5V HSDM HSDP L31 0R L32 0R GPIO[4] PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SHENZHEN SETEK TECHNOLOGY CO., LTD. Report No.: FCI0912043R Page 1 of 76 FCC TEST REPORT REPORT NO.: FCI0912043R MODEL NO.: WL03U, WL04U RECEIVED: Dec. 10, 2009 TESTED: Dec. 11, 2009 to Dec. 24, 2009 APPLICANT: Full River (Hongkong) Ltd. ADDRESS: Full River Industrial Zone, Ceramics Estate Garden Area, Liling City, Hunan Province, China ISSUED BY: SHENZHEN SETEK TECHNOLOGY CO., LTD. LAB LOCATION: 2/F,A3 Bldg, East Industry Zone, Overseas Chinese Town, Shenzhen, China This test report consists of 76 pages in total, it may be duplicated completely for legal use with the approval of the applicant, It should not be reproduced except in full, without the written approval of our laboratory, The test results in the report only apply to the tested sample. SHENZHEN SETEK TECHNOLOGY CO., LTD. Our website: www.setek.com.cn E-mail: [email protected] TEL:86-755-26966362 FAX: 86-755-26966270 SHENZHEN SETEK TECHNOLOGY CO., LTD. Report No.: FCI0912043R The device described above is tested by SHENZHEN SETEK TECHNOLOGY CO., LTD. to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. This report applies to above tested sample only and shall not be reproduced in part without written approval of SHENZHEN SETEK TECHNOLOGY CO., LTD. Page 2 of 76 Prepared for : Full River (Hongkong) Ltd. Address : Full River Industrial Zone, Ceramics Estate Garden Area, Liling City, Hunan Province, China Product : Wireless Lan Card Model No(s). : WL03U, WL04U Trademark : N/A Test Standard : FCC Part 15 Paragraph 15.247 Prepared by : SHENZHEN SETEK TECHNOLOGY CO., LTD. Address : 2/F, A3 Bldg, East Industry Zone, Overseas Chinese Town, Shenzhen, China Tel: (86-755) 26966362 Fax:(86-755) 26966270 Test Lab : SEM Test Compliance Service Co., Ltd. Address : 3/F, Jinbao Commerce Bldg., Xin’an Fanshen Rd., Bao’an District, Shenzhen, P. R. China FCC R.N. : FCC Registration Number: 994117 Prepared by : (Engineer) Reviewer by : (Project Engineer) Approved by : (Manager) Report Number : FCI0912043R Date of Test : Dec. 11, 2009 to Dec. 24, 2009 Date of Report : Dec. 24, 2009 FCC ID : VTI WL03U04U SHENZHEN SETEK TECHNOLOGY CO., LTD. Report No.: FCI0912043R The device described above is tested by SHENZHEN SETEK TECHNOLOGY CO., LTD. to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. This report applies to above tested sample only and shall not be reproduced in part without written approval of SHENZHEN SETEK TECHNOLOGY CO., LTD. Page 3 of 76 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................ 5 1.1 Description of Device (EUT)........................................................................................................................ 5 1.2 Test Summary ............................................................................................................................................... 6 1.3. Description of Support Device .................................................................................................................... 7 1.4. Standards Applicable for Testing ................................................................................................................ 7 1.5. List of Measuring Equipments Used ........................................................................................................... 8 1.6. Test Facility ................................................................................................................................................. 8 2. ANTENNA REQUIREMENT .............................................................................................................. 9 2.1 Standard Applicable......................................................................................................................................... 9 2.2 Test Result ....................................................................................................................................................... 9 3. CONDUCTED EMISSION TEST .....................................................................................................10 3.1 Standard Applicable.................................................................................................................................... 10 3.2 Test Equipment ........................................................................................................................................... 10 3.3 Test Procedure ............................................................................................................................................ 10 3.4 Conducted Test Setup ................................................................................................................................. 10 3.5 Environmental Conditions .......................................................................................................................... 11 3.6 Summary of Test Results ............................................................................................................................ 11 4 POWER SPECTRAL DENSITY .................................................................................................. 12 4.1 Standard Applicable.................................................................................................................................... 12 4.2 Test Equipment List and Details................................................................................................................. 12 4.3 Test Procedure ............................................................................................................................................ 12 4.4 Environmental Conditions .............................................................................................…
