VTJS10611IDENTICOM i700

User Guide and Technical Reference Manual Guide d’utilisation et Manuel de référence technique Benutzerhandbuch und technisches Referenzhandbuch August 2005 Revision 1.16 This manual applies to Identicom software versions V2.07 and later. Preface page ii 08/05  August 2005 Connexion2 Ltd 1 North Anston Business Centre Houghton Road Dinnington Sheffield S25 4JJ England Email: [email protected] Website: www.connexion2.com Printed in England August 2005 Preface 08/05 page iii About Identicom Identicom is a communication device disguised as an ID card holder. It enables vulnerable solitary workers to communicate discreetly with their back-up services in potentially hazardous situations. About this guide This guide is divided into two sections: the User Guide section provides set- up and operating information for the people using the device; the Technical Reference section provides configuration information for the people who deploy and manage the system, and run the back-up services. À propos d’Identicom Identicom est un périphérique de communication qui se dissimule dans un porte-carte d’identification. Il permet aux employés solitaires et vulnérables de communiquer discrètement avec les services de support dans des situations potentiellement dangereuses. À propos de ce guide Ce guide se divise en deux parties : le Guide d’utilisation qui fournit des informations de configuration et d’utilisation à l’intention des utilisateurs du périphérique, et le Manuel de référence technique qui contient des informations de configuration destinées à ceux qui assurent le déploiement du système, ainsi que sa gestion et celle des services de support. Über Identicom Identicom ist ein Kommunikationsgerät in Form eines Ausweiskartenhalters. Das Gerät ermöglicht es gefährdeten, allein arbeitenden Mitarbeitern, in potenziell gefährlichen Situationen unbemerkt mit ihren Unterstützungsdiensten zu kommunizieren. Über dieses handbuch Dieses Handbuch ist in zwei Teile unterteilt: Das Benutzerhandbuch enthält Hinweise zur Einstellung und Bedienung für die Benutzer des Geräts; das technische Referenzhandbuch enthält Konfigurationsinformationen für die Mitarbeiter, die das System installieren und verwalten sowie den Unterstützungsdienst bereitstellen. ENGLISH FRANÇAIS DEUTSCH Preface page iv 08/05 Identicom Limited Warranty Thank you for buying this Connexion2 product. Please read this user manual before attempting to use it. To avoid damaging the Identicom, do not: o Expose it to extremes of temperature or humidity; o Subject it to hard knocks or excessive force; o Immerse it in liquid; or o Use volatile or corrosive substances when cleaning it, as damage caused in any of these ways is not covered by this warranty. If you have any difficulty using your Identicom, consult the user manual to check you are using it correctly. If within 12 months of the date of purchase this Identicom does not function substantially as described in the user manual because of defective materials or workmanship, Connexion2 Limited will repair it free of charge, subject to the following conditions: Where the fault is the result of misuse, unusual external effects, accidental damage, normal wear and tear, or unauthorised repair, Connexion2 Limited may charge you for the repair and retain this Connexion2 product until you have paid that charge in full. You must produce proof of purchase, showing the date of purchase of this Connexion2 product, to have a repair carried out free of charge under this warranty, so please keep your receipt/invoice safely. To have this Connexion2 product repaired under this warranty, either return it personally or send it by registered post, together with your sales receipt, to your Connexion2 supplier or to Connexion2 Ltd, at the address shown in this user manual. Please ensure that it is properly and securely packed. Please note that we will not be liable for damage to or loss of this Connexion2 product while it is in transit to Connexion2 or a Connexion2 supplier; check that your insurance covers the relevant risks. Service is only available in countries where Connexion2 Limited officially distributes the product. In the event of Connexion2 being unable to correct or replace the Identicom, Connexion2’s liability to you shall not exceed the purchase price of the Identicom. In no event will Connexion2 be liable for direct, indirect, special, incidental or consequential loss of profits or loss of data arising out of use or misuse of the Identicom. Nothing in this warranty shall limit or restrict Connexion2’s liability for death or personal injury cased by its negligence. Preface 08/05 page v Contents User Guide.......................................................................................................... 1 1 Introduction.................................................................................................. 1 2 Initial Setup.................................................................................................. 3 Installing the Lanyard or Lapel Clip........................................................... 3 Inserting the SIM card............................................................................... 4 Charging ................................................................................................... 6 Inserting your ID card ............................................................................... 6 Switching the device on and off ................................................................ 6 3 Status Checking .......................................................................................... 7 Battery and Signal status checking ........................................................... 7 SIM card faults .......................................................................................... 8 Red and Amber Alert status...................................................................... 8 Ending the status display .............................…

Text truncated - open the document above for the full version.

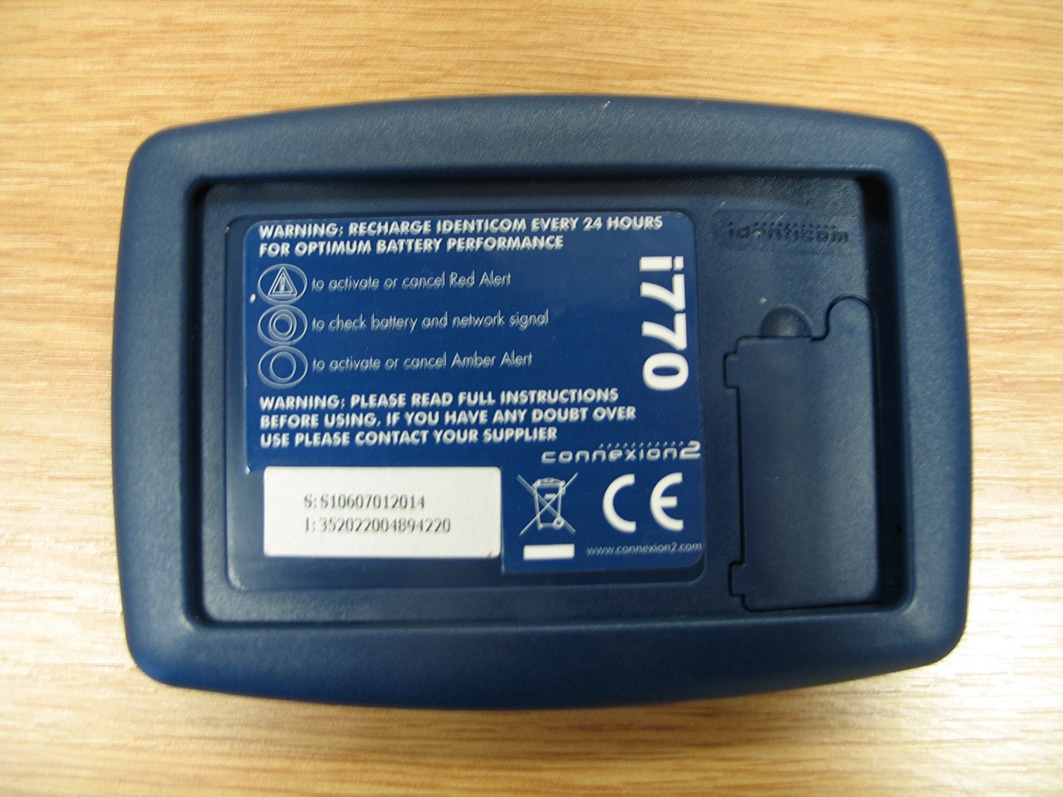

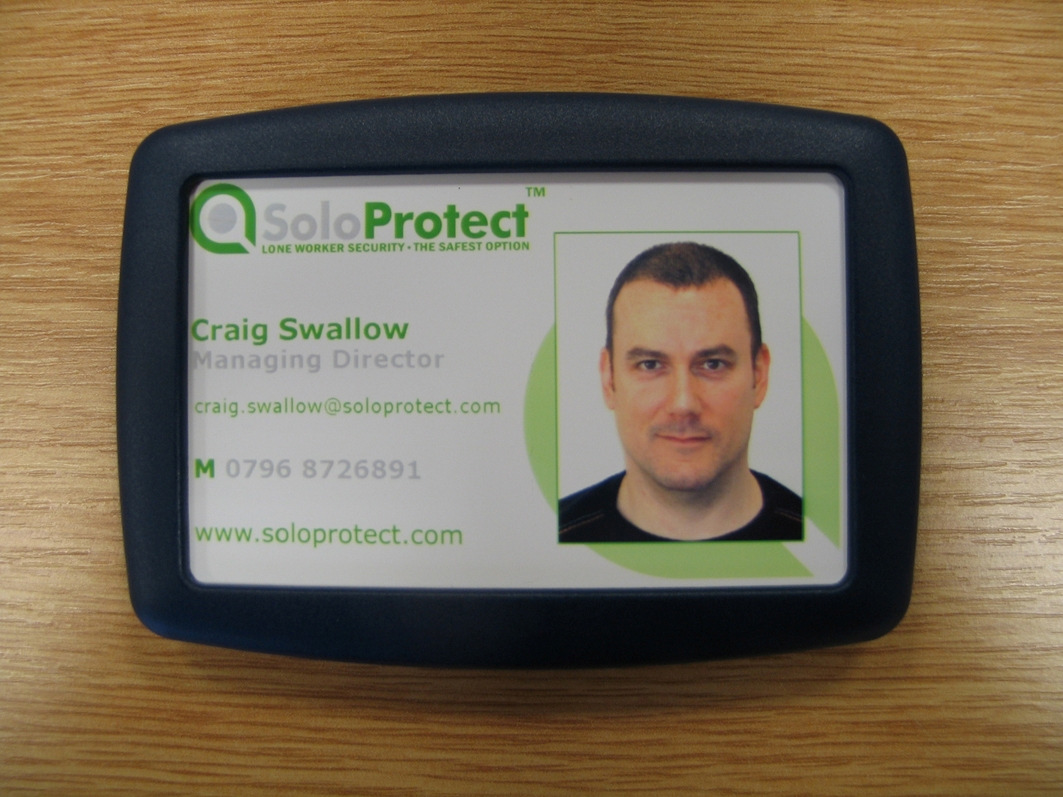

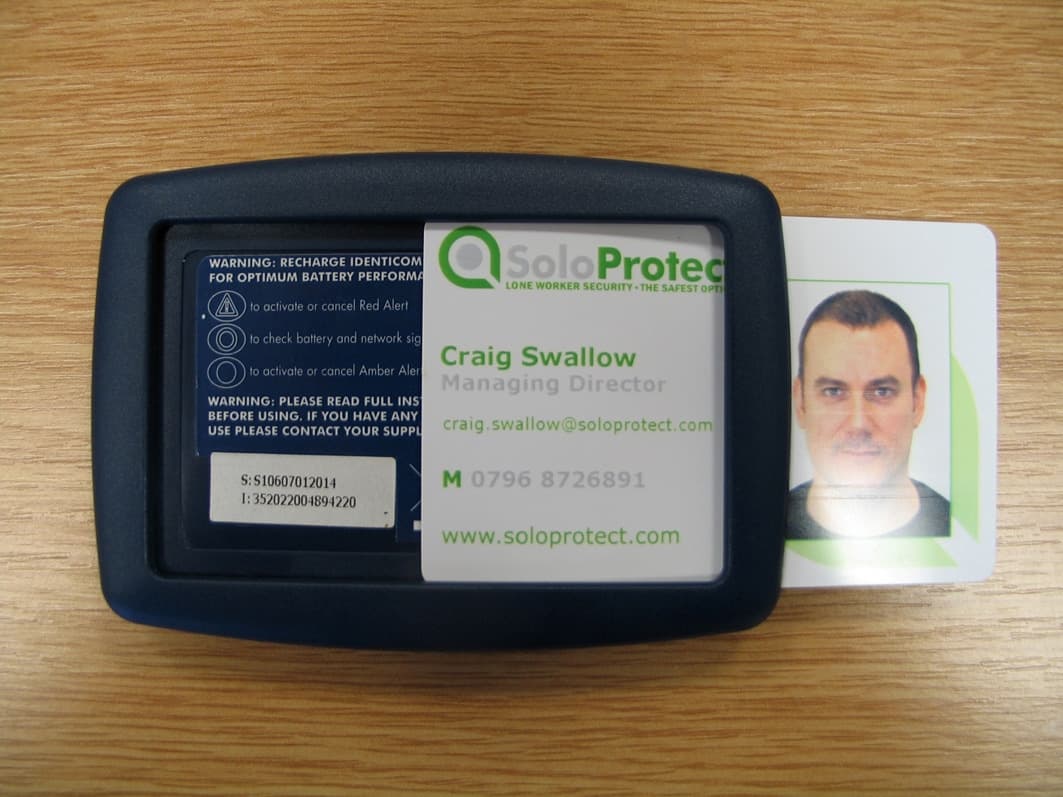

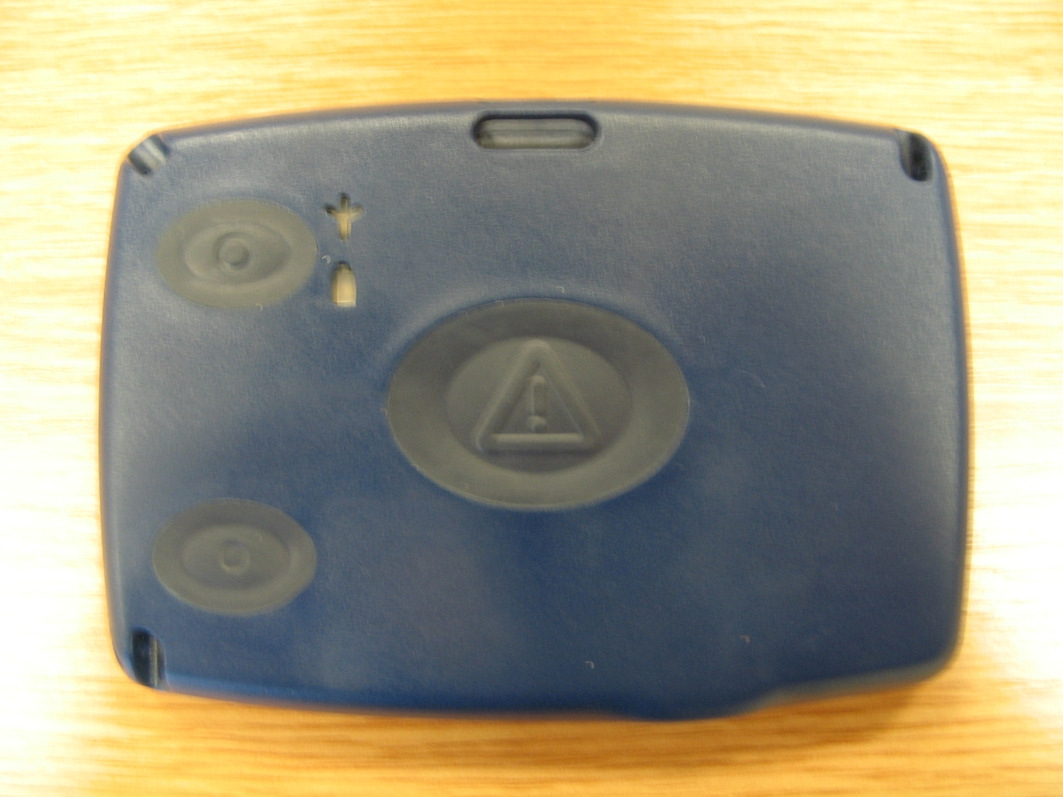

Identicom i770 – External Photos Identicom unit without an ID card inserted Identicom unit with ID card half inserted Identicom unit with ID card inserted SIM card door Identicom rear view

Identicom i770 – Label location Statement re label location Both of the labels highlighted above are clearly visible to the user. The insert of an ID card is temporary during product use with the design allowing for the easy and quick removal of the ID card at any time. ID cards are frequently removed as they are often swipe style entry cards and or reoved by the wearer at the end of a period of device usage. Craig Swallow CEO Connexion2 Limited Main label detailing model number and basic user instruction. Second label detailing unit serial number and modem IMEI number

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARE1/RP49684JD01A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader RPG: pp Checked By: Joe Lomako Report Copy No: PDF01 Issue Date: 21 December 2007 Test Dates: 06 December 2007 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 2 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 3 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 8 4. Deviations from the Test Specification .......................................................................... 8 5. Operation and Configuration of the EUT during Testing .............................................. 9 6. Summary of Test Results............................................................................................... 10 7. Measurements, Examinations and Derived Results.................................................... 11 Appendix 1. Test Equipment Used.................................................................................... 18 Appendix 2. Measurement Methods ................................................................................. 21 Appendix 3. SAR Distribution Scans ................................................................................ 23 Appendix 4. Photographs .................................................................................................. 40 Appendix 6. Simulated Tissues......................................................................................... 55 Appendix 7. DASY4 System Details .................................................................................. 56 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 4 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Connexion2 Ltd Address: Momentum House Church Lane Dinnington Sheffield S25 2RG Contact Name: Mr. C Swallow RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 5 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the date of receipt) has been supplied by the customer: 2.1. Description of EUT The equipment under test is a Tri-Band GSM based ID card holder for lone workers. It operates at GSM850 and PCS1900 bands. 2.2. Identification of Equipment Under Test (EUT) Description: GSM based ID holder Brand Name: identicom Model Name or Number: i770 Serial Number: S10607001414 IMEI Number: 35202300460213 8 Hardware Version Number: None Stated Software Version Number: V3.07 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: VTJS10611 Country of Manufacture: United Kingdom Date of Receipt: 04 December 2007 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 6 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Lanyard Brand Name: None Stated Model Name or Number: None Stated Serial Number: Not Applicable Cable Length and Type: 1m Mixed Fiber and Plastic Country of Manufacture: None Stated Connected to Port Lanyard Attachment Plugs Description: Lanyard Brand Name: None Stated Model Name or Number: None Stated Serial Number: Not Applicable Cable Length and Type: 1m Mixed Fabric and Plastic Country of Manufacture: None Stated Connected to Port Lanyard Attachment Plugs 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: GSM Communication Test Set Brand Name: Rohde & Schwarz Model Name or Number: CMU200 Serial Number: 1100.0008.02 Cable Length and Type: 2m Rosenberger Cable Connected to Port: RF Input/Output Port RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 7 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) 2.6. Additional Information Related to Testing Equipment Category GSM850 / PCS1900 Type of Unit Portable Standalone Battery Powered Intended Operating Environment: Within GSM coverage Transmitter Maximum Output Power Characteristics: GSM850 33 dBm PCS1900 30 dBm Transmitter Frequency Range: GSM850 (824 to 849) MHz PCS1900 (1850 to 1910) MHz Channel Number Channel Description Frequency (MHz) 128 Low 824.2 189 Middle 836.4 251 High 848.8 512 Low 1850.2 660 Middle 1879.8 Transmitter Frequency Allocation of EUT When Under Test: 810 High 1909.8 Modulation(s): 217 Hz Modulation Scheme (Crest Factor): 8.3 Antenna Type: Internal Antenna Length: Unknown Number of Antenna Positions: 1 Fixed Po…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 18 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 1. Test Equipment Used RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) A034 Narda 20W Termination Narda 374BNM 8706 Calibrated as part of system - A1094 Digital Camera Sony MVC - FD81 125805 - - A1097 SMA Directional Coupler MiDISCO MDC6223- 30 None Calibrated as part of system - A1137 3dB Attenuator Narda 779 04690 Calibrated as part of system - A1174 Dielectric Probe Kit Agilent Technologies 85070C Us99360072 Calibrated before use - A1328 Handset Positioner Schmid & Partners Modification SD 000 H01 DA - - A1182 Handset Positioner Schmid & Partners V3.0 None - - A1184 Data Acquisition Electronics Schmid & Partner DAE3 394 24 May 2007 12 A1185 Probe Schmid & Partner ET3 DV6 1528 06 July 2007 12 A1238 SAM Phantom Schmid & Partners SAM b 001 Calibrated before use - A1566 SAM Phantom Schmid & Partners SAM a 002 Calibrated before use - A1237 1900 MHz Dipole Kit Schmid & Partner Engineering AG D1900V2 540 11 June 2007 24 A1329 900 MHz Dipole Kit Schmid & Partner Engineering AG D900V2 185 18 May 2007 24 A1497 Amplifier Mini-Circuits zhl-42w (sma) e020105 Calibrated as part of system - A1516 Universal Radio Communications Tester Rohde & Schwarz CMU200 1100.0008.02 Calibration Not required - A215 20 dB Attenuator Narda 766-20 9402 Calibrated as part of system - A512 Double ridged Horn EMCO 3115 3993 17 Sept 2004 (Monitoring use only) - RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 19 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) Test Equipment Used (Continued) RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) C1144 Cable Rosenberger MICRO-COAX FA147AF00 1503030 41842-1 Calibrated as part of system - C1145 Cable Rosenberger MICRO-COAX FA147AF00 3003030 41843-1 Calibrated as part of system - C1146 Cable Rosenberger MICRO-COAX FA147AF03 0003030 41752-1 Calibrated as part of system - C1092 Cable RS Components 293-334 1087200-3 3402 Internal Calibration - G051 Signal Generator Gigatronics 7100/.01-20 749472 Calibrated before use - G0528 Robot Power Supply Schmid & Partner DASY None Calibrated before use - G087 PSU Thurlby Thandar CPX200 100701 Calibrated before use - M010 NRV Power Meter Rohde & Schwarz NRV 882 317/065 06 July 2007 12 M053 HP 8594A Spectrum Analyser HP 8594A 3108U00205 23 February 2006 (Monitoring use only) - M1015 Network Analyser Agilent Technologies 8753ES US39172406 24 September 2007 12 M1047 Robot Arm Staubli RX908 L F00/SD89A1/ A/01 Calibrated before use - M1069 Diode Power Sensor Rohde & Schwarz NRV-Z2 838824/010 19 April 2007 12 M1129 Power Sensor Rohde & Schwarz URY-Z2 890242/16 12 June 2007 12 M136 Temperature/Humi dity/Pressure Meter RS Components None None Internal Calibration - M509 Thermometer Testo 110 40378800433 20 April 2007 12 M1270 Temperature/Humi dity/Pressure Meter RS Components None None Internal Calibration - S256 SAR Lab RFI N/A Site 56 Calibrated before use - NB In accordance with UKAS requirements, all the measurement equipment is on a calibration schedule. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 20 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) A.1.1. Calibration Certificates This section contains the calibration certificates and data for the Probe(s) and Dipole(s) used, which are not included in the total number of pages for this report.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 21 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 2. Measurement Methods A.2.1. Evaluation Procedure The Specific Absorption Rate (SAR) evaluation was performed in the following manner: a) (i) The evaluation was performed in an applicable area of the phantom depending on the type of device being tested. For devices worn about the ear during normal operation, both the left and right ear positions were evaluated at the centre frequency of the band at maximum power. The side, which produced the greatest SAR, determined which side of the phantom would be used for the entire evaluation. The positioning of the head worn device relative to the phantom was dictated by the test specification identified in section 3.1 of this report. (ii) For body worn devices or devices which can be operated within 20 cm of the body, the flat section of the SAM phantom was used were the size of the device(s) is normal. for bigger devices and base station the 2mm Oval phantom is used for evaluation. The type of device being evaluated dictated the distance of the EUT to the outer surface of the phantom flat section. b) The SAR was determined by a pre-defined procedure within the DASY4 software. The exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm or appropriate resolution. c) A 5x5x7 matrix was performed around the greatest spatial SAR distribution found during the area scan of the applicable exposed region. SAR values were then calculated using a 3-D spline interpolation algorithm and averaged over spatial volumes of 1 and 10 grams. d) If the EUT had any appreciable drift over the course of the evaluation, then the EUT was re-evaluated. Any unusual anomalies over the course of the test also warranted a re-evaluation. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 22 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) A.2.2. Specific Absorption Rate (SAR) Measurements to OET Bulletin 65 Supplement C: (2001-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields SAR measurements were performed in accordance with Appendix D of the standard FCC OET Bulletin 65 Supplement C: 2001, against appropriate limits for each measurement position in accordance with the standard. The test was performed in a shielded enclosure with the temperature controlled to remain between +18.0ºC and +25.0ºC. The tissue equivalent material fluid temperature was controlled to give a maximum variation of ± 2.0ºC Prior to any SAR measurements on the EUT, system validation and material dielectric property measurements were conducted. In the absence of a detailed procedure within the specification, system validation and material dielectric property measurements were performed in accordance with Appendix C and Appendix D of FCC OET Bulletin 65 Supplement C: 2001. Following the successful system validation and material dielectric property measurements, a SAR versus time sweep shall be performed within 10 mm of the phantom inner surface. If the EUT power output is stable after three minutes then the measurement probe will perform a coarse surface level scan at each test position in order to ascertain the location of the maximum local SAR level. Once this area had been established, a 5x5x7 cube of 343 points (5 mm spacing in each axis ≈ 27g) will be centred at the area of concern. Extrapolation and interpolation will then be carried out on the 27g of tissue and the highest averaged SAR over a 10g cube determined. Once the maximum interpolated SAR measurement is complete; the coarse scan is visually assessed to check for secondary peaks within 50% of the maximum SAR level. If there are any further SAR measurements required, extra 5x5x7 cubes shall be centred on each of these extra local SAR maxima. At the end of each position test case a second time sweep shall be performed to check whether the EUT has remained stable throughout the test.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 23 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/49684JD01/001 Front Of EUT Facing Phantom GSM CH189 SCN/49684JD01/002 Rear Of EUT Facing Phantom GSM CH189 SCN/49684JD01/003 Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached GSM CH189 SCN/49684JD01/004 Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached GSM CH128 SCN/49684JD01/005 Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached GSM CH251 SCN/49684JD01/006 Front Of EUT Facing Phantom GSM CH128 SCN/49684JD01/007 Front Of EUT Facing Phantom GSM CH251 SCN/49684JD01/008 Front Of EUT Facing Phantom PCS CH660 SCN/49684JD01/009 Rear Of EUT Facing Phantom PCS CH660 SCN/49684JD01/010 Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached PCS CH660 SCN/49684JD01/011 Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached PCS CH512 SCN/49684JD01/012 Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached PCS CH810 SCN/49684JD01/013 Front Of EUT Facing Phantom PCS CH512 SCN/49684JD01/014 Front Of EUT Facing Phantom PCS CH810 SCN/49684JD01/015 System Performance Check 1900MHz Body 06 12 07 SCN/49684JD01/016 System Performance Check 900MHz Body 06 12 07 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 24 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) SCN/49684JD01/001: Front Of EUT Facing Phantom GSM CH189 Date: 06/12/2007 DUT: Connexion2 Ltd; Type: i770; Serial: S10607001414 0 dB = 1.06mW/g Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.978 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.19, 6.19, 6.19); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Front Of EUT Facing Phantom - Middle/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.15 mW/g Front Of EUT Facing Phantom - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.3 V/m; Power Drift = -0.267 dB Peak SAR (extrapolated) = 2.16 W/kg SAR(1 g) = 0.991 mW/g; SAR(10 g) = 0.484 mW/g Maximum value of SAR (measured) = 1.06 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 25 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) SCN/49684JD01/002: Rear Of EUT Facing Phantom GSM CH189 Date: 06/12/2007 DUT: Connexion2 Ltd; Type: i770; Serial: S10607001414 0 dB = 0.362mW/g Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.978 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.19, 6.19, 6.19); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Rear Of EUT Facing Phantom - Middle/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.389 mW/g Rear Of EUT Facing Phantom - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.4 V/m; Power Drift = -0.004 dB Peak SAR (extrapolated) = 0.582 W/kg SAR(1 g) = 0.341 mW/g; SAR(10 g) = 0.201 mW/g Maximum value of SAR (measured) = 0.362 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 26 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) SCN/49684JD01/003: Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached GSM CH189 Date: 06/12/2007 DUT: Connexion2 Ltd; Type: i770; Serial: S10607001414 0 dB = 1.22mW/g Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.978 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.19, 6.19, 6.19); Calibrated: 06/07/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 24/05/2007 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached - Middle/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm, Reference Value = 15.7 V/m; Power Drift = -0.028 dB, Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.524 mW/g Maximum value of SAR (measured) = 1.22 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 27 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) SCN/49684JD01/004: Front Of EUT Facing Phantom With Lanyard & Lapel Clip Attached GSM CH128 Date: 06/12/2007 DUT: Connexion2 Ltd; Type: i770; Serial: S10607001414 0 dB = 1.03mW/g Communication System: 850 MHz; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium param…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 40 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/49684JD01/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/49684JD01/002 Front Of EUT Facing Phantom PHT/49684JD01/003 Rear Of EUT Facing Phantom PHT/49684JD01/004 Front Of EUT Facing Phantom With Lanyard & Lapel Clip PHT/49684JD01/005 Front Of EUT PHT/49684JD01/006 Rear Of EUT PHT/49684JD01/007 Close Up View Of EUT PHT/49684JD01/008 EUT Battery PHT/49684JD01/009 EUT Charger PHT/49684JD01/010 EUT Lanyard PHT/49684JD01/011 EUT Lapel Clip PHT/49684JD01/012 900MHz Body Fluid Level PHT/49684JD01/013 1900MHz Fluid Level RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 41 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/001: Test configuration for the measurement of Specific Absorption Rate (SAR) RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 42 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/002: Front Of EUT Facing Phantom RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 43 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/003: Rear Of EUT Facing Phantom RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 44 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/004: Front Of EUT Facing Phantom With Lanyard & Lapel Clip RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 45 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/005: Front Of EUT RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 46 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/006: Rear Of EUT RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 47 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/007: Close Up View Of EUT RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 48 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/008: EUT Battery RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 49 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/009: EUT Charger RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 50 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001-01) PHT/49684JD01/010: EUT Lanyard RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SARE1/RP49684JD01A Page: 51 of 58 Issue Date: 21 December 2007 Test of: Connexion2 Ltd i770 To: OET Bulletin 65 Supplement C: (2001…

Text truncated - open the document above for the full version.
