VTXFRC0SHOGO remote control

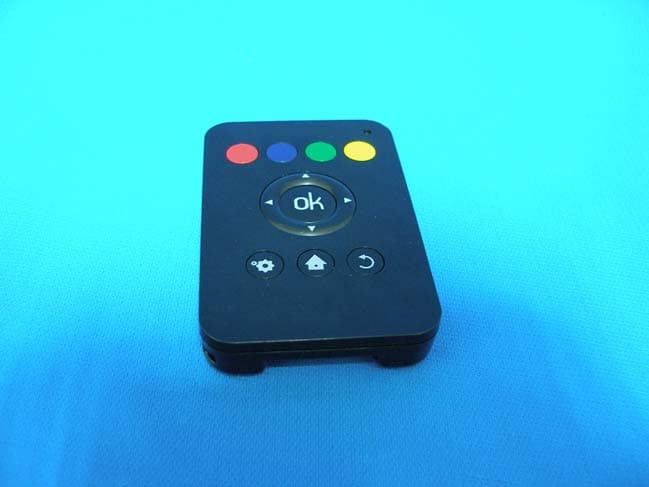

User manual Welcome to use the remote controller which you can control your machine very conveniently. Please use the remote controller according the specification as follows: Major Technical Index 1, Work Voltage: 12V (2.3A battery) 2, Work Current: ≤10mA 3, Work Frequency: 433MHz (option) 4, Transmission Power: 0.6mW 5, Referential transmitting distance: ＞100m (match with the received mould of our company, the data only for open space) 6, Frequency Tolerance: ≤±150KHz Typical Usage； 1, Cars, motorcycles security alarm； 2, Household security alarm. 3, Various remote controls such as electric curtain, rolling curtain and entrances of parking lot . We can see the remote controller have four action buttons: the red one ,the blue one,the green one,the yellow one in the diagraph above. Now ,we tell you how to use these action buttons : The action buttons is the keyboard shortcuts. is the pause key. If you want it to play,please press,.pressis to stop. continue .If you want to previous page ,please press . There are four arrow keys :The up/down arrow keys and the left/right arrow keys. Press up/down arrow keys to adjust the entry,left/right arrow keys to select the entry ,press ok to confirm. There are settings key ,home key, back to previous page keyin the remote control. is the setting key ,if you want to change something ,you can press. Press “Home”on the remoto control to continue. If you don’t want to continue it,press to previous page.

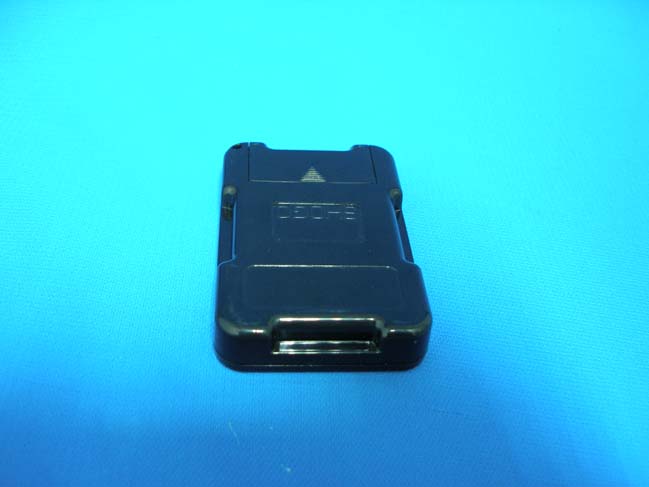

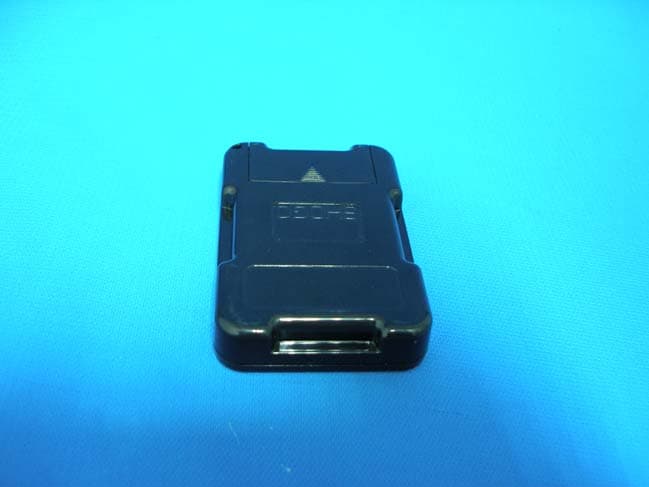

EUT EXTERIOR PHOTO Applicant: RealEase Limited FCC ID: VTXFRCO

EUT INSIDE PHOTO Applicant: RealEase Limited FCC ID: VTXFRCO

The remote control, one of the best performance product in our remote control series. The long of the antenna is 44mm ,and the diameter is 4.5mm. The type of antenna is mushroom head. The antenna is made of alloy of cooper ,iron and zinc. The total resistance of the whole unfold antenna ≥0.3Ω.

Work principal The remote controller： includes power supply, keystroke controller, internal encode of encoding chip and wiress high-frequency transmitter. The power supply is supplied by a battery of 12V.The battery supplied power to the keystroke controller and the wireless high-frequency transmitter . The internal encode of encoding chip HS2262A receives the signals sending by the keystroke controller，and sends the signals encoding to the wireless high-frequency transmitter . HS2262A is a common code circuit with low power consumption made by CMOS. HS2262A decodes the messages which are send by A10/D1. These undee codes were translated and credited to character codes which includes address bit and data bit. And the decoded address bit is to be compared with the input terminal which are set up first . If the setup addresses are matched with the consecutive character bits , HS2262A will have these actions as follows: a) when the decoding gets data “1”, the output end is high PWL; b) Drive VT outputs high PWL. According to the low or high PWL of the corresponding ends , or the impending states , AD can be set as “0”、”1” or ”f”. Every wavform have two impulses. and each impulse has 16 clock cycles . They can form a exact oscillator when Connecting a resistor outside the OSC1 end and OSC2 end. The signals from the 2262A amplified ,Then transmit to the antenna through the wireless high-frequency .

1 2 34 ABCD 4 3 2 1 D CBA N T-1 20 5B 原理图 名称拟制 审核 批准 型号 日期 日期 日期 NT-1205B(433MHZ) Q1 DV5 Q2 R25 1 2 3 CY1 433MHz +12V R127K C112pF C23pF ANT1 ANT C37pF R410K LED1LED VCC SW6 SW4 SW1 SW3 SW8 SW12 SW2 SW7 SW10 SW11 SW9 SW5 D4 IN4148 D3 IN4148 D2 IN4148 D1 IN4148 D17 4148 D16 4148 D19 4148 D18 4148 D22 4148 D21 4148 D15 4148 D14 4148 D10 4148 D9 4148 D6 4148 D5 4148 D7 4148 D8 4148 D13 4148 D11 4148 +12V VCC R3 4.7M 魏润林07.01.24 R247K C4104P +12V A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6/D5 7 A7/D4 8 Vss 9 A8/D3 10 A9/D2 11 A10/D1 12 A11/D0 13 / TE 14 OSC1 15 OSC2 16 Dout 17 Vcc 18 C8HS2262 VCC R510K R610K R710K R810K DE- - D12 4148 D20 4148

Note: This report shall not be reproduced except in full, without the written approval of Sintek Laboratory Co.,Ltd. This document may be altered or revised by Sintek Laboratory Co.,Ltd. personnel only, and shall be noted in the revision section of the document. Page 1 of 28 FCC 47 CFR PART 15 SUBPART C TEST REPORT For RealEase Limited SHOGO Remote Controller Model: FRC00, FRC01 Trade Name: SHOGO Prepared for RealEase Limited 15/F, Morrison Commercial Building, 31 Morrison Hill Road, Wanchai Hong Kong Prepared by SINTEK LABORATORY CO., LTD. No. 7, Xinshidai Industrial, Guantian Village, Shiyan Town, Bao`an District, Shenzhen,Guangdong, P.R.C. TEL: 86-755-27604866 FAX: 86-755-27608359 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS....................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES ..................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT ............................................................................................................9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 BANDWIDTH OF EMISSION......................................................................................................10 7.2 RADIATED EMISSIONS................................................................................................................13 7.3 POWERLINE CONDUCTED EMISSIONS..........................................................................................19 7.4 TRANSMISSIN TIME.....................................................................................................................22 Page 3 1. TEST RESULT CERTIFICATION Applicant: RealEase Limited 15/F, Morrison Commercial Building, 31 Morrison Hill Road, Wanchai, Hong Kong Equipment Under Test: SHOGO Remote Controller Tra de Na me : SHOGO Model: FRC00, FRC01 Date of Test: Nov2 ~27, 2007 Report No. : ST0710038 FCC ID : VTXFRC0 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by SINTEK laboratory co., ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Page 4 2. EUT DESCRIPTION Product SHOGO Remote controller Tra de Name SHOGO Model Number FRC00, FRC01 Model Discrepancy It is different just for model number, except that they are identical. Power Supply DC 12V by Battery Frequency Range 433 MHz Number of Channels 1 Channels Antenna Specification The EUT’S antenna is permanently mounted on RF board Note: This submittal(s) (test report) is intended for FCC ID: VTXFRC0 filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.231 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4: 2001, Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntabl…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO Applicant: RealEase Limited FCC ID: VTXFRCO
