VU8VHW2010WIRELESS PTT

Velcro the wireless PTT to finger or other devices such as motorcycle handle bar or a gun shaft. Then turn the radio back on and adjust the volume to appropriate level. Press and hold the Wireless PTT to start transmitting and release to receive. If you feel uncomfortable with the Default Ear Tip in your ear, replace with the Small Ear Tip. 1.You should check that the serial number on the Wireless PTT matches that of the Receiving PTT. If they do not match, contact your vendor or follow the instruction of Rematching wireless PTT. 2.Each time before connecting the wireless PTT adaptor to the radio, please turn off the radio and then turn it on after the adaptor is connected. 3.Keep the Receiving PTT at least 3 cm away from the antenna when using. Otherwise the working range could be shortened. A working range of 1.5m between the Wireless PTT and Receiving PTT is guaranteed if the instruction is followed. 4.The earpiece should have a roger beep and the radio on/off LED should be turned on when the wireless PTT is pressed. Notice on Wireless PTT: Wireless PTT Wireless PTT Transmitting Dimension 32.0250*.*15.0mm PTTLife 100,000times Storage Temperature -20°C-70°C FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Reset electric circuit batteryCR2032 8 bit Single Chip Micyoco TX RF module 10MHZCrystal Oscillator The antenna matching network PTT Control circuit The antenna filtering network The antenna matching network RF receiving module 8 bitSCM Reset circuit E2ROM PhotoMos Relays circuit PTT Control circuit Prompt sound electric circuit Intercom plug connection the Transmitting Part 2007-11-21 the Receiving Part 915 M Hz

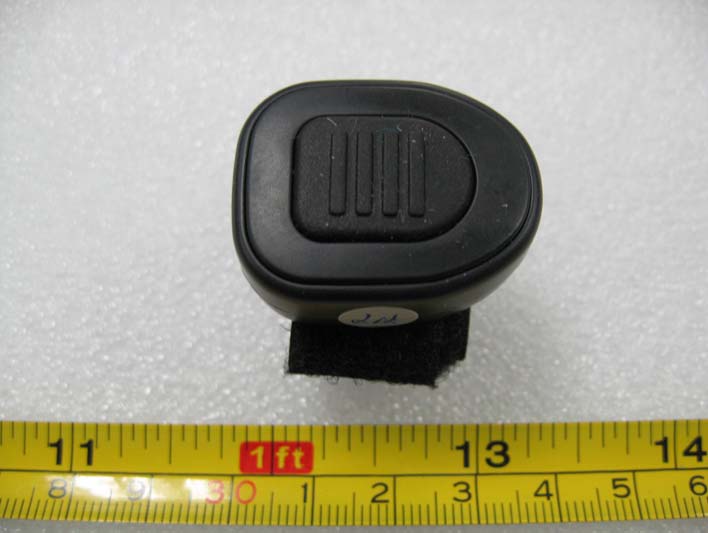

Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VU8VHW2010 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VU8VHW2010 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3

Circuit Description: This product uses the 915MHz public frequency and the FSK modulation system which is in favor of anti-electromagnetic interference, also its transmitting module and receiving modules has good anti-electromagnetic interference ability, moreover, the spike surface acoustic ware filter used by the receiving part plays an important role in raising the wireless PTT’s anti-interference ability. Press PTT when the user needs to deliver words, then the SCM(Single Chip Micyoco) would start to work and carry out the procedure in the chip, and then output the signal to the RF module. Meanwhile, the 10M Hz Crystal Oscillator begin to vibrate to drive the RF chip to work. The RF chip would match the network through an antenna after working, and transmit the particular signal of the 915 M Hz. Antenna, Ground, and Power Source The antenna using built-in forms, which consists of a φ1.0×6.8cm wire around in the PTT. There is no external ground connection. The ground is only that of the printed circuit board. Electric current of the transmitting part is supplied by a 3.0 Volt Lithium batteries. Electrical source of the receiving part is supplied by interphone.

Product Name:Job No.: REV: Design: Drawing Check: APPD: PA2 1 PA3 2 PA4 3 PA5 4 VSS 5 PB0 6 PB1 7 PB2 8 PB3 9 PB4 10 PB5 11 PB6 12 PB7 13 VDD 14 PA7 15 PA6 16 PA0 17 PA1 18 U1 AW8EB056A C30.1U C2 0.1U C73.3PF C4 0.1U C63.3PF C1 0.1U R310K R2 100K Q1 2N3904 D1 LL4148 VCC SCK SDI NSEL SCK SDI NSEL VCC L110NH VCC E1 ANT . 915MHz SDI 1 SCK 2 NSEL 3 PB1 4 PB2 5 PB3 6 PB4 7 CLK 8 XTL 9 VSS 10 MOD 11 RFN 12 RFP 13 NIRQ 14 VDD 15 FSK 16 U2 RF02 NIRQ S1 SW SPST NIRQ R110k L2100NH L3 0ohm VCC X110MHZ VCC CR2032 BATTERY TX Transmitting part of wireless PTT L4magnetic bead L5magnetic bead A1

Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I PAGE 1 OF 14 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR Shenzhen Voxtech Co., Ltd. The 4 th floor, No.4 Building, Baodazhou District, Shancheng Industrial Park, Shiyan Town, Shenzhen, PR China FCC ID: VU8VHW2010 Report Concerns: Original Report Equipment Type: Wireless PTT Model: VHW2010-M5 Report No.: STR11038140I Test Date: 2011-03-12 to 2011-03-14 Issue Date: 2011-03-17 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I PAGE 2 OF 14 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I PAGE 3 OF 14 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Shenzhen Voxtech Co., Ltd. Address of applicant: The 4 th floor, No.4 Building, Baodazhou District, Shancheng Industrial Park, Shiyan Town, Shenzhen, PR China Manufacturer: Shenzhen Voxtech Co., Ltd. Address of manufacturer: The 4 th floor, No.4 Building, Baodazhou District, Shancheng Industrial Park, Shiyan Town, Shenzhen, PR China General Description of E.U.T Items Description EUT Description: Wireless PTT Trade Name: / Model No.: VHW2010-M5 Rated Voltage: DC 3V Battery RF Output Power: <1mW Frequency Range: 915MHz No. of Channel: / Antenna Type: Integral Antenna Size: 3.2x2.5x1.5 cm For more information refer to the circuit diagram …

Text truncated - open the document above for the full version.

Shenzhen Voxtech Co., Ltd. Model: VHW2010-M5 REPORT NO.: STR11038140I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
