Wireless PTT Set User Manual Transmitters 1) You should pair two Transmitters with a Receiver PCBA before using wireless PTT, How to paring? See following pairing operation instruction. 2) Keep the Receiving PCBA at least 3cm away form the antenna when using. Otherwise the working range could be shortened. A working range of 1.5m between the transmitters and receiving PCBA is guaranteed if the instruction is follows. 3) Should connect the headset with Receiving PCBA，and then the radio on/ off LED should be turned on when two Transmitters have Paired with a Receiver PCBA and the PTT on the transmitters is pressed. Pairing 1) The WLPTT receiver PCBA provides a learning button for pairing The Transmitter and Receiver. Pressing the learning button enters pairing mode. 2) The receiver’s output will be assigned to the last two transmitters which are paired on. How to paring 1) Turn on the power; 2) Press the learning button on the receiver PCBA; you should hear a very distinct clinking sound which means the learning button is pressed; 3) Press the transmitter while keeping the learning button on the receiver PCBA pressed; 4) Release both learning button and transmitter; 5) Now the Transmitter and Receiver are paired on. 6) The Receiver can only keep two ID of The Transmitter, which is just a circle on the pairing of the receiver and transmitter; and the third one will overlay the first one. 7) After two transmitters are paired to one receiver; pairing one of them to the receiver once more, the other one will be kicked out. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Reset circuit 8 bit Single Chip Micyoco TX RF module Battery CR2016 10MHz Crystal Oscillator The antenna matching network PTT Control circuit 915MHz 2010-4-26 The Transmitting Part

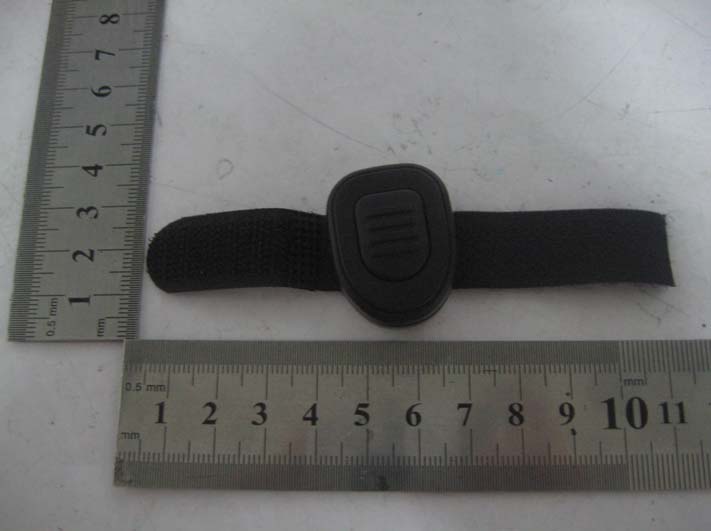

Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VU8ZZW Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VU8ZZW Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3 Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I FCC PART 15.249 Solder Board-Component View 4

Circuit Description: This product uses the 915MHz public frequency and the FSK modulation system which is in favor of anti-electromagnetic interference, also its transmitting module and receiving modules has good anti-electromagnetic interference ability, moreover, the spike surface acoustic ware filter used by the receiving part plays an important role in raising the wireless PTT’s anti-interference ability. This product can be divided into two separate parts: the Transmitting Part & the Receiving Part. The Transmitting Part : Press PTT when the user needs to deliver words, then the SCM(Single Chip Micyoco) would start to work and carry out the procedure in the chip, and then output the signal to the RF module. Meanwhile, the 10MHz Crystal Oscillator begin to vibrate to drive the RF chip to work. The RF chip would match the network through an antenna after working, and transmit the particular signal of the 915 M Hz. Antenna, Ground, and Power Source The antenna using built-in forms, which consists of a φ1.0×6.8cm wire around in the PTT. There is no external ground connection. The ground is only that of the printed circuit board. Electric current of the transmitting part is supplied by a 3.0 Volt Lithium batteries.

图纸名称序号 版本号设计 制图审核 批准 PA2 1 PA3 2 PA4 3 PA5 4 VSS 5 PB0 6 PB1 7 PB2 8 PB3 9 PB4 10 PB5 11 PB6 12 PB7 13 VDD 14 PA7 15 PA6 16 PA0 17 PA1 18 U5 AM8EB056A SDI 1 SCK 2 NSEL 3 FFIT/SDO 4 NIRQ 5 DATA/NFFS 6 DCLK/CFIL 7 CLK 8 XTL 9 NRES 10 VSS 11 IN2 12 IN1 13 VDD 14 ARSSI 15 VDI 16 U7RF01 C180.1U C170.1U C15 4.7nf C212.2PF C190.1U C222.2PF C16 0.1U R710K R6100K Q5 2SC4617 D2RLS4148 VCC SCK SDI NSEL SCK SDI NSEL SDO SDO L618NH VCC ANTENNA 915MHz C28 1u C271u L8 磁珠 C290.1u L7 磁珠 13 2 VV GND IN OUT ME6206-3.3 U10 VCC X210 MHZ 晶振 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U6 AT24C02N SU18 S3 SW-SPST VCCVCC C25 0.1U IN 1 GND 2 GND 3 OUT 4 JP2 贴片声表 R10 10K R1110K VCC-H Q12SC4617 Q22SC4617 Out1 Oot2 R12 10k VCC R30100K R31100K 1234567 S2 7 HEADER out4 out3 out2out1 PAIR VCCGND Out1 Out2 Q663-R 原理图 A0 3546

Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I PAGE 1 OF 15 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR Shenzhen Voxtech Co., Ltd. The 4th floor, No. 1 building, Baodazhou District, Shancheng Industrial Park, Shiyan Town, Shenzhen, PR China. FCC ID: VU8ZZW Report Concerns: Original Report Equipment Type: Wireless PTT Model: ZZW50 Report No.: STR10058092I Test Date: 2010-05-14 to 2010-05-20 Issue Date: 2010-05-24 Test Engineer: Susan Su Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I PAGE 2 OF 15 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................13 5.1 STANDARD APPLICABLE.......................................................................................................................................13 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 5.3 TEST PROCEDURE.................................................................................................................................................13 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................14 Shenzhen Voxtech Co., Ltd. Model: ZZW50 REPORT NO.: STR10058092I PAGE 3 OF 15 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Shenzhen Voxtech Co., Ltd. Address of applicant: The 4th floor, No. 1 building, Baodazhou District, Shancheng Industrial Park, Shiyan Town, Shenzhen, PR China Manufacturer: Shenzhen Voxtech Co., Ltd. Address of manufacturer: The 4th floor, No. 1 building, Baodazhou District, Shancheng Industrial Park, Shiyan Town, Shenzhen, PR China General Description of E.U.T Items Description EUT Description: Wireless PTT Trade Name: / Model No.: ZZW50 Rated Voltage: DC 3V Output Power: 10mW Frequency Range: 915 MHz No. of Channel: / Antenna …
