VULCATENACCIOLITEFINGERPRINTER ACCESS CONTROLLER

Cadenacio Reference Manual -Cadenacio FP/MF, BKS-5000 FP/MF -Catenaccio Lite -Cadenacio Lite -BKS-5100 Ver 2.0 CADENACIO User Manual www.bioinsec.com 2 Contents 1. Before You Begin .................................................................................................................... 5 1. Safety Precautions / Emergency Measures ........................................................................ 5 2. Proper Way to Input Fingerprint ......................................................................................... 7 3. Product Introduction .......................................................................................................... 7 4. Product Diagram ............................................................................................................... 9 5. Icon Information .............................................................................................................. 10 6. Product Features ............................................................................................................ 11 7. Terminal Menu ................................................................................................................ 14 2. User Management(Registration/Edit/Delete) Menu ................................................................. 19 1. Administrator Password Registration ............................................................................... 19 2. Enroll User ...................................................................................................................... 20 ① Fingerprint Registration ............................................................................................... 20 ② Card Registration ........................................................................................................ 21 ③ Password Registration ................................................................................................. 22 ④ When setting with Fingerprint or Card ........................................................................ 22 3. Edit User......................................................................................................................... 23 4. Delete User .................................................................................................................... 24 3. Mode Setup (Access Control/Time & Attendance Setup/Meals Setup) ............................ 24 1. Access Control Setup (Access Control) ............................................................................ 24 2. Attendance Management Setup ....................................................................................... 25 < Reporting Time Auto Setup> ............................................................................................. 26 3. Meals Mode ................................................................................................................... 27 4. Prevention of Unnecessary Events in Attendance / Meal Counting Mode........................... 28 4. Access Door Setup ................................................................................................................ 29 1. Use of I/O MAN ............................................................................................................. 29 2. Link to Speed Gate (Change of Door Opening Time) ........................................................ 29 5. Network ................................................................................................................................ 30 1. Terminal ID ..................................................................................................................... 30 2. TCP/IP Network Connection ........................................................................................... 30 3. RS485 Network Connection ............................................................................................ 32 6. Camera Setup ...................................................................................................................... 33 CADENACIO User Manual www.bioinsec.com 3 1. Camera Operation Mode Setup ...................................................................................... 33 2. Viewing with Camera ...................................................................................................... 34 7. Display ................................................................................................................................. 35 1. Lighting Hours ................................................................................................................ 35 2. Contrast ......................................................................................................................... 36 3. Brightness ...................................................................................................................... 36 4. Black / White Mode (Daylight Mode) ............................................................................. 37 5. Set Time ......................................................................................................................... 37 6. Set Date ......................................................................................................................... 38 7. Language ....................................................................................................................... 39 8. SD Memory Backup & Restore ........................................................................................... 39 1. SD Memory Function ..................................................................................................... 40 2. Auto Log Data Backup Function ..................................................................................... 40 3. Import from SD memory ................................................................................................ 40 4. Export to SD Memory ......…

Text truncated - open the document above for the full version.

902, 197-17, Ace Techno Tower1, Guro3-dong, Guro-gu, Seoul, Korea TEL No : +82-2-2109-1140 FAX No : +82-2-2109-1143 May 30, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Bioinsec Co., Ltd. FCC ID: VULCATENACCIOLITE To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Verification procedure to the class A digital device portion of this composite filing. Sincerely, Karen Hur Manager

902, 197-17, Ace Techno Tower1, Guro3-dong, Guro-gu, Seoul, Korea TEL No : +82-2-2109-1140 FAX No : +82-2-2109-1143 May 30, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Bioinsec Co., Ltd. FCC ID: VULCATENACCIOLITE Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Bioinsec Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Bioinsec Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX VULCATENACCIOLITE SCH DIA.pdf Parts list CONF APPENDIX VULCATENACCIOLITE PL.pdf Block diagram CONF APPENDIX VULCATENACCIOLITE BLK DIA.pdf Operational description CONF APPENDIX VULCATENACCIOLITE OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF VULCATENACCIOLITE EXT Photo.pdf Internal Photos SHORT-TERM CONF VULCATENACCIOLITE INT Photo.pdf Test-Setup Photos SHORT-TERM CONF VULCATENACCIOLITE Test Photo.pdf User’s Manual SHORT-TERM CONF VULCATENACCIOLITE Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Karen Hur Manager

902, 197-17, Ace Techno Tower1, Guro3-dong, Guro-gu, Seoul, Korea TEL No : +82-2-2109-1140 FAX No : +82-2-2109-1143 May 30, 2011 Timco Engineering, Inc. 849 NW State Road 45 P.O.Box 370 Newberry,m Florida 32669 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: VULCATENACCIOLITE including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Bioinsec Co., Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Karen Hur Manager

FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 3 Ethernet Port (RJ45) FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 3 FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 3

FCC ID: VULCATENACCIOLITE Copyright Ⓒ 2011, LTA Co., Ltd. SAMPLE LABEL & LOCATION

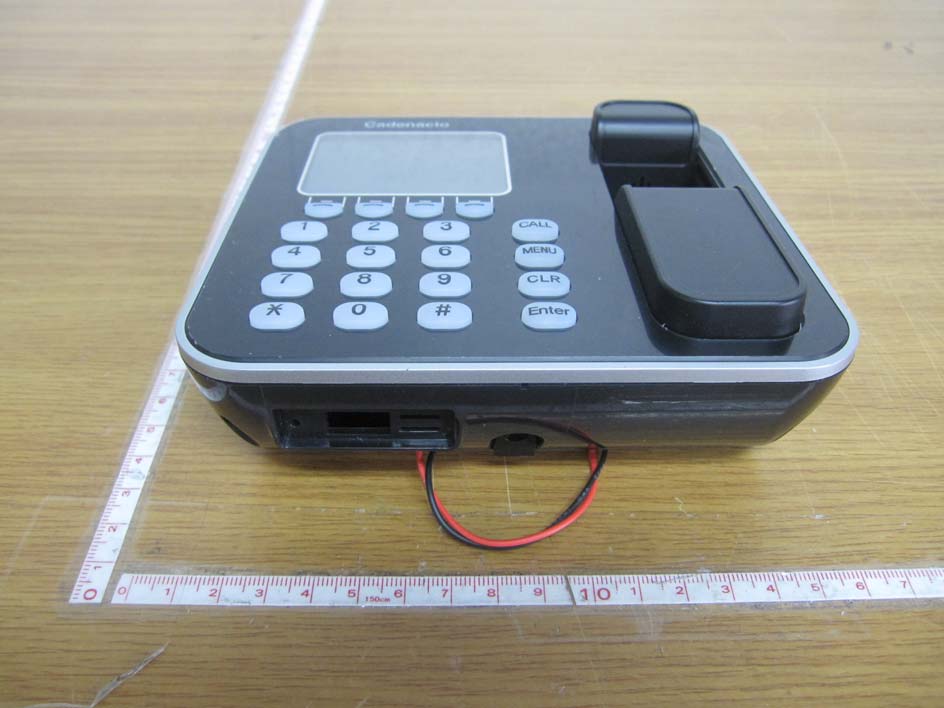

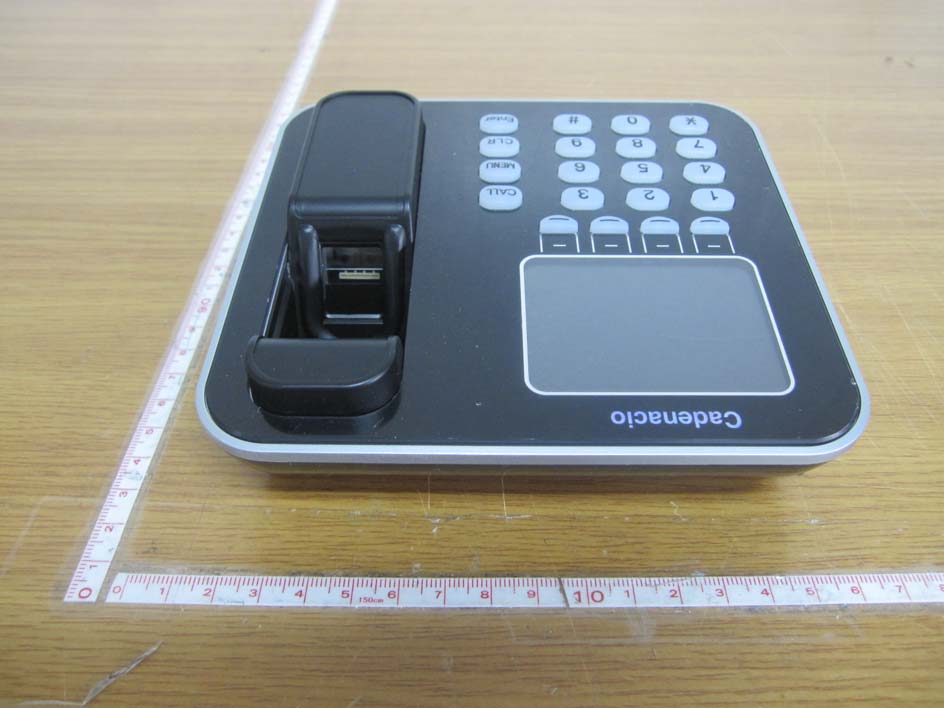

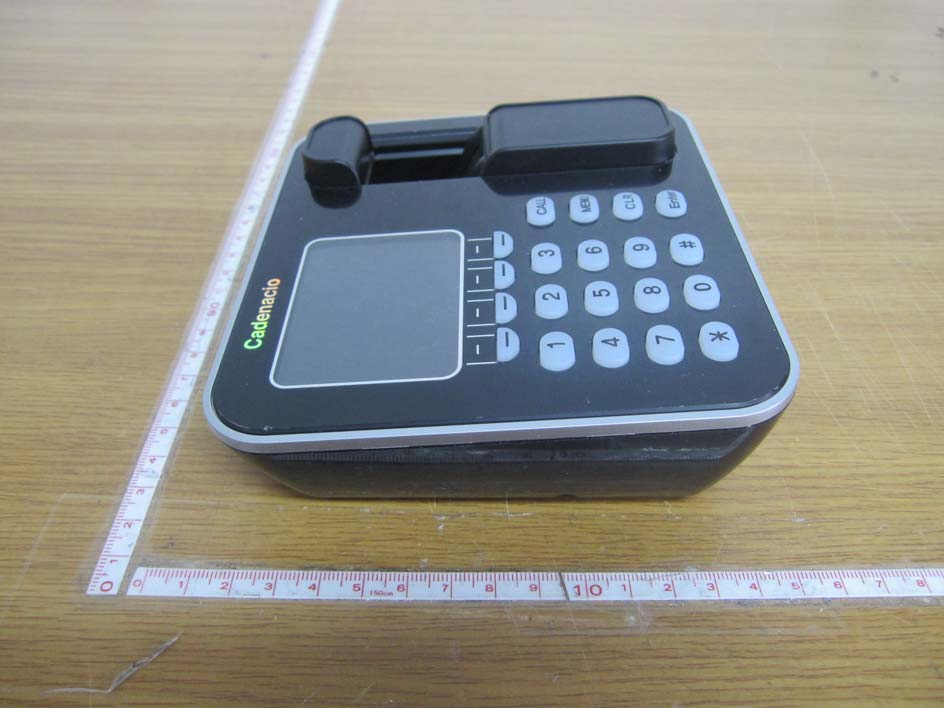

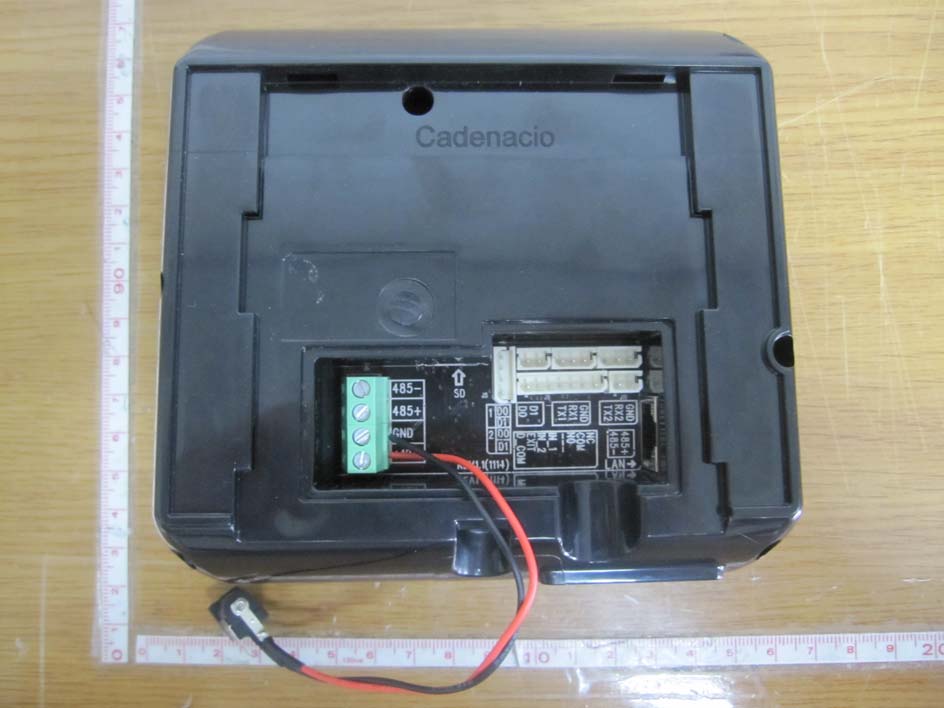

FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 6 Ethernet Port (RJ45) Micro SD Card Slot FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 6 Micro SD Card Slot Ethernet Port (RJ45) FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 6 FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 4 of 6 FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 5 of 6 FCC ID: VULCATENACCIOLITE Copyright ○ c 2011, LTA Co., Ltd. Page 6 of 6 ANT

Ref. No.: LR500111105I Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 15 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: May 18~21, 2011 Test Report S/N: LR500111105I Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : Part 15 Low Power Communication Device Transmitter Manufacturing Description : Fingerprinter Access Controller Manufacturer : Bioinsec Co., Ltd. Model name : Catenaccio Lite Variant Model name : Cadenacio Lite, BKS-5100 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.225 Subpart C; ANSI C-63.4-2003 Frequency Range : 13.56MHz RF power : 65.69dBuV/m @ 3m Data of issue : May 23, 2011 This test report is issued under the authority of: The test was supervised by: Hyun-Chae You , Technical Manager Il-Shin Kim, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 VULCATENACCIOLITE Bioinsec Co., Ltd. Ref. No.: LR500111105I Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 15 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 ELECTRIC FIELD STRENGTH -------------------------------------------------------------- 3.2.1.1 FUNDAMENTAL EMISSION ------------------------------------------------------------- 3.2.1.2 OUTSIDE the EMISSION ------------------------------------------------------------------ 3.2.1.3 SPURIOUS EMISSION --------------------------------------------------------------------- 3.2.2 FREQUENCY TOLERANCE ------------------------------------------------------------------ 3.2.3 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 5 5 6 6 7 8 9 10 11 12 Ref. No.: LR500111105I Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 15 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2011-09-30 ECT accredited Lab. KCC KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 UPDATING FCC CAB VCCI JAPAN R2133(10m), C2307 2011-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111105I Copyright ○ c 2011, LTA Co., Ltd. Page 4 of 15 2. Information’s about test item 2-1 Client& Manufacturer Company name : Bioinsec Co., Ltd. Address : 902, 197-17, Ace Techno Tower1, Guro3-dong, Guro-gu, Seoul, Korea Tel / Fax : +82-2-2109-1140/ +82-2-2109-1143 2-2 Equipment Under Test (EUT) Trade name : Fingerprinter Access Controller Model name : Catenaccio Lite Variant Modelname : Cadenacio Lite, BKS-5100 Serial number : Identical prototype Date of receipt : May 9, 2011 EUT condition : Pre-production, not damaged Antenna type : Loop Antenna Frequency Range : 13.56 MHz RF output power : 65.69dBuV/m @ 3m Power Source : DC 12V(By Adapter) 2-3 Tested frequency LOW MID HIGH Frequency (MHz) - 13.56 - 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PC HP Compaq dx7400 Microtower CNG8330J9R HP Monitor 17" HPL1710 CNC816QH92 HP Keyboard SK-8115 641-OEWW DELL Mouse MO56UOA F0J00NOL DELL PRINTER STYLUS C65 N/A EPSON Micro SD Card N/A N/A SANDISK Ref. No.: LR500111105I Copyright ○ c 2011, LTA Co., Ltd. Page 5 of 15 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Test Condition Status (note 1) 15.225(a) Electric Field Strength - Fundamental Emission Radiated C 15.225(b) (c) Electric Field Strength - Outside the Band C 15.225(d) / 15.209 Electric Field Strength - Spurious Emission C 15.225(e) Frequency Tolerance C 15.207 /15.107 AC Conducted Emissions Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.225; ANSI C-63.4-2003 Ref. No.: LR500111105I Copyright ○ c 2011, LTA Co., Ltd. Page 6 of 15 3.2 Transmitter requirements 3.2.1 Electric Field Strength Procedure: About the Fundamental Emission, Outside the Band and Spurious Emission The Radiated Electric Field Strength intensity has been measured with a ground plane and at a distance of 3m.  From 9kHz to 30MHz at distance 3m The EUT was rotated a full revolution in order to obtain the maximum value of the electric field intensity. The measurements were performed for each antenna angle 0deg., 45deg. and 90deg.  From 30MHz to 1000MHz at distance 3m The measuring antenna height was varied between 1 and 4m and EUT was rotated a full revolution in order to obtain the maximum value of the electric field intensity. The measurements were performed for both vert…

Text truncated - open the document above for the full version.

FCC ID: VULCATENACCIOLITE Copyright Ⓒ 2011, LTA Co., Ltd. Radiated Emission FCC ID: VULCATENACCIOLITE Copyright Ⓒ 2011, LTA Co., Ltd. Conducted Emission
