VVA2580007MERCEDES-BENZ SLS AMG

RX Block Diagram

Guangdong Alpha Animation and Culture Co., Ltd., Address: Auldey Ind Area, Wenguan Rd., (Central), Chenghai, Shantou, Guangdong 515800, China. 2012-05-12 To whom it may concern, Letter of Agency I, an officer of Guangdong Alpha Animation and Culture Co., Ltd. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, William wang Senior Quality Engineer

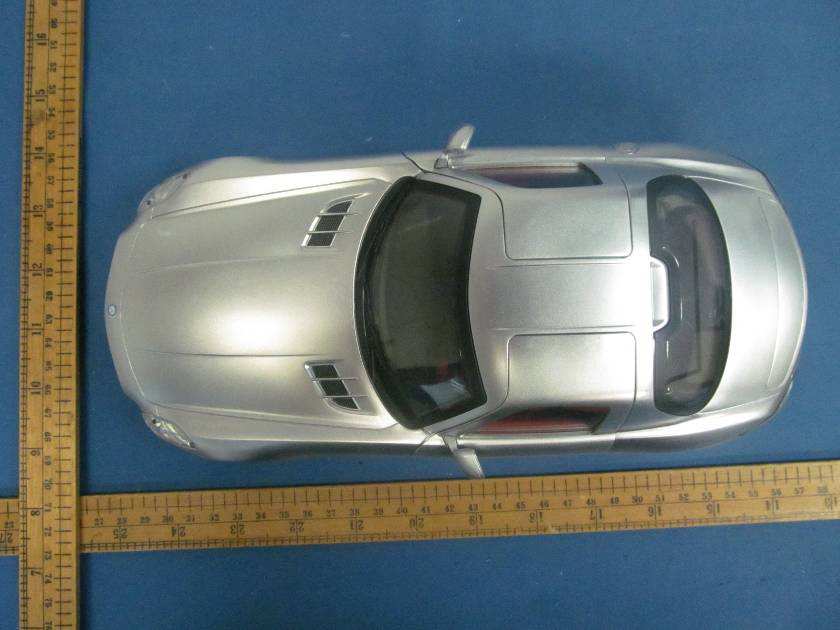

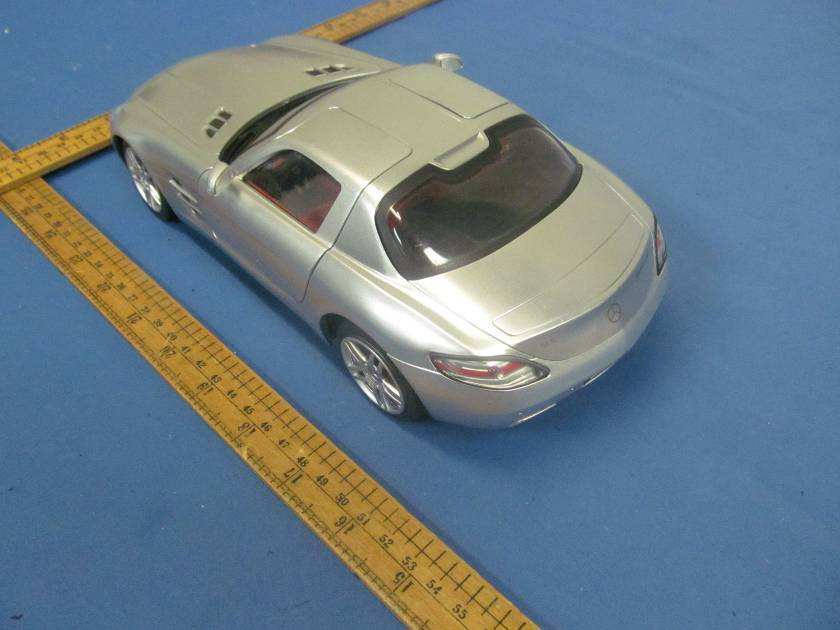

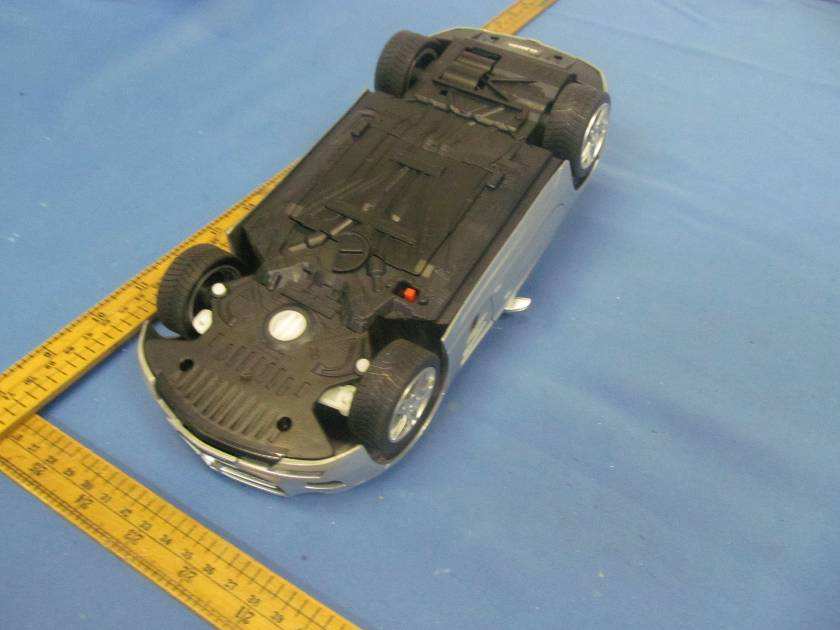

External Photos

1

Internal Photos

RX Technical description Description Function Component Antenna Receive the RF signal ANT1 Super- regenerative receiver Select the RF signal(49.860MHz) Q1 and associated circuit RF IC Decode the RF signal to Motor Driver IC1 Motor Driver 1 Drive the Motor Q2,Q3,Q4,Q5, Q6,Q7, Q8, Q9, and associated circuit Motor Driver 2 Drive the Motor Q10,Q11,Q12,Q13, and associated circuit Type of antenna: Integral

ABCD DCBA RX 01 COMPANY:MODEL NO:MODEL NAME:TITLE:DRAWING NO: REV: CODE: SIZE: SHEET: DESIGN:CHECKED:APPROVED: G U A N G D O N G A L P H A A N I M A T I O N A N D C U L T U R E C O . , L T D . 1 OF 1 接收电路原理图 ANT1 C1 10PF C28PF C3 12P C6222 C5223 C7104 C9500P C8104 C13104 C10222 + C44.7uF + C12 220uF L1949R L23.3uH R3680R R1330K R25.6K R4 2.2K R52.2M R6 2.2K R72.2M R8 2.2K R9 120K 1 5 9 13 16 12 8 4 2 6 10 14 15 11 7 3 IC1 SCDRX2 Q12SC3875 6 V VO2 GND SI OSCI OSCO R L LX MOD B F T VDD VI1 VO1 VO2 C1133P VCC 6V GND R10220R D13.0V R23330R R24330R R25680R R26680R 4.8V FLED BLED BLED FLED Q148050 R212.2K R11 2.2K R12 2.2K - + MB MF 1 BLCON1 1 BRCON1 1 FLCON1 1 FRCON1 1 BLED-CON1 1 FLED-CON1 C14104C15104 R19 220R R20 220R - + ML MR Q102301 P Q11 2301 P Q122302 N Q13 2302 N Q6 B772 Q8D882 Q9 D882 Q5B772 R15330R Q3C8050 Q2C8050 R14330R R17 2.2K R18 2.2K D24001 Q7B772 Q4C8050 R16220R R13 2.2K Q158050 R222.2K R270R

• -The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. RF No.: FCC IC_C_b Guangdong Alpha Animation and Culture Co.,Ltd. Application For Certification FCC ID: VVA2580007 MERCEDES-BENZ SLS AMG Model: LC258810-8 (6000814) Superregenerative Receiver Report No.: SZ12070676-2 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-11] Prepared and Checked by: Approved by: Sign on file Chris Chen Engineer Billy Li Supervisor Date: August 08, 2012 INTERTEK TESTING SERVICES Report No.: SZ12070676-2 FCC ID: VVA2580007 TRF No.: FCC IC_C_b GENERAL INFORMATION Guangdong Alpha Animation and Culture Co.,Ltd. Model: LC258810-8 (6000814) FCC ID: VVA2580007 Grantee: Guangdong Alpha Animation and Culture Co.,Ltd. Grantee Address: Auldey Ind Area,Wenguan Rd.,(central), Chenghai,shantou,Guangdong,China Contact Person: William Wang Tel: 86-754-85862278*8302 Fax: 86-754-85869798*8302 e-mail: [email protected] Manufacturer: Shantou Alpha Toy Co., Ltd Manufacturer Address: Xingchen Printing, Wenguan Rd., Chenghai, Shantou, Guangdong province, PRC Model: LC258810-8 (6000814) Type of EUT: Superregenerative Receiver Description of EUT: MERCEDES-BENZ SLS AMG Serial Number: N/A FCC ID : VVA2580007 Date of Sample Submitted: July 31, 2012 Date of Test: August 08, 2012 Report No.: SZ12070676-2 Report Date: August 08, 2012 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ12070676-2 FCC ID: VVA2580007 TRF No.: FCC IC_C_b SUMMARY OF TEST RESULT Guangdong Alpha Animation and Culture Co.,Ltd. Model: LC258810-8 (6000814) FCC ID: VVA2580007 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / RSS-310 3.1 Pass Digital Device Conducted Emissions 15.107 / ICES-003 N/A INTERTEK TESTING SERVICES Report No.: SZ12070676-2 FCC ID: VVA2580007 TRF No.: FCC IC_C_b Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ...........................................................3 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation................................................................................. 3 3.2 Radiated Emission Configuratio…

Text truncated - open the document above for the full version.

Att 0 dB * A PS Ref 62 dBμV 1 MHz/Center 49.86 MHzSpan 10 MHz * * RBW 10 kHz VBW 30 kHz SWT 100 ms AC 3DB Controlled by EMC32 1 PK MAXH -30 -20 -10 0 10 20 30 40 50 60 1 Marker 1 [T1 ] 19.28 dBμV 50.500000000 MHz

Radiated Photos
