VVU73125Smartphone Companion w/ Bluetooth Transmitter

Your Essential Smartp hone Companion Contents Welcome to REDFLY! ............................................................................................................................... ................................ 4 Getting Started ............................................................................................................................... ......................................... 4 Installation Overview ............................................................................................................................... ............................ 4 Determine the REDFLY Model Number ........................................................................................................................... 4 Determine the REDFLY Firmware Version ....................................................................................................................... 5 Installation Instructions ............................................................................................................................... ........................ 5 Which Windows Mobile phone do I have? ..................................................................................................................... 5 Installing OTA (Over the Air) on Windows Mobile Smartphones .................................................................................... 6 Installing from a Computer to Windows Mobile Smartphones ...................................................................................... 6 Updating the Firmware on the REDFLY with Windows Mobile Phones .......................................................................... 7 Installing on BlackBerry Smartphones ............................................................................................................................... .. 7 Installing OTA (Over the Air) on BlackBerry Smartphones .............................................................................................. 7 Installing from a Computer to BlackBerry Smartphones ................................................................................................. 8 Installing the Firmware Update Utility on BlackBerry Smartphones ............................................................................ 10 Connecting via USB to the REDFLY ............................................................................................................................... ..... 13 Connecting via Bluetooth to the REDFLY ........................................................................................................................... 14 Pairing on Windows Mobile Phones .............................................................................................................................. 14 Pairing on BlackBerry Phones ............................................................................................................................... ......... 16 What is My Phone’s Name? ............................................................................................................................... ........... 18 Refreshing the Bluetooth List ............................................................................................................................... ......... 19 Removing an Authorized REDFLY ............................................................................................................................... ... 19 Disconnecting Bluetooth Connections .......................................................................................................................... 19 REDFLY Settings ............................................................................................................................... ...................................... 20 Settings on Windows Mobile Phones ............................................................................................................................... . 20 Bluetooth Options ............................................................................................................................... .......................... 20 Screen Display Information ............................................................................................................................... ................ 24 Windows Mobile Touch Screen Displays ....................................................................................................................... 24 Windows Mobile Non ‐ touch Screen Displays ............................................................................................................... 24 BlackBerry Screen Displays ............................................................................................................................... ............. 24 Working with the REDFLY Display ............................................................................................................................... ...... 25 Status Icons ............................................................................................................................... ..................................... 25 REDFLY Tray Icon Symbol Description ........................................................................................................................... 25 Adjusting Screen Brightness ............................................................................................................................... ........... 25 Using an External Display or Projector .......................................................................................................................... 25 Using External Devices ............................................................................................................................... ....................... 26 Using a Flash Drive ................................................................................................................…

Text truncated - open the document above for the full version.

Date: 25 Jan 2010 To: American TCB on behalf of: Celio Technology Corporation (All invoices/billing should be sent here) 265 E 100 South, Suite 280 Salt Lake City, UT 84111 Re:Certification of transmitter FCC ID:VVU73125Model: CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) To whom it may concern, Celio Corporation would like to qualify the two above referenced model numbers. The following attachments have been provided for your review: Test Report (3 parts in pdf format) Set up Photos Internal Photos External Photos Schematics - Request Confidentiality Block Diagram - Request Confidentiality User Guide (Manual) RF Exposure Statement Label Label Placement Letter of Confidentiality ATCB Application Sincerely, Les Payne (obo Celio Corporation) DNB Engineering Coalville, Ut

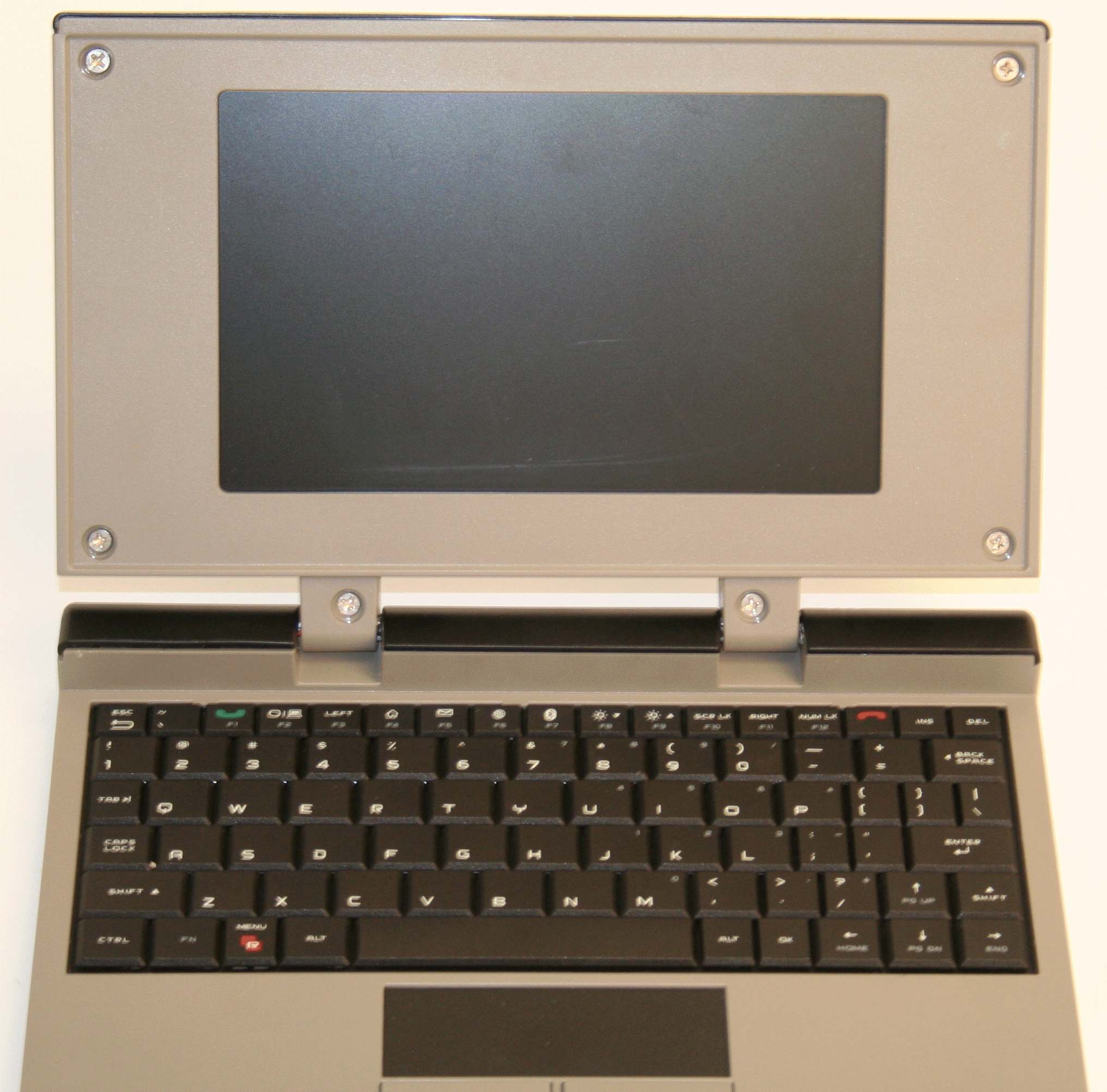

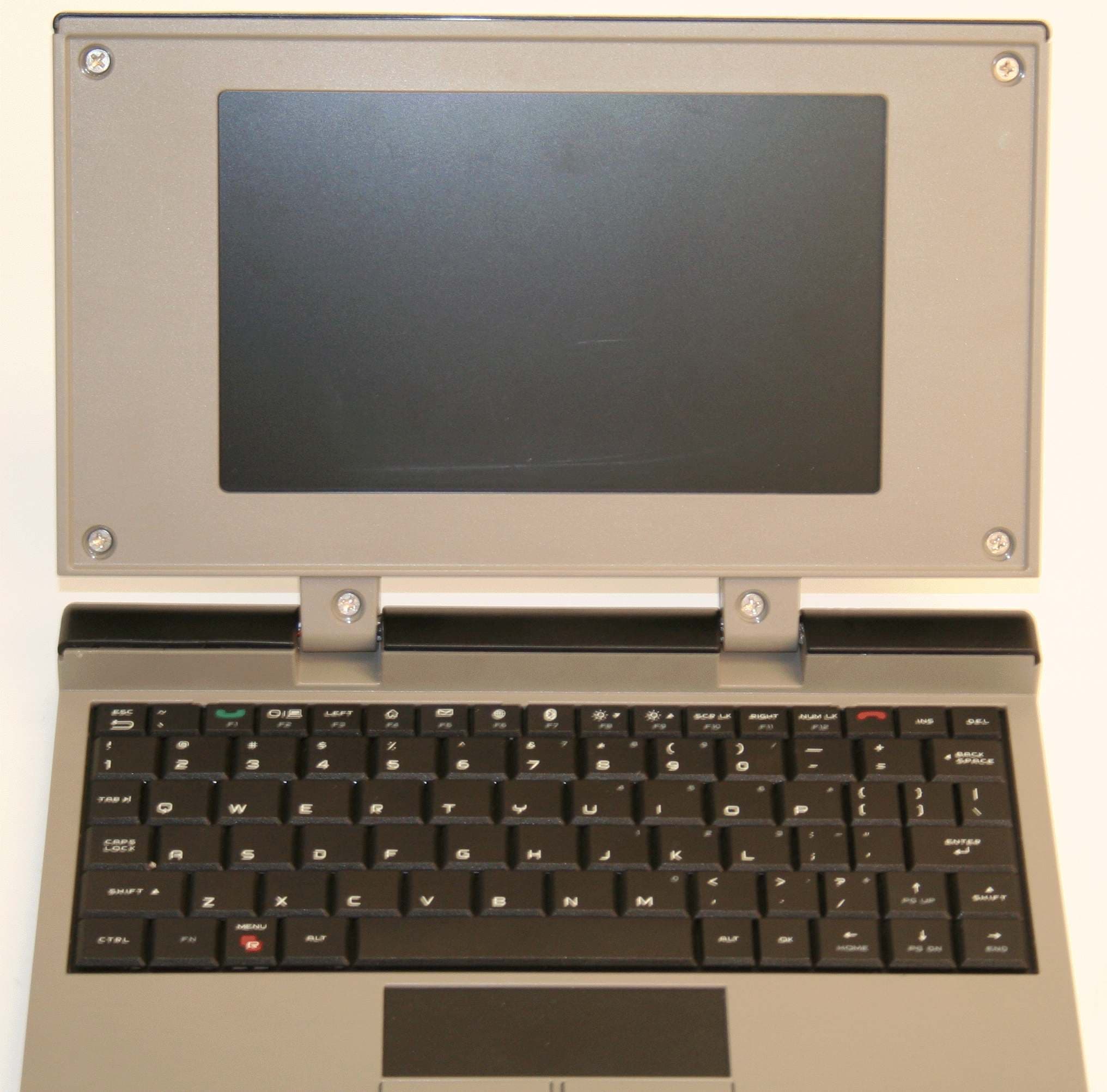

Page 96 of 101 Photo 4ExternalFront of Unit - Closed Page 97 of 101 Photo 5ExternalFront of Unit - Opened Page 98 of 101 Photo 6ExternalBack of Unit - Opened Page 99 of 101 Photo 7ExternalBottom of Unit - Label Location

Page 5 of 101 2.1033 (b) (2)FCC Identifier FCC ID: VVU73125 Figure 1 - Label and location

Additional Internal Photos Top - Cover Closed Additional Internal Photos Top - Cover Opened Additional Internal Photos Rear View Additional Internal Photos PWB - Full View - Component Side Additional Internal Photos PWB - Full View - Circuit Side Additional Internal Photos PWB - Close Up - Transmitter Section - Circuit Side Additional Internal Photos PWB - Close Up - Transmitter Section - Component Side

Page 100 of 101 RF Exposure Requirements 15.247 (b)(5) RF Safety Calculations for Mobile Device: EIRP = 0.447mW (Using a 3dB Gain Antenna) Conducted Output Power = 0.224mW GHZ Maximum allowed =60/f = 60/2.441.75 = 24.57W Per evaluation above this device is considered as having no quantitative effect on RF Exposure. RF Exposure – MPE Calculations (2400-2483.5 MHz Band) (Portable Device Information Only) Transmitter Power: 0.224 mW Antenna Gain:3 dB Cable loss:0 dB Frequency range:2400 - 2483.5 MHz Assumptions 1. A single ¼ wavelength radiating antenna is assumed. 2. Closest exposure distance is assumed to be 20 cm Calculations The following results shall be assumed to be accurate for the far-field only. These predictions will over-estimate power density in the near–field. Based on the use of a ¼ wavelength radiator, a distance of 20 cm is considered to be in the far-field for all cases. S = PG/4*PI*R 2 P is 0.224 mW G is 3 dB (Antenna gain – loss) or 10or 1.995 (3/10) R is 20 cm S = 0.000089 mW/cm 2 For Occupational/Controlled Exposure From 1,500 to 100,000 MHz, power density limit is 5 mW/cm for 6 minutes 2 For General Population/Uncontrolled Exposure From 1,500 to 100,000 MHz, power density limit is 1 mW/cm for 30 minutes 2 Conclusion:Meets MPE limits

Application for Certification For a RF Transmitter Celio Technology Corporation 265 E 100 South, Suite 280 Salt Lake City, UT 84111 Smart Phone Companion M/N: CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) FCC ID: VVU73125 REPORT # UT06027B-003 This report was prepared in accordance with the requirements of the FCC Rules and Regulations Part 2, Subpart J, 2.1033, Part 15.247, and other applicable sections of the rules as indicated herein. Prepared By: DNB Engineering, Inc. 1100 E Chalk Creek Road Coalville, UT 84017 28 Dec 2009 Page 2 of 107 TABLE OF CONTENTS Paragraph numbers in this report follow the application section numbers found in the FEDERAL COMMUNICATIONS COMMISSION Rules and Regulations, Part 2, Subpart J for Certification of electronic equipment. TABLE OF CONTENTS...............................................................................................................2 1.0ADMINISTRATIVE DATA..............................................................................................3 1.1Certifications and Qualifications...........................................................................3 1.2Measurement Repeatability Information................................................................3 2.1033 (b) (1)Application for Certification..................................................................................4 2.1033 (b) (2)FCC Identifier........................................................................................................5 2.1033 (b) (3)Installation and Operating Instructions..................................................................6 2.1033 (b) (4)Brief Description of Circuit Function....................................................................7 2.1033 (b) (5)Block Diagram.......................................................................................................8 2.1033 (b) (6)Report of Measurements .......................................................................................9 15.207Conducted Emissions (General Provisions) ............................................10 15.209Radiated Emissions (General Provisions) ...............................................13 15.247 (a,1)Channel Separation..................................................................................24 15.247 (b,2)Maximum Peak Output Power (Conducted)............................................49 15.247 (d) Conducted Band Edge Measurements and Out of Band Emissions........59 15.247(d): Power spectral density(PSD)...................................................................82 RF Exposure Requirements ......................................................................................................100 End of Report.............................................................................................................................101 Page 3 of 107 1.0ADMINISTRATIVE DATA 1.1Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this application. The basic test procedure used to show compliance was FCC Public Notice DA 00-705. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing this application. 1.2Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 2.1031 through 2.1057, Part 15. The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The same test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same Interconnecting Cables arranged in identical placement to that in the test set-up, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. All changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. C. L. Payne III (Para. 1.1) Facility Manager Coalville Facility. DNB Engineering, Inc. Tel. (435) 336-4433 FAX (435) 336-4436 Page 4 of 107 2.1033 (b) (1)Application for Certification Name of Applicant:Celio Technology Corporation 265 E 100 South, Suite 280 Salt Lake City, UT 84111 FRN Number:0017194887 Applicant is:XCelio Technology Corporation Vendor Licensee Prospective Licensee Other Name of ManufacturerSanmina - SCI Systems De Mexico SA DE CV Carretera Guadalajara-Chapala, Km 15.5 No 29, Tlajomlco de Zuniga C.P. Jalisco, Jalisco 45640, Mexico Description:Smart Phone Companion Part Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Anticipated Production Quantity: Multiple Units Frequency Band:2401.2 - 2480.4 MHz Rated Power:0.224mW Type of Signal:FHSS Hopping Channels:79 Max Data Rate:1Mbps / 2Mbps / 3Mbps (Depending on attached phone link) Page 5 of 107 2.1033 (b) (2)FCC Identifier FCC ID: VVU73125 Figure 1 - Label and location Page 6 of 107 2.1033 (b) (3)Installation and Operating Instructions Supplied separately. Page 7 of 107 2.1033 (b) (4)Brief Description of Circuit Function Celio Corporation’s new smart phone companion, is designed to give smart phones a larger screen and keyboard for surfing the Web, viewing and editing Office document, etc. The Redfly doesn’t have its own processor or operating system; it syncs over USB or Bluetooth 2.0 with your smart phone and extends Windows Mobile to an 8-inch display. Business users will like the built-in VGA port for putting on presentations with PowerPoint Mobile and plug in USB drive to access…

Text truncated - open the document above for the full version.

Page 54 of 107 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Max Time on Channel Freq DNB Job Number:06027Date:15 Oct 2009Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247(a,1,iii) 3Mbps data rate Environmental Conditions Ambient TemperatureRelative HumidityBarometric Pressure 19 °C28 %101.8 kPa EUT performed within the requirements of the applicable standard [X] Yes [ ] NoLes Payne Center Freq ChlPulse DurationTime to Next Pulse Calculated on time Allowed On TimePass/Fail 2402MHz0.000200 Sec25.20 mSec0.2508 sec 0.4sec in 31.6sec window Pass Single channel on time = 0.0002 sec = 0.2msec = 200usec Calculated on time = 31600msec / 25.20msec * 0.2msec = 250.8msec = 0.2508 seconds Limit is based upon 0.4seconds times number of hopping channels = 0.4 * 79 = 31.6sec Page 55 of 107 15.247 (b,2)Maximum Peak Output Power (Conducted) Test Procedure: Peak Output Power Use the following spectrum analyzer settings: Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel RBW > the 20 dB bandwidth of the emission being measured VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold Allow the trace to stabilize. Use the marker-to-peak function to set the marker to the peak of the emission. The indicated level is the peak output power (see the NOTE above regarding external attenuation and cable loss). The limit is specified in one of the subparagraphs of this Section. Submit this plot. A peak responding power meter may be used instead of a spectrum analyzer. The transmitter output was connected to a spectrum analyzer. Requirement: The maximum peak output power shall not exceed .125W (21dBm) EUT operating conditions: The software provided by the client to enable the EUT to transmit continuously at the low, mid, and upper channels respectively. Test Set Up: Page 56 of 107 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Peak Output Power (Cond) DNB Job Number:06027Date:30 Oct 2009Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247(b,1) 1Mbps data rate (Basic data rate) - Low Channel Environmental Conditions Ambient TemperatureRelative HumidityBarometric Pressure 21 °C25 %101.2 kPa EUT performed within the requirements of the applicable standard [X] Yes [ ] NoLes Payne Freq MHz Meas Peak Pwr (dBm) Limit (dBm) Delta (dBm) Meas Peak Pwr (mW) Limit (mW) Delta (mW) Pass/Fail 2402-8.520.97-29.470.141125-124.859Pass Page 57 of 107 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Peak Output Power (Cond) DNB Job Number:06027Date:30 Oct 2009Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247(b,1) 1Mbps data rate (Basic data rate) - Mid Channel Environmental Conditions Ambient TemperatureRelative HumidityBarometric Pressure 21 °C25 %101.2 kPa EUT performed within the requirements of the applicable standard [X] Yes [ ] NoLes Payne Freq MHz Meas Peak Pwr (dBm) Limit (dBm) Delta (dBm) Meas Peak Pwr (mW) Limit (mW) Delta (mW) Pass/Fail 2441-9.320.97-30.270.117125-124.883Pass Page 58 of 107 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Peak Output Power (Cond) DNB Job Number:06027Date:30 Oct 2009Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247(b,1) 1Mbps data rate (Basic data rate) - High Channel Environmental Conditions Ambient TemperatureRelative HumidityBarometric Pressure 21 °C25 %101.2 kPa EUT performed within the requirements of the applicable standard [X] Yes [ ] NoLes Payne Freq MHz Meas Peak Pwr (dBm) Limit (dBm) Delta (dBm) Meas Peak Pwr (mW) Limit (mW) Delta (mW) Pass/Fail 2480-8.920.97-29.870.129125-124.871Pass Page 59 of 107 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Peak Output Power (Cond) DNB Job Number:06027Date:30 Oct 2009Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247(b,1) 2Mbps data rate - Low Channel Environmental Conditions Ambient TemperatureRelative HumidityBarometric Pressure 21 °C25 %101.2 kPa EUT performed within the requirements of the applicable standard [X] Yes [ ] NoLes Payne Freq MHz Meas Peak Pwr (dBm) Limit (dBm) Delta (dBm) Meas Peak Pwr (mW) Limit (mW) Delta (mW) Pass/Fail 2402-8.520.97-29.470.141125-124.859Pass Page 60 of 107 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Peak Output Power (Cond) DNB Job Number:06027Date:30 Oct 2009Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247(b,1) 2Mbps data rate - Mid Channel Environmental Conditions Ambient TemperatureRelative HumidityBarometric Pressure 21 °C25 %101.2 kPa EUT performed within the requirements of the applicable standard [X] Yes [ ] NoLes Payne Freq MHz Meas Peak Pwr (dBm) Limit (dBm) Delta (dBm) Meas Peak Pwr (mW) Limit (mW) Delta (mW) Pass/Fail 2441-9.320.97-30.270.117125-124.883Pass Page 61 of 107 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Peak Output Power (Cond) DNB Job Number:06027Date:30 Oct 2009Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247(b,1) 2Mbps data rate - High Channel Environmental Conditions Ambient TemperatureRelative HumidityBarometric Pressure 21 °C25 %101.2 kPa EUT performed within the requirements of the applicable standar…

Text truncated - open the document above for the full version.

Page 11 of 101 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Conducted Emissions DNB Job Number:06027Date:12 Aug 2008Specification [X] 15.207 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:RF Transmitter Set Up Page 15 of 101 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Emissions (Spurious) DNB Job Number:06027Date:30 Oct 2009Specification [X] 15.209 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone Companion Test Set Up - (Horizontal/Vertical - Bicon / Log Periodic) Page 16 of 101 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Emissions (Spurious) DNB Job Number:06027Date:30 Oct 2009Specification [X] 15.209 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone Companion Test Set Up - (Horizontal/Vertical - DRG) Page 17 of 101 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Emissions (Spurious) DNB Job Number:06027Date:30 Oct 2009Specification [X] 15.209 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone Companion Test Set Up - X-Axis (Horizontal/Vertical - Bicon / Log Periodic / DRG) Page 18 of 101 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Emissions (Spurious) DNB Job Number:06027Date:30 Oct 2009Specification [X] 15.209 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone Companion Test Set Up - Y-Axis (Horizontal/Vertical - Bicon / Log Periodic / DRG) Page 19 of 101 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Emissions (Spurious) DNB Job Number:06027Date:30 Oct 2009Specification [X] 15.209 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone Companion Test Set Up - Z-Axis (Horizontal/Vertical - Bicon / Log Periodic / DRG) Page 25 of 101 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Measurement Test Set Up DNB Job Number:06027Date:15 Aug 2008Conformance Standard FCC Part 15 Customer:Celio Technology Corporation Model Number:CRF-C8N2/CRF-C8v (Inclusive of CRF-C7B) Description:Smart Phone CompanionClause 15.247 Antenna Conducted Measurement Set Up
