VW3FAST1704NWireless ADSL Router

Quick Installation Guide F@ST 1704N QIG 253515865 Fast 1704N_EN USA-CA.book Page 1 Vendredi, 21. septembre 2012 10:49 10 F@ST 1704N 2 Sagemcom thanks you for choosing the range of F@ST 1704N routers while hoping that it will provide you with full satisfaction. F@ST 1704N products adapt the ADSL function respectively on POTS (ITU G.992.1/3/5 - Appendix A) and on ISDN (ITU G.992.1/3/5 - Appendix B). F@ST 1704N equipment include four ethernet interfaces (LAN1 to LAN4), one ADSL interface and one USB port (depending model). Copyright © Sagemcom Broadband SAS All rights reserved. Sagemcom is a registered trademark. Windows ® is a registered trademark of Microsoft Corporation. QIG 253515865 Fast 1704N_EN USA-CA.book Page 2 Vendredi, 21. septembre 2012 10:49 10 3 F@ST 1704N Contents of the pack Before you carry out the installation, make sure that the pack contains the following elements: ItemDescription 1F@ST 1704N router 2Mains adapter 3 ADSL line cable used to connect your router to your telephone line 4 Ethernet cable used to connect your router to the Ethernet port of your computer 5Quick Installation Guide 6 Filter/Splitter used to connect one phone set and your router to your telephone line* 7 Microfilter used to connect another phone set to your telephone line* * Option depending on pack content requested 5 4 3 2 1 7 6 QIG 253515865 Fast 1704N_EN USA-CA.book Page 3 Vendredi, 21. septembre 2012 10:49 10 F@ST 1704N 4 Safety instructions Power supply source • Do not cover the router’s power adapter. • The router comes with its own power adapter. Do not use another adapter. • This class II adapter does not need to be grounded (earthed). The connection to the electrical network should comply with the indications given on the label. • Use a readily accessible AC power outlet located near the router. The power supply cord is 1.5 m long. • Care should be taken to ensure that the power cord is routed, so it is not likely to be walked on or pinched by items placed upon or next to it. • The router is designed to be connected to a GG- (ground-to-ground) or GN- (ground-to-neutral) type power supply network. • The router is not designed to be connected to an electrical installation with IT type diagram (neutral connected to earth through an impedance). • Protection against short-circuits and leaks between the phase, neutral and earth should be provided by the building’s electrical installation. The power supply circuit for this equipment should be fitted with 16 A overcurrent protection and differential protection. • Connect the router to the AC power via a readily accessible wall socket providing the electric protection. Location conditions By choosing an appropriate location, you will preserve the longevity of the device. Ensure that the selected location has the following characteristics: • Install and use the router inside a building. • The room temperature must not exceed 40 °C. • Solar radiation: 700 w/m². • Relative humidity: 5 to 85 % without condensation. • The router can be placed on a desktop or fixed vertically in its wall mounting. • Do not expose the router to strong sunlight or place it near a substantial source of heat. • Do not place the router in an environment where it could be subjected to considerable steam condensation. QIG 253515865 Fast 1704N_EN USA-CA.book Page 4 Vendredi, 21. septembre 2012 10:49 10 5 F@ST 1704N • Do not expose the router to splashes of water. • Avoid blocking any vent openings or exhaust exits on this equipment. Do not place equipment in a built-in installation such as a cabinet that may impede the flow of air through the ventilation openings. • Do not use the router or its peripherals for outdoor transmissions. Maintenance • This equipment is not user serviceable and is to be serviced by qualified personnel only. • Do not disassemble this equipment. If service is required, disconnect all power and phones lines from the equipment and consult qualified service personnel. • Do not use liquid or aerosol cleaning agents. Environment Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health. QIG 253515865 Fast 1704N_EN USA-CA.book Page 5 Vendredi, 21. septembre 2012 10:49 10 F@ST 1704N 6 For North America IMPORTANT SAFETY INSTRUCTIONS When using this equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • The equipment is for indoor use in dry locations. • Operate the equipment on maximum ambient temperature 40 °C, without any cover. • Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. • Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. • Do not use the telephone to report a gas leak in the vicinity of the leak. • To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord.". WARNING To prevent fire or shock hazard. do not expose this appliance to rain or moisture. This lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude. The exclamation point within an equilateral is intended to alert the user to presence of important operating and maintenance (servicing) instructions in the informations accompanying the appliance. CAUTION - RISK OF ELECTRIC SHOCK - DO NOT OPEN Warning: To reduce the risk of electric shock, do not remove cover (or back) no user serviceable parts inside. refer servicing to qualified service personnel.…

Text truncated - open the document above for the full version.

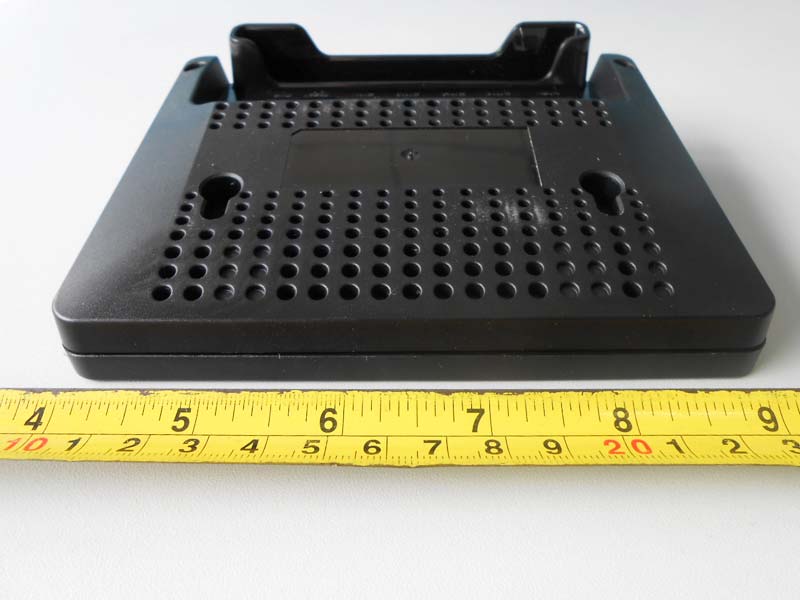

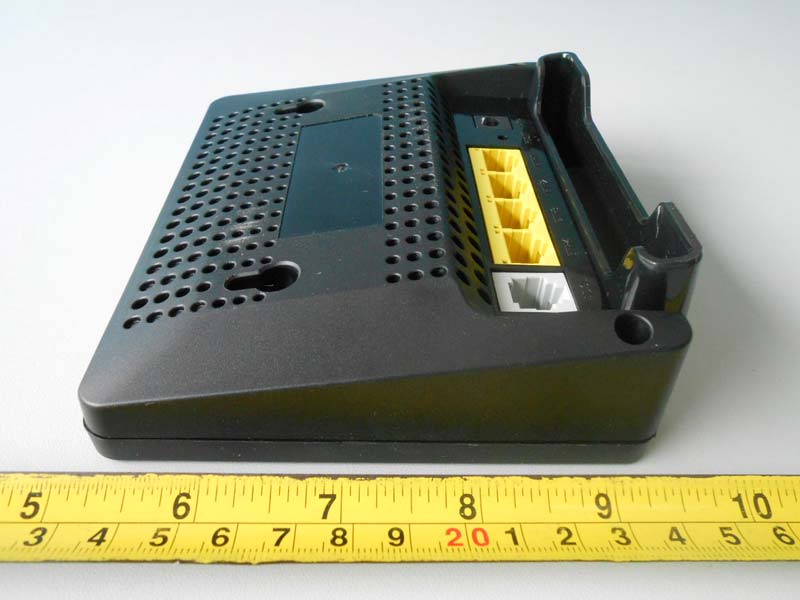

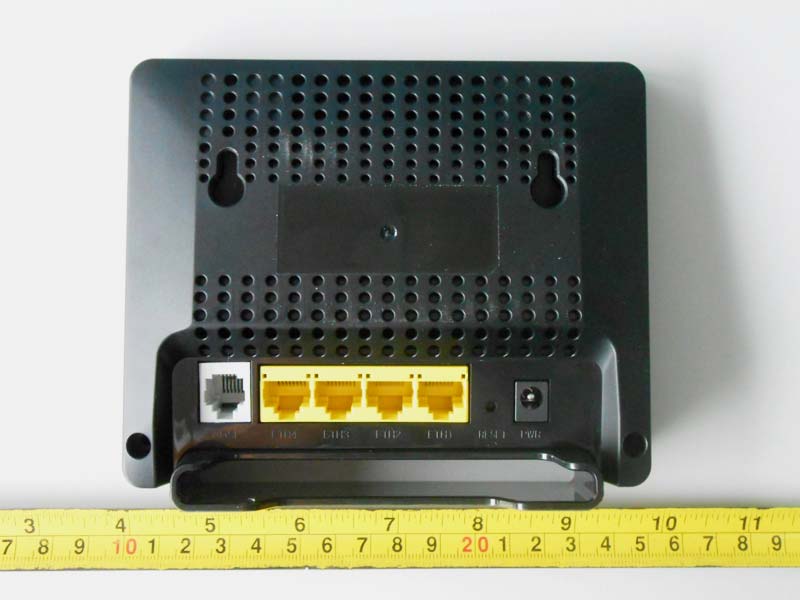

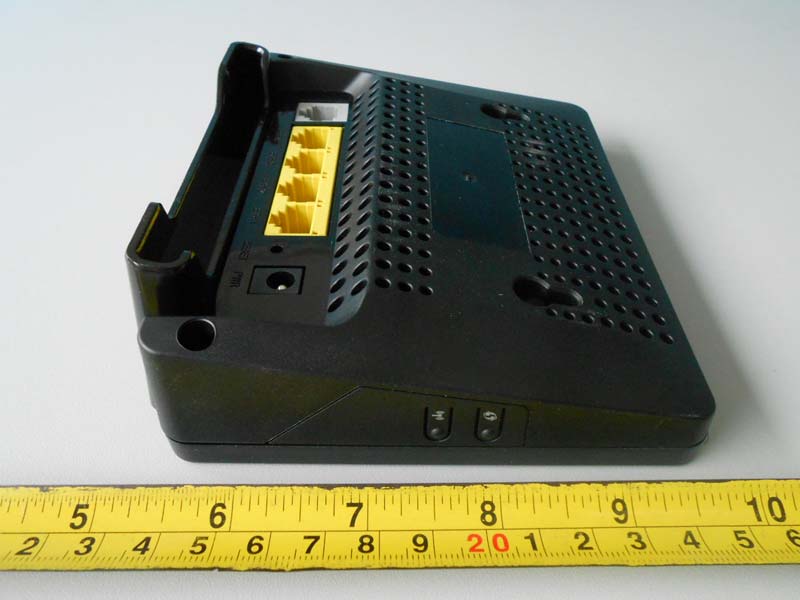

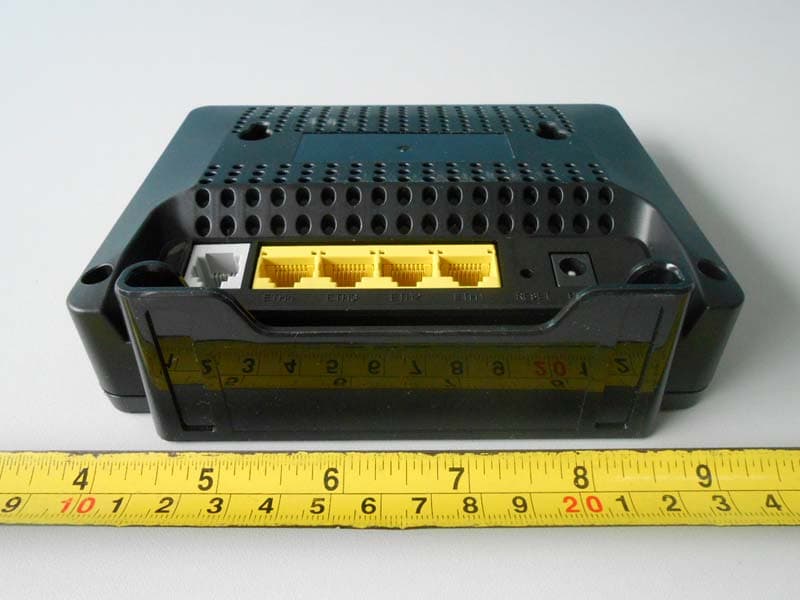

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT with AC/DC Adaptor View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – AC/DC Adapter View EUT – AC/DC Adapter Label View

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D 60°~90°/0.5°30°~60°/0.3° 0°~30°/0.1° 0.3 0.1 0.8 C2 0.5 1.3 1.5 0.2 0.1 0.3 0.25 0.5 0.7 C4 0.5 0.2 1.5 1.2 3 4 C3 0.15 0.4 0.9 1.2 1.8 2.5 C1 ANG.TOL± RANGE 0~6 80~180 30~80 6~30 315~500 180~315 DIM TOL± PART NO: MODEL: FINISH MAT'L UNIT'S SHENZHEN GONGJIN ELECTRONICS CO., LTD. VER: SHEET SCALE DRAW CHECK PDE 60800001139X 1 / 1 1:1 A0mm CUSTOMER: TITLE: DATE:20120912 Bottom label 1.80.9 5 3 500~800 N/A 1704N Windstream PET SAGEM 刘 娟 蒋 黎 刘 欢 Editor Description Remark Date 1. 黑色印刷，无边框, 尺寸如图,R1.5x3 2.材料: 54# 亮白上光膜背胶,, 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. NOTES(技术要求）: (Material:54# bright white PET,with film,adhesive) (Black printing,no frame,the size as shown,R1.5x3) (Raw materials and the corresponding post processing should meet 来料方式：卷装 requirements defined in the T&W Environmental Protection Technical Standards. 0 -0.2 12VDC/500mA FCC ID:VW3FAST1704N REN: 0.1B Complies with FCC Part 68 and IC CS-03 Rules US:NS3DL01BFAST1704N IC:9140A-FAST1704N Made in China 47W4 E308616 0 - 0 . 2 75.0 mm 2 5 . 0 m m Wireless ADSL Router Model:F@ST1704N REN: 0.0 3.0 mm 3 . 0 m m

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Bottom View Antenna Antenna, Not Applicble

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120912003-00A FCC Part 15.247 Page 10 of 62 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² Where S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = Antenna gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 802.11b 2462 2 1.58 24.07255.27 20 0.0803 1.0 802.11g 2462 2 1.58 23.89244.91 20 0.0770 1.0 802.11n-HT20 2462 2 1.58 23.71234.96 20 0.0739 1.0 802.11n-HT40 2452 2 1.58 21.43139.00 20 0.0437 1.0 Result: The device meets FCC MPE at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” FCC PART 15.247 MEASUREMENT AND TEST REPORT For SAGEMCOM SAS 250 Route de l’Empereur- RUEIL MALMAISON CEDEX 92848, France Report Type: Original Report Product Type: Wireless ADSL Router Test Engineer: Tiger Ye Report Number: RSZ120912003-00A Report Date: 2012-09-24 Reviewed By: Alvin Huang RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: VW3FAST1704N Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120912003-00A FCC Part 15.247 Page 2 of 62 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................7 CONFIGURATION OF TEST SETUP.................................................................................................................................8 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE).......................................................10 APPLICABLE STANDARD............................................................................................................................................10 FCC §15.203 - ANTENNA REQUIREMENT...........................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................11 FCC §15.207 (a) - CONDUCTED EMISSIONS .......................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST RESULTS SUMMARY..........................................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................16 APPLICABLE STANDARD.........................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions – Front View Conducted Emissions – Side View Spurious Radiated Emissions – Front View (30 MHz - 1 GHz) Spurious Radiated Emissions – Rear View (30 MHz - 1 GHz) Spurious Radiated Emissions – Front View (Above 1 GHz) Spurious Radiated Emissions – Rear View (Above 1 GHz)
