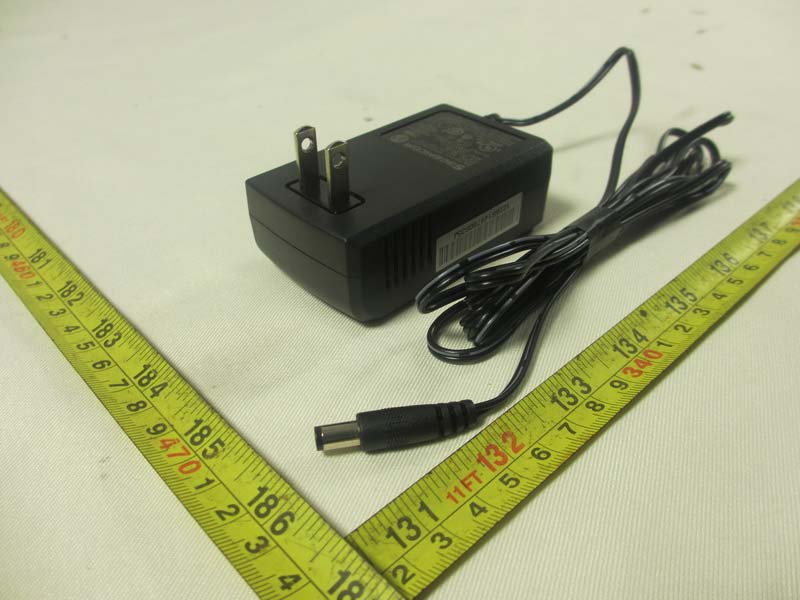

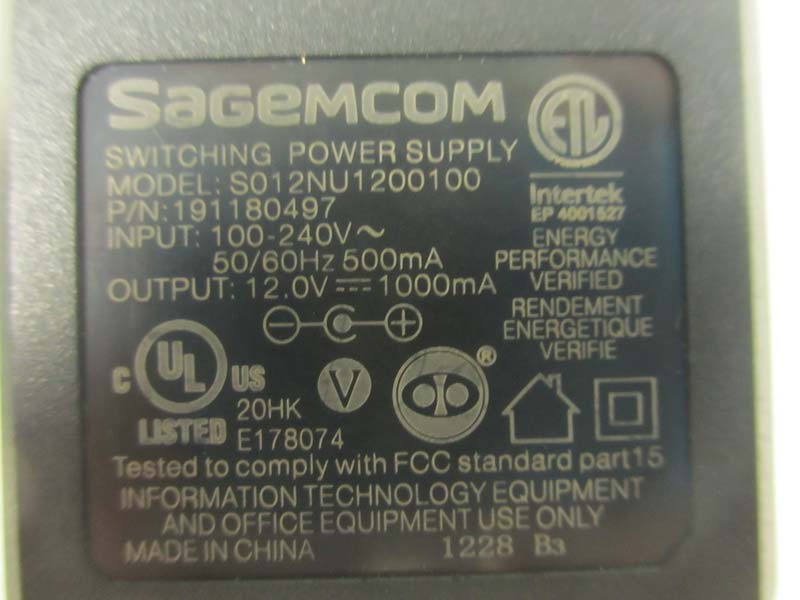

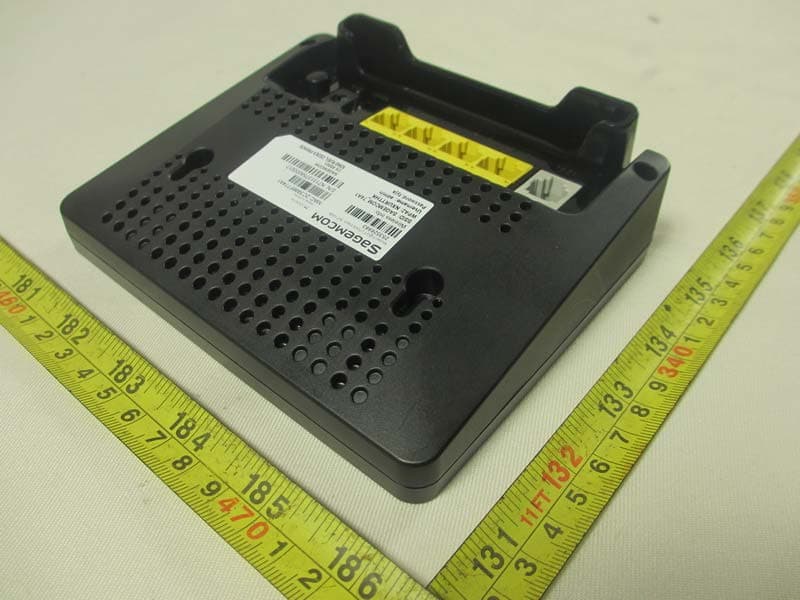

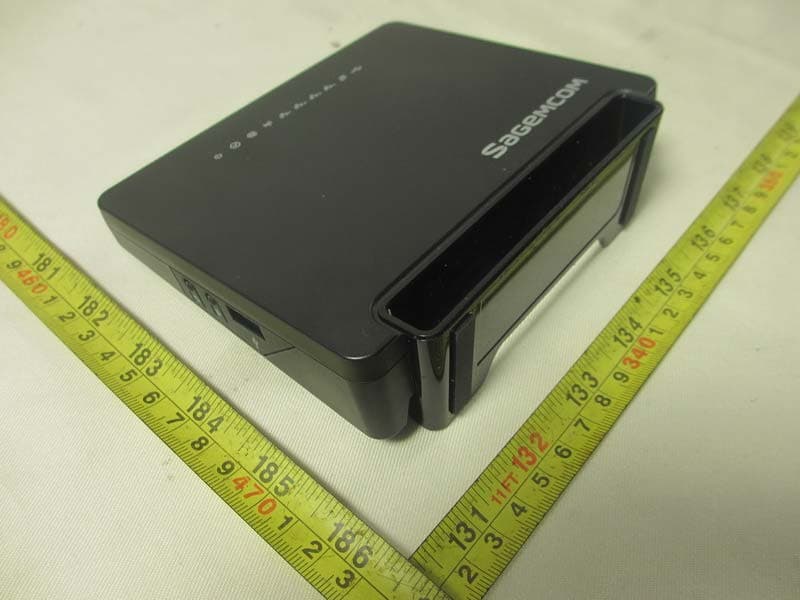

VW3FAST2704NWIRELESS ADSL ROUTER

Quick Installation Guide F@ST 2704N QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 1 Lundi, 2. décembre 2013 1:37 13 F@ST 2704N 2 Sagemcom thanks you for choosing the range of F@ST 2704N routers while hoping that it will provide you with full satisfaction. F@ST 2704N products adapt the ADSL function respectively on POTS (ITU G.992.1/3/5 - Appendix A) and on ISDN (ITU G.992.1/3/5 - Appendix B). F@ST 2704N equipment include four ethernet interfaces (LAN1 to LAN4), one ADSL interface and one USB port (depending model). CE marking: The CE marking certifies that the product complies with the essential requirements of the Directive 1999/5/EC concerning radio equipment and telecommunication equipment, and of Directives 2006/95/EC concerning safety and 2004/108/EC concerning electromagnetic compatibility, defined by the European Parliament and Council to reduce electromagnetic interferences and protect the health and safety of users. The product named F@ST 2704N can be operated in the European Union without restrictions indoor but cannot be operated in France in the whole of the band until further notice. The EC declaration of conformity can be viewed in the support section of the Sagemcom site www.sagemcom.com, or it can be obtained from the following address: Sagemcom Broadband SAS 250, route de l'Empereur 92848 Rueil-Malmaison Cedex - FRANCE Copyright © Sagemcom Broadband SAS All rights reserved. Sagemcom is a registered trademark. Windows ® is a registered trademark of Microsoft Corporation. QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 2 Lundi, 2. décembre 2013 1:37 13 3 F@ST 2704N Contents of the pack Before you carry out the installation, make sure that the pack contains the following elements: ItemDescription 1F@ST 2704N router 2Mains adapter 3 ADSL line cable used to connect your router to your telephone line 4 Ethernet cable used to connect your router to the Ethernet port of your computer 5Quick Installation Guide 6 Filter/Splitter used to connect one phone set and your router to your telephone line* 7 Microfilter used to connect another phone set to your telephone line* * Option depending on pack content requested 5 4 3 2 1 7 6 QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 3 Lundi, 2. décembre 2013 1:37 13 F@ST 2704N 4 Safety instructions Power supply source • Do not cover the router’s power adapter. • The router comes with its own power adapter. Do not use another adapter. • This class II adapter does not need to be grounded (earthed). The connection to the electrical network should comply with the indications given on the label. • Use a readily accessible AC power outlet located near the router. The power supply cord is 1.5 m long. • Care should be taken to ensure that the power cord is routed, so it is not likely to be walked on or pinched by items placed upon or next to it. • The router is designed to be connected to a GG- (ground-to-ground) or GN- (ground-to-neutral) type power supply network. • The router is not designed to be connected to an electrical installation with IT type diagram (neutral connected to earth through an impedance). • Protection against short-circuits and leaks between the phase, neutral and earth should be provided by the building’s electrical installation. The power supply circuit for this equipment should be fitted with 16 A overcurrent protection and differential protection. • Connect the router to the AC power via a readily accessible wall socket providing the electric protection. Location conditions By choosing an appropriate location, you will preserve the longevity of the device. Ensure that the selected location has the following characteristics: • Install and use the router inside a building. • The room temperature must not exceed 40 °C. • Solar radiation: 700 w/m². • Relative humidity: 5 to 85 % without condensation. • The router can be placed on a desktop or fixed vertically in its wall mounting. • Do not expose the router to strong sunlight or place it near a substantial source of heat. • Do not place the router in an environment where it could be subjected to considerable steam condensation. • Do not expose the router to splashes of water. QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 4 Lundi, 2. décembre 2013 1:37 13 5 F@ST 2704N • Avoid blocking any vent openings or exhaust exits on this equipment. Do not place equipment in a built-in installation such as a cabinet that may impede the flow of air through the ventilation openings. • Do not use the router or its peripherals for outdoor transmissions. Maintenance • This equipment is not user serviceable and is to be serviced by qualified personnel only. • Do not disassemble this equipment. If service is required, disconnect all power and phones lines from the equipment and consult qualified service personnel. • Do not use liquid or aerosol cleaning agents. Environment Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health. QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 5 Lundi, 2. décembre 2013 1:37 13 F@ST 2704N 6 For North America IMPORTANT SAFETY INSTRUCTIONS When using this equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • The equipment is for indoor use in dry locations. • Operate the equipment on maximum ambient temperature 40 °C, without any cover. • Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. • Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. • Do not use the telephone to report a gas leak in the vicinity of the leak. • To reduce the risk of fire, use only No. 2…

Text truncated - open the document above for the full version.

=aGeMCOM Declaration of Authorization We, Name: SAGEMCOM SAS Address: 250 Route de l'Empereur-92848 RUEIL MALMAISON CEDEX-FRANCE Declare that: Agent Company name: Neutron Engineering, lnc. Address: City: Country: No.3 Jinshagang 1st Road, Shixia, Dalang Town Dong Guan China is authorized to apply for Certification of the following product(s): Product description: Wireless ADSL Router F@ST 2704N Sagemcom Type designation: Trademark: on our behalf. Date: City: Name: December 2, 2013 Rueil-Malmaison Jacques LE ROUX Function: R&D General Methods Department Manager Signature: > Sagemcom SAS Siège Social:250 route de l'Empereur-92848 Rueil-Malmaison Cedex-France Tel: +33(0)157 6110 oo Fax: +33(0)157 6110 01

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE&ICA-1-1310C148 Date of Issue: Nov. 06, 2013 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless ADSL router Model Name F@ST 2704N Brand Name Sagemcom Applicant SAGEMCOM SAS Address 250 Route de l’Empereur - 92848 RUEIL MALMAISON CEDEX- FRANCE Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE&ICA-1-1310C148) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

=aGeMCOM Federal Communications Commission Authorization and Evaluation Division Rueil-Malmaison, on December 2, 2013 Confidentiality Request regarding application for certification of FCC ID: VW3FAST2704N R.Jrsuant to Sections 0.457 and 0.459 of the Commission's Rules, \!I.E heretty request confidential treatment of information accompanying this application as outlined below. Block Diagram Sc hematies Operational Description The al:x>ve materials contain trade secrets and proprietary information not customarily released to the puljic. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and ali accompanying documentation wll not be made before the date of the Grant for this application. Sincerely, Jacques LE ROUX R&D General Methods Department Manager +33 1 57 61 25 72 Jacques.leroux@sagemcom .com Sagemcom SAS Siège Sodal:250 route de l'Empereur-92848 Rueil-Malmaison Cedex-France Tel: +33(0)1 57 6110 oo Fax: +33(0)157 6110 01

Neutron Engineering Inc. Project No.: 1310C148 Page 2 of 10 Neutron Engineering Inc. Project No.: 1310C148 Page 3 of 10 Neutron Engineering Inc. Project No.: 1310C148 Page 4 of 10 Neutron Engineering Inc. Project No.: 1310C148 Page 5 of 10

253526991 US: NS3DL01BFAST2704N 0 -0.2 12VDC/1A REN: 0.1 Complies with FCC Part 68 and IC CS-03 Rules Made in China 47W4 E308616 0-0.2 75.0 mm 25.0 mm Wireless ADSL Router Model :F@ST 2704N REN: 0.0 3.0mm MAC:XXXXXXXXXXXX S/N:N7YYDDDMMXXXXXX FCC ID: VW3FAST2704N IC: 9140A-FAST2704N CAN ICES-3 (B)/NMB-3(B) This device complies with Part 15 and Part 68 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 0 -0.2 Network/Security Key:yyyyyyyy Wireless Network(SSID):xxxxxxxx Serial #:XXXXXXXXXXXX 56.8 mm 23.0 m m 0-0 .2 2.5 mm 2.5 mm

Neutron Engineering Inc. Project No.: 1310C148 Page 6 of 10 Neutron Engineering Inc. Project No.: 1310C148 Page 7 of 10 Neutron Engineering Inc. Project No.: 1310C148 Page 8 of 10 Neutron Engineering Inc. Project No.: 1310C148 Page 9 of 10 Neutron Engineering Inc. Project No.: 1310C148 Page 10 of 10

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: VW3FAST2704N Project No. : 1310C148 Equipment : Wireless Router Model : F@ST 2704N Applicant : SAGEMCOM SAS Address : 250 Route de l’Empereur - 92848 RUEIL MALMAISON CEDEX- FRANCE According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna ANT Brand name Model NameAntenna Type Connector Gain (dBi) 1 Airgain N2420M Embedded N/A 2.8 2 N/A N/A PIFA N/A 2.8 Neutron Engineering Inc. TEST RESULTS EUT： Wireless Router Model Name ： F@ST 2704N Temperature： 25 °C Relative Humidity： 58 °C Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.8 1.9055 17.22 52.7230 0.019996331 Complies 2.8 1.9055 17.15 51.8800 0.019676611 Complies 2.8 1.9055 17.10 51.2861 0.019451381 Complies EUT： Wireless Router Model Name ： F@ST 2704N Temperature： 25 °C Relative Humidity： 58 °C Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.8 1.9055 14.24 26.5461 0.010068171 Complies 2.8 1.9055 14.37 27.3527 0.010374101 Complies 2.8 1.9055 14.33 27.1019 0.010278991 Complies EUT： Wireless Router Model Name ： F@ST 2704N Temperature： 25 °C Relative Humidity： 58 °C Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 – ANT 1 + ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.8 1.9055 14.88 30.7610 0.011666761 Complies 2.8 1.9055 14.84 30.4789 0.011559801 Complies 2.8 1.9055 14.95 31.2608 0.011856331 Complies Note: the calculation distance is 20cm.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 1 of 113 FCC&IC Radio Test Report FCC ID: VW3FAST2704N IC: 9140A-FAST2704N This report concerns (check one): Original Grant Class II Change Issued Date : Nov. 08, 2013 Project No. : 1310C148 Equipment : Wireless ADSL router Model Name : F@ST 2704N P/N : 253526962 S/N : Prototype Applicant for FCC : SAGEMCOM SAS Address for FCC : 250 Route de l’Empereur - 92848 RUEIL MALMAISON CEDEX- FRANCE Applicant for IC : Sagemcom Canada Inc. Address for IC : 5252 de Maisonneuve West Boulevard, Suite MONTREAL, QUEBEC H4A 3S5 Canada Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 23, 2013 Date of Test: Oct. 23, 2013~ Nov. 07, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 2 of 113 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 3 of 113 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (9K~ 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 68 5.1 APPLIED PROCEDURES 68 5.1.1 MEASUREMENT INSTRUMENTS LIST 68 5.1.2 TEST PROCEDURE 68 5.1.3 DEVIATION FROM STANDARD 68 5.1.4 TEST SETUP 68 5.1.5 EUT OPERATION CONDITIONS 68 5.1.6 TEST RESULTS 69 Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 4 of 113 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 75 6.1 APPLIED PROCEDURES / LIMIT 75 6.1.1 MEASUREMENT INSTRUMENTS LIST 75 6.1.2 TEST PROCEDURE 75 6.1.3 DEVIATION FROM STANDARD 75 6.1.4 TEST SETUP 75 6.1.5 EUT OPERATION CONDITIONS 75 6.1.6 TEST RESULTS 76 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 78 7.1 APPLIED PROCEDURES / LIMIT 78 7.1.1 MEASUREMENT INSTRUMENTS LIST 78 7.1.2 TEST PROCEDURE 78 7.1.3 DEVIATION FROM STANDARD 78 7.1.4 TEST SETUP 79 7.1.5 EUT OPERATION CONDITIONS 79 7.1.6 TEST RESULTS 80 8 . POWER SPECTRAL DENSITY TEST 100 8.1 APPLIED PROCEDURES / LIMIT 100 8.1.1 MEASUREMENT INSTRUMENTS LIST 100 8.1.2 TEST PROCEDURE 100 8.1.3 DEVIATION FROM STANDARD 100 8.1.4 TEST SETUP 100 8.1.5 EUT OPERATION CONDITIONS 100 8.1.6 TEST RESULTS 101 9 . EUT TEST PHOTO 110 Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 5 of 113 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FICP-1-1310C148 Original Issue. Nov. 08, 2013 - - - Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 6 of 113 1. CERTIFICATION Equipment : Wireless ADSL router Brand Name : Sagemcom Model Name : F@ST 2704N P/N : 253526962 S/N : Prototype Applicant for FCC : SAGEMCOM SAS Applicant for IC : Sagemcom Canada Inc. Manufacturer for FCC : SAGEMCOM SAS Address for FCC : 250 Route de l’Empereur - 92848 RUEIL MALMAISON CEDEX- FRANCE Manufacturer for IC : Sagemcom Canada Inc. Address for IC : 5252 de Maisonneuve West Boulevard, Suite MONTREAL, QUEBEC H4A 3S5 Canada Date of Test : Oct. 23, 2013~ Nov. 07, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 Canada RSS-210:2010 RSS-GEN Issue 3, Dec 2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1310C148) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical stand…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 110 of 113 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 111 of 113 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 112 of 113 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C148 Page 113 of 113 Radiated Measurement Photos Above 1000MHz
