VW3FAST3284UCable Modem

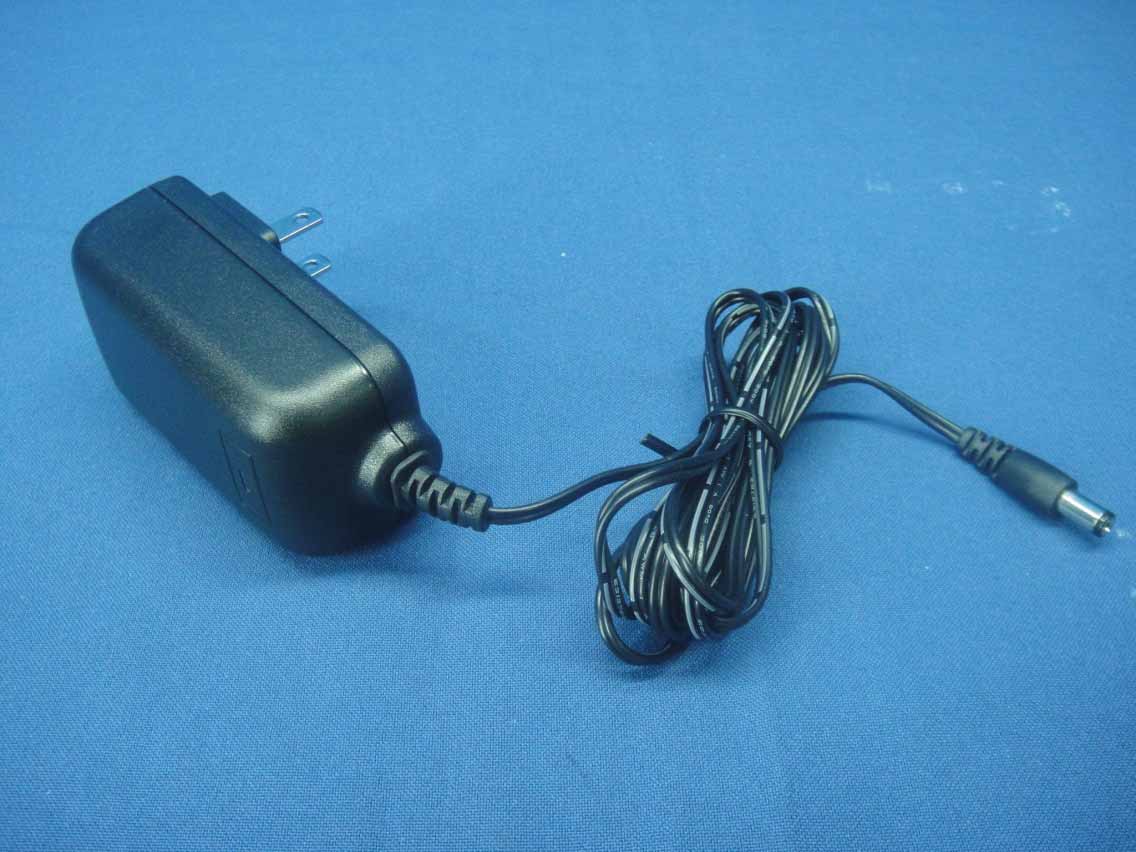

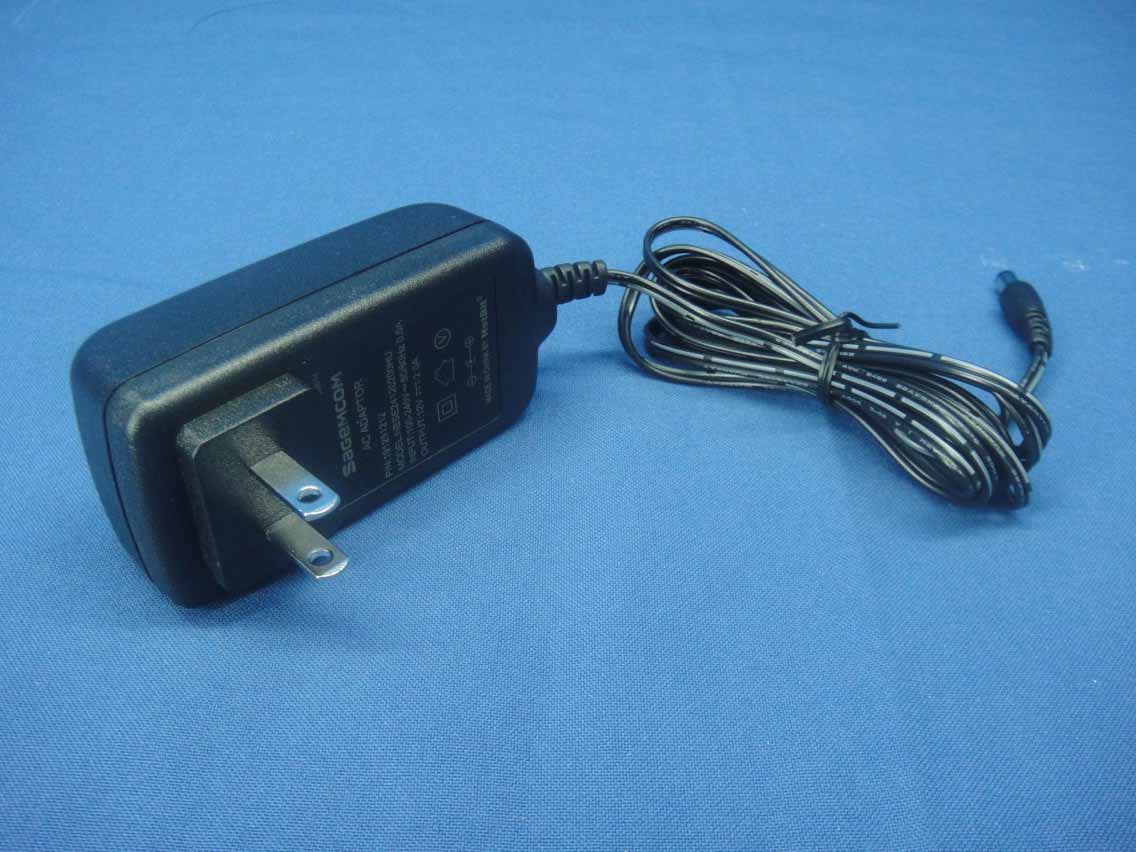

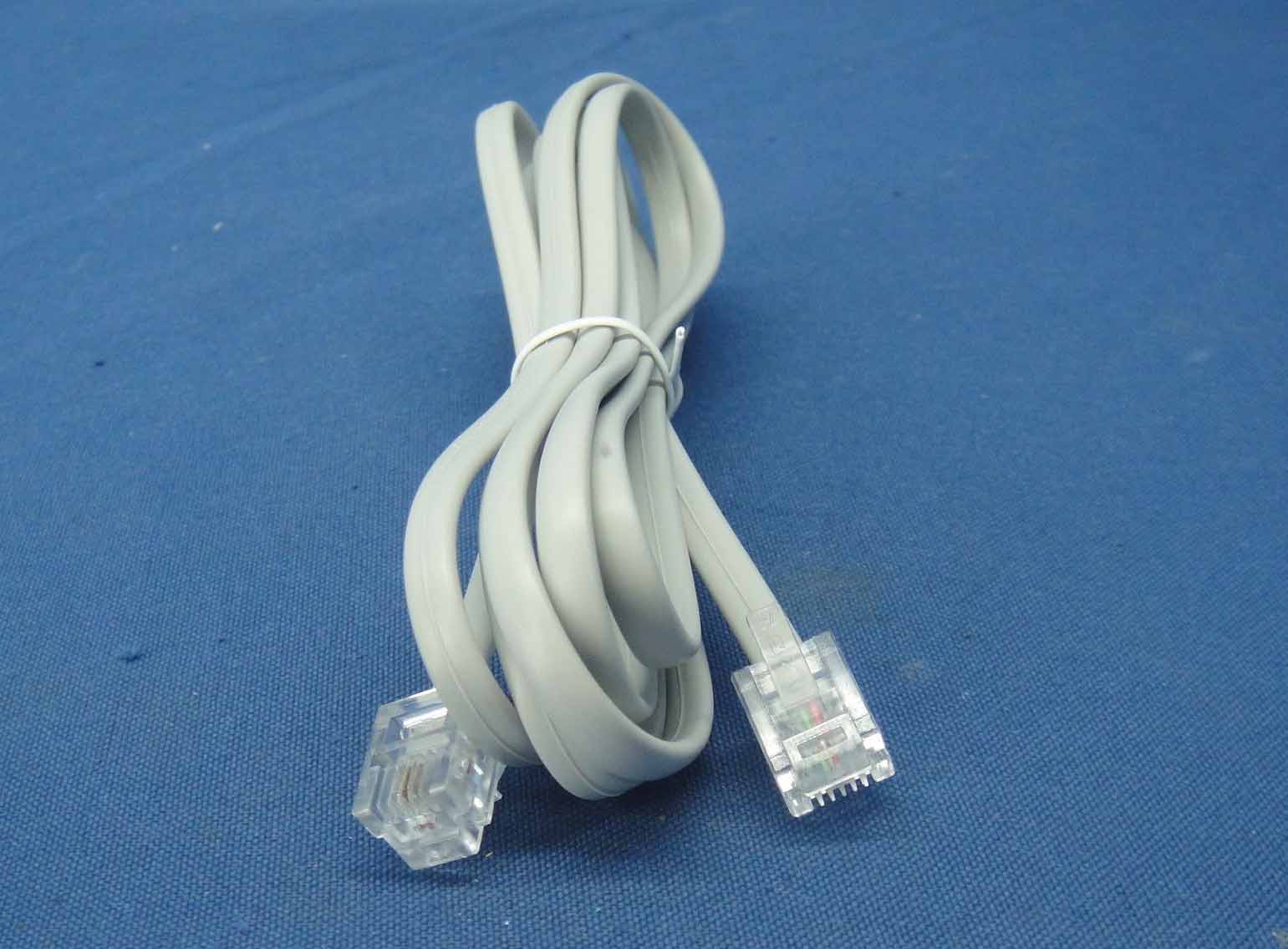

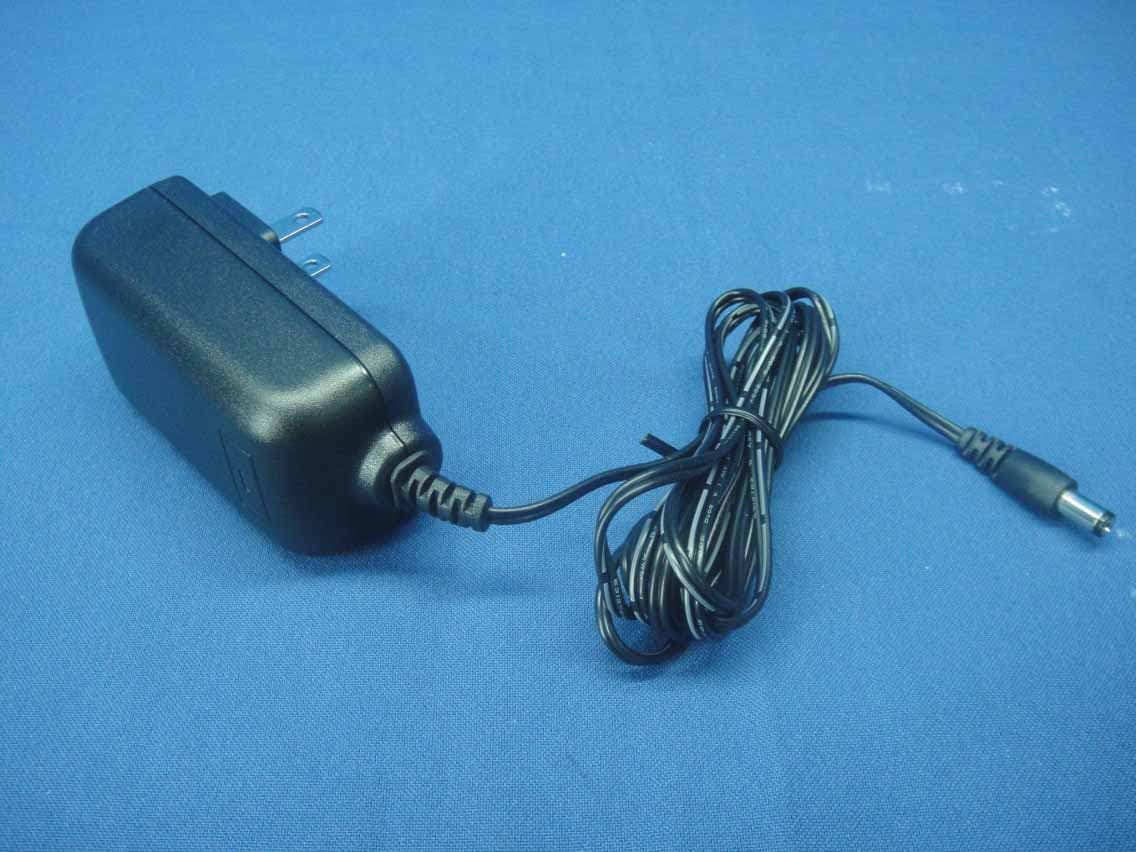

Page 1 F F @ @ S S T T 3 3 2 2 8 8 4 4 1. Introduction This F@ST 3284u Cable Gateway is an Embedded Media Terminal Adapter (EMTA) which is CableLabs DOCSIS 3.0 and PacketCable 1.5 compliant. It provides high-speed Internet access as well as cost-effective, toll-quality telephone voice and fax/modem services over residential, commercial, and education subscribers on public and private networks via an existing CATV infrastructure. F@ST 3284u offers high-speed LAN connectivity with 4 Gigabit Ethernet ports and one integrated Wireless LAN access point compatible with IEEE 802.11a/b/g/n. The Wireless access point is operating on 2.4GHz band. Package Contents F@S T3284u Gateway x1 Ethernet Cable (RJ45) x1 Phone Cable (RJ11) x1 Quick Start Guide x1 Power Supply Unit x1 2. Hardware Connection 11 10 12 13 14 15 1 2 3 4 5 6 7 8 9 16 LED Power ON/OFF 1 2 3 4 5 6 7 8 9 16 10 11 12 13 15 14 LED Downstream - indicate receiving RF DS traffic LED Upstream - indicate receiving RF US traffic LED Internet ON/OFF LED WiFi ON/OFF LED Telephone Line 1 LED Telephone Line 2 WPS button with Blue LED. Wireless ON/OFF button RJ-11 Telephone port lines 1 and 2 Ethernet 10/100/1000 BaseT RJ-45 connector Restore To Factory Defaults button RF coaxial F-connector Power plug Power switch ON/OFF USB port u User Manual Page 2 Wall Mounting The number of the screw: 2 pcs Direction for wall mounting: LED panel upward. Dimension for the screw: 5~7.5 mm There are 2 slots on the underside of the modem that can be used for wall mounting. You will need 2 suitable screws which screw diameter would be 5~7.5 mm to wall mount the Cable Gateway. Note: When wall mounting the unit, ensure that it is within reach of the power outlet. To wall mount the unit: 1. Ensure that the wall you use is smooth, flat, dry and sturdy and use the 2 screw holes which are 120 mm apart from each other. 2. Fix the screws into wall, leaving their heads 3 mm (0.12 inch) clear of the wall surface. 3. Remove any connections to the unit and locate it over the screw heads. When in line, gently push the unit on to the wall and move it downwards to secure. Page 3 3. Connecting the F@ST3284 Gateway to Your Computer Installation Procedure for Ethernet Interface Follow the steps below for proper installation: 1. Make sure your computer meets the system requirements. 2. Connect a coaxial cable to the wall plug 3. Connect a coaxial cable to the CABLE connector on the F@ST3284u and screw it at the bottom manually (do not force). Note: To speed up the registration process of F@ST3284u, the coaxial cable should be connected to the gateway prior to the power connector. 4. Connect the RJ45 Ethernet cable to the ETHERNET connector on the gateway, connect the other end with the 10/100/1000BaseT Ethernet port on your computer. 5. Plug the RJ11 telephone cord(s) to the TEL 1 or TEL2 connector (s) of the cable modem. (Plug the RJ11 telephone cord(s) to the PSTN connector on the modem, connect to the PSTN service provider. This step is for EMTA with PSTN model only.) 6. Plug the power supply unit into the POWER connector of the modem. 7. Plug the other end of the power supply unit into a power outlet. 8. Power ON the F@ST3284u by pressing the ON/OFF button on the rear panel of the F@ST3284u. 9. The cable gateway will look for the proper cable modem signal in the Cable Television network and process the initial registration. The cable gateway is ready for data transfer after the LED “INTERNET” is in solid white. The gateway is ready to make a phone call after the LED “Tel1” or “Tel2” is in solid white. Note: The RESET button at the rear panel is for maintenance purpose only. The screen of the coaxial cable is intended to be connected to earth in the building installation Cable splitter Page 4 4. Wireless Connection Step 1 Step 3 Step 2 Step 4 5. F@ST3284u Personalization Step 1 • Open an Internet session and type the following address: http://192.168.1.1 Step 2 Step 3 Status To know the state of your connection of your F@ST3284u Basic To perform the basic configuration of your F@ST3284u Advanced To perform advanced routing configuration of your F@ST3284u Firewall To protect your LAN equipment from malicious attacks Parental Control To safely restrict and control the Internet usage to your family Wireless To configure the WiFi network of your F@ST3284u MTA To check the telephony status of your F@ST3284u • Connect by typing: Username: admin Password: admin • Click on “OK” button • Under the gateway, on the label, note the reference of SSID and WPA wireless password. • Click on “Start” then on: o Network Connection o Wireless network connection o In this new Window, search for the SSID value and select it by double clicking on it. o The computer asks for a password. It is the WPA wireless password. o Once the password entered twice, press “Connection” button. WiFi Configuration is finished. Page 5 6. Precautions and Warnings z Before connecting and disconnecting cables, stop using the F@ST3284u, and then disconnect it from the power supply. Ensure that your hands are dry during operation. z Keep the F@ST3284u far from sources of heat and fire, such as a heater or a candle. z Do not block the openings on the F@ST3284u with any object. Reserve a minimum space of 10 cm around the F@ST3284u for heat dissipation. z Place the F@ST3284u on a stable surface in a cool and well-ventilated indoor area. Do not expose the F@ST3284u to direct sunlight. Use the F@ST3284u in an area with a temperature ranging from 0°C to 40°C. z Keep the F@ST3284u far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. z Do not place any object (such as a candle or a water container) on the F@ST3284u. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. z During thunderstorms, power off the F@ST3284u, and then remove…

Text truncated - open the document above for the full version.

SaGeMcoM Declaration for no non-US channel operation Rueii-Malmaison, on 19 September 2014 We, Sagemcom declare that the device does not support channel12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCCID:VVV3FAST3284U If you should have any question(s) regarding this declaration, please don't hesitate to contact us. Thank you! Name: Jacques LE ROUX Title: R&D General Methods Department Manager Tel: + 33 1 57 61 25 72 Fax: + 33 1 57 61 38 99 E-mail: [email protected] Sagemcom SAS Siege Soda~ 250 route de I'Empereur -92848 Rueii-Malmaison Cedex-France Tel: +33( 0)1 57 6110 oo Fax: +33(0 ~57 6110 01

SaGeMcoM Rueii-Malmaison, on September 19, 2014 FCCID:VVV3FAST3284U AUTHORIZATION LETTER To whom it may concern: We, the undersigned Sagemcom hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15 and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Sincerely yours, Name: Jacques LE ROUX Title: R&D General Methods Department Manager Tel: + 33 1 57 61 25 72 Fax: + 33 1 57 61 38 99 E-mail: [email protected] Sagemcom SAS Siege Social: 150 route de I'Empereur-91846 Rueii-Malmaison Cedex-France ----------==:::::;;;; Tel: +33( o~ 57 6110 oo Fax: +33(0 ~57 6110 01 ------1111

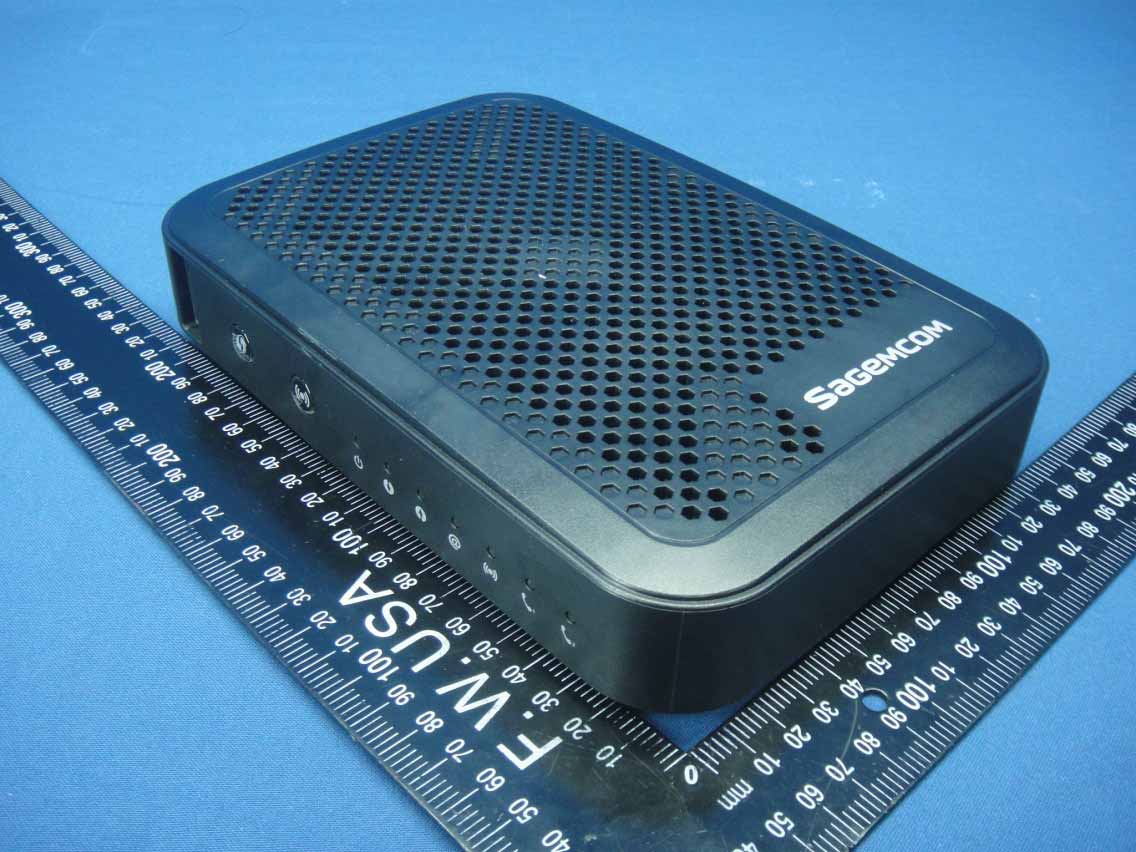

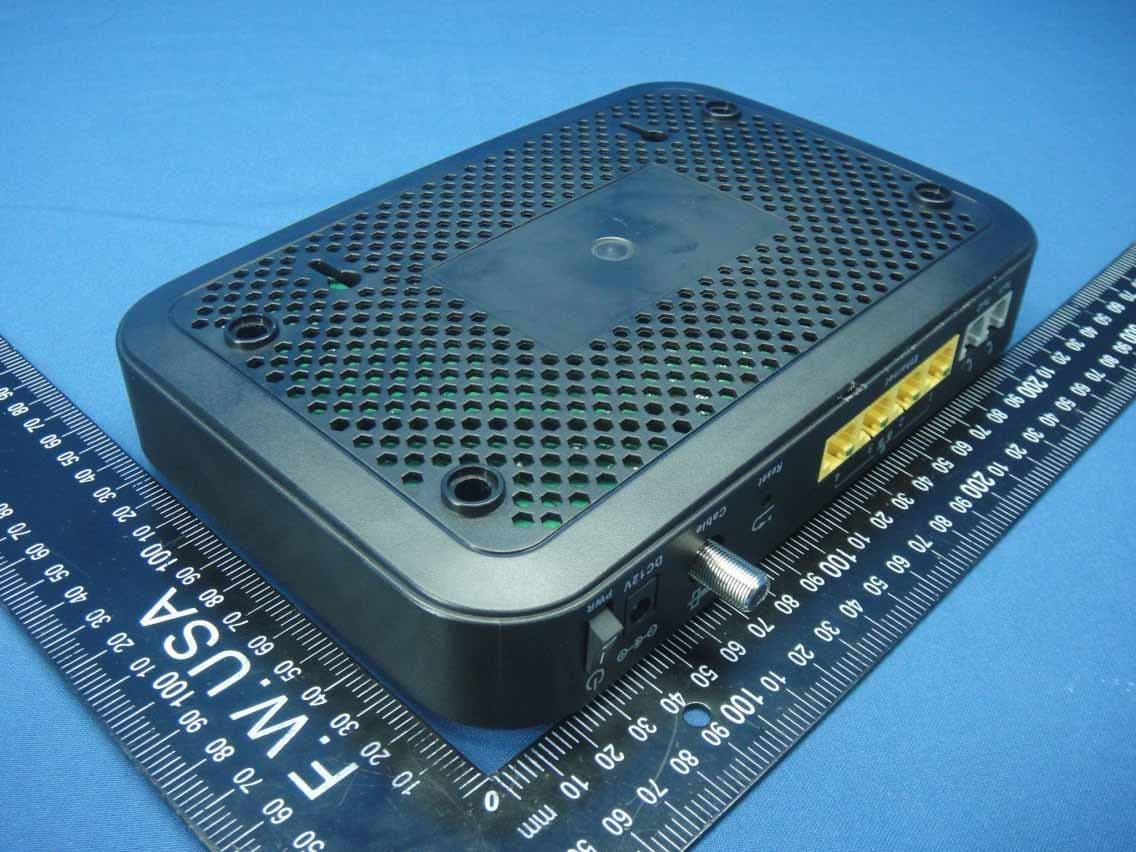

Report No.: 130806E06B Page 1 Reference No.: 140714E05 CONSTRUCTION PHOTOS OF EUT Report No.: 130806E06B Page 7 Reference No.: 140714E05 Report No.: 130806E06B Page 8 Reference No.: 140714E05 Report No.: 130806E06B Page 9 Reference No.: 140714E05

FCC ID： VW3FAST3284U LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Report No.: 130806E06B Page 2 Reference No.: 140714E05 Report No.: 130806E06B Page 3 Reference No.: 140714E05 Report No.: 130806E06B Page 4 Reference No.: 140714E05 Report No.: 130806E06B Page 5 Reference No.: 140714E05 Report No.: 130806E06B Page 6 Reference No.: 140714E05

FCC ID: VW3FAST3284U Report No.: RF130806E06B Operational Description This device is a Cable modem, which operates in 2.4GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by DC 12V from power adapter. The antennas provided to the EUT, please refer to the following table. The other instruction, please have a look at the users manual.

Report No.: SA130806E06B R1 1 of 7 Report Format Version 5.0.1 Reference No.:140714E05 Cancels and replaces the report No.: SA130806E06B dated Oct. 13, 2014 RF EXPOSURE REPORT REPORT NO.: SA130806E06B R1 MODEL NO.: F@ST 3284u FCC ID:VW3FAST3284U RECEIVED:July 14, 2014 TESTED:Sep. 23, 2014 ISSUED:Oct. 30, 2014 APPLICANT: Sagemcom ADDRESS: 250 route de l’empereur, Rueil Malmaison,92500, France ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130806E06B R1 2 of 7 Report Format Version 5.0.1 Reference No.:140714E05 Cancels and replaces the report No.: SA130806E06B dated Oct. 13, 2014 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 7 Report No.: SA130806E06B R1 3 of 7 Report Format Version 5.0.1 Reference No.:140714E05 Cancels and replaces the report No.: SA130806E06B dated Oct. 13, 2014 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130806E06B Original release Oct. 13, 2014 SA130806E06B R1 Modified the section 1 information Oct. 30, 2014 Report No.: SA130806E06B R1 5 of 7 Report Format Version 5.0.1 Reference No.:140714E05 Cancels and replaces the report No.: SA130806E06B dated Oct. 13, 2014 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130806E06B R1 6 of 7 Report Format Version 5.0.1 Reference No.:140714E05 Cancels and replaces the report No.: SA130806E06B dated Oct. 13, 2014 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Brand Model Gain(dBi) Include cable loss Antenna Type Frequency range (MHz to MHz) Connecter Type Chain (0) MASTER WAVE 902P00089S02.89 PIFA 2400~2500 NA Chain (1) NA NA 2.84 Print 2400~2500 NA Report No.: SA130806E06B R1 7 of 7 Report Format Version 5.0.1 Reference No.:140714E05 Cancels and replaces the report No.: SA130806E06B dated Oct. 13, 2014 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) 802.11b FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 83.368 2.89 20 0.03226 1.00 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 8.20dBi. 802.11g FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 411.493 5.88 20 0.31702 1.00 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 5.88dBi. 802.11n (HT20) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 387.743 5.88 20 0.29873 1.00 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 5.88dBi. 802.11n (HT40) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2422 - 2452 257.437 5.88 20 0.19…

Text truncated - open the document above for the full version.

Report No.: RF130806E06B R1 1 of 63 Report Format Version 5.2.1 Reference No.: 140714E05 Cancels and replaces the report No.: RF130806E06B dated Oct. 13, 2014 FCC TEST REPORT REPORT NO.: RF130806E06B R1 MODEL NO.: F@ST 3284u FCC ID: VW3FAST3284U RECEIVED: July 14, 2014 TESTED: July 16 to Sep. 23, 2014 ISSUED: Nov. 18, 2014 APPLICANT: SAGEMCOM SAS ADDRESS: 250 Route de lEmpereur - 92848 RUEIL MALMAISON CEDEX- FRANCE ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130806E06B R1 2 of 63 Report Format Version 5.2.1 Reference No.: 140714E05 Cancels and replaces the report No.: RF130806E06B dated Oct. 13, 2014 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 17 4. TEST TYPES AND RESULTS ................................................................................ 18 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 18 4.1.2 TEST INSTRUMENTS ........................................................................................... 18 4.1.3 TEST PROCEDURES ............................................................................................ 19 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 19 4.1.5 TEST SETUP ......................................................................................................... 19 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 20 4.1.7 TEST RESULTS ..................................................................................................... 21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 23 4.2.2 TEST INSTRUMENTS ........................................................................................... 24 4.2.3 TEST PROCEDURES ............................................................................................ 26 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 26 4.2.5 TEST SETUP ......................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 27 4.2.7 TEST RESULTS ..................................................................................................... 28 4.3 6DB BANDWIDTH MEASUREMENT ..................................................................... 41 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................. 41 4.3.2 TEST INSTRUMENTS ........................................................................................... 41 4.3.3 TEST PROCEDURE ......................................................................................…

Text truncated - open the document above for the full version.

Report No.: 140407E07 1 of 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 140407E07 2 of 3 RADIATED EMISSION TEST (Below 1GHz) Report No.: 140407E07 3 of 3 RADIATED EMISSION TEST (Above 1GHz)
