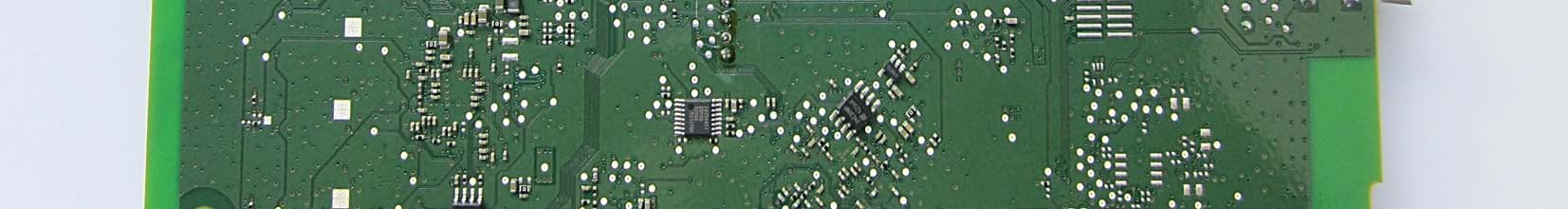

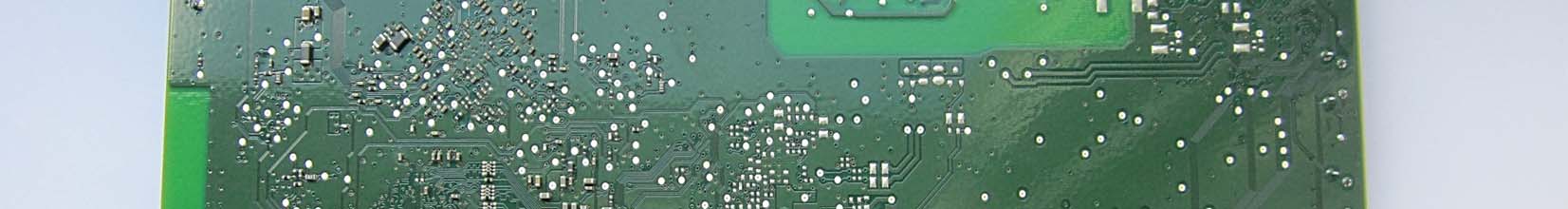

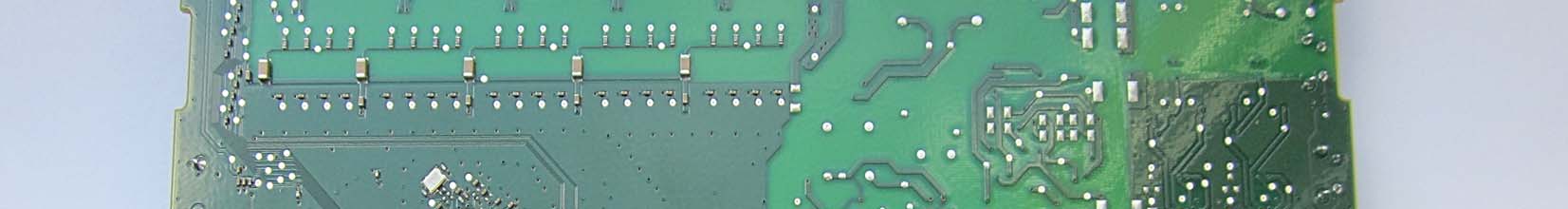

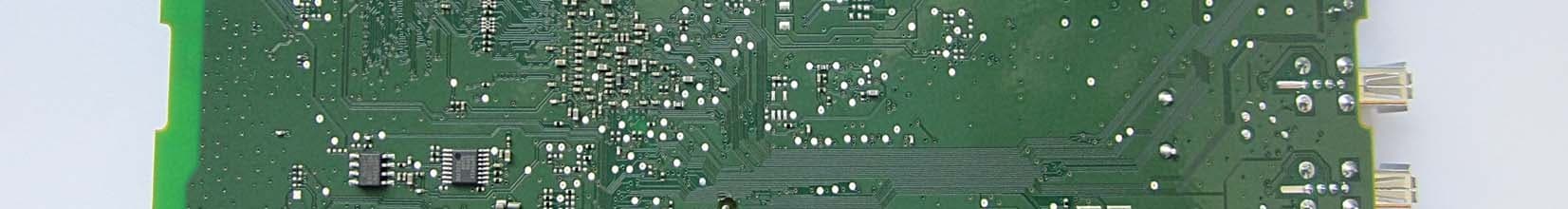

VW3FAST3965CVF@st 3965CV Managed Home Router

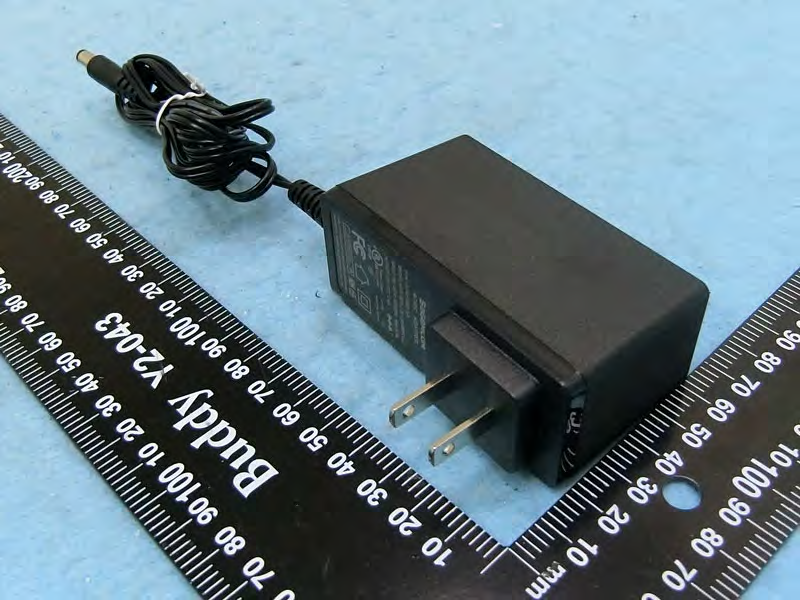

Safety and Certifications 253509429-B 07 August 2012 1 Important Information about the Sagemcom F@st 3965C V: Installation and Safe Usage Instructions: 1. Place the gateway in a vertical orientation on a flat surface. 2. Connect the manufacturer supplied AC to DC power adapter. The F@st 3965CV series gateways require the use of a 12 VDC, 2 A power adapter. On ly use a manufacturer supplied and approved power adapter and Ethernet cable. 3. Connect the F@st 3965CV to the AC Mains in accor dance with the installation instructions in this booklet, and the markings on the identification lab el (voltage, current, and frequency of electricity network). 4. Connect the Ethernet cable (provided) to the RJ4 5 port on the Gateway labeled "1". Then connect th e other end of the Ethernet Cable to the Ethernet por t of a computer. Repeat as necessary for the available Ethernet ports and computers. 5. Connect the Ethernet cable that was provided wit h the cable modem to the RJ45 port on the Gateway labeled “WAN”. Then connect the other end of the Et hernet cable to the Ethernet port on the cable modem. When using this device, basic safety precautions sh ould always be followed to reduce the risk of fire, electric shock, and injury to persons includi ng the following: 1. Do not use this product near water and avoid con tact with moisture. For example, do not use near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Care should be taken so that liquids are not spilled on this equipment. 2. This equipment is for indoor use only, do not pl ace or install in an outdoor location. 3. Place your product on a firm, solid surface, no obstacle at a minimum distance of 20cm (0.65ft). If you put it on something unsteady, it may fall and be da maged. If you place it on a soft surface, such as r ug, sofa or cushion, the vents may be blocked, causing the product to overheat. 4. Never insert objects into the vents of this equi pment as this can result in the risk of electrical shock or fire. 5. As the power adapter is the only way to connect to the electrical network, the product must be inst alled near an easily accessed power outlet. 6. This equipment should only be operated from the type of power supply (Voltage and Current) indicate d on the marking label. 7. Do not overload wall outlets or extension cords. Doing so can result in the risk of fire or electr ical shock. 8. Avoid blocking any vent openings or exhaust exit s on this equipment. Do not place equipment in a built-in installation such as a cabinet that may im pede the flow of air through the ventilation openin gs. 9. The equipment should be situated away from heat sources such as radiators, heat registers, stoves, or other heat producing appliances and equipment. 10. Care should be taken to ensure that the power c ord is routed, so it is not likely to be walked on or pinched by items placed upon or next to it. 11. Unplug this equipment before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dam p cloth for cleaning only. 12. This equipment is not user serviceable and is t o be serviced by qualified personnel only. Do not disassemble this equipment. If service is required , disconnect all power from the equipment and consult qualified service personnel. 13. To disconnect this equipment from AC power, unp lug the power supply from the AC wall socket. 14. Connect only to in house equipment (SELV interf ace). It is not allowed to connect to public cable distribution or cable television network. 15. Use the product in the environment specified as below: - Air temperature between 0°C and +40°C. - Relative humidity between 20% and 90%. - Altitude: 2000 meters (6562ft) maximum. Save these Instructions! Safety and Certifications 253509429-B 07 August 2012 2 Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditi ons: (1) This device may not cause harmful interference, and (2) This device must accept any interference receiv ed, including interference that may cause undesired operation. Modifications: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Responsible Party: Sagemcom USA 14651 N. Dallas Parkway Suite 900 Dallas, TX 75254 Phone: 972-674-4100 Radio Frequency Interference Statement Note: This equipment has been tested and found to c omply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection agai nst harmful interference in a residential installation. This equipment generates, uses and can radiate ra dio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, the re is no guarantee that interference will not occur in a particular installation. If this equipment does ca use harmful interference to radio or television rec eption, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measur es: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment an d receiver. 3. Connect the equipment into an outlet on a circui t different from that to which the receiver is conn ected. 4. Consult the dealer or an experienced radio/TV te chnician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operatin g in conjunction with any other antenna or transmit ter. This device produces radio frequency energy in the 2.4GHz and 5GHz spectrums. The antenna must be positioned to keep a minimum distance of 20cm (0.65 ft) from the radiating element to any nearby person …

Text truncated - open the document above for the full version.

Software Security Description Guide A.1 Description Software A.1.1 General Software operation description Software Configuration The router F@st 3965CV is operating in the 2.4 GHz and 5 GHz bands. It is capable to work as a master device only . The DFS master device operates for the 5 GHz bands. This device has a 20 MHz and 40 MHz bandwidth mode. This DFS feature cannot be disabled by end user. The user interface is configured for U.S. operation and cannot be reconfigured by end user to operate on non-U.S. channels. The device is configured at the factory with software that ensures compliant operation. There is no provision for end user to replace the factory software. A digital signature algorithm is used to secure the software. The signature of a software image is checked before it is allowed to run on the product. An incorrectly signed software image is not allowed to run. This mechanism ensures that only software images produced by Sagemcom can run on Fast 3965CV equipment. Normal Operation Referring to the block diagram in figure 1, a user connected to the Fast 3965CV by Ethernet or WiFi could configure the equipment. The configuration server provides operational configuration for the radio drivers. Figure 1 A.1.2 Radio frequency parameters modified by the software without any hardware changes. The regulatory domain is written in the EEPROM (factory process) and used by the driver to set the granted frequencies and the maximum power levels. RF Power calibration is done in factory. The software (Wi-Fi driver) has the ability to modify the following radio parameters:  Channel bandwidth – 20 or 40 MHz  Modulation and coding scheme The end user of the equipment is permitted to:  Select channel bandwidth – 20 or Auto (Auto select 20 or 40 MHz depending of the available bandwidth  Select frequency  Reduce power output from the maximum permitted by the regulations. End user can’t increase the RF power more than RF power of samples provided for FCC certification. The software only ever permits the operator to operate within regulatory limits. When operating in the 5 GHz band, it is not possible to turn off DFS (radar detection). There is no facility to modify DFS functionality or the detection level. In particular, operation in the band 5600- 5650 MHz is permanently barred in the products placed on the market in the USA. A.2 Labelling A.2.1 How will the device be labelled? The device will be fitted with a label on the casing showing the FCC ID “VW3FAST3965CV” . The label also shows the product model name and part numbers. Details of the label is shown below A.2.2 Verifying the correct version of software is running The operational software version is determined by looking at the user GUI. Using any standard web browser, enter the IP address of the unit and examine the Advanced Status page. The software version is listed in the Equipment section, under “Software Version”.

MPE Calculation for FCC ID: VW3FAST3965CV The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from the device to the body of the user. The equation for the calculation is given in OET Bulletin 65, page 19 as: S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropically Radiated Power R = distance to the centre of radiation of the antenna For 2.4 GHz band: Values S = 1.0 mW/cm 2 for General population uncontrolled exposure (FCC Part 1.1310 Radiofrequency radiation exposure limits) S = 1.0 mW/cm 2 P T = 25.7 dBm (372 mW) – measured maximum combined conducted power (P 1 + P 2 ). G = Antenna gain (total array gain) = 7.2 dBi (5.25 in linear terms) EIRP = (P 1 + P 2 )G = P T x G R = 20 cm Calculation: EIRP = 372 x 5.25 = 1953 mW S = 1953/12.56 x (20) 2 S = 1953/5026 S = 0.389 mW/cm 2 For 5 GHz band: Values S = 1.0 mW/cm 2 for General population uncontrolled exposure (FCC Part 1.1310 Radiofrequency radiation exposure limits) S = 1.0 mW/cm 2 P T = 17.3 dBm (54 mW) - measured maximum combined conducted power (P 1 + P 2 + P 3 ). G = Antenna gain (total array gain) = 9.7 dBi (9.34 in linear terms) EIRP = (P 1 + P 2 + P 3 )G = P T x G R = 20 cm Calculation: EIRP = 54 x 9.34= 504 mW S = 504/12.56 x (20) 2 S = 504/5026 S = 0.100 mW/cm 2 Conclusion This confirms compliance to the required FCC Part 1.1310 Radiofrequency radiation exposure limit of 1.0m W/cm 2 at 20 cm operation.

TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02A V3.0 VERSION 3.0 ISSUE DATE: 03 OCTOBER 2012 RFI Global Services Ltd Page 91 of 208 5.2.6. Transmitter Peak Power Spectral Density Test Summary: Test Engineer: Sarah Williams Test Dates: 25 August 2012 & 27 August 2012 Test Sample Serial Number: LK220202177 FCC Reference: Part 15.407(a)(1) Test Method Used: FCC KDB 789033 E) referencing KDB 789033 C)3)b), Method SA-1 Environmental Conditions: Temperature (°C): 22 to 24 Relative Humidity (%): 56 to 61 Note(s): 1. Transmitter Peak Power Spectral Density tests were performed using a test receiver in accordance with FCC KDB 789033 D01 C)3)b) Method SA-1. 2. The EUT has three RF ports, P2401, P2403 and P2405. PPSD from all ports were measured and combined using the measure-and-sum method stated in FCC KDB 662911 D01. 3. The EUT was transmitting at >99% duty cycle. 4. The EUT was configured with a power setting of 8.5 dBm. 5. All supported modes and channel widths were initially investigated on one channel. The modes that produced the highest power and widest bandwidth for the 5.15-5.25 GHz band were: o 802.11a – 16QAM / 6 Mbps o 802.11n HT20 – BPSK / 6.5 Mbps / MCS0 o 802.11n HT40 – BPSK / 13.5 Mbps / MCS0 Measurements were performed on the relevant channels and ports for all tests. 5. The Customer declared that the transmit signals from all 3 ports are correlated. The Customer stated that the 3 antennas used have unequal antenna gains: G1 = 3.2 dBi, G2 = 3.4 dBi and G3 = 5.4 dBi. The directional gain was calculated in accordance with FCC KDB 662911 D01 Directional Gain Calculations: 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 /3] The total array gain was calculated as: 10 log[(10 3.2/20 + 10 3.4/20 + 10 5.4/20 ) 2 /3] = 8.8 dBi In accordance with 15.407(a)(1), 8.8 dBi is 2.8 dB over the directional gain of 6 dBi therefore the PPSD limit of 4 dBm is reduced to 1.2 dBm. TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02A V3.0 VERSION 3.0 ISSUE DATE: 03 OCTOBER 2012 Page 92 of 208 RFI Global Services Ltd Transmitter Peak Power Spectral Density (5.15-5.25 GHz band) (continued) Results: 802.11a / 20 MHz / 6 Mbps / BPSK Channel Frequency (MHz) PPSD P2401 (dBm /MHz) PPSD P2403 (dBm /MHz) PPSD P2405 (dBm /MHz) Combined PPSD (dBm /MHz) Bottom 5180 -3.9 -4.0 -4.5 0.6 Middle 5200 -3.6 -4.3 -4.8 0.6 Top 5240 -3.5 -3.3 -4.6 1.0 Channel Frequency (MHz) Combined PPSD (dBm /MHz) Limit (dBm /MHz) Margin (dB) Result Bottom 5180 0.6 1.2 0.6 Complied Middle 5200 0.6 1.2 0.6 Complied Top 5240 1.0 1.2 0.2 Complied TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02A V3.0 VERSION 3.0 ISSUE DATE: 03 OCTOBER 2012 RFI Global Services Ltd Page 93 of 208 Transmitter Peak Power Spectral Density (5.15-5.25 GHz band) (continued) Results: 802.11a / 20 MHz / 6 Mbps / BPSK / Port 2401 Bottom Channel Middle Channel Top Channel A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.18 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -3.86 dBm 5.185770385 GHz CH PWR 6.99 dBm 89496 Date: 27.AUG.2012 16:58:20 A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.2 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -3.59 dBm 5.205449808 GHz CH PWR 6.94 dBm 89496 Date: 27.AUG.2012 17:00:11 A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.24 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -3.53 dBm 5.245898615 GHz CH PWR 7.25 dBm 89496 Date: 27.AUG.2012 17:01:29 TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02A V3.0 VERSION 3.0 ISSUE DATE: 03 OCTOBER 2012 Page 94 of 208 RFI Global Services Ltd Transmitter Peak Power Spectral Density (5.15-5.25 GHz band) (continued) Results: 802.11a / 20 MHz / 6 Mbps / BPSK / Port 2403 Bottom Channel Middle Channel Top Channel A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.18 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -3.96 dBm 5.186732115 GHz CH PWR 6.68 dBm 89496 Date: 27.AUG.2012 16:57:06 A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.2 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -4.29 dBm 5.206411538 GHz CH PWR 6.58 dBm 89496 Date: 27.AUG.2012 16:55:49 A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.24 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -3.31 dBm 5.245129231 GHz CH PWR 7.50 dBm 89496 Date: 27.AUG.2012 16:54:35 TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02A V3.0 VERSION 3.0 ISSUE DATE: 03 OCTOBER 2012 RFI Global Services Ltd Page 95 of 208 Transmitter Peak Power Spectral Density (5.15-5.25 GHz band) (continued) Results: 802.11a / 20 MHz / 6 Mbps / BPSK / Port 2405 Bottom Channel Middle Channel Top Channel A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.18 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -4.45 dBm 5.186026846 GHz CH PWR 6.41 dBm 89496 Date: 27.AUG.2012 16:50:54 A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.2 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -4.78 dBm 5.205321577 GHz CH PWR 6.07 dBm 89496 Date: 27.AUG.2012 16:52:08 A Offset 21.9 dB LVL Ref 20 dBmAtt 10 dB* Center5.24 GHzSpan40.008 MHz4.0008 MHz/ * * 3DB RBW 1 MHz VBW 3 MHz SWT 20 ms AC SGL *1 RM AVG -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 300 of 300 1 Marker 1 [T1 ] -4.56 dBm 5.244808654 GHz CH PWR 6.42 dBm 89496 Date: 27.AUG.2012 16:53:22 TEST REPORT SERIAL NO: RFI-RPT-RP89496…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: F@st 3965CV Managed Home Router FCC ID: VW3FAST3965CV To: FCC Part 15.407(h)(2) Test Report Serial No.: RFI-RPT-RP89496JD02C This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Sarah Williams Signature: Date of Issue: 17 October 2012 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02C VERSION 1.0 Issue Date: 17 October 2012 Page 2 of 79 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02C VERSION 1.0 Issue Date: 17 October 2012 RFI Global Services Ltd Page 3 of 79 Table of Contents Table of Contents......................................................................................................................................... 3 1. Customer Information .............................................................................................................................. 4 2. Summary of Testing ................................................................................................................................. 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) ................................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 9 4. Operation and Monitoring of the EUT during Testing .......................................................................... 10 4.1. Operating Modes 10 4.2. Configuration and Peripherals 10 5. Measurements, Examinations and Derived Results ............................................................................. 11 5.1. General Comments 11 5.2. Test Results 12 5.2.1. U-NII Detection Bandwidth 12 5.2.2. Initial Channel Availability Check Time 14 5.2.3. Radar Burst at the Beginning of the Channel Availability Check Time 15 5.2.4. Radar Burst at the End of the Channel Availability Check Time 16 5.2.5. Channel Closing Transmission Time and Channel Move Time 17 5.2.6. Non-occupancy Period 24 5.2.7. Statistical Performance Check – Short Pulse Radar Types 1 - 4 26 5.2.8. Statistical Performance Check – Long Pulse Radar Type 5 35 5.2.9. Statistical Performance Check – Frequency Hopping Radar Type 6 37 6. Measurement Uncertainty...................................................................................................................... 39 Appendix 1. Test Equipment Used ............................................................................................................ 40 Appendix 2. Monitoring Methods Diagrams ............................................................................................. 41 Appendix 3. Radar Type 1-6 Calibration and Verification Data ................................................................ 42 Appendix 4. Test platform confirmation email ......................................................................................... 47 Appendix 5. Statistical Performance Check– Radar Type 5 Trial Records ............................................. 48 Appendix 6. System Noise floor Reference Plots..................................................................................... 79 TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02C VERSION 1.0 Issue Date: 17 October 2012 Page 4 of 79 RFI Global Services Ltd 1. Customer Information Company Name: Sagemcom SAS Address: 250 RTE De L`Empereur 92500 Rueil Malmaison France TEST REPORT SERIAL NO: RFI-RPT-RP89496JD02C VERSION 1.0 Issue Date: 17 October 2012 RFI Global Services Ltd Page 5 of 79 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.407 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2012: Part 15 Subpart E (Unlicensed National Information Infrastructure Devices) - Section 15.407 Site Registration: FCC: 209735 Test Dates: 21 September 2012 to 12 October 2012 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.407(h)(2) U-NII Detection Bandwidth Part 15.407(h)(2)(ii) Initial Channel Availability Check Time Part 15.407(h)(2)(ii) Radar Burst at the Beginning of the Channel Availability Check Time Part 15.407(h)(2)(ii) Radar Burst at the End of the Channel Availability Check Time Part 15.407(h)(2)(iii) Channel Closing Transmission Time and Channel Move Time Part 15.407(h)(2)(iv) Non-occupancy Period Part 15.407(h)(2) Statistical Performance Check – Short Pulse Radar Types 1-4 Part 15.407(h)(2) Statistical Performance Check – Long Pulse Radar Type 5 Part 15.407(h)(2) Statistical Performance Check – Frequency Hopping Radar Type 6 Key to Results = Complied = Did not comply Note(s): 1. The results of the testing of the non-DFS requirements of Part 15.407 are included in a separate report RFI-RPT-RP89496JD02A. 2. The requirements of DFS apply for the 5250-5350 MHz and 5470-5725 MHz bands. 3. The Manufacturer confirms that information regarding the parameters of the radar waveforms is not available to the end user. 4. Clause 8.3)18) of FCC 06-96 states tests are to be performed on the narrowest channel bandwidth (worst case). All tests were therefore performed at the 20 MHz bandwidth. Some tests were additionally performed at 40 MHz to ensure correct detection bandwidth, radar detection probability, and me…
