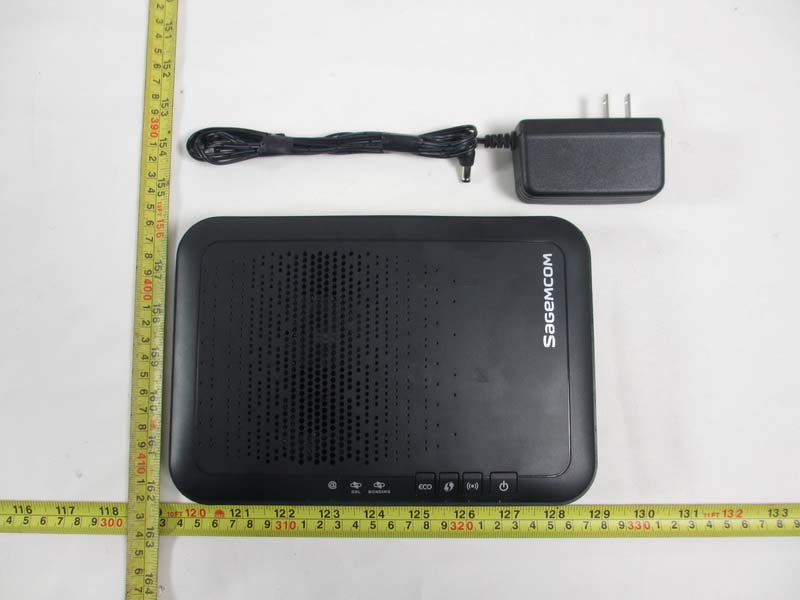

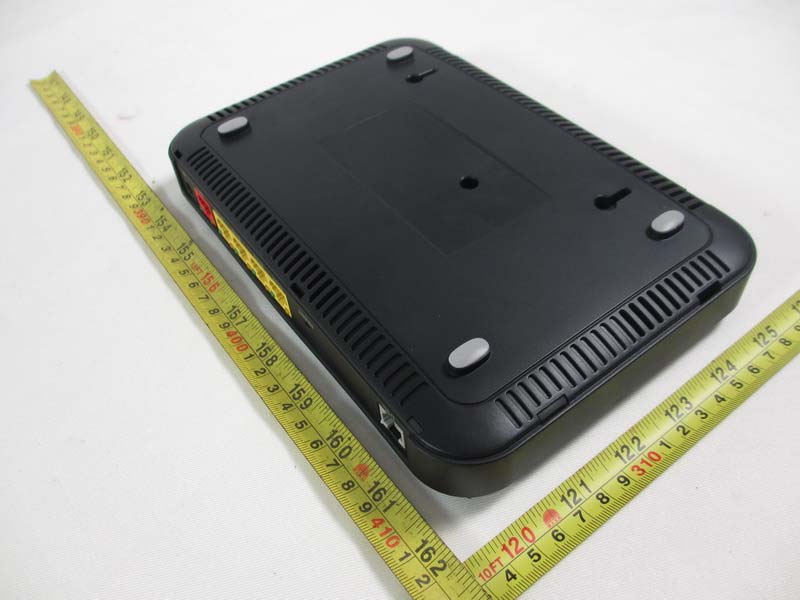

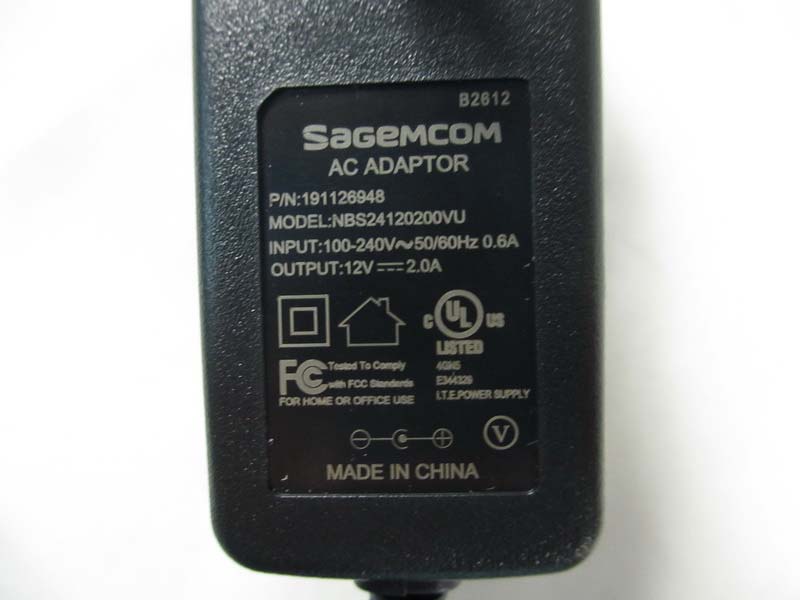

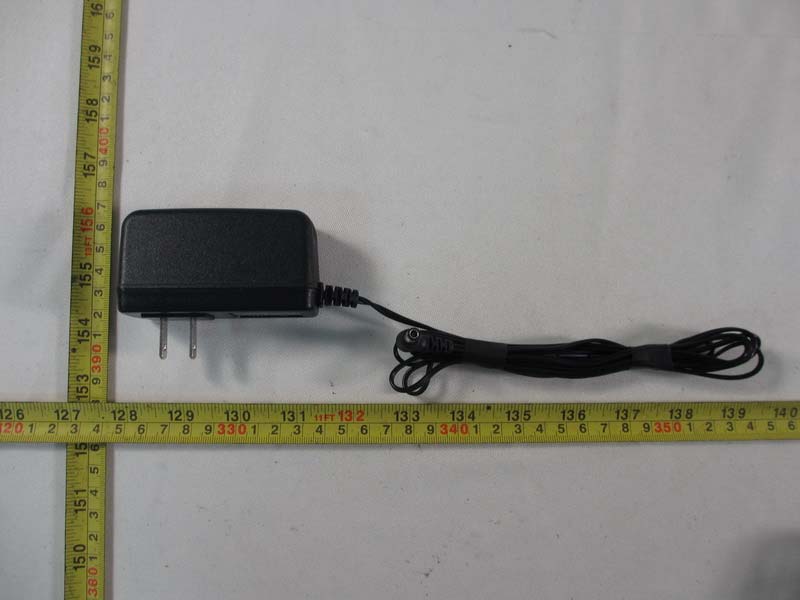

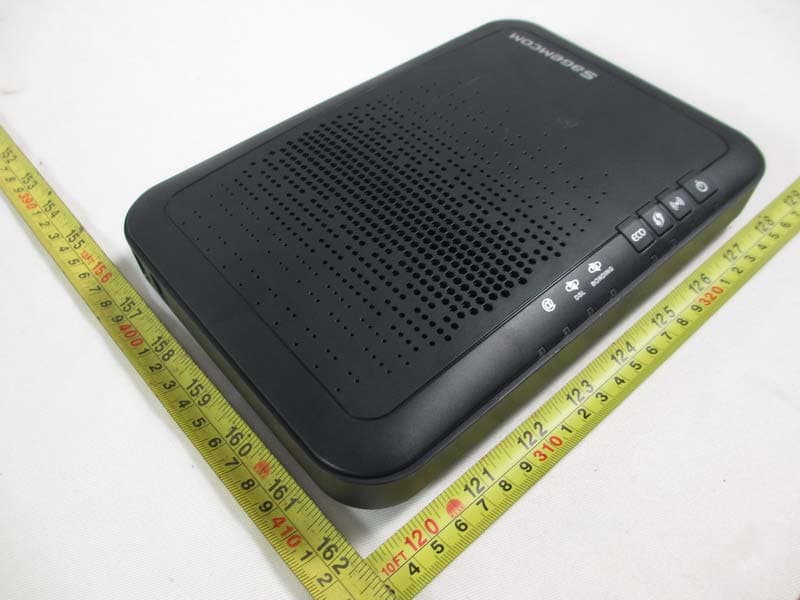

VW3FAST4320USWIRELESS xDSL BONDING ROUTER

F@ST 4320 User Manual VER: 1.0 User Manual i FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This equipment complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: User Manual ii (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. FCC - PART 68 This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:XXXXXXXX. If requested, this number must be provided to the telephone company. This equipment uses the following USOC jacks: RJ-11. REN (RINGER EQUIVALENT NUMBERS) STATEMENT Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. ATTACHMENT LIMITATIONS STATEMENT Notice: This equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). This is confirmed by marking the equipment with the Industry Canada certification number. The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. User Manual iii Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate。 User Manual i Contents 1 Safety Precautions ............................................................................................. 1 2 Overview ............................................................................................................ 2 2.1 Application ............................................................................................. 2 2.2 Features ................................................................................................ 3 2.3 Standards Compatibility and Compliance.............................................. 4 3 Hardware Description and Installation ............................................................... 5 3.1 Hardware Description ............................................................................ 5 3.1.1 Front Panel ................................................................................. 5 3.1.2 Rear Panel and Side Panel ........................................................ 6 3.2 Hardware Installation............................................................................. 7 3.2.1 Choosing the Best Location for Wireless Operation ................... 7 3.2.2 Connecting the Device ............................................................... 7 4 PC Network Configuration and Login................................................................. 9 4.1 PC Network Configuration ....................................................…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1211C023 Page 2 of 9 Neutron Engineering Inc. Project No.: 1211C023 Page 3 of 9 Neutron Engineering Inc. Project No.: 1211C023 Page 4 of 9 Neutron Engineering Inc. Project No.: 1211C023 Page 5 of 9

1.以下内容由供应商印刷2.以下内容由TW条码房在供应商印刷的基础上再打印 MAC:XXXXXXXXXXXX 89.0mm 49.0mm 0 -0.2 0-0.2 SSID: XXXXXXXX WPA: XXXXXXXX 253517228 Barcode: code 128 SSID: XXXXXXXX WPA: XXXXXXXX 位数及内容由产测软件生成 位数及内容由产测软件生成 MAC:XXXXXXXXXXXX 见客户提供 1 2 3 4 A B C D 5 6 1 2 3 4 5 6 A B C D DATE:20121210 SAGEMCOM F@ST 4320 US GENERIC 1. 黑色印刷，无边框,R1.5 2.材料: 50#亮白PET,不上光膜,过UV油墨,背胶 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. NOTES(技术要求）: (Material:,no film,UV coated,adhesive)50# bright white PET (Black printing,no frame,R1.5) (Raw mate rials and th e corresponding post pro cessing should meet re quire ments defi ned in th e T&W Enviro nmenta l Pro te cti on Technical Sta ndard s.) 1:1 Bottom label XXXX N/A CHECK DRAW PDE 60800001531x A0 Editor Description Remark Date 蒋黎 刘娟 刘欢 BARCODE: CODE 128 S/N: N7YYDDDMMXXXXXX N7:固定 YY:YEAR,例如:12指2012 DDD:DATE,指一年中的某天,例如001、365 MM:取值55 XXXXXX:000001-999999(按生产流水号) S/N: N7YYDDDMMXXXXXX admin password: **** admin password: **** 位数及内容由产测软件定义 12VDC/2A Wireless xDSL Bonding Router Model:F@ST 4320 US Made in China FCC ID:VW3FAST4320US US: NS3DL01BFAST4320US REN: 0.1B IC:9140A-FAST4320US Complies with FCC Part 68 and IC CS-03 Rules 47W4 E308616 89.0mm 49.0mm 0 -0.2 0-0.2 Label Location

Neutron Engineering Inc. Project No.: 1211C023 Page 6 of 9 Neutron Engineering Inc. Project No.: 1211C023 Page 7 of 9 Neutron Engineering Inc. Project No.: 1211C023 Page 8 of 9 Neutron Engineering Inc. Project No.: 1211C023 Page 9 of 9

Proprietary and Confidential Airgain, Inc. Page 1 Patent Pending Revision A 2 December 2010 Doc. # 198-02-00-001-1 Airgain Single Band Embedded Antenna Product Datasheet Profile30S Model N2430GNS 1930 Palomar Point Way, Suite 107 Carlsbad, CA 92008 Tel: +1 760 579 0200 Fax: +1 760 579 0892 Information: [email protected] Sales: [email protected] Support: [email protected] Coverage. Performance. Smart. Model N2430GNS Product Datasheet Proprietary and Confidential Airgain, Inc. Page 2 Patent Pending Revision A 2 December 2010 Doc. # 198-02-00-001-1 Coverage. Performance. Smart. Table of Contents 1. Model N2430GNS 2.4GHz Embedded Antenna .................................................................... 3 2. Features ................................................................................................................................... 3 3. Specification and Interface ..................................................................................................... 4 4. Radiation Patterns ................................................................................................................... 4 5. Dimensions ............................................................................................................................. 5 6. ROHS ...................................................................................................................................... 6 7. Application Guidelines and Recommendations ...................................................................... 6 7.1. PCB Mounting .................................................................................................................... 6 7.2. Plastic Case loading effects ................................................................................................ 7 7.3. N2430GNS Reference Board .............................................................................................. 9 8. Supporting Documents.......................................................................................................... 10 9. Revision history .................................................................................................................... 10 Disclaimers The information in this document is provided in connection with Airgain Antenna products and is proprietary and confidential. Airgain may make changes to at anytime, without notice. Please verify with Airgain before finalizing a product design. Model N2430GNS Product Datasheet Proprietary and Confidential Airgain, Inc. Page 3 Patent Pending Revision A 2 December 2010 Doc. # 198-02-00-001-1 Coverage. Performance. Smart. 1. Model N2430GNS 2.4GHz Embedded Antenna Using Airgain’s patented technology, the Model N2430GNS antenna provides a high gain, on-board antenna solution for Wi-Fi and ISM band applications. As embedded antenna solutions become the focus of next generation wireless product design, the N2430GNS provides the flexibility of an embedded antenna without sacrificing performance. The N2430GNS 2.4GHz antenna was designed to accommodate most WLAN access point applications, such as routers and gateways, with a low-cost, low profile, and enhanced performance PCB component design. 2. Features The Model N2430GNS is defined by the following features: • IEEE 802.11 b/g/n compatible • PCB mounting, low profile design • 5dBi @2.44 GHz, Peak Gain • Low Cost, High performance • Reliable Through-Hole mounting Figure 1 Model N2430GNS Antenna Model N2430GNS Product Datasheet Proprietary and Confidential Airgain, Inc. Page 4 Patent Pending Revision A 2 December 2010 Doc. # 198-02-00-001-1 Coverage. Performance. Smart. 3. Specification and Interface Standard IEEE 802.11n and 802.11 b/g Frequency Range 2.4 to 2.49 GHz Peak Gain 5dBi @2.44 GHz VSWR 2:1 Feed Impedance 50 Ohms Power Handling 30 dBm Interface Two, 1 mm x 2.4 mm, Through hole pins for 50 ohm microstripline trace Antenna Dimensions (LxWxH) 34.0 x 5 x 12.2 (mm) Weight 1.5 g (0.053 oz) Temperature Operating: -40° to +75°C Storage:: -40° to +85°C Humidity 0 to 95%, non-condensing 4. Radiation Patterns Data shown is for one N2430GNS mounted on a Model N2430GNS Reference PCB and covered with a 2.5mm thick ABS plastic sheet. Figure 2 Model N2430GNS Antenna axis orientation for radiation pattern Model N2430GNS Product Datasheet Proprietary and Confidential Airgain, Inc. Page 5 Patent Pending Revision A 2 December 2010 Doc. # 198-02-00-001-1 Coverage. Performance. Smart. 2.4GHz Azimuth -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 Elevation -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 Figure 3 2.4GHz Radiation Patterns 5. Dimensions Figure 3 Model N2430GNS Dimensions Model N2430GNS Product Datasheet Proprietary and Confidential Airgain, Inc. Page 6 Patent Pending Revision A 2 December 2010 Doc. # 198-02-00-001-1 Coverage. Performance. Smart. 6. ROHS Model N2430GNS Antennas are RoHS compliant. 7. Application Guidelines and Recommendations The Model N2430GNS antenna incorporates a stable support footprint and through hole pin connections, simplifying use in new PCB designs. Airgain has developed guidelines that should be followed to achieve the best performance from the Model N2430GNS. These recommendations apply to both IEEE 802.11a/b/g and n applications. The Model N2430GNS Reference Board PCB also implements these recommendations. This evaluation tool is available through Airgain sales representatives. 7.1. PCB Mounting The recommended layout of a design implementation is shown in Figure 6. N2430GNS performance is fairly independent of its location on the PCB, provided it is positioned close to a PCB edge. Place the N2430GNS parallel to, and centered 3.0 mm away from the edge of the PCB. Performance is improved if Pin 1 is placed no closer than 15 mm from the nearest orthogonal edge of the PCB. A larger distance between Pin 1 and the orthogonal edge of the PCB is often better. When Pin 2 is the closest pin to the nearest orthogonal edge of the PCB, Pin 1 should be pl…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: VW3FAST4320US Project No. : 1211C023 Equipment : Wireless xDSL Bonding Router Model : F@ST 4320 US Applicant : SAGEMCOM BROADBAND SAS Address : 250 Route de l’Empereur - 92848 RUEIL MALMAISON CEDEX- FRANCE According: : FCC Guidelines for Human Exposure IEEE C95.1 Te s t e d b y : Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 05, 2012 Date of Test: Nov. 05, 2012 ~ Nov. 30, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain (dBi) 1 N2430GNS Embedded Antenna N/A 5 2 N2430GNS Embedded Antenna N/A 5 This EUT supports MIMO 2T2R, All transmit signals are completely uncorrelated, then , that is Directional gain=5; TEST RESULTS EUT： Wireless xDSL Bonding Router Model Name ： F@ST 4320 US Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 18.34 68.2339 0.042948731 Complies 5 3.1623 17.75 59.5662 0.037493021 Complies 5 3.1623 17.56 57.0164 0.035888091 Complies Neutron Engineering Inc. EUT： Wireless xDSL Bonding Router Model Name ： F@ST 4320 US Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.76 119.1242 0.074980851 Complies 5 3.1623 20.39 109.3956 0.068857361 Complies 5 3.1623 20.96 124.7384 0.078514591 Complies EUT： Wireless xDSL Bonding Router Model Name ： F@ST 4320 US Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20MHz MODE CH01/CH06/CH11-ANT1+ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.82 120.7814 0.076023941 Complies 5 3.1623 21.07 127.9381 0.080528641 Complies 5 3.1623 20.85 121.6186 0.076550911 Complies EUT： Wireless xDSL Bonding Router Model Name ： F@ST 4320 US Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40MHz MODE CH03/CH06/CH09-ANT1+ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 18.63 72.9458 0.045914551 Complies 5 3.1623 18.43 69.6627 0.043848061 Complies 5 3.1623 18.31 67.7642 0.042653081 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 1 of 147 FCC Radio Test Report FCC ID: VW3FAST4320US This report concerns (check one) : Original Grant Class II Change Issued Date : Nov. 30, 2012 Project No. : 1211C023 Equipment : Wireless xDSL Bonding Router Model Name : F@ST 4320 US P/N 253517228 S/N Test sample Applicant : SAGEMCOM SAS Address : 250 Route de l'Empereur RUEIL MALMAISON CEDEX 92848 France Manufacturer : SAGEMCOM SAS Address : 250 Route de l'Empereur RUEIL MALMAISON CEDEX 92848 France Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 05, 2012 Date of Test: Nov. 05, 2012 ~ Nov. 30, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 2 of 147 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 3 of 147 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 15 4 . EMC EMISSION TEST 16 4.1 CONDUCTED EMISSION MEASUREMENT 16 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 16 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 16 4.1.3 TEST PROCEDURE 17 4.1.4 DEVIATION FROM TEST STANDARD 17 4.1.5 TEST SETUP 17 4.1.6 EUT OPERATING CONDITIONS 17 4.1.7 TEST RESULTS 18 4.2 RADIATED EMISSION MEASUREMENT 27 4.2.1 RADIATED EMISSION LIMITS 27 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 28 4.2.3 TEST PROCEDURE 29 4.2.4 DEVIATION FROM TEST STANDARD 29 4.2.5 TEST SETUP 30 4.2.6 EUT OPERATING CONDITIONS 31 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 32 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 35 5 . BANDWIDTH TEST 83 5.1 APPLIED PROCEDURES / LIMIT 83 5.1.1 MEASUREMENT INSTRUMENTS LIST 83 5.1.2 TEST PROCEDURE 83 5.1.3 DEVIATION FROM STANDARD 83 5.1.4 TEST SETUP 83 5.1.5 EUT OPERATION CONDITIONS 83 5.1.6 TEST RESULTS 84 6 . MAXIMUM OUTPUT POWER TEST 96 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 4 of 147 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 96 6.1.1 MEASUREMENT INSTRUMENTS LIST 96 6.1.2 TEST PROCEDURE 96 6.1.3 DEVIATION FROM STANDARD 96 6.1.4 TEST SETUP 96 6.1.5 EUT OPERATION CONDITIONS 96 6.1.6 TEST RESULTS 97 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 100 7.1 APPLIED PROCEDURES / LIMIT 100 7.1.1 MEASUREMENT INSTRUMENTS LIST 100 7.1.2 TEST PROCEDURE 100 7.1.3 DEVIATION FROM STANDARD 100 7.1.4 TEST SETUP 100 7.1.5 EUT OPERATION CONDITIONS 100 7.1.6 TEST RESULTS 101 8 . POWER SPECTRAL DENSITY TEST 131 8.1 APPLIED PROCEDURES / LIMIT 131 8.1.1 MEASUREMENT INSTRUMENTS LIST 131 8.1.2 TEST PROCEDURE 131 8.1.3 DEVIATION FROM STANDARD 131 8.1.4 TEST SETUP 131 8.1.5 EUT OPERATION CONDITIONS 131 8.1.6 TEST RESULTS 132 9 . EUT TEST PHOTO 146 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 5 of 147 1. CERTIFICATION Equipment : Wireless xDSL Bonding Router Brand Name : SAGEMCOM Model Name : F@ST 4320 US P/N : 253517228 S/N : Test sample Applicant : SAGEMCOM SAS Factory : SHENZHEN GONGJIN Electronics CO., LTD Address : No 2&3 Buildings, Mingwei Factory Area, Songgang Road West,No. A Building, 1#Songgang Road Songgang Sub-District, Shenzhen, Guangdong, 518105, P.R.China Date of Test : Nov. 05, 2012 ~ Nov. 30, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1211C023) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 6 of 147 2. SUMMARY OF TEST RESULTS FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (d) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (e) Power Spectral Density PASS 15.…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 146 of 147 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C023 Page 147 of 147 Radiated Measurement Photos
