VW3FAST5260FAST 5260 Home Router

Safety and Certifications 253584659-A 20 January 2014 4 Safety and Certifications 253584659-A 20 January 2014 1 Important Information about the Sagemcom Fast 5260: Installation and Safe Usage Instructions: 1. Place the router in a vertical orientation on a flat surface. 2. Connect the manufacturer supplied AC to DC power adapter. The Fast 5260 router requires the use of a 12 VDC, 2.5 A power adapter. Only use a manufacturer supplied and approved power adapter and Ethernet cable. 3. Connect the Fast 5260 to the AC Mains in accordance with the installation instructions in this booklet, and the markings on the identification label (voltage, current, and frequency of electricity network). 4. Connect the Ethernet cable (provided) to one of the RJ45 ports on the Router labeled "1", "2", "3", or "4". Then connect the other end of the Ethernet Cable to the Ethernet port of a computer. Repeat as necessary for the other available Ethernet ports. 5. For an Ethernet WAN configuration, connect the RJ45 port labeled “wan” to the connection provided by your ISP. When using this device, basic safe ty precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons including the following: 1. Do not use this product near water and avoid contact with moisture. For example, do not use near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Care should be taken so that liquids are not spilled on this equipment. 2. This equipment is for indoor use only, do not place or install in an outdoor location. 3. Place your product on a firm, solid surface, no obstacle at a minimum distance of 20 cm (0.65 ft). If you put it on something unsteady, it may fall and be damaged. If you place it on a soft surface, such as rug, sofa or cushion, the vents may be blocked, causing the product to overheat. 4. Never insert objects into the vents of this equipment as this can result in the risk of electrical shock or fire. 5. As the power adapter is the only way to connect to the electrical network, the product must be installed near an easily accessed power outlet. 6. This equipment should only be operated from the type of power supply (Voltage and Current) indicated on the marking label. 7. Do not overload wall outlets or extension cords. Doing so can result in the risk of fire or electrical shock. 8. Avoid blocking any vent openings or exhaust exits on this equipment. Do not place equipment in a built-in installation such as a cabinet that may impede the flow of air through the ventilation openings. 9. The equipment should be situated away from heat sources such as radiators, heat registers, stoves, or other heat producing appliances and equipment. 10. Care should be taken to ensure that the power cord is routed, so it is not likely to be walked on or pinched by items placed upon or next to it. 11. Unplug this equipment before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning only. 12. This equipment is not user serviceable and is to be serviced by qualified personnel only. Do not disassemble this equipment. If service is required, disconnect all power from the equipment and consult qualified service personnel. 13. To disconnect this equipment from AC power, unplug the power supply from the AC wall socket. 14. Connect only to in house equipment (SELV interface). It is not allowed to connect to public cable distribution or cable television network. 15. Use the product in the environment specified as below: - Air temperature between 0 °C and + 40 °C. - Relative humidity between 20 % and 90 %. - Altitude: 2000 meters (6562 ft) maximum. Save these Instructions! Safety and Certifications 253584659-A 20 January 2014 2 Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Modifications: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Responsible Party: Sagemcom USA 14651 N. Dallas Parkway Suite 900 Dallas, TX 75254 Phone: 972-674-4100 Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device produces radio frequency energy in the 2.4 GHz and 5 GHz spectrums. The antenna must be positioned to keep a minimum distance of 20 cm (0.65 ft) from the radiating element to any nearby person. Issued by Sagemcom Broadband SAS Sagemcom 250, route de l'Emp…

Text truncated - open the document above for the full version.

Product Label 89x49 1 2 Gif t Label 80x40 Labels for F@st 5260 Charter

Ce document et les informations qu'il contient sont la propriété de Sagemcom. Ils ne doivent pas être copiés, ni communiqués à un tiers sans l’autorisati on préalable et écrite de Sagemcom. Fast 5260 product label placement Document | ATR | 2014-Jan-23 1

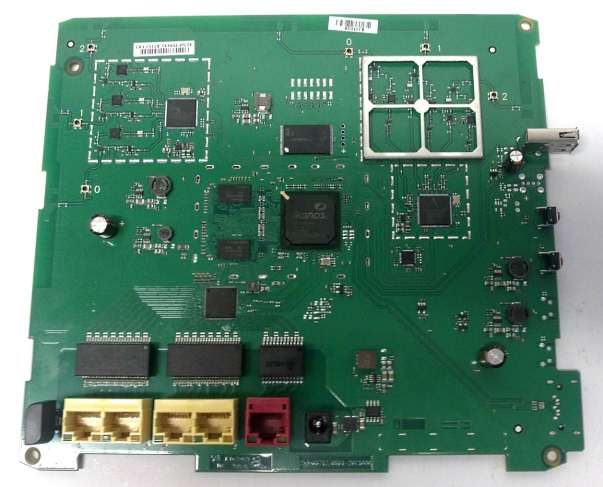

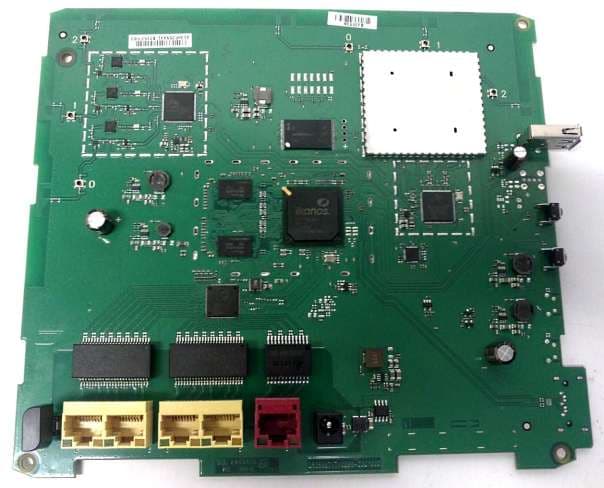

Internal views FCC Id: VW3FAST5260

Product name:Wifi router Manufacturer:SAGEMCOM FCC Id:VW3FAST5260 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Transmitter n°1 Maximum peak output power at the antenna terminal:28.90(dBm) Maximum peak output power at the antenna terminal:776.2471166(mW) Antenna gain(typical):6.4(dBi) Maximum antenna gain:4.365158322(numeric) Prediction distance: 20(cm) Prediction frequency:2400(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.674109(mW/cm^2) Maximum allowable antenna gain:8.112698554(dBi) Note: Transmitter n°1 includes the 3 antennas for 2.4GHz Equivalent maximum gain for these 3 combinated antenna has been measured and found equal to 6.4dBi 28.9 dBm is the maximum power delivered to the 3 combinated antennas Transmitter n°2 Maximum peak output power at the antenna terminal:22.20(dBm) Maximum peak output power at the antenna terminal:165.9586907(mW) Antenna gain(typical): 7(dBi) Maximum antenna gain:5.011872336(numeric) Prediction distance:20(cm) Prediction frequency: 5200(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.165474(mW/cm^2) Maximum allowable antenna gain:14.81269855(dBi) Note: Transmitter n°2 includes the 3 antennas for 5GHz Equivalent maximum gain for these 3 combinated antenna has been measured and found equal to 7dBi 22.2 dBm is the maximum power delivered to the 3 combinated antennas Transmitter n°1 + Transmitter n°2: [Pd(1)/LPd(1)] + [Pd(2)/LPd(2)] =0.83958 <1 2 4R PG S π =

TEST REPORT N°125772-652184A Page 2/82 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. EQUIPMENT DESCRIPTION .............................................................................................................. 4 3. OCCUPIED BANDWIDTH ................................................................................................................. 12 4. -6DB BANDWIDTH ........................................................................................................................... 16 5. MAXIMUM CONDUCTED POWER ................................................................................................... 22 6. POWER SPECTRAL DENSITY ........................................................................................................ 24 7. UNWANTED EMISSIONS INTO NON RESTRICTED FREQUENCY BANDS ................................... 38 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................................. 61 9. UNWANTED EMISSIONS INTO RESTRICTED FREQUENCY BANDS ............................................ 66 10. TEST EQUIPMENT LIST .................................................................................................................. 81 11. UNCERTAINTIES CHART ................................................................................................................ 82 TEST REPORT N°125772-652184A Page 3/82 1. TEST PROGRAM References Standards: - 47 CFR Part 15C - RSS-210 - RSS-Gen - CISPR 16-4-2 - ANSI C63.10 Standard Section Test Description TEST RESULT - Comments RSS-Gen § 4.6.1 Occupied Bandwidth PASS CFR 47 § 15.247 (a) (2) RSS-210 § A8.2(a) -6dB Bandwidth PASS CFR 47 § 15.247 (b) RSS-210 § A8.4(4) Maximum Output Power PASS CFR 47 § 15.247 (e) RSS-210 § A8.2 (b) Power Spectral Density PASS CFR 47 § 15.247 (d) RSS-210 § A8.5 Unwanted Emissions into Non-Restricted Frequency Bands PASS CFR 47 § 15.207 RSS-Gen § 7.2.4 AC Power Line Conducted Emissions PASS CFR 47 § 15.209 (a) CFR 47 § 15.205 (a) CFR 47 § 15.247 (d) RSS-210 § A8.5 Unwanted Emissions into Restricted Frequency Bands PASS PASS: EUT complies with standard’s requirement FAIL: EUT does not comply with standard’s requirement NA: Not Applicable NP: Test Not Perform TEST REPORT N°125772-652184A Page 4/82 2. EQUIPMENT DESCRIPTION 2.1. HARDWARE & SOFTWARE IDENTIFICATION Equipment under test (EUT): Front view Rear View Side view Power Supply Photograph of EUT TEST REPORT N°125772-652184A Page 5/82 Electronic Card Photograph of EUT Auxiliary equipment (AE) used for testing: Laptop LENOVO T400 for Master Device Setting Photograph of AE TEST REPORT N°125772-652184A Page 6/82 Input/output: - Input Power - 4 Ethernet ports - 1 WAN port - 1 USB ports Software identification: -Software version: V6.0.9.1 Equipment of the same family: According to the manufacturer declaration, the router Fast 5260 is a variant of the router F@st 5260CV. This variant is created by removing e-SATA interface and one USB interface (See FAST 5260 declaration for more information), and the radio parts of these 2 variants are strictly identical. So, Conducted Test results in this test report are retrieves from F@st 5260CV test report (FCC ID: VW3FAST5260CV). Equipment information: - Wifi Version: 802.11b/g/n HT20/n HT40 - Modulation technology: OFDM and DSSS modulation - Transmit operating mode: Multiples antenna without beam forming - Number of transmit chains: 3 symmetrical - Number of receiver chains: 3 - Beamforming gain: No - Type of the equipment: Stand-alone equipment - Type of power source: External power supply - Antenna type: Integral - Test sequence/test software used: See 2.2. Running Mode - Duty Cycle: Continuous duty - Operating frequency range: Frequency Band (MHz) Test Report 2400MHz to 2483,5MHz 125772-652184A 5150MHz to 5350MHz 125772-652184C&D 5470MHz to 5725MHz (Note 1) 125772-652184C&D 5725MHz to 5850MHz 125772-652184B (Note1: The Manufacturer declares the 5600MHz -5650MHz band is not available) TEST REPORT N°125772-652184A Page 7/82 Antenna Characteristics: Antenna All Tx Frequency Band (MHz) Declared Overall Antenna Gain (dBi) 2.4GHz 6,4 (Note 1) 5GHz 7 (Note 1) Note 1: Information given by the customer in “Sagemcom_F@st 5260CV_Radio-tool -Guide_Ed1_20130503” word document. -Channel plan 802.11b, 802.11g & 802.11n HT20: Channel Frequency (MHz) Cmin: 1 2412 2 2417 3 2422 4 2427 5 2432 Cnom: 6 2437 7 2442 8 2447 9 2452 10 2457 Cmax: 11 2462 -Channel plan 802.11n HT40: Channel Frequency (MHz) Cmin: 3 2422 4 2427 5 2432 Cnom: 6 2437 7 2442 8 2447 Cmax: 9 2452 TEST REPORT N°125772-652184A Page 8/82 -Data Rate: 802.11b Data Rate (Mbps) Modulation Type 1 DBPSK 2 DQPSK 5,5 DQPSK 11 CCK 802.11g Data Rate (Mbps) Modulation Type 6 BPSK 9 BPSK 12 QPSK 18 QPSK 24 16-QAM 36 16-QAM 48 64-QAM 54 64-QAM TEST REPORT N°125772-652184A Page 9/82 MCS index Spatial streams Modulation Type 802.11n HT20 802.11n HT40 Data rate (Mbit/s Data rate (Mbit/s) GI=800ns GI=400ns GI=800ns GI=400ns 0 1 BPSK 6.50 7.20 13.50 15.00 1 1 QPSK 13.00 14.40 27.00 30.00 2 1 QPSK 19.50 21.70 40.50 45.00 3 1 16-QAM 26.00 28.90 54.00 60.00 4 1 16-QAM 39.00 43.30 81.00 90.00 5 1 64-QAM 52.00 57.80 108.00 120.00 6 1 64-QAM 58.50 65.00 121.50 135.00 7 1 64-QAM 65.00 72.20 135.00 150.00 8 2 BPSK 13.00 14.40 27.00 30.00 9 2 QPSK 26.00 28.90 54.00 60.00 10 2 QPSK 39.00 43.30 81.00 90.00 11 2 16-QAM 52.00 57.80 108.00 120.00 12 2 16-QAM 78.00 86.70 162.00 180.00 13 2 64-QAM 104.00 115.60 216.00 240.00 14 2 64-QAM 117.00 130.00 243.00 270.00 15 2 64-QAM 130.00 144.40 270.00 300.00 16 3 BPSK 19.50 21.70 40.50 45.00 17 3 QPSK 39.00 43.30 81.00 90.00 18 3 QPSK 58.50 65.00 121.50 135.00 19 3 16-QAM 78.00 86.70 162.00 180.00 20 3 16-QAM 117.00 130.00 243.00 270.00 21 3 64-QAM 156.00 173.30 324.00 360.00 22 3 64-QAM 175.50 195.00 364.50 405.00 23 3 64-QAM 195.00 216.70 405.00 450.00 TEST REPORT N°125772-652184A Pag…

Text truncated - open the document above for the full version.

TEST REPORT N°125772-652184B Page 2/70 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. EQUIPMENT DESCRIPTION .............................................................................................................. 4 3. OCCUPIED BANDWIDTH ................................................................................................................. 12 4. -6DB BANDWIDTH ........................................................................................................................... 15 5. MAXIMUM CONDUCTED POWER ................................................................................................... 18 6. POWER SPECTRAL DENSITY ........................................................................................................ 20 7. UNWANTED EMISSIONS INTO NON-RESTRICTED FREQUENCY BANDS AT THE BAND EDGE 31 8. UNWANTED EMISSIONS INTO NON-RESTRICTED FREQUENCY BANDS ................................... 41 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................................. 52 10. UNWANTED EMISSIONS INTO RESTRICTED FREQUENCY BANDS ............................................ 57 11. TEST EQUIPMENT LIST .................................................................................................................. 69 12. UNCERTAINTIES CHART ................................................................................................................ 70 TEST REPORT N°125772-652184B Page 3/70 1. TEST PROGRAM References Standards: - 47 CFR Part 15C - RSS-210 - RSS-Gen - CISPR 16-4-2 - ANSI C63.10 Standard Section Test Description TEST RESULT - Comments RSS-Gen § 4.6.1 Occupied Bandwidth PASS CFR 47 § 15.247 (a) (2) RSS-210 § A8.2(a) -6dB Bandwidth PASS CFR 47 § 15.247 (b) RSS-210 § A8.4(4) Maximum Output Power PASS CFR 47 § 15.247 (e) RSS-210 § A8.2 (b) Power Spectral Density PASS CFR 47 § 15.247 (d) RSS-210 § A8.5 Conducted Spurious Emission at the Band Edge PASS CFR 47 § 15.247 (d) RSS-210 § A8.5 Unwanted Emissions into Non-Restricted Frequency Bands PASS CFR 47 § 15.207 RSS-Gen § 7.2.4 AC Power Line Conducted Emissions PASS CFR 47 § 15.209 (a) CFR 47 § 15.205 (a) CFR 47 § 15.247 (d) RSS-210 § A8.5 Unwanted Emissions into Restricted Frequency Bands PASS PASS: EUT complies with standard’s requirement FAIL: EUT does not comply with standard’s requirement NA: Not Applicable NP: Test Not Performed TEST REPORT N°125772-652184B Page 4/70 2. EQUIPMENT DESCRIPTION 2.1. HARDWARE & SOFTWARE IDENTIFICATION Equipment under test (EUT): Front view Rear View Side view Power Supply Photograph of EUT TEST REPORT N°125772-652184B Page 5/70 Electronic Card Photograph of EUT Auxiliary equipment (AE) used for testing: Laptop LENOVO T400 for Master Device Setting Photograph of AE TEST REPORT N°125772-652184B Page 6/70 Input/output: - Input Power - 4 Ethernet ports - 1 WAN port - 1 USB ports Software identification: -Software version: V6.0.9.1 Equipment of the same family: According to the manufacturer declaration, the router Fast 5260 is a variant of the router F@st 5260CV. This variant is created by removing e-SATA interface and one USB interface (See FAST 5260 declaration for more information), and the radio parts of these 2 variants are strictly identical. So, Conducted Test results in this test report are retrieves from F@st 5260CV test report (FCC ID: VW3FAST5260CV). Equipment information: - Wifi Version: 802.11a/n HT20/n HT40/ac VHT80 - Modulation technology: OFDM and DSSS modulation - Transmit operating mode: Multiples antenna without beam forming - Number of transmit chains: 3 symmetrical - Number of receiver chains: 3 - Beamforming gain: No - Type of the equipment: Stand-alone equipment - Type of power source: External power supply - Antenna type: Integral - Test sequence/test software used: See 2.2. Running Mode - Duty Cycle: Continuous duty - Operating frequency range: Frequency Band (MHz) Test Report 2400MHz to 2483,5MHz 125772-652184A 5150MHz to 5350MHz 125772-652184C&D 5470MHz to 5725MHz (Note 1) 125772-652184C&D 5725MHz to 5850MHz 125772-652184B (Note1: The Manufacturer declares the 5600MHz -5650MHz band is not available) TEST REPORT N°125772-652184B Page 7/70 - Antenna Characteristics: Antenna All Tx Frequency Band (MHz) Declared Overall Antenna Gain (dBi) 2.4GHz 6,4 (Note 1) 5GHz 7 (Note 1) Note 1: Informations given by the customer in “Sagemcom_F@st 5260CV_Radio-tool -Guide_Ed1_20130503” word document. -Channel plan 802.11a, 802.11n HT20: Channel Frequency (MHz) Cmin: 149 5745 153 5765 Cnom: 157 5785 161 5805 Cmax: 165 5825 -Channel plan 802.11n HT40: Channel Frequency (MHz) Cmin: 149+153 5755 Cmax: 157+161 5795 -Channel plan 802.11ac VHT80: Channel Frequency (MHz) Cnom: 149+153+157+161 5775 -Data Rate: 802.11a Data Rate (Mbps) Modulation Type 6 BPSK 9 BPSK 12 QPSK 18 QPSK 24 16-QAM 36 16-QAM 48 64-QAM 54 64-QAM TEST REPORT N°125772-652184B Page 8/70 MCS index Spatial streams Modulation Type 802.11n HT20 802.11n HT40 Data rate (Mbit/s Data rate (Mbit/s) GI=800ns GI=400ns GI=800ns GI=400ns 0 1 BPSK 6.50 7.20 13.50 15.00 1 1 QPSK 13.00 14.40 27.00 30.00 2 1 QPSK 19.50 21.70 40.50 45.00 3 1 16-QAM 26.00 28.90 54.00 60.00 4 1 16-QAM 39.00 43.30 81.00 90.00 5 1 64-QAM 52.00 57.80 108.00 120.00 6 1 64-QAM 58.50 65.00 121.50 135.00 7 1 64-QAM 65.00 72.20 135.00 150.00 8 2 BPSK 13.00 14.40 27.00 30.00 9 2 QPSK 26.00 28.90 54.00 60.00 10 2 QPSK 39.00 43.30 81.00 90.00 11 2 16-QAM 52.00 57.80 108.00 120.00 12 2 16-QAM 78.00 86.70 162.00 180.00 13 2 64-QAM 104.00 115.60 216.00 240.00 14 2 64-QAM 117.00 130.00 243.00 270.00 15 2 64-QAM 130.00 144.40 270.00 300.00 16 3 BPSK 19.50 21.70 40.50 45.00 17 3 QPSK 39.00 43.30 81.00 90.00 18 3 QPSK 58.50 65.00 121.50 135.00 19 3 16-QAM 78.00 86.70 162.00 180.00 20 3 16-QAM 117.00 130.00 243.00 270.00 21 3 64-QAM 156.00 173.30 324.00 360.00 22 3 64-QAM 175.50 195.00 364.50 405.00 2…

Text truncated - open the document above for the full version.

Test setup photos FCC Id: VW3FAST5260 Test setup for power line conducted emissions Test setup for power line conducted emissions Test setup for radiated field strength Test setup for radiated field strength
