VW3HILONC-3GPSQual-Band GSM/GPRS/EDGE Voice and Data Module

URD1– OTL 5696.1– 022 / 72740 Edition 0.4 HILONC- 3GPS APPLICATION NOTE01/08/ 2011 - page 1/41 Direction des Recherches et des Développements Etablissement de RUEIL-MALMAISON RUEIL-MALMAISON R&D Center NOTE D'ETUDE / TECHNICAL DOCUMENT ETUDE / PROJECT NOM DE L’ETUDE HILONC-3GPS TITRE / TITLE : HILONC- 3GPS APPLICATION NOTE RESUME / SUMMARY This document is the application notes of the HILONC-3GPS module. Mots clés / Keywords : HiLoNC-3GPS, application Note  DIFFUSION INTERNE / INTERNAL DISTRIBUTION REDACTEUR(S) / AUTHOR (S) + F.FREULON, F.GOUERE . DIFFUSION EXTERNE sous convention de confidentialité : EXTERNAL DISTRIBUTION with confidentiality agreement : ............. Enregistrement relatif à la qualité (ERQ) / Quality record A déposer en enveloppe soleau / Put in a soleau envelope Note d’étude / Technical document : Edition Approbations /Approvals N° # 0.4 Nom Name Rédacteur(s) Author(s) CC Hsieh Chef de projet Project design manager CC Hsieh Responsable d’entité / Product design manager CW Sheu Chef Unité R&D unit manager P. NOM Assurance Qualité / R&D quality assurance Harry Lin Date Signature 01/08/2011 Aaron Wang 19/09/2011 CC Hsieh 19/09/2011 Ruth Chu 28/07/2011 21/09/2011 Harry Lin REFERENCE URD1 – OTL 5696.1–022/ 72740 Code C TA1 URD1– OTL 5696.1– 022 / 72740 Edition 0.4 HILONC- 3GPS APPLICATION NOTE NOTE D'ETUDE / TECHNICAL DOCUMENT FICHE RECAPITULATIVE / SUMMARY SHEET  Note d’étude / Technical document : 01/08/20111 - Page 2 / 41 Ed Date Date Référence Reference Rédacteur(s) Author(s) Relecteur(s) Reviser(s) Pages modifiées / Changed pages Observations Comments 0.1 23/09/2011 URD1 OTL 5696.1 022 72740 ed 0.1 - HiLoNC-3GPS Application Note SAGEMCOM SAGEMCOM. All First Draft release 0.2 17/10/2011 URD1 OTL 5696.1 022 72740 ed 0.2 - HiLoNC-3GPS Application Note SAGEMCOM SAGEMCOM Modification in the Sim schematics, PU on sim data removed 0.3 09/11/2011 URD1 OTL 5696.1 022 72740 ed 0.3 - HiLoNC-3GPS Application Note SAGEMCOM SAGEMCOM MSL chapter added 0.4 03/12/2011 URD1 OTL 5696.1 022 72740 ed 0.4 - HiLoNC-3GPS Application Note SAGEMCOM SAGEMCOM RTC and mechanical chapters improved 1 URD1– OTL 5696.1– 022 / 72740 Edition 0.4 HILONC- 3GPS APPLICATION NOTE SOMMAIRE / CONTENTS 1. OVERVIEW................................................................................................................................................................... 6 1.1. Document Objectives .......................................................................................................................................... 6 1.2. Reference Documents ......................................................................................................................................... 6 1.3. Document Modifications ...................................................................................................................................... 6 1.4. Conventions .......................................................................................................................................................... 6 2. Block Diagram............................................................................................................................................................... 6 3. Functional Integration.................................................................................................................................................... 8 3.1. How to connect a SIM card ................................................................................................................................ 9 3.2. Audio Connection ............................................................................................................................................... 11 3.2.1. PCM Digital Audio ...................................................................................................................................... 11 3.3. PWM .................................................................................................................................................................... 14 3.3.1. PWM for Buzzer connection ..................................................................................................................... 14 3.3.2. Network LED ............................................................................................................................................... 15 3.4. Power Requirements ......................................................................................................................................... 15 3.5. UART ................................................................................................................................................................... 16 3.5.1. Complete V24 Connection of HILONC-3GPS to host .......................................................................... 16 3.5.2. Complete V24 Interface with PC .............................................................................................................. 17 3.5.3. Partial V24 (RX-TX-RTS-CTS) Connection of HILONC-3GPS to host .............................................. 18 3.5.4. Partial V24 (RX-TX) Connection of HILONC-3GPS to host ................................................................ 19 3.6. GPIO .................................................................................................................................................................... 19 3.7. ADC ...................................................................................................................................................................... 20 3.8. Backup Battery ................................................................................................................................................... 20 3.8.1. Backup Battery Function Features .......................................................................................................... 20 3.8.2. Internal HILONC-3GPS Chargi…

Text truncated - open the document above for the full version.

FCC ID: VW3HILONC-3GPS Report No.: RF120309C41 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch April 13, 2012 Dear Application Examiner, Sagemcom SAS, It’s a WWAN module. FCC ID: VW3HILONC-3GPS would like to have your authorization as a modular approval. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data input, it is integrated in chip MDM6200 and PM8015. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MDM6200. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: VW3HILONC-3GPS Report No.: RF120309C41 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Gary Chang Technical Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

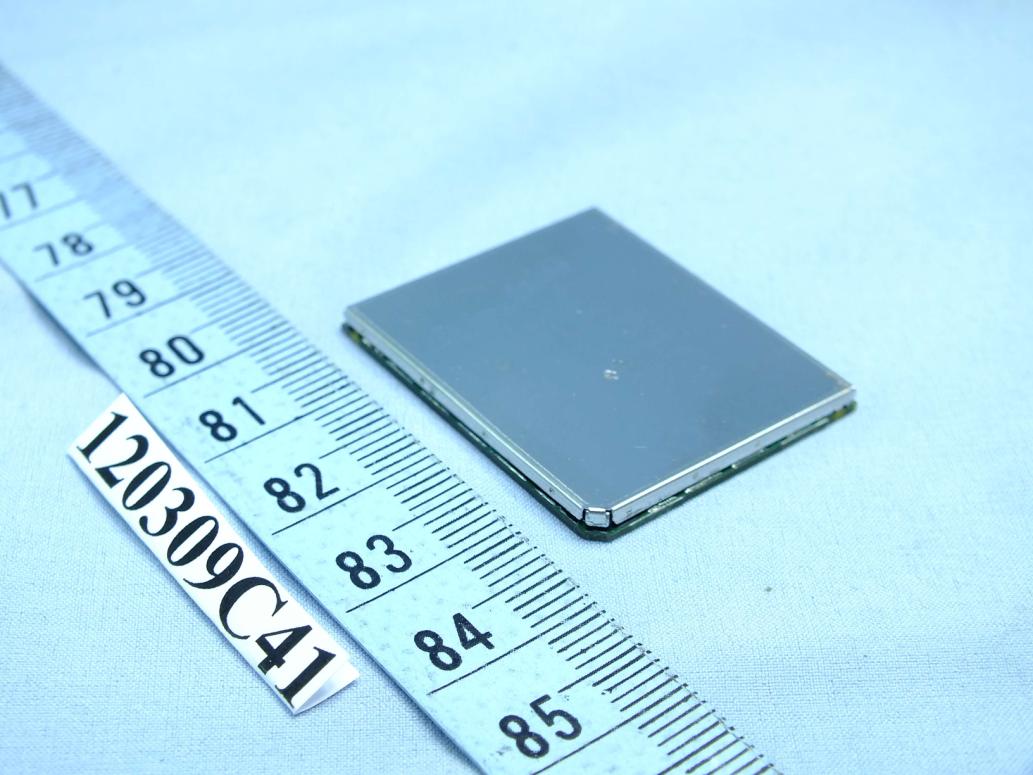

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: VW3HILONC-3GPS The label location will be on the front side of shielding case.

Page 2 Page 3

Report No.: SA120309C41 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120309C41 MODEL NO.: HiLoNC-3GPS FCC ID: VW3HILONC-3GPS RECEIVED: Mar. 09, 2012 TESTED: Mar. 23 ~ Mar. 24, 2012 ISSUED: Mar. 29, 2012 APPLICANT: Sagemcom SAS ADDRESS: 250 Route de l'Empereur, 92848 Rueil Malmaison Cedex France ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 5 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120309C41 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................... 3 1. CERTIFICATION ........................................................................................................... 4 2. RF EXPOSURE ............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................ 5 2.2 MPE CALCULATION FORMULA ................................................................................... 5 2.3 CLASSIFICATION ......................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................. 5 Report No.: SA120309C41 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120309C41 Original release Mar. 29, 2012 Report No.: SA120309C41 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Qual-Band GSM/GPRS/EDGE Voice and Data Module MODEL NO.: HiLoNC-3GPS BRAND: Sagemcom APPLICANT: Sagemcom SAS TESTED: Mar. 23 ~ Mar. 24, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: HiLoNC-3GPS) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Mar. 29, 2012 Ivonne Wu / Senior Specialist APPROVED BY : , DATE : Mar. 29, 2012 Gary Chang / Technical Manager Report No.: SA120309C41 Report Format Version 4.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER BAND MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) GSM850 33.29 0.6 20 0.487 0.55 GSM1900 30.12 -0.1 20 0.200 1

Report No.: RF120309C41 1 Report Format Version 4.2.0 FCC TEST REPORT (PART 22) REPORT NO.: RF120309C41 MODEL NO.: HiLoNC-3GPS FCC ID: VW3HILONC-3GPS RECEIVED: Mar. 09, 2012 TESTED: Mar. 23 ~ Mar. 24, 2012 ISSUED: Mar. 29, 2012 APPLICANT: Sagemcom SAS ADDRESS: 250 Route de l'Empereur, 92848 Rueil Malmaison Cedex France ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120309C41 2 Report Format Version 4.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 3 1 CERTIFICATION ....................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ............................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................ 5 2.2 TEST SITE AND INSTRUMENTS ............................................................................................. 6 3 GENERAL INFORMATION ....................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................................... 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ....................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 9 3.4 TEST ITEM AND TEST CONFIGURATION ............................................................................ 10 3.5 EUT OPERATING CONDITIONS ............................................................................................ 11 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................... 11 4 TEST TYPES AND RESULTS ................................................................................................. 12 4.1 OUTPUT POWER MEASUREMENT ...................................................................................... 12 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ................................................................... 12 4.1.2 TEST PROCEDURES ............................................................................................................. 12 4.1.3 TEST SETUP .......................................................................................................................... 13 4.1.4 TEST RESULTS ...................................................................................................................... 14 4.2 FREQUENCY STABILITY MEASUREMENT .......................................................................... 16 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ...................................................... 16 4.2.2 TEST PROCEDURE ............................................................................................................... 16 4.2.3 TEST SETUP .......................................................................................................................... 16 4.2.4 TEST RESULTS ...................................................................................................................... 17 4.3 OCCUPIED BANDWIDTH MEASUREMENT.......................................................................... 18 4.3.1 TEST PROCEDURES ............................................................................................................. 18 4.3.2 TEST SETUP .......................................................................................................................... 18 4.3.3 TEST RESULTS ...................................................................................................................... 19 4.4 BAND EDGE MEASUREMENT .............................................................................................. 20 4.4.1 LIMITS OF BAND EDGE MEASUREMENT............................................................................ 20 4.4.2 TEST SETUP .......................................................................................................................... 20 4.4.3 TEST PROCEDURES ............................................................................................................. 20 4.4.4 TEST RESULTS ...................................................................................................................... 21 4.5 CONDUCTED SPURIOUS EMISSIONS ................................................................................. 22 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT ................................. 22 4.5.2 TEST PROCEDURE ............................................................................................................... 22 4.5.3 TEST SETUP .......................................................................................................................... 22 4.5.4 TEST RESULTS ...................................................................................................................... 23 4.6 RADIATED EMISSION MEASUREMENT ............................................................................... 25 4.6.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................................ 25…

Text truncated - open the document above for the full version.

Report No.: RF120309C41-1 1 Report Format Version 4.2.0 FCC TEST REPORT (PART 24) REPORT NO.: RF120309C41-1 MODEL NO.: HiLoNC-3GPS FCC ID: VW3HILONC-3GPS RECEIVED: Mar. 09, 2012 TESTED: Mar. 23 ~ Mar. 24, 2012 ISSUED: Mar. 29, 2012 APPLICANT: Sagemcom SAS ADDRESS: 250 Route de l'Empereur, 92848 Rueil Malmaison Cedex France ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120309C41-1 2 Report Format Version 4.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION .......................................................................................................................... 4 2 SUMMARY OF TEST RESULTS .................................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................... 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................ 6 3 GENERAL INFORMATION........................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST .......................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ......................................................................................... 9 3.4 TEST ITEM AND TEST CONFIGURATION ............................................................................... 10 3.5 EUT OPERATING CONDITIONS ............................................................................................... 11 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 11 4 TEST TYPES AND RESULTS .................................................................................................... 12 4.1 OUTPUT POWER MEASUREMENT ......................................................................................... 12 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ...................................................................... 12 4.1.2 TEST PROCEDURES ................................................................................................................ 12 4.1.3 TEST SETUP.............................................................................................................................. 13 4.1.4 TEST RESULTS ......................................................................................................................... 14 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................................. 16 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ......................................................... 16 4.2.2 TEST PROCEDURE .................................................................................................................. 16 4.2.3 TEST SETUP.............................................................................................................................. 16 4.2.4 TEST RESULTS ......................................................................................................................... 17 4.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................................. 18 4.3.1 TEST PROCEDURES ................................................................................................................ 18 4.3.2 TEST SETUP.............................................................................................................................. 18 4.3.3 TEST RESULTS ......................................................................................................................... 19 4.4 BAND EDGE MEASUREMENT ................................................................................................. 20 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ............................................................................... 20 4.4.2 TEST SETUP.............................................................................................................................. 20 4.4.3 TEST PROCEDURES ................................................................................................................ 20 4.4.4 TEST RESULTS ......................................................................................................................... 21 4.5 CONDUCTED SPURIOUS EMISSIONS .................................................................................... 22 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT .................................... 22 4.5.2 TEST PROCEDURE .................................................................................................................. 22 4.5.3 TEST SETUP.............................................................................................................................. 22 4.5.4 TEST RESULTS ......................................................................................................................... 23 4.6 RADIATED EMISSION MEASUREMENT .......................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION (PART 22) RADIATED EMISSION TEST 2 ERP POWER TEST 3 (PART 24) RADIATED EMISSION TEST 4 EIRP POWER TEST
