VW3HILOV2GPRS module

Operational Description of HiLoV2 module 1. Block diagram 2. Functional description 2.1 Power supply system The power supply system includes: VBAT, VGPIO, VBACKUP, Reset and Power control (POK_IN signal, RF burst indicator signal). The VBAT is the power supply for the module. Its range is from 3.2V to 4.5V. The VGPIO is the power supply output from the module. It is supplied for external circuits and its rated value is 2.8V. The VBACKUP is the power supply of backup battery. It should be connected to a backup battery. If no backup battery is provided, a 10uF capacitor should be connected between VBACKUP and GND. The reset signal is used to reset the whole module as the requirement. The POK_IN signal is used for powering up the module. When this signal is pulled down for a few seconds, the module will be powered up. The RF burst indicator signal is used for indicating the RF burst. When the RF burst comes, it will be in high voltage level. Otherwise, it will be in low voltage leve. 2.2 RF subsystem The RF subsystem includes: internal RF circuit, one antenna connector and two antenna pads. The internal RF circuit is inside the module and works for RF communication. The antenna connector is used for the connection between the module and external antenna. The two antenna pads are also used for the connection between the module and external antenna. The antenna connector and antenna pads can not be used at the same time. 2.3 EMC subsystem The EMC subsystem is inside the module and used for reading and writing system data. 2.4 RTC There is a RTC crystal inside the module. It is used for real time counting. 2.5 JTAG There are 9 JTAG pads in the module. They are for JTAG debugging and reserved for Sagemcom. 2.6 Peripherals The peripherals include: ADC, PCM, GPIO, SIM, PWM and two UARTs. The ADC allows external sensor analog input to the module. The PCM is the digital audio interface which can be used for digital audio data communication with host CPU. The GPIOs are used for controlling external circuits. There are 3 GPIOs in the module. The SIM interface is used for SIM card connection. 3V or 1.8V SIM card can be connected to the module through this interface. There are two PWMs in the module. PWM0 is dc PWMs and used for external LED driving. PWM2 is a buzzer PWM and used for driving buzzer. A V24 full UART is provided in the module. With this UART port, the module can communicate with other processors. A two-wire UART is reserved for Sagemcom. It is for debugging. 2.7 Audio subsystem A single-end audio input signal and a pair of differential audio output signals are provided in the module. They are used for connecting microphone and receiver.

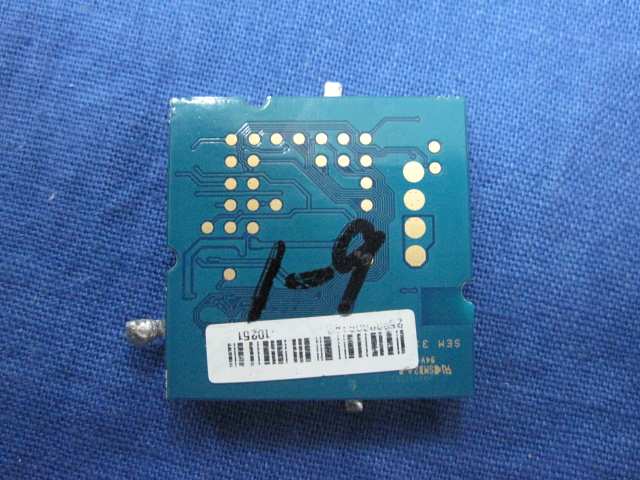

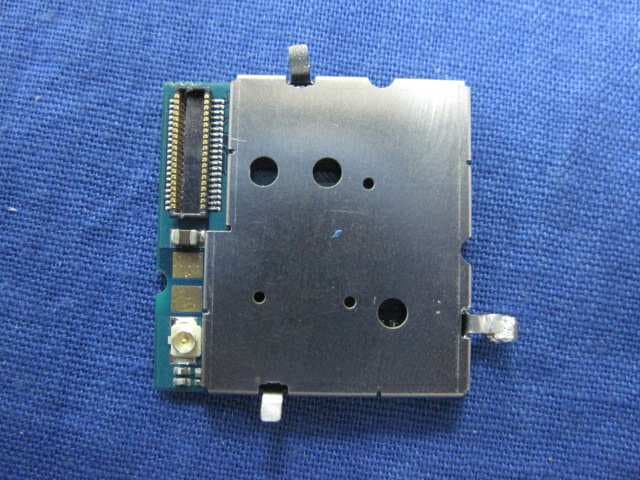

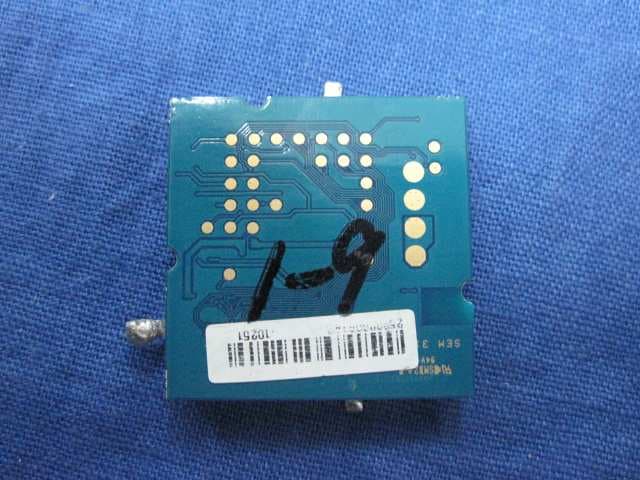

Report No 10AS030R-HP-US-P07V01 Page: 55 of 56 9. Attachment EUT Photograph (1) EUT Photo (2) EUT Photo

Report No 10AS030R-HP-US-P07V01 Page: 56 of 56 (3) EUT Photo

RF Exposure Evaluation Declaration Product Name : GSM/GPRS Module Model No. : Hilo V2 FCC ID : VW3HILOV2 IC : 9140A-HILOV2 Applicant : Sagemcom Address : 250 route de l'empereur, 92848, France Date of Receipt : Oct. 20, 2010 Issued Date : Nov. 18, 2010 Report No. : 10AS030R-RF-US Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 10AS030R-RF-US Page: 2 of 6 Test Report Certification Issued Date: Nov. 18, 2010 Report No. : 10AS030R-RF-US Product Name : GSM/GPRS Module Applicant : Sagemcom Address : 250 route de l'empereur, 92848, France Manufacturer : Sagemcom Address : 250 route de l'empereur, 92848, France Model No. : Hilo V2 FCC ID : VW3HILOV2 IC : 9140A-HILOV2 EUT Voltage : Normal 3.7V/High 4.5V/Low 3.3V Brand Name : Sagemcom Applicable Standard : FCC OET Bulletin 65, ICNIRP Guidelines RSS-102: Issue 4, 2010 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 10AS030R-RF-US Page: 3 of 6 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 10AS030R-RF-US Page: 4 of 6 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No： 10AS030R-RF-US Page: 5 of 6 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation 1.3.1. Conducted Power Analysis Table 1 No. of timeslots 1 2 3 4 Duty Cycle 1 : 8 1 : 4 1 : 2.66 1 : 2 Timebased avg. power compared to slotted avg. power -9 dB -6 dB -4.25 dB -3 dB This device just supports GPRS Class 10 with maximum 2 slots uplink. The following table shows the conducted power measured and time based average power calculated: Table 2 Frequency BandModulation Timeslots Power Measured (dBm) Time based average power (Calculated) GSM850 GMSK 1 32.47 23.47 GSM850 GMSK 2 29.32 23.32 PCS1900 GMSK 1 29.46 20.46 PCS1900 GMSK 2 26.43 20.43 Report No： 10AS030R-RF-US Page: 6 of 6 1.3.2. Host Platform Analysis The MPE calculation was performed for the maximum antenna gain maybe used of stand-alone condition. According to FCC Part2.1091(c) requirement, the maximum ERP (below 1.5GHz) is 1.5W and (above 1.5GHz) is 3W. Conjunction with FCC Part22H&24E requirements, the following table shows the maximum antenna gain allowed for stand-alone situation. According to FCC rules, maximum ERP allowed is 7W (38.45dBm) for Part22H, maximum EIRP is 2W (33dBm) for Part24E. Table 3 System Mode Frequency (MHz) Conducted Power (dBm) Antenna Gain (dBi) Duty Cycle (%) PAR (dB) EIRP (dBm) GSM850 GPRS824.2~848.832.47 8.13 12.5 9 31.60 PCS1900 GPRS 1850.2~1909.829.46 3.54 12.5 9 24.00 1.3.3. MPE Evaluation Result The device used should cover the following conditions: 1) The antenna-to-user distance of all transmitters(for example: WLAN, Bluetooth) ab…

Text truncated - open the document above for the full version.

FCC Part22H&24E Test Report Industry Canada RSS-132/RSS-133 Product Name : GSM/GPRS Module Model No. : Hilo V2 FCC ID : VW3HILOV2 IC : 9140A-HILOV2 Applicant : Sagemcom Address : 250 route de l'empereur, 92848, France Date of Receipt : Oct. 20, 2010 Test Date : Oct. 20, 2010 ~Oct. 26, 2010 Issued Date : Oct. 27, 2010 Report No. : 10AS030R-HP-US-P07V01 Report Version : V 1.1 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 10AS030R-HP-US-P07V01 Page: 2 of 56 Test Report Certification Issued Date : Oct. 27, 2010 Report No. : 10AS030R-HP-US-P07V01 Product Name : GSM/GPRS Module Applicant : Sagemcom Address : 250 route de l'empereur, 92848, France Manufacturer : Sagemcom Address : 250 route de l'empereur, 92848, France Model No. : Hilo V2 FCC ID : VW3HILOV2 IC : 9140A-HILOV2 EUT Voltage : Normal 3.7V/High 4.5V/Low 3.3V Brand Name : Sagemcom Applicable Standard : FCC CFR Title 47 Part 2,TIA/EIA 603-C, RSS-GEN Issue 2 FCC Part22 Subpart H, FCC Part24 Subpart E Industry Canada RSS-132, Issue 2 Industry Canada RSS-133, Issue 5 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 10AS030R-HP-US-P07V01 Page: 3 of 56 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI Report No： 10AS030R-HP-US-P07V01 Page: 4 of 56 TABLE OF CONTENTS Description Page 1. General Information.....................................................................................................................................6 1.1. EUT Description............................................................................................................................................6 1.2. Mode of Operation.......................................................................................................................................7 1.3. Tested System Details...............................................................................................................................8 1.4. Configuration of Tested System.............................................................................................................9 1.5. EUT Exercise Software............................................................................................................................10 2. Technical Test............................................................................................................................................... 11 2.1. Summary of Test Result.......................................................................................................................... 11 2.2. Test Environment........................................................................................................................................12 3. Peak Output Power...................................................................................................................................13 3.1. Test Equipment............................................................................................................................................13 3.2. Test Setup......................................................................................................................................................14 3.3. Limit...................................................................................................................................................................14 3.4. Test Procedure.............................................................................................................................................15 3.5. Uncertainty.....................................................................................................................................................16 3.6. Test Result.....................................................................................................................................................17 3.7. Test …

Text truncated - open the document above for the full version.

Report No 10AS030R-HP-US-P07V01 Page: 19 of 56 3.7. Test Photograph Description: ERP Test Setup Description: Substitution Antenna for ERP Test Report No 10AS030R-HP-US-P07V01 Page: 20 of 56 Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test Report No 10AS030R-HP-US-P07V01 Page: 37 of 56 6.7. Test Photograph Description: Radiated Spurious Emission Test Setup for Below 1 GHz Description: Substitution Antenna Test Setup for Below 1 GHz Report No 10AS030R-HP-US-P07V01 Page: 38 of 56 Description: Radiated Spurious Emission Test Setup for Above 1 GHz Description: Substitution Antenna Test Setup for Above 1 GHz
