VW3RM50IP Radio

Internet Radio RM50 User Guide English 2 Introduction Dear customer: Thank you for purchasing a SAGEMCOM WiFi IP Radio; we appreciate your trust in us. This product was manufactured with the upmost care, should you encounter any difficulties during its use, we recommend that you refer to this user guide. You can also find information on the following site: http://support.sagemcom.com The new material is guaranteed (parts and labour) by SAGEMCOM under the conditions and according to procedures defined on the site www.sagemcom.com heading support. In the event of a technical problem, please refer to the table at the end of this user guide for a list of incidents and the way to solve them. The SAGEMCOM site (www.sagemcom.com assistance section) also provides information on how your IP Radio works and how to solve any problems you may encounter. You can also contact our assistance service by E-mail. If the problem persists, you should contact our call centre (see the table below). They will offer an expert appraisal of your material remotely to determine the cause as well as the type of repair required. For your comfort and safety, please read carefully the paragraphs below on safety recommendations and instructions. WELCOME 3 Introduction Unplug the power lead if the unit will not be used for a long period. Do not handle your AC cord with wet hands. If liquid spills on your product, unplug immediately and contact your dealer for cleaning instructions. Only the power supply provided with the IP Radio should be used. Connect this to the mains in accordance with the installation instructions in this user guide and the information on the identification label affixed to the power supply (voltage, current, mains frequency). As a precaution, in case of danger, the main adapters act as a disconnecting mechanism for the 230 V power supply. They should be placed near the device and should be easily accessible. Do not attempt to use force to plug a connector into the audio jack. If the connector cannot be plugged into the jack easily, the connector is incompatible. Do not attempt to remove any screws or open the unit. No user serviceable parts are inside. The length of the USB cables used on this product shall not exceed 3m. This t erminal was designed for private use inside a building (CPE customer premises equipment) in the E uropean Free Trade association (EFTA). It has been tested in accordance with the technical provisions for radio equipment (EN 300328). The radio frequency bands authorized for Wireless transmission depend on national regulations. The installation of this terminal operating in the 2.4 GHz band is covered by the European recommendation ERC 70-03. Before use, make sure that the gateway with which you establish a wireless connection from your terminal is set up in accordance with this regulation and with the national regulations where it is used. SAGEMCOM accepts no liability if the regulations in force on the installation site are not complied with. Some sensitive medical equipment and safety equipment may be affected by the radio-frequency transmissions of your radio. In all cases, we ask that you respect the safety recommendations. The device shall not permanently be installed or used closer than 20cm from the human body. FCC Caution: Any changes or modificatio ns not expressly approved by the party responsible for compliance c ould void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Recommendations and safety instructions ! Hearing safety – Listen at a moderate volume Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. Sounds can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So after prolonged listening, what sounds “normal” can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.T Do not install your IP Radio in a humid room (bathroom, laundry, kitchen, etc.), or within 1.50mof a tap or water source, or outside. Your IP Radio should be used at an ambient temperature of between 15 °C and 35 °C for optimum sound results. Do not set up your IP Radio in a dusty environment as dust deposits might adversely affect the sound quality. Avoid objects or liquids getting into the unit. 4 Table of Contents 1. Your IP Radio 6 Main Features 6 Unpacking 6 Front Panel 7 Rear Panel 8 Remote Control 8 Menu Structure 10 2. Getting Started 11 Turning On The Device for The First Time 11 Adjusting The Volume 16 Text Entry 16 Standby Mode 17 3. Listening To Music 18 Listening To Internet Radio 18 Listening To FM Radio 21 Listening To Home Music (UPnP) 23 Favorite List 25 4. Settings 26 Audio Profile 26 Time Setup 27 Sleep Timer 27 Snooze Timer 27 Alarm 1&2 28 Advanced Setup 29 Language 29 Time Zone 29 Clock 30 Reset To Default 30 FW Version 30 Demo Mode 31 5 Table of Contents ECO Config 32 Backlight 32 Brightness 32 Volume limitation 33 Network Config 33 Scan For Networks 33 View Config 33 Edit Config 34 5. Appendix 36 Care And Maintenance 36 Problems 36 6. Specifications 39 7. Environment 40 Packaging 40 Batteries 40 The Product 40 6 Your IP Radio 1.1 Main Features 1.2 Unpacking This product is an IP Radio that, once connected to an Internet gateway, will allow you to access worldwide Internet radio stations and to listen to your digital music files stored on your PC, or on a multimedia UPnP server (Home Music). It can also be used as an alarm clock for…

Text truncated - open the document above for the full version.

Confidentiality Request May 05, 2010 Federal Communications Commission Authorization and Evaluation Division Object: Confidentiality request application for certification of a Radio IP product “SAGEMCOM RM50 US”,FCC ID：VW3RM50 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Detailed Circuit Schematics of EUT(Long term) 2. Circuit and Operational Descriptions(Long term) 3. Block Diagram(Long term) 4. Bill of Material(Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Note: The registered grantee contact is not available, M.Christian LAVERGNE is signing for grantee contact. He can be reached at email : [email protected] Sincerely, Signature signing for Jacques LE ROUX Name/Title: Jacques LE ROUX / R&D General Methods Department Manager Company Name: SAGEMCOM SAS Address: 250 Route de l'Empereur, RUEIL MALMAISON CEDEX, 92848, France TEL: +33 1 57 61 38 99 FAX: +33 1 57 61 25 72 Email: [email protected]

May 05, 2010 FCC ID：VW3RM50 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China Name: Aven Zhou Job Title: Supervisor Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: SAGEMCOM/RM50 US FCC ID: VW3RM50 Product Name: IP RADIO Note: The registered grantee contact is not available, M.Christian LAVERGNE is signing for grantee contact. He can be reached at email : [email protected] Signature signing for Jacques LE ROUX Name/Title: Jacques LE ROUX / R&D General Methods Department Manager Company Name: SAGEMCOM SAS Address: 250 Route de l'Empereur, RUEIL MALMAISON CEDEX, 92848, France TEL: +33 1 57 61 38 99 FAX: +33 1 57 61 25 72 Email: [email protected]

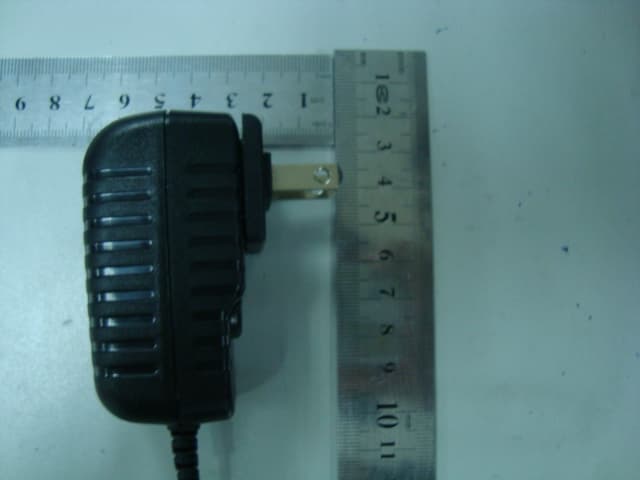

Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 1 Total Page: 13 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 3 Rev. 00

Label Location

出標方向 R2.5, 3PLS C3, 1PLS 65.4 35.4 APPLICATION NEXT ASSY USED ON REV APPROVED DATE REV MATERIAL: DRAWN SIZE DWGTITLE DWGNO. SCALESHEET REV APVD ENGR FINISH: THIRDANGLEPROJECTION A4A4 UNLESSOTHERWISESPECIFIEDALLDIMENSIONS INTEGRALDIMENSIONS 1PLACEDECIMAL AREINmmANDTOLERANCESARE: ANGULARDIMENSIONS HOLESUNDER5.00ψ 0.5 ± ± ± 0.3 ± 2 0.2 SEE NOTES SEE NOTES B 1/1 1 OF 1 DIGO CHANG SANDY CHEN SANDY CHEN 08/05/10 08/05/10DIGO CHANG 08/05/10 08/05/10 B B RELEASE TO FILE 4L-YD30102-010 4L-YD30102-010 DESCRIPTION REVISIONS PART NUMBER BLOCK PART NUMBER LABEL, PRODUCT,NA ,FCC,SAGEMCOM , YD3LABEL, PRODUCT,NA ,FCC,SAGEMCOM , YD3 YD3 NOTES: 1. MATERIAL: 消銀龍, t=0.05, 上霧 PET, t=0.025, 網紋膠 2. COLOR: a. 底色為材質原色 b. 印刷顏色如圖面標示 c. 未標示部分印刷PMS Black C 3. TEMPERATURE RESISTANT= 80 0 C. 4. ADHESIVE THICKNESS=0.024 +_ 0.003mm. 5. 捲狀出貨 6.被貼物材質:ABS 7. PRODUCT LABEL 參照第二頁相關測試規範 WNC PROPRIETARY No. 10-1, Li-hsin Road I, Hsinchu Science Park, Hsinchu 300, Taiwan, R.O.C. Tel:886-3-6667799Fax:886-3-6667322 PANTONE 423C US Y1 MAC 253314838 NB1006804000001 US Y1 MAC 253314838 NB1006804000001 N21514 FCC ID :VW3RM50 N21514 FCC ID :VW3RM50 N21514 FCC ID :VW3RM50

Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 5 Rev. 00 PIFA Antenna Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 - 13 Rev. 00 PIFA Antenna Compliance Certification Services Inc. Report No.: T100429002 Date of Issue: June 3, 2010 A1 – 14 Rev. 00

Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Page 54 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(i) and §1.1307(b)(1) of this chapter. EUT Specification EUT IP Radio Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b: 12.12 dBm (16.29mW) IEEE 802.11g: 23.13 dBm (205.59mW) Antenna gain (Max) 2.74 dBi (Numeric gain: 1.88) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 23.13 dBm (205.59mW) at 2412MHz (with 1.88 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. MPE EVALUATION Not applicable. Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Page 55 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 205.59mW Numeric Antenna gain = 1.88 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0769 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 58 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IP Radio Model: RM50 US Trade Name: SAGEMCOM Issued to SAGEMCOM SAS 250 Route de l'Empereur RUEIL MALMAISON CEDEX 92848 France Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................9 5. FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES.......................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6DB BANDWIDTH.............................................................................................................................13 7.2 PEAK POWER....................................................................................................................................18 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................22 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.6 SPURIOUS EMISSIONS.................................................................................................................36 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................51 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................54 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................56 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SAGEMCOM SAS 250 Route de l'Empereur RUEIL MALMAISON CEDEX 92848 France Equipment Under Test: IP Radio Trade Name: SAGEMCOM Model: RM50 US Date of Test: May 27 ~ June 3, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. R…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Page 56 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Page 57 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: T100429002-RP1 FCC ID: VW3RM50 Date of Issue: June 3, 2010 Page 58 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
