VW5-CASARGARAGE DOOR OPENER

1-GB User Manual 2-GB Start by Reading These Important Safety Rules These safety alert symbols mean WARNING－a personal safety or property damage instruction. Read these instructions carefully. This garage door opener is designed and tested to offer reasonable safe service provided it is installed and operated in strict accordance with the following safety rules. Failure to comply with the following instructions may result in serious personal injury or property damage. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for this safety. WARNING: If your garage has no service entrance door, an Outside Quick Release must be installed. This accessory allows manual operation of the garage door from outside in case of power failure. Keep garage door balanced. Sticking or binding doors must be repaired. Garage doors, door springs, cables, pulleys, brackets and their hardware are under extreme tension and can cause serious personal injury. Do not attempt to loosen, move or adjust them. Call for garage door service. Do not wear rings, watched, or loose clothing while installing or servicing a garage door opener. Before installing the drive, remove all unnecessary ropes or chains and disable any equipment, such as locks, not needed for powered operation. Before installing the drive, check that the door is in good mechanical condition, correctly balanced and opens and closes properly. Installation and wiring must be in compliance with your local building and electrical codes. Connect the power supply cord only to properly earthed mains. Lightweight doors of fiberglass, aluminum or steel must be substantially reinforced to avoid door damage. The best solution is to check with your garage door manufacturer for an opener installation reinforcement kit. Important safety instructions. Follow all instructions since incorrect installation can lead to severe injury. This unit should not be installed in a damp or wet space. After installation, ensure that the mechanism is properly adjusted and that the driver reverses when the door contact a 50mm high object placed on the floor. Failure to properly adjust the opener may result in serious personal injury from a closing garage door. Each month check that the drive reverses when the door contact a 50mm high object placed on the floor for drives incorporating an entrapment protection system depending on contact with the bottom edge of the door. Adjust if necessary and recheck since an incorrect adjustment may present a hazard. After installation, ensure that parts of the door do not extend over public footpaths or roads. The drive must not be used with a door incorporating a wicket door (unless the drive can not be operated with the wicket door open.) Frequently examine the installation, in particular check cable, springs and mountings for signs of wear, damage or imbalance. Do not use if repair of adjustment is needed since a fault in the installation or an incorrectly balanced door may cause injury. Fasten the child warning label adjacent to the lighted door control button as a reminder of safe operating procedures. Disengage all existing garage door locks to avoid damage to garage door. Install any fixed control at a height of at least 1.5m and within sight of the door but away from moving parts and out of the reach of children. Permanently fix the labels warning against entrapment in a prominent place or near any fixed controls. Children should be supervised to ensure that they do not play with the appliance. Do not allow children to play with door controls. Keep remote controls away from children. Serious personal injury from a closing garage door may result from misuse of the opener. Activate opener ONLY when the door is in full view, free of obstructions and opener is properly adjusted. No one should enter or leave the garage while the door is in motion. Do not allow children to play near the door. Watch the moving door and keep people away until the door is completely opened or closed. Install the actuating member for the manual release at a height less than 1.8m. Permanently fix the label concerning the manual release adjacent to its actuating member. Use manual release only to disengage the trolley and, if possible, ONLY when the door is closed. Do not use the red handle to pull the door open or closed. Take care when operating the manual release since an open door may fall rapidly due to weak or broken springs or being our of balance. Disconnect the supply when cleaning or carrying out other maintenance. This product is provided with a transformer and power supply cord of special design which, if damaged, MUST be replaced by a transformer from your local distributor and fitted by a specialist. SAVE THESE INSTRUCTIONS 3-GB Table of Contents Page Illustration(s) Safety Rules 1 Before You Begin 2 Door Types 3 1 Tool Required 3 2 Accessories Connection 3 3 Completed Installation 3 4 Assembly 4 5-9 Installation 5-6 10-16 Install Door Control (Optional) 6-7 17 Adjustment 7-9 18-22 Set the SPB System (Optional) 9 23 Install the SPB System (Optional) 9 24 Test the Safety Reverse System 10 25 Light Feature 10 26 Having a Problem? 10-11 27 Care of Your Opener 12 28 Maintenance of Your Opener 12 29 Specifications 13 30 Before You Begin 1. Look at the wall or ceiling above the garage door. The header bracket MUST be securely fastened to structural supports. 2. Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware (not supplied) may be required. 3. Do you have an access door in addition to the garage door? If not, an Outside Quick Release Accessory is required. 4-GB 1 Door Types A. One-Piece Door with Horizontal Track Only B. Sectional Door with Curved Track NOTE: Unit will not work with One-Pie…

Text truncated - open the document above for the full version.

Block Diagram (315MHz)

深圳市博顿电子技术服务有限公司 Bontek Compliance Testing Laboratory Ltd DATE: January 20, 2008. Dear TCB Section of Timco Engineering, Inc., Thank you for cooperation. I would like to submit FCC application of Hangzhou Sanford Tools Co., Ltd./ FCCID: VW5-CASAR by your TCB Approval today. Best Regards, Bontek Compliance Testing Laboratory Ltd. Tony Wu General Manager

杭 州 三 园 工 具 有 限 公 司 Hangzhou Sanford Tools Co., Ltd. 浙江省杭州市余杭镇圣地路8号 8 Shengdi Road, Yuhang Town, Hangzhou, Zhejiang, China Tel：86-571-89080150 Fax：86-571-88687885 Hangzhou Sanford Tools Co., Ltd. FCC ID: VW5-CASAR POWER OF ATTORNEY 2008-1-17 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Ltd. (Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This authorization expires on 2008-3-17. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Hangzhou Sanford Tools Co., Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Hangzhou Sanford Tools Co., Ltd. Ye Bingmao Managing Direct or

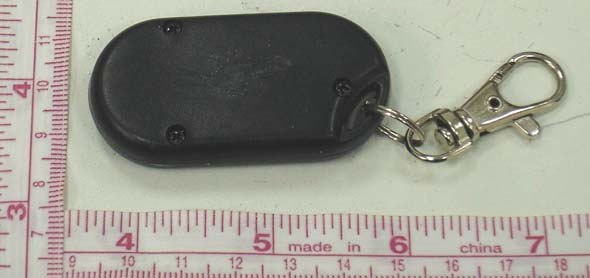

External Photographs EUT - Front View EUT - Rear View

FCC ID Label Sample for FCCID: VW5-CASAR FCCID: VW5-CASAR Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Internal Photographs EUT - Uncover View EUT - PCB View

DESCRIPTION OF OPERATION The encoder generates a digital code serially transmit (typical designation) when press button K1 into the Central Processor Unit (modulator or called as mixer) stage in circuit. The serially digital signal mixed with the carrier at modulator (mixer) stage by way of FSK mode (Frequency Modulation) and to the Transmitter antenna. The modulation depth is designed such as ± 5KHz in this application, that means the pulse (may be at high level state or low level state) will trigger the oscillator to generate a frequency of 315MHz at a specified fundamental frequency +5KHz or −5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency +5KHz at high level state, then the alternative carrier frequency will be fundamental frequency −5KHz at low level state. The Central Processor will trigger the oscillator to generate a carrier frequency when receive the signal. Antenna is printed in the PCB The tramsmitter is powered by the 12V battery.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:10-Jan-2008Sheet of File:G:\WEI E\魏润林\公司产品\调幅模块\遥控器\NT-4015K\NT-4015K.DdbDrawn By: 4015K(315)原理图 R4 47K Q2 DV5 Q1 R25 1 2 3 1 315 +12V R2 27K C1 8pF C2 7pF +12V ANT1 ANT C3 4pF LED1 LED S1 6X6X4.3 K1 1 K2 2 K3 3 K4 4 GND 5 TXD 6 OSCI 7 VCC 8 U1 HCS301 R3 1M Q3 9012 R1 27K PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Hangzhou Sanford Tools Co., Ltd. Product description: Garage Door Opener Model No.: CASAR800, CASAR600 FCC ID: VW5-CASAR Prepared for: Hangzhou Sanford Tools Co., Ltd. 8 Shengdi Road, Yuhang Town, Hangzhou, Zhejiang, China Prepared by: Bontek Compliance Testing Laboratory Ltd. 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China. Tel: 86-755-86337020 Fax: 86-755-86337028 Issue Date: January 22, 2008 Test Date: January 05~18, 2008 Test by: Reviewed By: Kendy Wang Tony Wu TABLE OF CONTENTS 1 - GENERAL INFORMATION......................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ............................................................ 3 1.2 Test Standards........................................................................................................................ 3 1.3 Test Summary......................................................................................................................... 4 1.4 Test Methodology................................................................................................................... 4 1.5 Test Facility............................................................................................................................. 4 1.6 Test Equipment List and Details............................................................................................. 5 2 - SYSTEM TEST CONFIGURATION............................................................................................................................. 6 2.1 Justification............................................................................................................................. 6 2.2 EUT Exercise Software........................................................................................................... 6 2.3 Special Accessories................................................................................................................ 6 2.4 Equipment Modifications......................................................................................................... 6 2.5 Basic Test Setup Block Diagram............................................................................................ 6 3 – DISTURBANCE VOLTAGE AT THE MAINS TERMINALS....................................................................................... 8 3.1 Measurement Uncertainty....................................................................................................... 8 3.2 Applicable Standard................................................................................................................ 8 3.3 Test Description...................................................................................................................... 8 4- RADIATED DISTURBANCES...................................................................................................................................... 9 4.1 Measurement Uncertainty....................................................................................................... 9 4.2 Limit of Radiated Disturbances............................................................................................... 9 4.3 EUT Setup.............................................................................................................................. 9 4.4 Test Receiver Setup ............................................................................................................. 10 4.5 Test Procedure..................................................................................................................... 10 4.6 Corrected Amplitude & Margin Calculation ........................................................................... 11 4.7 Radiated Emissions Test Result........................................................................................... 11 5- 20DB BANDWIDTH................................................................................................................................................... 13 5.1 Measurement Uncertainty..................................................................................................... 13 5.2 Limit of 20dB Bandwidth ....................................................................................................... 13 5.3 EUT Setup............................................................................................................................ 13 5.4 Test Procedure..................................................................................................................... 13 5.5 Emissions within Band Edges Test Result............................................................................ 14 6- DUTY CYCLE............................................................................................................................................................. 15 6.1 Measurement Uncertainty..................................................................................................... 15 6.2 EUT Setup............................................................................................................................ 15 6.3 Test Procedure..................................................................................................................... 15 6.4 Measurement Result............................................................................................................. 15 Report No.: BCT07LR-822E Page 2 of 17 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Hangzhou Sanford Tools Co., Ltd. Address of applicant: 8 Shengdi Road, Yuhang Town, Hangzhou, Zhejiang, China Manufacturer: Hangzhou Sanford Tools Co., Ltd. Address of manufacturer: 8 Shengdi Road, Yuhang Town, Hangzhou, Zhejiang, China Gener…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Radiated Emission
