VW5-LM121Transmitter

User manual There are two keys on the product, which each of them is pressed can generate a serial of digital code with the carrier at modulator stage by way of FSK mode and to the transmitter antenna. And of course there are different from each other in key value. What is more,every time we press any of the key will generate a different serial of digital code comparing with the former time, and it varies according to some rules. Acorrding to the designation,the carrier frequency is defined at 433MHZ and at a specified fundamental frequency +5KHZ or -5KHZ. Antenna is printed in PCB The transmitter is powered by 12V Battary. Main function description The product is used for controlling the opening and closing of a door. Up key Down key There are two keys on the product which marked up key an down key. Up key is defined to open door and the down key is defined to close the door. If we need open the door ,we can press the up key.on the contrary ,we press the down key. There ia another function that we can just use one key to control the door opening and closing .For example,if we need open the door,we can press the up key,and after that,we need close it ,we have two ways,one is press the down key,and the other one is we press the up key again.

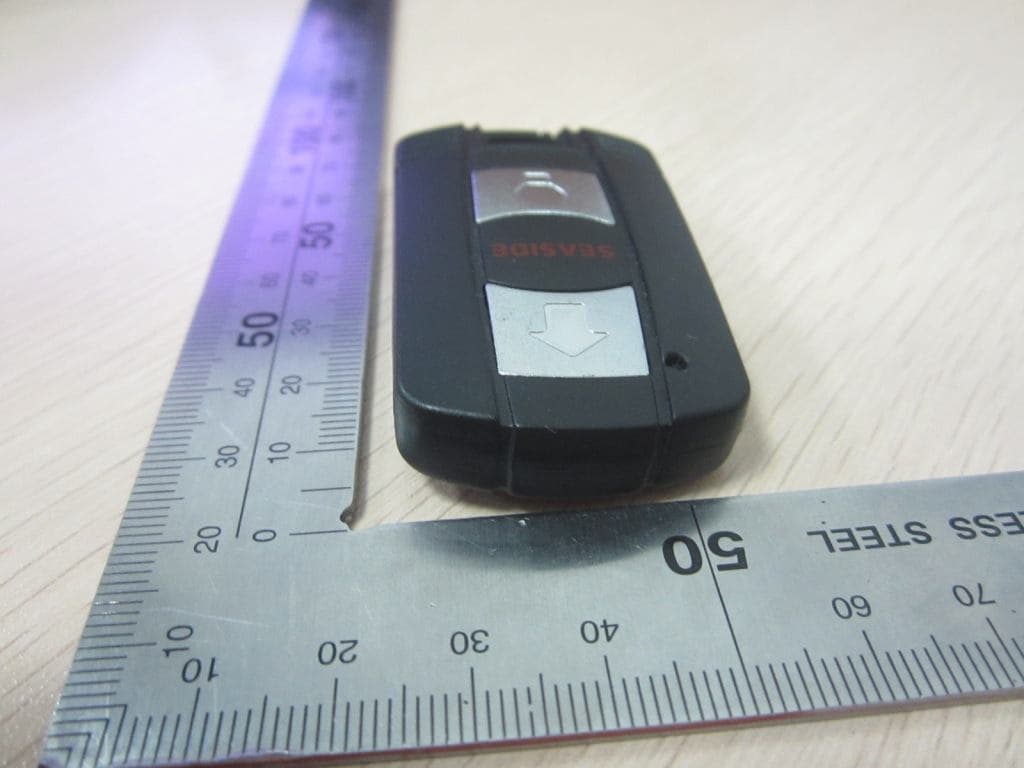

External Photographs External Photographs External Photographs

Label & Label Location on EUT Label: Transmitter Model No.:LM121 FCC ID: VW5-LM121 MADE IN CHINA

Internal Photographs Internal Photographs PCB Printed antenna Internal Photographs

SCT2014071022 TRF No：FCC 15.231/A Page 1 of 22 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT T OF Transmitter MODEL No.: LM121 Trademark: N/A FCC ID: VW5-LM121 REPORT NO: SCT2014071022 ISSUE DATE: July 09, 2014 Prepared for HANGZHOU SANFORD TOOLS CO., LTD NO.8 , Sheng Di Road, Yuhang Town, Hangzhou, 311121, China Prepared by Shenzhen SCT-CERT Technology Co., Ltd. 2F, 18BLD, Internet industry base, Xixiang Street Bao’an District, Shenzhen P.R. China Tel:+86-0755-36932168 Fax:+86-0755-27849355 SCT2014071022 TRF No：FCC 15.231/A Page 2 of 22 VERIFICATION OF COMPLIANCE Applicant: HANGZHOU SANFORD TOOLS CO., LTD NO.8 , Sheng Di Road, Yuhang Town, Hangzhou, 311121, China Manufacturer: HANGZHOU SANFORD TOOLS CO., LTD NO.8 , Sheng Di Road, Yuhang Town, Hangzhou, 311121, China Product Description: Transmitter Model Number: LM121 Serial Number: N/A Power Supply: 12V DC(Supplied by Lithium battery) File Number: SCT2014071022 Date of Test: July 01, 2014 to July 09, 2014 We hereby certify that: The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Date of Test : July 01, 2014 to July 09, 2014 Testing Engineer: (Jack xie) Technical Manager : (Jemes liu) Authorized Signatory : (Amanda mei) SCT2014071022 TRF No：FCC 15.231/A Page 3 of 22 Table of Contents 1. GENERAL INFORMATION.....................................................................................................5 1.1. PRODUCT DESCRIPTION................................................................................................................................5 1.2. RELATED SUBMITTAL(S) / GRANT (S)..........................................................................................................5 1.3. TEST METHODOLOGY....................................................................................................................................5 1.4. SPECIAL ACCESSORIES..................................................................................................................................5 1.5. EQUIPMENT MODIFICATIONS........................................................................................................................5 1.6. MEASUREMENT UNCERTAINTY....................................................................................................................6 1.7. TEST FACILITY...............................................................................................................................................6 2. SYSTEM TEST CONFIGURATION.......................................................................................7 2.1. EUT CONFIGURATION...................................................................................................................................7 2.2. EUT EXERCISE..............................................................................................................................................7 2.3. TEST PROCEDURE..........................................................................................................................................7 2.4. DESCRIPTION OF TEST MODES......................................................................................................................8 2.5. SUMMARY OF TEST RESULTS.......................................................................................................................8 2.6. CONFIGURATION OF TESTED SYSTEM..............................................................................................8 2.7. DESCRIPTION OF SUPPORT UNITS.......................................................................................................8 3. CONDUCTED EMISSIONS TEST...........................................................................................9 3.1. MEASUREMENT PROCEDURE:.......................................................................................................................9 3.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION).............................................................................9 3.3. MEASUREMENT EQUIPMENT USED:.............................................................................................................9 3.4. CONDUCTED EMISSION LIMIT......................................................................................................................9 3.5. MEASUREMENT RESULT:..............................................................................................................................9 4. TRANSMISSION REQUIREMENT......................................................................................10 4.1. REQUIREMENT.............................................................................................................................................10 4.2. TEST SET-UP...............................................................................................................................................10 4.3. MEASUREMENT EQUIPMENT USED:...........................................................................................................10 4.4. TEST PROCEDURE........................................................................................................................................10 4.5. TEST DATA...................................................................................................................................................10 5. RADIATED EMISSION TEST...............................................................................................12 5.1. MEASUREMENT PROCEDURE........................................................…

Text truncated - open the document above for the full version.

PHOTOGRPHS OF TEST SETUP
