VWV-A-01-01Radar Detector TPX main console

1 Radar detector TPX main console MODEL: A-01-01 FCC ID: VWV-A-01-01 Adaptiv Technologies, LLC 2 z Notice. The contents of this manual are subject to change without notice. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CONTENTS I. MODEL FEATURES AND CONTROLS • Radar Detection System. • ALL Band Protection . II. ACCESSORIES INCLUDED WITH RADAR DETECTOR • Owner’s Manual • Power Cord & Power Din Cable • Mounting kit • Hook & Loop Fasteners • Spare Fuse • Wireless Headset III. MOUNTING INSTALLATION • Windshield Mounting • Dash Board Mounting • Power connection IV. OPERATION GUIDE • Power on & Self-Test • Feature Engaged Confirmation • Mute Mode(Alert off) • City Mode • Mode Menu • Real tone Alert • Speed Radar Visual /Audio Alerts • Laser Visual /Audio Alerts • Wireless Headset Visual/Audio Alerts • Memory Retention V. TROUBLESHOOTING GUIDE • Factory setting VI. SPEED MONITORING DEVICES • Radar speed gun • Laser speed gun 3 VII. MAINTENANCE • Care and Maintenance • Fuse Replacement VIII. SPECIFICATIONS • General • Laser Detector • Radar Detector • Transmitter Freqency(Tx) • Wirelwss HEADSET(Rx) I. MODEL FEATURES AND CONTROLS • Real Tone Alert • X, K, Ka Super Wideband Detection • All Laser Detection • 360° Laser Detectability • Instant – On/Pulsed Radar Alert • Smart Text LCD Display • User Programmable • Memory Retention • Signal Strength Meter • Visual & Audible Alarms • Electronic Power On/Off Switch with Volume Control • External Jack for External Laser Censors • Mute Mode • City /City Nox Mode 4 1. Bracket Lock/Release Button – Easy lock/release of the mounting bracket. 2. Power Jack – Connection for the power cord and power cable ass’y. 3. Speaker – Provides distinct audio alarms for X, K, Ka band radar and laser. 4. Power Button – Turns unit on/off . 5. High Visibility Text Display – Provides distinct visual confirmation of signals strength, signal band identification and indicates engaged modes of operation. 6. MUTE Button – Pressing MUTE during a radar/laser encounter silences audio alerts. 7. CITY Button – Reduces the annoyance of false alerts typically encountered in urban driving areas. 8.Volume Control( +,- ) - Adjusts audio level 9. Laser Lens (Rear) – An integrated optical waveguide provides superior detection of laser signals transmitted from behind 10. Laser Lens (Front) – High gain optical lens array provides increased sensitivity and field of view for leading edge laser detection. 11. Radar Antenna – Compact, high-efficiency antenna receives radar signals. 12. Mounting Bracket Location – Slot holds mounting bracket firmly. 13. EXT – Port for external laser censor connection II. ACCESSORIES INCLUDED WITH RADAR DETECTOR • Owner’s Manual • Power Cord & Power Din Cable • Mounting kit • Hook & Loop Fasteners • Spare Fuse • Wireless Headset III. MOUNTING INSTALLATION • Windshield Mounting • Dash Board Mounting • Power connection 5 IV.OPERATION GUIDE Buttons • Buttons to have adequate tactile feel and size to be actuated while using riding gloves. • Backlit - blue • Button Functions: o Button 1 (top right)- Volume Increase and Brightness Increase. o Button 2 (bottom right) – Volume Decrease and Brightness Decrease o Button 3 (top center) – Power On/Off. o Button 4 –City/Highway and Volume / Brightness Mode o Button 5 – Mute and Visual Indicator Intensity Off and backlights on/off. “long” means about 2-3 sec • Power on &Self test/ Press the Power Button for 2 seconds to turn the unit on or off Start Up “Adaptiv Technologies” will be scrolled across the LCD display, entering from the right and exiting at the left, and it will scroll all the way through: Then self test will start, where each band will be displayed accompanying its alerted sound: Then the display that the system is ready: Then the unit will display the City/Highway Mode that the unit is currently in, either: or and the system will remember the last City/Highway setting each time it is turned off. “City” or “Highway” will be the default display on the LCD when no other information needs to be conveyed. 6 Main Unit Functions When radar or laser signals are detected, the detected band and its strength will be displayed, along with its distinct sound alert. Power Button Press the Power Button for 2 seconds to turn the unit on or off. Mode Button (upper left button) For City/Highway Mode, each time this button is pressed it will toggle between “City” and “Highway” modes, and the display will display the mode setting selected. A beep will be emitted with each mode change. For Peripheral Control Mode, each time this button is pressed for 2 or more seconds it will toggle between “Headset Volume Control” (Vol), and “Visual Alert Brightness Control” (LED) with the following displays: The display for the toggled Peripheral Control Mode will only be displayed on the LCD for 2 seconds, then the display will revert back to either “City” or “Highway”, unless a signal is being detected. The Peripheral Control Mode affects how the “Up” and “Down” buttons function, which will be explained later in this document. Alert Off/Dim Button (lower left button) If a radar or laser signal is detected, pressing this button will temporarily mute all audio alerts (main unit and headset) and stop the LEDs on the Visual Alert from flashing. Audio and visual alerts will be stopped for the duration of the detected signal and any new signals detected within the next seconds. When this button is pressed, 7 will be displayed for 1 second, and the detected radar or laser signal will return to the LCD display. When this button is pressed for 2 or more seconds, it will toggle the backlight on the Main Unit buttons on/off. Up and Down Buttons (upper and lower right buttons) The “Up” and “Down” buttons control the volume of the Main Unit and the Headset, and the LED brightness of the Visual Alert. When each is pressed for 1 or more seconds, the increase or decr…

Text truncated - open the document above for the full version.

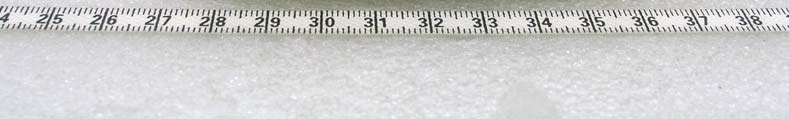

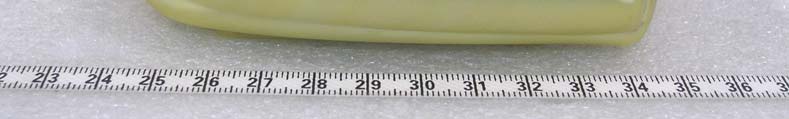

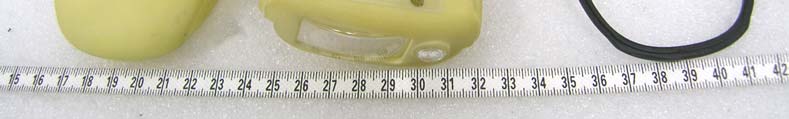

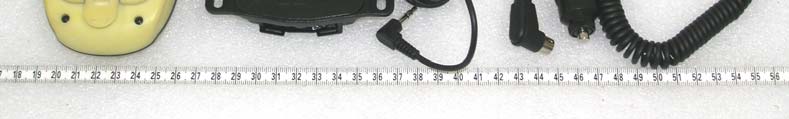

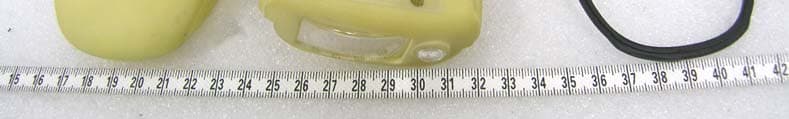

Appendix C. External Photographs Report no. ETLE071211.900, Page C1 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of front View of rear Appendix C. External Photographs Report no. ETLE071211.900, Page C2 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of side #1 View of side #2 Appendix C. External Photographs Report no. ETLE071211.900, Page C3 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of side #3 View of side #4 Appendix C. External Photographs Report no. ETLE071211.900, Page C4 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of case

Appendix A. FCC ID Label and Location Report no. ETLE071211.900, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. Adaptiv Technologies,LLC Radar detector TPX main console FCC ID : VWV-A-01-01 Model No. : A-01-01 Serial No. : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer : Willtronics Co.,Ltd Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE071211.900, Page D1 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE071211.900, Page D2 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of main board Appendix D. Internal Photographs Report no. ETLE071211.900, Page D3 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of main board #1 Appendix D. Internal Photographs Report no. ETLE071211.900, Page D4 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of main board #2 Appendix D. Internal Photographs Report no. ETLE071211.900, Page D5 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of sub board Appendix D. Internal Photographs Report no. ETLE071211.900, Page D6 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of sub board Appendix D. Internal Photographs Report no. ETLE071211.900, Page D7 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of display board Appendix D. Internal Photographs Report no. ETLE071211.900, Page D8 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of display board

1 1. Explanation per BLOCK 1) Summary RADAR DETECTOR is designed to get desirable frequency by adopting SUPERHETHRODYNE method and two times of DOWN CONVERSION. In other word, it is designed to transform higher frequency then X-band to 1GHz range frequency, and then to transform it again to 10.7Mhz for easy analysis. 2) RF When HORN ANTENNA receive X, K, Ka BAND frequency, 1st MIXER transforms it to 1GHz range frequency. And this signal put into the DISCRIMINATOR after two times of amplify and transformation to 10.7Mhz. 3) DISCRIMINATOR At this stage, a desirable signal (DUAL S-CURVE) is obtained by synthesis between QUADLATURE DETECTOR inside of Discriminator and input signal. Two IFT filter is used to get maximum signal. 4) COMPARATOR A final signal( S-DATA) is obtained when the output signal of DISCRIMINATOR pass through Comparator. ANALOG SIGNAL is converted to DIGITAL SIGNAL at this stage. 5) PROCESSOR (MCU) MICRO-PROCESSOR define BAND ID and SIGNAL STRENGTH by S-data from Comparator, and the method is as under. DISCRIMINATOR ANT.X/K/Ka BAND SIGNAL 1st. MIXER1st. IF AMP. L.O IF 2nd. MIXER L.O 1st. L.O : 11.470 ~ 11.810GHz2nd. L.O : 290MHz, 1030MHz IF 2nd. IF AMP. COMPARATOR 2 As shown in above diagram, PROCESSOR control 1st and 2 nd LOCAL, and handle S-data. S-DATA consist of Ta, Tb, Tc. The band identification is confirmed as under. - Firstly to define “X/K/Ka BAND” or “Ka band” by checking from which position of 2nd LOCAL S-data comes (LOW SIDE : X/K/Ka BAND, HIGH SIDE : Ka BAND) - 2ndly to define final band identification by the S-data value. < Explanation on KEY function> (a) HIGHWAY MODE: To keep normal sensitivity (b) CITY MODE: To reduce the sensitivity to avoid false alarm in City . LED (Or ALPHA NUMERIC display is used to show on/off status of CITY mode. (c) MUTE MODE : To mute alarm for signal reception. (d)VOL+,VOL-: To adjust the alarm sound level. (e)POWER KEY : Power ON/OFF of RD. . 6) AUDIO AMP & ALARM When signal is received, CPU make AMP work to amplify the signal. TaTbTc Ka BANDX/K/Ka BAND 130ms 1sT LOCAL 2nd LOCAL S-DATA 3 7) Tx &Rx (Wireless Headset) OPERTION. <Tx : Main Unit > The main unit function press or radar signal detector is transmit. The Main unit appear operation band display and user listen to Tone sound . Transmitt format inclued bandID and strength ID. <Tx : MAIN Radar Detector > <Rx :Wireless Headset> < Rx :Wireless Headset > Power of headset can be on /off using POWER push SWITCH, and headset has battery(CR-2450). When power is ON, LED will blink as a standby status. And when headset receive correct signal from RD main unit, it give proper alarm to user according to band ID. User Almost use Moterclyle.Main unit with headset Operation User is headset speaker listen to sound. 8) Manul and Auto Operation *Main Unit function press operation.exmple mode chang and volum up&down.(Manul Tx) * When Main Unit radar/laser signal detector is Tx formatted transmitter.(Auto Tx) 4 9) Show that the 418MHz transmitter and the detected radar signal stop within 5 seconds plots

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr ETL Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This is Radar detector TPX main console, Model A-01-01 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C section 15.231 & Subpart B section 15.109. I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Hyung Seok, Lee / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 PRODUCT : Radar detector TPX main console MODEL/TYPE NO : A-01-01 FCC ID : VWV-A-01-01 APPLICANT : Adaptiv Technologies, LLC 459 Columbus Avenue, #709 New York, NY 10024 Attn.: Mr. Adam Gold / Director MANUFACTURER : Willtronics Co., Ltd 301 Kwanlidong, KwangMyung Industrial Complex, 201 Haan-3-Dong, KwangMyung, Kyungki, Korea, 423-063 FCC CLASSIFICATION : DSC : Part 15 Security/Remote Control Transmitter FCC RULE PART(S) : FCC Title 47, Part 15 Subpart B & C FCC PROCEDURE : ANSI C63.4-2003 TEST REPORT No. : ETLE071211.900 DATES OF TEST : December 14, 2007 – December 18, 2007 REPORT ISSUE DATE : January 02, 2008 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) Report no. ETLE071211.900, Page 2 of 21 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 5.3 Occupied Bandwidth Measurement 5.4 Radiated Emissions for Periodic radiators 5.5 Periodic Operation Measurement Plot 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix-I Part list Appendix-J Component Appendix-K Antenna specification Report no. ETLE071211.900, Page 3 of 21 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : Radar detector TPX main console z Model Number : A-01-01 z FCC ID : VWV-A-01-01 z S/N : Proto-type z Freq. Range : 418 MHz z FCC Rule Part(s) : FCC Part 15 Subpart C section 15.231 & Subpart B Section 15.109 z Test Procedure : ANSI C63.4-2003 z FCC Classification : DSC: Part 15 Security/Remote Control Transmitter z Dates of Tests : December 14, 2007 – December 18, 2007 z Place of Tests : ETL Inc. Testing Lab. (FCC Registration Number : 95422) Radiated Emission test; #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Conducted Emission test; ETL Inc. Testing Lab. (FCC Registration Number : 95422) 371-51, Gasan-donzg, Geumcheon-gu, Seoul, 153-803, Korea z Test Report No. : ETLE071211.900 Applicant Name : Adaptiv Technologies, LLC Address : 459 Columbus Avenue, #709 New York, NY 10024 Attention : Mr. Adam Gold / Director Report no. ETLE071211.900, Page 4 of 21 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of ETL Inc. facility located at #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Adaptiv Technologies, LLC, Model: A-01-01 Report no. ETLE071211.900, Page 5 of 21 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Adaptiv …

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE071211.900, Page B1 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Radiated Emission Test Setup #1 Appendix B. Test Setup Photographs Report no. ETLE071211.900, Page B2 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Radiated Emission Test Setup #2
