VWV-A-01-01ATPX Main Console

CONTENTS I. MODEL FEATURES AND CONTROLS • Radar Detection System. • ALL Band Protection. II. ACCESSORIES INCLUDED WITH RADAR DETECTOR • Owner’s Manual • Power Cord & Power Din Cable • Mounting kit • Hook & Loop Fasteners • Spare Fuse • Wireless Headset III. MOUNTING INSTALLATION • Windshield Mounting • Dash Board Mounting • Power connection IV. OPERATION GUIDE • Power on & Self-Test • Feature Engaged Confirmation • Mute Mode (Alert off) • City Mode • Mode Menu • Real tone Alert • Speed Radar Visual /Audio Alerts • Laser Visual /Audio Alerts • Wireless Headset Visual/Audio Alerts • Memory Retention V. TROUBLESHOOTING GUIDE • Factory setting VI. SPEED MONITORING DEVICES • Radar speed gun • Laser speed gun VII. MAINTENANCE • Care and Maintenance • Fuse Replacement VIII. SPECIFICATIONS • General • Laser Detector • Radar Detector • Transmitter Freqency(Tx) I. MODEL FEATURES AND CONTROLS • Real Tone Alert • X, K, Ka Super Wideband Detection • All Laser Detection • 360° Laser Detectability • Instant – On/Pulsed Radar Alert • Smart Text LCD Display • User Programmable • Memory Retention • Signal Strength Meter • Visual & Audible Alarms • Electronic Power On/Off Switch with Volume Control • External Jack for External Laser Censors • Mute Mode • City /City Nox Mode 1. Bracket Lock/Release Button – Easy lock/release of the mounting bracket. 2. Power Jack – Connection for the power cord and power cable ass’y. 3. Speaker – Provides distinct audio alarms for X, K, Ka band radar and laser. 4. Power Button – Turns unit on/off. 5. High Visibility Text Display – Provides distinct visual confirmation of signals strength, signal band identification and indicates engaged modes of operation. 6. MUTE Button – Pressing MUTE during a radar/laser encounter silences audio alerts. 7. CITY Button – Reduces the annoyance of false alerts typically encountered in urban driving areas. 8. Volume Control ( +,- ) - Adjusts audio level 9. Laser Lens (Rear) – An integrated optical waveguide provides superior detection of laser signals transmitted from behind 10. Laser Lens (Front) – High gain optical lens array provides increased sensitivity and field of view for leading edge laser detection. 11. Radar Antenna – Compact, high-efficiency antenna receives radar signals. 12. Mounting Bracket Location – Slot holds mounting bracket firmly. 13. EXT – Port for external laser censor connection II. ACCESSORIES INCLUDED WITH RADAR DETECTOR • Owner’s Manual • Power Cord & Power Din Cable • Mounting kit • Hook & Loop Fasteners • Spare Fuse III. MOUNTING INSTALLATION • Windshield Mounting • Dash Board Mounting • Power connection IV. OPERATION GUIDE Buttons • Buttons to have adequate tactile feel and size to be actuated while using riding gloves. • Backlit - blue • Button Functions: o Button 1 (top right)- Volume Increase and Brightness Increase. o Button 2 (bottom right) – Volume Decrease and Brightness Decrease o Button 3 (top center) – Power On/Off. o Button 4 –City/Highway and Volume / Brightness Mode o Button 5 – Mute and Visual Indicator Intensity Off and backlights on/off. “long” means about 2-3 sec • Power on &Self test/ Press the Power Button for 2 seconds to turn the unit on or off Start Up “Adaptiv Technologies” will be scrolled across the LCD display, entering from the right and exiting at the left, and it will scroll all the way through: Then self test will start, where each band will be displayed accompanying its alerted sound: Then the display that the system is ready: Then the unit will display the City/Highway Mode that the unit is currently in, either: or and the system will remember the last City/Highway setting each time it is turned off. “City” or “Highway” will be the default display on the LCD when no other information needs to be conveyed. Main Unit Functions When radar or laser signals are detected, the detected band and its strength will be displayed, along with its distinct sound alert. Power Button Press the Power Button for 2 seconds to turn the unit on or off. Mode Button (upper left button) For City/Highway Mode, each time this button is pressed it will toggle between “City” and “Highway” modes, and the display will display the mode setting selected. A beep will be emitted with each mode change. For Peripheral Control Mode, each time this button is pressed for 2 or more seconds it will toggle between “Headset Volume Control” (Vol), and “Visual Alert Brightness Control” (LED) with the following displays: The display for the toggled Peripheral Control Mode will only be displayed on the LCD for 2 seconds, then the display will revert back to either “City” or “Highway”, unless a signal is being detected. The Peripheral Control Mode affects how the “Up” and “Down” buttons function, which will be explained later in this document. Alert Off/Dim Button (lower left button) If a radar or laser signal is detected, pressing this button will temporarily mute all audio alerts (main unit and headset) and stop the LEDs on the Visual Alert from flashing. Audio and visual alerts will be stopped for the duration of the detected signal and any new signals detected within the next seconds. When this button is pressed, will be displayed for 1 second, and the detected radar or laser signal will return to the LCD display. When this button is pressed for 2 or more seconds, it will toggle the backlight on the Main Unit buttons on/off. Up and Down Buttons (upper and lower right buttons) The “Up” and “Down” buttons control the volume of the Main Unit and the Headset, and the LED brightness of the Visual Alert. When each is pressed for 1 or more seconds, the increase or decrease in the volume/brightness will increase or decrease continuously until the maximum or minimum volume level is reached. The system will remember the last volume setting each time it is turned on, except for the Visual Alert, where auto-setting is the default (explained below). When “Headset Control Mode” is selected, the “Up” and “Down” buttons control the volume …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 January 25, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Adaptiv Technologies, LLC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): TPX Main Console / a-01-01 (FCC ID: VWV-A-01-01A) We affirm that between SIEMIC and Adaptiv Technologies, LLC, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Mr. Adam Gold / Director Adaptiv Technologies, LLC 1639 11th Street, Suite 156, Santa Monica, CA 90404, U.S.A.

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 January 25, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VWV-A-01-01A We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operating Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mr. Adam Gold / Director Adaptiv Technologies, LLC 1639 11th Street, Suite 156, Santa Monica, CA 90404, U.S.A.

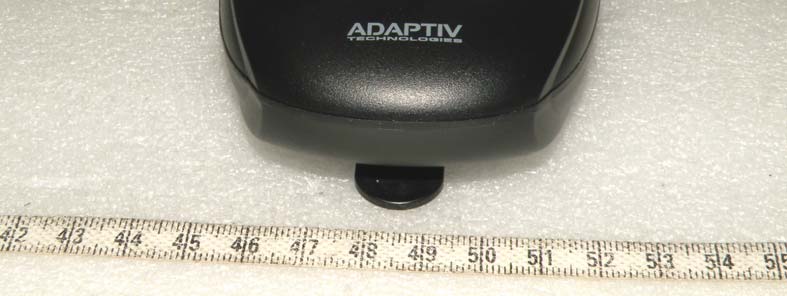

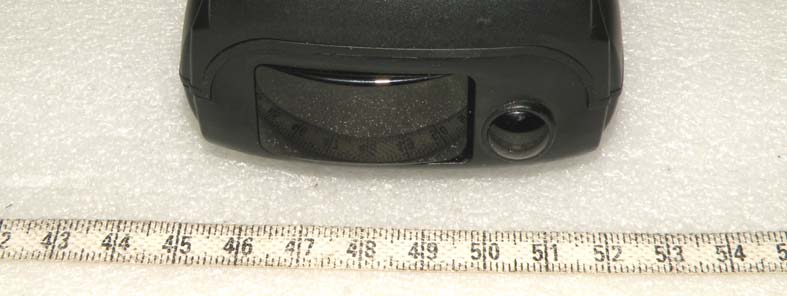

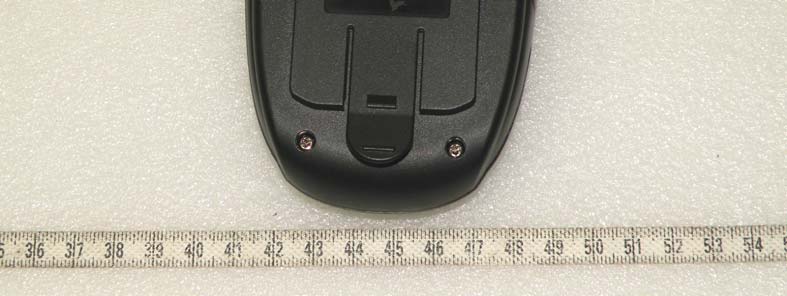

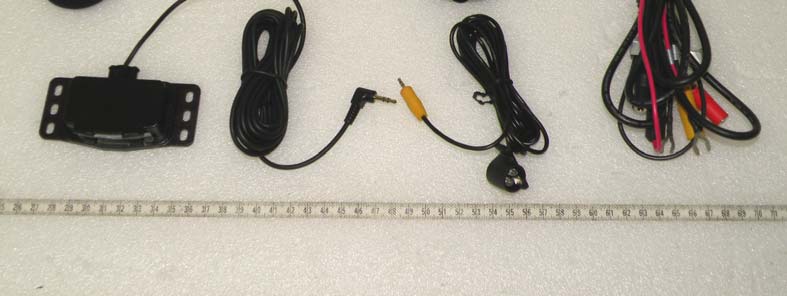

Appendix C. External Photographs Report no. ETLE100108.17, Page C1 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VWV-A-01-01A Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE100108.17, Page C2 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VWV-A-01-01A Left side view of EUT Right side view of EUT Appendix C. External Photographs Report no. ETLE100108.17, Page C3 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VWV-A-01-01A Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE100108.17, Page C4 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VWV-A-01-01A Front view of total construct Rear view of total construct

Appendix A. FCC ID Label and Location Report no. ETLE100108.17, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VWV-A-01-01A Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Adaptiv Technologies, LLC TPX Main Console FCC ID : VWV-A-01-01A Model No. : A-01-01 POWER : Car battery DC 12 V Serial No. : Proto-type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer : Willtronics Co.,Ltd Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE100108.17, Page D1 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Inside view EUT Appendix D. Internal Photographs Report no. ETLE100108.17, Page D2 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Top side view of main board #1 Appendix D. Internal Photographs Report no. ETLE100108.17, Page D3 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Top side view of main board #1-1 (Open case) Appendix D. Internal Photographs Report no. ETLE100108.17, Page D4 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Top side view of main board #1-2 (Open case) Appendix D. Internal Photographs Report no. ETLE100108.17, Page D5 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE100108.17, Page D6 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Top side view of main sub board #1 Appendix D. Internal Photographs Report no. ETLE100108.17, Page D7 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Bottom side view of main sub board #1 Appendix D. Internal Photographs Report no. ETLE100108.17, Page D8 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Top side view of main sub board #2 Appendix D. Internal Photographs Report no. ETLE100108.17, Page D9 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Bottom side view of main sub board #2 Appendix D. Internal Photographs Report no. ETLE100108.17, Page D10 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Top side view of RF board Appendix D. Internal Photographs Report no. ETLE100108.17, Page D11 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Bottom side view of RF board Appendix D. Internal Photographs Report no. ETLE100108.17, Page D12 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Top side view of LCD board Appendix D. Internal Photographs Report no. ETLE100108.17, Page D13 of D13 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VWV-A-01-01A Bottom side view of LCD board

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This is TPX Main Console, Model a-01-01 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C section 15.231. I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Hyung Seok, Lee / Chief Engineer ETL Inc. #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 PRODUCT : TPX Main Console MODEL/TYPE NO : a-01-01 / Proto-type FCC ID : VWV-A-01-01A BRAND NAME : APPLICANT : Adaptiv Technologies, LLC 1639 11th Street, Suite 156, Santa Monica, CA 90404, U.S.A. Attn.: Mr. Adam Gold / Director MANUFACTURER : Willtronics Co., Ltd 301 Kwanlidong, KwangMyung Industrial Complex, 201 Haan-3-Dong, KwangMyung, Kyungki, Korea, 423-063 FCC CLASSIFICATION : DSC : Part 15 Security/Remote Control Transmitter FCC RULE PART(S) : FCC Title 47, Part 15 Subpart C FCC PROCEDURE : ANSI C63.4-2003 TEST REPORT No. : ETLE100108.17 DATES OF TEST : January 12, 2010 to January 15, 2010 REPORT ISSUE DATE : January 25, 2010 TEST LABORATORY : ETL Inc. (FCC Designation Number : KR0022) Report no. ETLE100108.17, Page 2 of 19 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: VWV-A-01-01A Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 5.3 Occupied Bandwidth Measurement 5.4 Radiated Emissions for Periodic radiators 5.5 Periodic Operation Measurement Plot 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Schematics Appendix G. Operating Description and specifications Appendix H. User Manual Appendix I. Part list Appendix J. Component Appendix K. Antenna specification Report no. ETLE100108.17, Page 3 of 19 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: VWV-A-01-01A FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : TPX Main Console z Model Number : a-01-01 z FCC ID : VWV-A-01-01A z S/N : Proto-type z Freq. Range : 418 MHz z FCC Rule Part(s) : FCC Part 15 Subpart C section 15.231 z Test Procedure : ANSI C63.4-2003 z FCC Classification : DSC: Part 15 Security/Remote Control Transmitter z Dates of Tests : January 12, 2010 to January 15, 2010 z Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea z Test Report No. : ETLE100108.17 Applicant Name : Adaptiv Technologies, LLC Address : 1639 11th Street, Suite 156, Santa Monica, CA 90404, U.S.A. Attention : Mr. Adam Gold / Director Report no. ETLE100108.17, Page 4 of 19 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: VWV-A-01-01A 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Adaptiv Technologies, LLC Model: a-01-01 Report no. ETLE100108.17, Page 5 of 19 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: VWV-A-01-01A 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the TPX Main Console, Model: a-01-01 2.2 General Specification General Dimensions 65 mm (W) x 118 mm (L) x 42 mm (H) Weight 185 g Power Requirement CAR Battery 12 V DC Operating -20 °C to +80 °C Temperature Range Storage -40 °C to +100 °C Laser Detector Receiver Type Pulse Laser Signal Receiver Sensor Front End Convex Condenser Lens Detector Type Pulse Width Discriminator Receiver Bandwidth 30 MHz Spectral Response 800 nm – 1 100 nm Radar Detector Receiver Type Double Conversion Super heterodyne Detector Type Scanning Frequency Discriminator A…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE100108.17, Page B1 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VWV-A-01-01A Radiated Emission and Fundamental Test Setup (30 MHz - 1 000 MHz) Appendix B. Test Setup Photographs Report no. ETLE100108.17, Page B2 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VWV-A-01-01A Radiated Emission Test Setup (1 GHz Above)
