VYGAMVX2108LCD Color Display

AUTO - SCANNING WITH DIGITAL CONTROL LCD COLOR MEDICAL MONITOR AMVX2108 Operation Manual For future reference, record the serial number of your display monitor in the space below : Serial Number The serial number is located on the back of the monitor back of the monitor Ampronix 2007 All other trademarks are the property of their reference owners. This document is subject to change without notice. Ampronix provides this information as reference only. Reference to other vendor’s products does not imply any recommendation or endorsement. Revision Control GNINRAW elbissopfosresuehtmrofniotdesusi"GNINRAW"eltitehT egamadytreporpro,htaed,yrujniehttcilfnidluoct ahtsesuac .stneitapehtot NOITUAC elbissopfosresuehtmrofniotdesusi"NOITUAC"eltitehT tonthgimtihguohtlastneitapehttcilfnidluoctaht sesuac .shtaedesuacothguoneereves ETON eratahtsmetifosresuehtmrofniotdesusi"ETON"eltitehT ro,noitarepo,noitallatsnifosmretniecnatropmifo t onseoderuliafehthguohtlatnempiuqEehtfoecnanetniam .stneitapehtotmrahylidobehttcilfni etaDnoitpircseD 70612110.VERrebmuntnemucoD AMVX2108 1 TABLE OF CONTENTS Product Description and Intended Use...................................................... Warnings and Cautions................................................................................ Symbol Explanations.................................................................................... EU Declaration of Conformity for Medical Applications........................... Safety Precaution......................................................................................... Cleaning Your Monitor.................................................................................. Power Management Function.................................................................... Preset Modes.............................................................................................. Video Signals.............................................................................................. PIP / POP / PBP function........................................................................... DDC............................................................................................................. Installation.................................................................................................... Connecting the Power Cord...................................................................... User Function / Messages......................................................................... OSD Section............................................................................................... Troubleshooting.......................................................................................... Specification of (AMVX2108).................................................................. Classification.............................................................................................. Electromagnetic Compatibility.................................................................. Dimension Drawing (mm).......................................................................... Connectors.................................................................................................. 3 4 7 8 9 9 10 11 12 13 14 14 15 16 17 24 25 26 27 30 31 2 User’s Guide Product Description and Intended Use Please check the following items are present when you unpack the box, and save the packing materials in case you will need to ship or transport the monitor in future. •AMVX2108 LCD Monitor and two video cables (1) HD15 VGA cable* (1) DVI-D cable* •AC Power cord** •AC-Adapter •Composite Video BNC Jack Cable and Super Video Cable •User Manual and 4pcs VESA screws *Might be optional item, check with local representative **Might vary pending on region stardard CAUTION Manufacturer : JEC Korea Model No : JMW1150KA2400F04 * * AMVX2108 3 Warnings and Cautions Please read this manual and follow its instructions carefully. The words warning, caution, and note carry special meanings and should be carefully reviewed: Warranty is void if any of these warnings are disregarded. Ampronix accepts full responsibility for the effects on safety, reliability, and performance of the equipment only if: • Re-adjustments, modifications, and/or repairs are carried out exclusively by Ampronix. • The electrical installation of the relevant operating room complies with the applicable IEC and CE requirements. Warning Federal law (United States of America) restricts this device to use by, or on order of a physician. The Ampronix AMVX2108 monitor has been tested under UL 60601-1 standard and UL listed for Medical application. Ampronix reserves the right to make improvements in the product(s) described herein. Product(s), therefore, may not agree in detail to the published design or specifications. All specifications are subject to change without notice. Please contact Ampronix directly or phone your local Ampronix sales representative or agent for information on changes and new products. ebyamnaicisyhprotneitapehtfoytefaslanosrepehTgninraW nitluserdluocnoitamrofnisihtgnidragersiD.devlovni .naicisyhprotneitapehtotyrujni ebtsumsnoituacerproserudecorpecivreslaicepSnoituaC .tnemurtsniehtgnigama ddiovaotdewollof etoNtnatropmiroreisaeecnanetniamekamotnoitamrofnilaicepS .raelceromnoitamrofni ehttrela otdednetnisielgnairtanihtiwkramnoitamalcxenA ecnanetniamdnagnitarepotnatropmifoecneserpehtotresu .tcudorpehtgniynapmoccaerutaretilehtnisnoitcurtsni ehtfonrawotdednetnisielgnairtanihtiwtlobgninthgilA deziroh tuaotecivresllarefeR.egatlovsuodrazahfoecneserp .lennosrep RESUEHTOTYRUJNISUOIRESLAITNETOPDIOVAOTgninra W ,ECIVEDSIHTOTEGAMADRO/DNATNEITAPEHTDNA :TSUMRESUEHT 4 User’s Guide Warnings 1. Read the operating manual thoroughly and be familiar with its contents prior to using this equipment. 2. Carefully unpack the unit and check if any damage occurred during shipment. 3. Should any solid object or liquid fall into the panel, unplug the unit and have it checked by…

Text truncated - open the document above for the full version.

IN AMVX2108 Block Diagram 74AC14 24LC02 LCD PANEL Key Control (front knob) R/Pr DS90C387 LVDS Transmitter VGA DVI VIDEO Y-C G/Y B/Pb HS/CS VS SD/HD SDI OUT R/G/B Analog R/G/B H/VH/V TMDS Data/Clk 74AC14 Composite S-VIDEO R/Pr G/Y B/Pb H V GS1574 GS1574 GS1578 GO1525 VCO Y/C 10bit R/G/B 48bit LVDS Dual Data/Clk FLASH S29GL128N90 RS-232 Rx/Tx Rx/Tx Rx/Tx 16bit 128Kx8 SRAM 128Kx8 SRAM INVERTER Back Light Control Dimming Control R/G/B 24bit 30 bit PORT A 30 bit PORT B Key Control (backside serial) Rx/Tx Y/Cb/Cr 30bit Y/C 8bit CLK CLK CLK ICL3232 24LC02 R/G/B 24bit Y/C 8bit CLK CLK CLK 3 FVH1 3 FVH2 4 PCLK 1-4 GS1559 VPX3226 Video Decoder VPX3226 Video Decoder ADV7403 Component/RGB SIL1161CT TMDS Receiver AD9884 A/D Converter CPLD INPUT PORT CONTROL OUTPUT PORT U-COM SH7145 DDR2 DDR2 DDR2 DDR2 POWER I/O POWER GF9450 POWER U-COM POWER Photo Sensor Temp Sensor GSPI GF9450 11.0592 MHz 27 MHz 28.636363 MHz 20.25 MHz 20.25 MHz 10 MHz

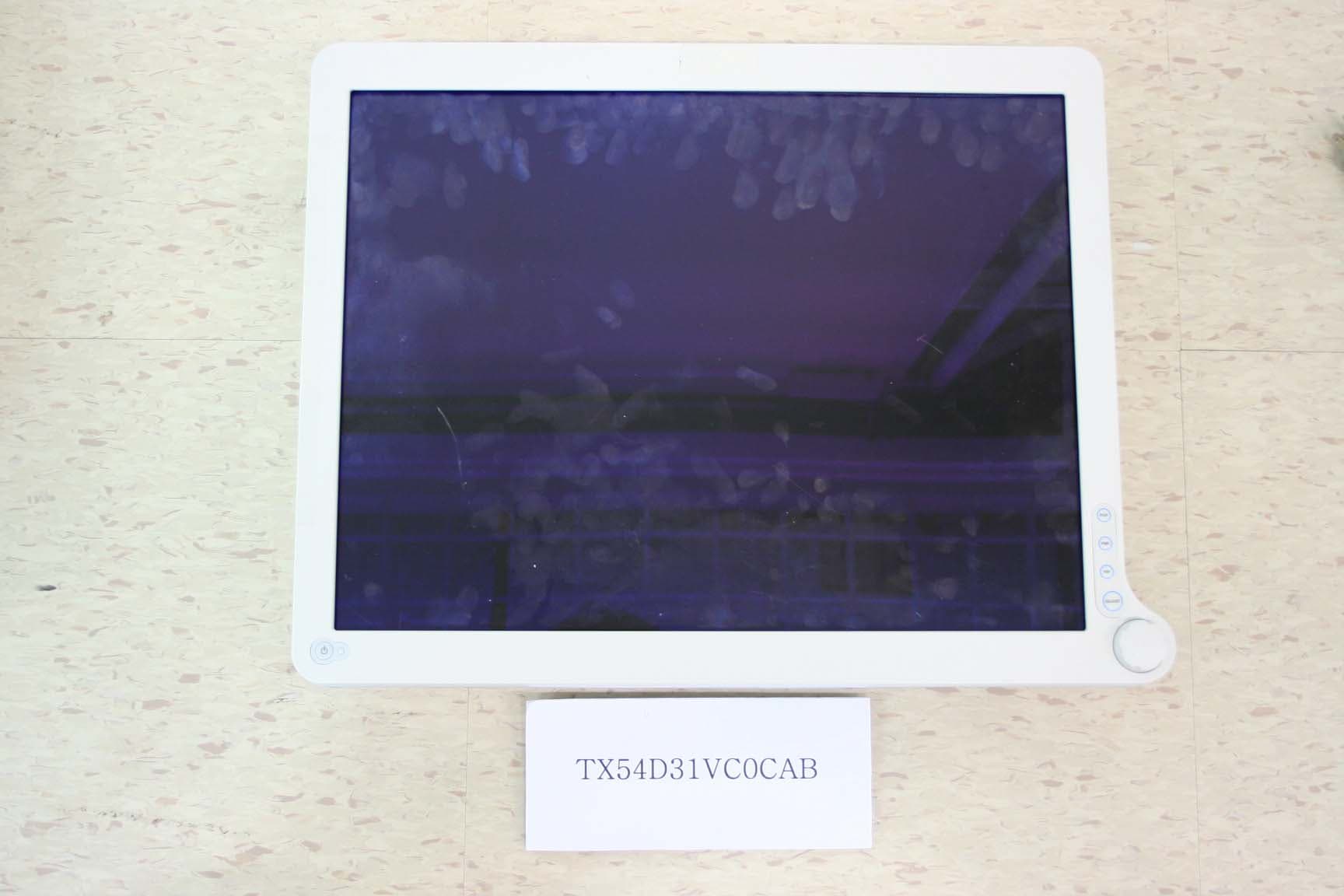

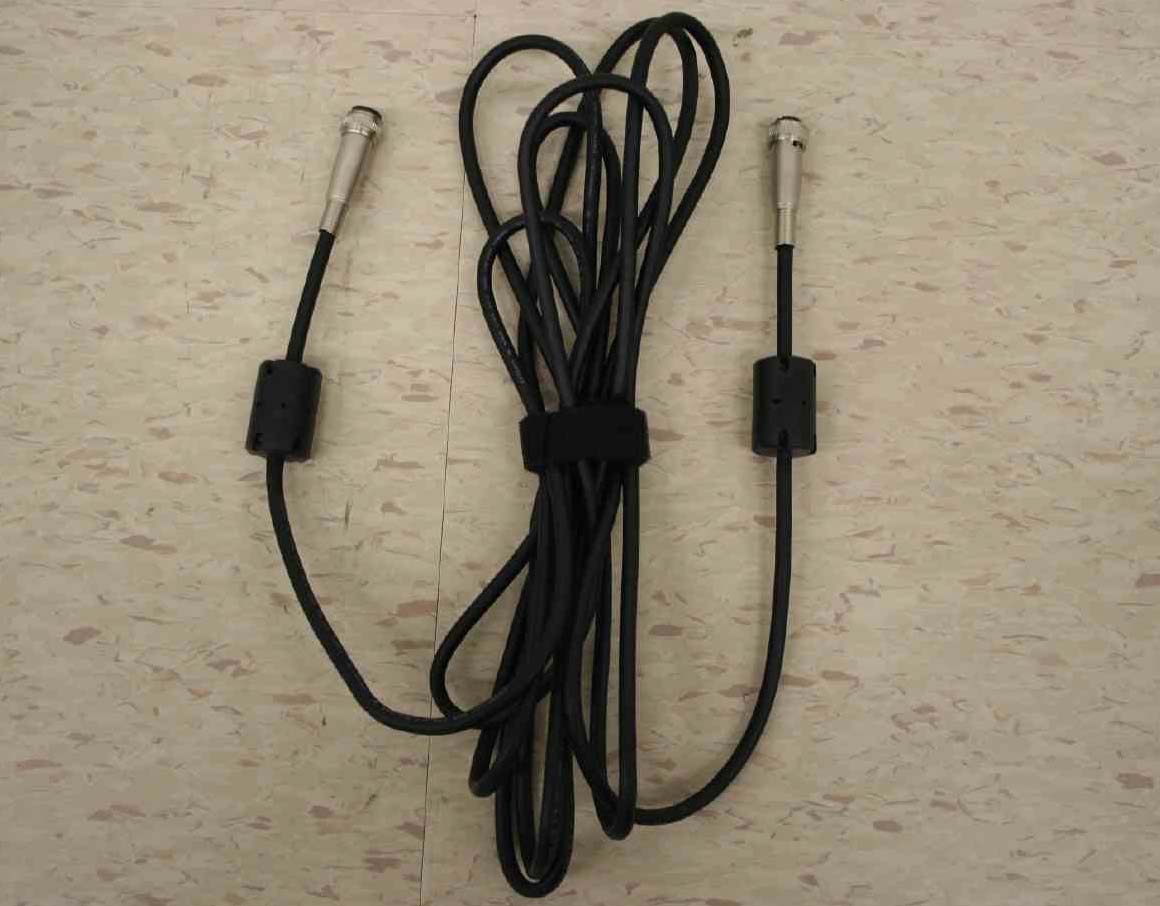

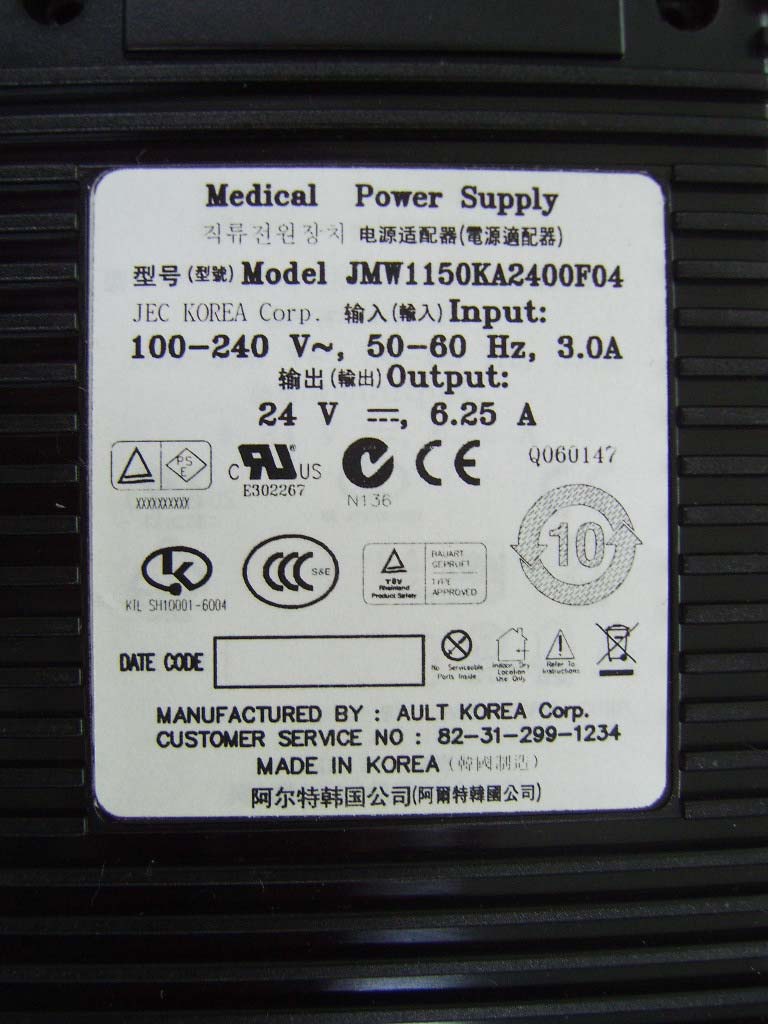

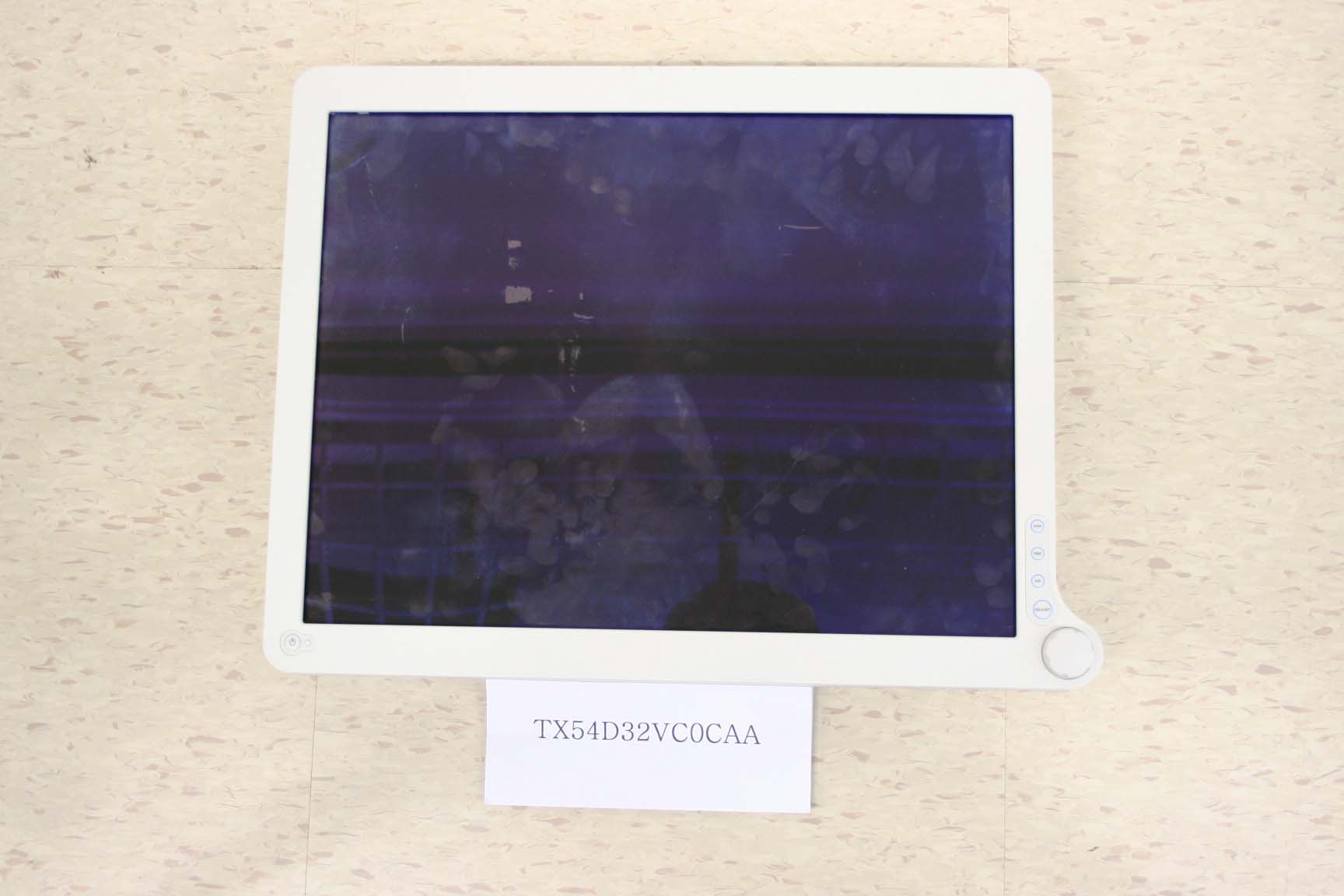

Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 1 of 7 EXTERNAL PHOTOS FRONT (LCD Panel Model -TX54D31VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 2 of 7 REAR (LCD Panel Model -TX54D31VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 3 of 7 FRONT (LCD Panel Model -TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 4 of 7 REAR (LCD Panel Model -TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 5 of 7 ADAPTOR I (Without Extension power cord) ADAPTOR II (With Extension power cord) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 6 of 7 Extension power cord (optional) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 7 of 7 Adapter Label

Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AVMX2108 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 1 of 2 ID SAMPLE LABEL & LOCATION ID Label Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AVMX2108 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 2 of 2

Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 1 of 18 INTERNAL PHOTOS Inside I Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 2 of 18 Inside II Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 3 of 18 Inside III Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 4 of 18 OSD BOARD-TOP OSD BOARD –BOTTOM Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 5 of 18 POWER BOARD-TOP POWER BOARD-BOTTOM Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 6 of 18 MAIN BOARD-TOP Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 7 of 18 MAIN BOARD-BOTTOM Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 8 of 18 INVERTER BOARD- BOTTOM Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 9 of 18 INTERFACE BOARD-BOTTOM Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 10 of 18 LCD PANEL –TOP (LCD Panel Model -TX54D31VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 11 of 18 LCD PANEL – BOTTOM (LCD Panel Model -TX54D31VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 12 of 18 LCD PANEL LABEL (LCD Panel Model -TX54D31VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 13 of 18 LCD PANEL –TOP (LCD Panel Model -TX54D32VCOCAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 14 of 18 LCD PANEL – BOTTOM (LCD Panel Model -TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 15 of 18 LCD PANEL LABEL (LCD Panel Model -TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 16 of 18 6. EUT Modification EUT Modification for Radiation Disturbance #1 Attach the EMI form gasket (10x15x230mm) at this 2 points to make strong ground contact with main frame #2 Adhere EMI tape at this points to make more strong ground contact #3 Attach tape to fix light-sensor cable #4 Insert the ring style ferrite core (SCC Co., Ltd. Type: TC18A) to light-sensor cable. #5 Adhere EMI tape FFC cable to make shielding ground #6 Insert the ring style ferrite core (SCC Co., Ltd. Type: TC18A) to sensor cable. #7 Insert the ring style ferrite core (SCC Co., Ltd. Type: TC18A) to OSD cable. #8 Adhere EMI tape OSD cable to make shielding ground. #9 Adhere EMI tape to make more strong ground contact. #10 Insert the ring style ferrite core (SCC Co., Ltd. Type: SC18A /SC14) to power cable. #11 Attach the EMI form gasket (14x4x235mm, I/O gasket) to enhance main frame and shield cover contact. #12 Attach the EMI form gasket (14x4x220mm) to enhance shield case and rear cover contact #1#2 2 1 Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 17 of 18 3 #3#4 #5 #6 #7 4 5 6 #8 7 8 Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. TFT LCD Monitor FCC ID: VYGAMVX2108 18 of 18 #9#10 9 12 10 #12 #11 11

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 UL Korea, Ltd www.ulk.co.kr Project: 07CA59143 File: MC15562 Report 07CA59143-A-2-FCC Date: January21, 2008 Model: AMVX2108 Electromagnetic Compatibility Test Report FCC Certification Part 15 Subpart B Class B For AMPRONIX INC. 15 Whatney Irvine CA 92618 USA UL Korea Ltd. 33rdFl. Gangnam finance Center, 737 Yeoksam-Dong, Kangnam-Gu, Seoul, 135-984, Korea Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 2 of 31 TEST REPORT DETAILS Test report No: 07CA35064-A-2-FCC Tests Performed By: UL Korea Ltd. 33 rd FL. Gangnam Finance Center, 737 Yeoksam-dong, Kangnam-ku, Seoul, 135-984, Korea Test site: CHUNGBUK TECHNOPARK 685-3 Yangcheong-ri, Ochang-eub,Cheongwon-kun,Chungbuk- province,Republic of Korea Registration No: 647924 The test facility was deemed to have the environment and capabilities necessary to perform the tests included in the test package Tests Performed For: AMPRONIX INC. 15 Whatney Irvine CA 92618 USA Manufacturer: D&T Inc. Daedeok Valley, 60-1, jang Dong, Yuseong Gu, Daejeon, 305-343, Korea Applicant Contact: Brian Yamada Title: General engineer Phone: 949-273-8000 E-mail: [email protected] Test Report Date: August 14, 2007 Product Type: LCD Color Display Trademark:MEDVIX Model Number: AMVX2108 FCC ID: VYGAMVX2108 Product standards FCC Part 15 Subpart B Class B Sample Serial Number: None (Proto type) Sample Receive Date: August 01, 2007 Testing Start Date: August 01, 2007 Date Testing Complete: August 29, 2007 Overall Results: PASS UL Korea Ltd. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical componens. UL Korea Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from UL Korea Ltd. issued reports. Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 3 of 31 TEST SUMMARY Test Result Requirement – Test Reference standards Verdict AC Power line Conducted Emission Test Complied Radiated Emission Test 47CFR Part 15.107(a) / 47CFR Part 15.109(g) Complied Remark: Modifications to EUT required for compliance - See Clause 6 of this report for modification details required for compliance to the radiated emission and photos of Internal product. The tests listed in the Summary of Testing section of this report have been performed and the results recorded by UL Korea, Ltd. in accordance with the procedures stated in each test requirement and specification. The applicant determined the list of tests performed were applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. The equipment under test has met the technical requirements not met the technical requirements Tested by Sung Hoon, Baek, Associate Project Engineer Reviewed by Kyung Yong, Kim, Senior Project Engineer Conformity Assessment Services - 3014ASEO Conformity Assessment Services - 3014ASEO UL Korea Ltd. UL Korea Ltd. August 29, 2007 January 21, 2008 Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 4 of 31 Report Directory 1. EQUIPMENT UNDER TEST(EUT).......................................................................................................... 5 1.1 E QUIPMENT DESCRIPTION SPEC ............................................................................................................. 5 1.2 E QUIPMENT MARKING PLATE.................................................................................................................. 6 1.3 E QUIPMENT USED DURING TEST.............................................................................................................. 7 1.4 I NPUT/OUTPUT PORTS...............................................................................................................................7 1.5 EUT I NTERNAL OPERATING FREQUENCIES:........................................................................................... 8 1.6 P OWER INTERFACE: .................................................................................................................................. 8 2. EUT OPERATION MODES: ............................................................................................................8 3. EUT CONFIGURATIONS: ............................................................................................................. 10 4. CONDUCTED DISTURBANCE AT THE MAINS PORTS ........................................................ 11 5. RADIATED DISTURBANCE ......................................................................................................... 24 6. EUT MODIFICATION .................................................................................................................... 31 7. MEASUREMENT UNCERTAINTIES ...................................................................…

Text truncated - open the document above for the full version.

Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 16 of 31 Figure 3 Graphical representation of conducted emissions: DVI Mode (LCD Panel: TX54D31VC0CAB) Live line 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Neutral line 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 17 of 31 Figure 4. Graphical representation of conducted emissions: S-Video Mode (LCD Panel: TX54D31VC0CAB) Live line 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Neutral line 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 18 of 31 Figure 5 Conducted Emission Test Setup: DVI Mode (LCD Panel: TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 19 of 31 Figure 6 Conducted Emission Test Setup: S-Video Mode (LCD Panel: TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 20 of 31 Table 3 Test data for conducted emission: DVI Mode (LCD Panel: TX54D32VC0CAA) Correction Factor Reading value (dBuV) Level (dBuV) Limit (dBuV) Margin (dB) Test Frequency (MHz) Cable LISN QP AV Line QP AV QP AV QP AV 0.16 0.06 0.12 44.12 - H 44.30 - 65.20 55.20 20.90 - 0.17 0.06 0.13 47.51 - N 47.70 - 64.90 55.10 17.20 - 0.22 0.07 0.11 41.92 - H 42.10 - 62.70 52.70 20.60 - 0.34 0.08 0.12 43.70 - N 43.90 - 59.20 49.20 15.30 - 0.45 0.09 0.12 36.99 - N 37.20 - 56.80 46.80 19.60 - 0.62 0.11 0.13 35.36 - N 35.60 - 20.40 - 2.66 0.22 0.15 35.73 - H 36.10 - 19.90 - 3.06 0.24 0.15 35.01 - H 35.40 - 20.60 - 0.29 0.29 0.15 36.26 - H 36.70 - 56.00 46.00 19.30 - 6.45 0.35 0.22 38.43 - H 39.00 - 21.00 - 6.85 0.36 0.22 39.32 - H 39.90 - 20.10 - 7.41 0.37 0.27 39.86 - H 40.50 - 19.50 - 8.44 0.41 0.31 38.28 - N 39.00 - 21.00 - 8.61 0.42 0.27 37.61 - H 38.30 - 21.70 - 9.23 0.43 0.31 40.86 - N 41.60 - 18.40 - 9.51 0.43 0.27 41.10 - H 41.80 - 18.20 - 9.80 0.43 0.31 38.86 - N 39.60 - 20.40 - 11.72 0.48 0.28 40.14 - H 40.90 19.10 12.56 0.48 0.28 38.14 - H 38.90 21.10 13.47 0.52 0.28 38.90 - H 39.70 20.30 28.41 0.76 0.15 31.99 - N 32.90 60.00 50.00 27.10 Note: 1. Margin (dB)= Limit (dBuV) - Level (dBuV) 2. If no frequencies are specified in the tables, no measurement for quasi-peak or average was necessary. Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 21 of 31 Table 4 Test data for conducted emission: S-Video Mode (LCD Panel: TX54D32VC0CAA) Correction Factor Reading value (dBuV) Level (dBuV) Limit (dBuV) Margin (dB) Test Frequency (MHz) Cable LISN QP AV Line QP AV QP AV QP AV 0.15 0.05 0.13 38.82 - N 39.00 - 66.00 55.00 27.00 - 0.17 0.06 0.12 49.32 - H 49.50 - 65.00 54.90 15.50 - 0.23 0.07 0.11 43.22 - H 43.40 - 62.50 52.50 19.10 - 0.34 0.08 0.12 38.20 - N 38.40 - 59.20 49.20 20.80 - 0.45 0.09 0.11 37.50 - H 37.70 - 56.80 46.80 19.10 - 0.51 0.10 0.10 35.10 - H 35.30 - 20.70 - 0.62 0.11 0.10 36.69 - H 36.90 - 19.10 - 0.74 0.11 0.15 36.24 - H 36.50 - 19.50 - 1.19 0.13 0.13 35.74 - H 36.00 - 20.00 - 1.59 0.15 0.13 37.02 - H 37.30 - 18.70 - 1.70 0.15 0.15 36.50 - H 36.80 - 19.20 - 2.10 0.17 0.15 36.68 - H 37.00 - 19.00 - 2.66 0.22 0.15 37.33 - H 37.70 - 18.30 - 3.06 0.24 0.15 37.91 - H 38.30 - 17.70 - 4.42 0.28 0.15 36.57 - H 37.00 - 19.00 - 4.64 0.29 0.15 36.46 - H 36.90 - 19.10 - 4.98 0.29 0.15 35.96 - H 36.40 - 56.00 46.00 19.60 - 6.51 0.35 0.22 39.63 - H 40.20 19.80 7.05 0.36 0.31 35.63 - N 36.30 23.70 8.61 0.42 0.27 38.51 - H 39.20 20.80 9.23 0.43 0.31 38.36 - N 39.10 20.90 9.80 0.43 0.27 40.10 - H 40.80 19.20 10.19 0.44 0.28 39.18 - H 39.90 60.00 50.00 20.10 Note: 1. Margin (dB)= Limit (dBuV) - Level (dBuV) 2. If no frequencies are specified in the tables, no measurement for quasi-peak or average was necessary. Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 22 of 31 Figure 7 Graphical representation of conducted emissions: DVI Mode (LCD Panel: TX54D32VC0CAA) Live line 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Neutral line 0 10 20 30 40 50 60 70 80 150k 300400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz EN 55022 Voltage on Mains QP EN 55022 Voltage on Mains AV Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD C…

Text truncated - open the document above for the full version.

Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 1 of 8 Test Setup Photos Figure 1 Conducted Emission Test Setup: DVI Mode (LCD Panel: TX54D32VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 2 of 8 Figure 2 Conducted Emission Test Setup: S -Video Mode (LCD Panel: TX54D32VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 3 of 8 Figure 3 Conducted Emission Test Setup: DVI Mode (LCD Panel: TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 4 of 8 Figure 4 Conducted Emission Test Setup: S -Video Mode (LCD Panel: TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 5 of 8 Figure 5 Photo of Radiated emission test setup: DVI Mode (LCD Panel: TX54D32VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report N07CA59143-A-2143-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 6 of 8 Figure 6 Photo of Radiated emission test setup: S - Video Mode (LCD Panel: TX54D32VC0CAB) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number:AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 7 of 8 Figure 7 Photo of Radiated emission test setup: DVI Mode (LCD Panel: TX54D32VC0CAA) Project Number: 07CA59143 File Number MC15562 Test Report No: 07CA59143-A-2-FCC Model Number: AMVX2108 Date of Issue: January 21, 2008 UL Korea Ltd. FCC Certificate Test for AMPRONIX INC. LCD Color Display FCC ID: VYGAMVX2108 8 of 8 Figure 8 Photo of Radiated emission test setup: S - Video Mode (LCD Panel: TX54D32VC0CAA)
