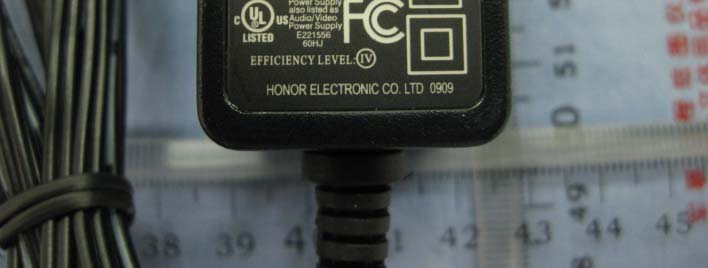

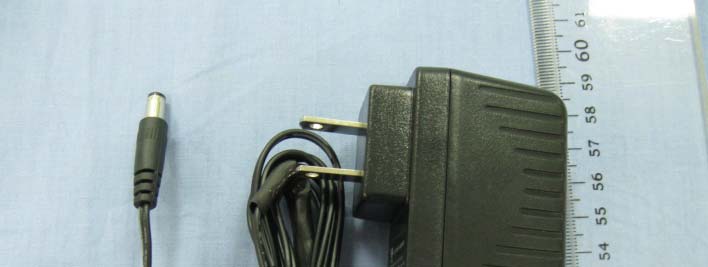

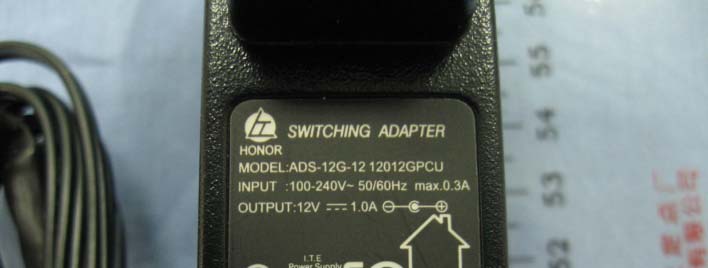

External Photos Enclosure of EUT Enclosure of EUT Photos of adapter

Internal Photos Internal of EUT PCB of EUT PCB of EUT Radio Part Internal photo of adapter Internal photo of adapter

S S p p e e c c i i f f i i c c a a t t i i o o n n Standards • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n Wireless Signal Rates • IEEE 802.11b: 11, 5.5, 2 and 1Mbps • IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps • IEEE 802.11n: (20 MHz BW)144, 130, 117, 104, 78, 52, 39, 26, 13Mbps (40 MHz BW) 300, 270, 243, 216, 162, 108, 81, 54, 27Mbps Security • 64/128-bit WEP • WPA —Wi-Fi Protected Access • WPA-PSK (Pre-Shared Key) Radio and Modulation Type • DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM Channels For product available in the USA/Canada market, only channel 1-11 can be operated. Selection of other channels is not possible. Wireless Frequency Band • 2.4GHz ISM Band (2412M-2462MHz) Bandwidth •20MHz/40MHz Output power •20dBm(MAX) Antenna •3dBi Detachable Omni-directional antenna •With MIMO, information is sent and received over two antennas simultaneously using the same frequency band thus providing greater range and increasing throughput. Supports 2×2 antennas for Layer 2 throughput of over 200 Mbps with its fully integrated dual-band radio transceiver and optional switched diversity with 3 or 4 antennas. Wireless Operating Range • Indoors: Up to 328 feet (100 meters) • Outdoors: Up to 1,312 feet (400 meters) Function Diagram MAC Block and its Diagram: The MAC core supports the transmission and reception of sequences of packets, together with related timing, without any packet-by-packet driver interaction. Time-critical tasks requiring response times of only a few milliseconds are handled in the MAC core. This achieves the required timing on the medium while keeping the host driver easier to write and maintain. Also, incoming packets are buffered in the MAC core, which allows the MAC driver to process them in bursts, enabling high bandwidth performance. The MAC driver interacts with the MAC core to prepare queues of packets to transmit and to analyze and forward received packets to upper software layers. The internal blocks of the MAC core are connected to a programmable state machine (PSM) through the host interface that connects to the internal bus. DUAL-BAND RADIO TRANSCEIVER Integrated into the BCM43222 is Broadcom's world-class dual-band radio transceiver that ensures low-power consumption and robust communications for applications operating in the 2.4-GHz band. Channel bandwidths of 20 MHz and 40 MHz are supported as specified in Draft-802.11n. RECEIVER PATH The BCM43222 has a wide dynamic range, direct conversion receiver. It employs high order on-chip channel filtering to ensure reliable operation in the noisy 2.4-GHz ISM band. The excellent noise figure of the receiver makes an external LNA unnecessary. TRANSMITTER PATH Baseband data is modulated and upconverted to the 2.4-GHz ISM band. Linear on-chip Power Amplifiers are included, which are capable of delivering a nominal output power exceeding +18 dBm in the G band and +15 dBm in the A band while meeting the IEEE 802.11g specifications. The TX gain has a 78 dB range with a resolution of 0.25 dB.

RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT ADSL2+ 802.11b/g/n 4 Port Managed Switch Router Frequency band (Operating) ;WLAN: 2.412GHz ~ 2.462GHz †WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~5.70GHz †Others Device category †Portable (<20cm separation) ;Mobile (>20cm separation) †Others Exposure classification †Occupational/Controlled exposure (S = 5mW/cm2) ;General Population/Uncontrolled exposure (S=1mW/cm2) Max. output power 13.50 dBm (22.39mW) Antenna gain (Max) 3 dBi (Numeric gain: 2) Evaluation applied ;MPE Evaluation †SAR Evaluation Note: 1. The maximum output power is 13.50 dBm (22.39mW) at 802.11g 2412MHz (with 2 numeric antenna gain .) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted Calculation Given d GP E **30 = & S = 3770 2 E Where E = Field Strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d *3770 **30 = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) Yields d = 100 X S GP &3770 *)1000/(*30 = 0.282 X S GP* Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) Yields d = 0.282 X 20 10 20/)(GP+ Equation 1 Where d = MPE safe distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 Maximum Permissible Exposure EUT output power = 22.39mW Antenna Gain = 2 S = 1.0 mW / cm^2 from 1.1310 Table 1 Substituting these parameters into the above Equation 1: MPE = 2 R4 * ∏ GP = 0.0089 mW/cm 2 (For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.)

Report No.: TR-1006-033-01 Page 1 of 111 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch FCC Test Report (TR-1006-033-01) Applicant : Starbridge Networks L.L.C. Address : 3265 Meridian Parkway, STE # 134 Weston, FL 33331, USA Manufacturer : Kasda Digital Technology Co., Ltd. Address : B-31 Building,Tanglang Industry Zone, XiLi, Nanshan, Shenzhen, China Product Name : ADSL2+ 802.11b/g/n 4 Port Managed Switch Router Trademark : Starbridge Model(s) : Lynx 528 Standard(s) : FCC Part 15 Subpart C Test Result : Pass Date of Test : Jun 13, 2010 to Sep 08, 2010 Report issued Dated : Sep 08, 2010 The report shall not be reproduced except in full, without the written approval of the TDK EMC Center. The results in this report apply only to the sample(s) tested. The production units are required to conform to the initial sample as received when the units are placed in the market. Responsible Engineer : Approved by : Phenix Zhang Technical manager CHAN king-chui Date : 2010.09.08 Date : 2010.09.08 Report No.: TR-1006-033-01 Page 2 of 111 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch Table of Contents Description Page 1. Description of the Test Site ...................................................................................................................... 3 1.1 Test Site Location: ..................................................................................................................................... 3 1.2 Site Registration ....................................................................................................................................... 3 1.3 Test Scope................................................................................................................................................... 3 2. Description of the Tested Samples .......................................................................................................... 4 2.1 Customer Information .............................................................................................................................. 4 2.2 Identification of EUT ............................................................................................................................... 4 2.3 Spec of EUT .............................................................................................................................................. 4 2.4 Test Standards List.................................................................................................................................... 4 3. Test Specifications ....................................................................................................................................... 5 3.1 Standard(s) Used ....................................................................................................................................... 5 3.2 Test Mode ................................................................................................................................................... 5 3.3 Deviations from the Test Specification .................................................................................................... 5 4. Test Result.................................................................................................................................................... 6 4.1 Antenna Requirement ............................................................................................................................... 6 4.2 Conducted Emission (mains).................................................................................................................... 7 4.3 Maximum Peak Output Power .............................................................................................................. 10 4.4 Band Edges Emission.............................................................................................................................. 14 4.5 6dB BANDWIDTH ................................................................................................................................. 36 4.6 Power Spectral Density........................................................................................................................... 44 4.7 Spurious Radiated Emission .................................................................................................................. 53 5. FCC ID Label .......................................................................................................................................... 104 6. Test Setup ................................................................................................................................................. 105 6.1 Ancillary and Accessory Equipment Used .......................................................................................... 105 6.2 Photographs of the Test Configuration .............................................................................................. 106 6.3 Photographs of the EUT ...................................................................................................................... 108 7. Equipment List.........................................................................................................................................110 8. Test Uncertainty ....................................................................................................................................... 111 9. Appendix ................................................................................................................................................... 111 9.1 Confirmation of Compliance within the Limits .................................................................................. 111 Report No.: TR-1006-033-01 Page 3 of 111 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch 1. Description of the Tes…

Text truncated - open the document above for the full version.

Radiated emission Below 1GHz: Above 1GHz: Conducted emission
