VYO-CPE25450WiMAX 2.5G Outdoor CPE

Nokia Solutions and Networks
WiMAX 2.5G Outdoor CPE - FCC ID VYO-CPE25450 - Nokia Solutions and Networks
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Feb 04, 2010
Application Purpose
Original Equipment
Date of Application
Feb 04, 2010
Equipment Note
WiMAX 2.5G Outdoor CPE
Frequency Range
2501.00000000 - 2685.00000000
Company
Nokia Solutions and Networks
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CPE o 450 Series MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.All other product or service names are the property of their respective owners . © 2010 Motorola, Inc. 68P09306A78-A i JAN 2010 Contents Chapter 1: CPEo 450 User Guide Overview.............................................................................................................................. 1-1 Powerful Features in a Single Unit..................................................................................... 1-2 Bottom Side Panel LED Indicator........................................................................................ 1-2 Bottom Panel....................................................................................................................... 1-3 Operating Information......................................................................................................... 1-4 Chapter 2: Installation Overview.............................................................................................................................. 2-1 Chapter 3: Configuration Before you Begin................................................................................................................. 3-1 Logging in to the CPE.......................................................................................................... 3-1 Setup Wizard and Authentication........................................................................................ 3-2 Chapter 4: Basic Configuration Personalize Menu................................................................................................................ 4-1 Password Tab...................................................................................................................... 4-2 Device Time Tab.................................................................................................................. 4-2 Device Name Tab................................................................................................................ 4-2 Restore Factory Settings Tab.............................................................................................. 4-3 Internet Menu..................................................................................................................... 4-3 WiMAX Security Tab........................................................................................................... 4-4 Internet Protocol Tab.......................................................................................................... 4-4 Firewall Tab......................................................................................................................... 4-4 Dynamic DNS Tab............................................................................................................... 4-5 Status Menu........................................................................................................................ 4-5 Network Tab........................................................................................................................ 4-6 Telephony Tab..................................................................................................................... 4-6 Telephony Menu.................................................................................................................. 4-6 Account Tab......................................................................................................................... 4-7 Ring Tone Tab..................................................................................................................... 4-8 Caller ID Tab....................................................................................................................... 4-8 Call Forwarding Tab............................................................................................................ 4-9 Voice Mail Tab................................................................................................................... 4-11 Special Number Tab.......................................................................................................... 4-11 Chapter 5: Advanced Configuration Port Forwarding Menu........................................................................................................ 5-1 Forwarding Tab................................................................................................................... 5-2 Local Address Menu............................................................................................................ 5-3 DHCP Server Tab................................................................................................................ 5-3 Lease Status Tab................................................................................................................. 5-4 Lease Reservation Tab........................................................................................................ 5-5 Control Panel....................................................................................................................... 5-5 Software Tab....................................................................................................................... 5-6 Certificate Tab..................................................................................................................... 5-6 System Tab.......................................................................................................................... 5-7 About Tab............................................................................................................................ 5-7 Chapter 6: Configuring TCP/IP Configuring TCP/IP in Windows 2000................................................................................. 6-1 Configuring TCP/IP in Windows XP..................................................................................... 6-6 Chapter 7: Tro…

Text truncated - open the document above for the full version.

Attestation Statements

Motorola Home & Networks Mobility · Broadband Access Solutions Motorola Home & Networks Mobility Wireless Broadband 1475 W. Shure Drive, Arlington Heights, IL 60004 USA G E N E R A L D E C L A R A T I O N Date: 2010/1/18 To whom it may concern: We, Motorola Home & Networks Mobility · Broadband Access Solutions. declares that FCC ID: VYO-CPE25450 Model Name: CPEo 25450 Product Name: WiMAX 2.5G Outdoor CPE By CPEo 25450 hardware configuration, the maximum ratio of DL:UL is 29:18. That means it can not support the higher ratio than 29:18, for example, 26:21. The ratio can not be modified to higher ratio than 29:18 by any method. Signature: Matthew Schirmacher/RF Arch Motorola Inc. TEL: 847-632-2757 FAX: (847)632-4164 [email protected]

Cover Letter(s)

Motorola Home & Networks Mobility · Broadband Access Solutions Motorola Home & Networks Mobility Wireless Broadband 1475 W. Shure Drive, Arlington Heights, IL 60004 USA Date:2010/1/18 FCC ID: VYO-CPE25450 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational description Parts list Tune-up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Matthew Schirmacher/RF Arch Motorola Inc. TEL: 847-632-2757 FAX: (847)632-4164 [email protected]

Cover Letter(s)

Motorola Home & Networks Mobility · Broadband Access Solutions Motorola Home & Networks Mobility Wireless Broadband 1475 W. Shure Drive, Arlington Heights, IL 60004 USA AGENCY AUTHORIZATION LETTER Date: 2010-01-18 To whom it may concern: We, the undersigned, Motorola Home & Networks Mobility · Broadband Access Solutions. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 27M approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature: Matthew Schirmacher/RF Arch Motorola Inc. TEL: 847-632-2757 FAX: (847)632-4164 [email protected]

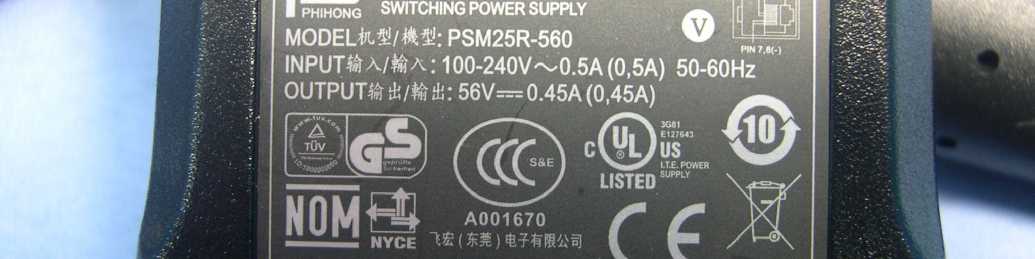

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

ID Label/Location Info

UPDATE DESCRIPTION * + 0.2 CRITICAL DIM. MARK DRAFT TOLERANCE FE D C 1 2 3 4 Dim. 30~120 120~300 300~450 450~600 0.15 0.20 0.25 0.10 0.05 Tol. A 0.20 0.30 0.40 B 0.15 0.05 6~30 0~6 0.300.50 Select 15.00 10.00 5.00 3.00 BAG 20.00 2.00 0.50 1.00 0.50 EPE 2.00 0.50 0.50 EPS 1.00 0.30 0.40 0.50 0.20 0.10 C 3.003.00 0.60 0.20 0.25 0.30 0.50 0.20 Label CTN 3.00 2.00 5.00 USR 0.80 5.00 UNIT PART NAME CUSTOMER MODEL mm SIZE A4 MODEL SHEET SCALE F E D REV. 0 ECR/ECN NO. MARK C First Release DATE B A APPROVED DESIGNED CUSTOMER PART NO. PART NO. 1 2 3 4 BA SIGNATURE HON HAI PRECISION IND. CO., LTD. CNSBG FINISH 65 34 1:1 X U61W070 R2 *4 500.00792.045 For Motorola : M500.00792.045 Odo Ken OSU NOTES : 1.Label Material: General Electric Plastics Polycarbonate Lexan GE 8B35 .254 mm (.010 in.) Thick 2.Adhesive: Pressure Sensitive Acrylic Adhesive 3M 9460. 3.Package: Flake Color: White PMS Black GE 8B35 Odo 12/21/2009 Label, Safety,OSU,Spanish Model No: CPEo 25450 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION 2 OTHER 7 FCC ID: VYO-CPE25450

ID Label/Location Info

(Fig. 1) FCC ID: VYO-CPE25450 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Internal Photos

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

RF Exposure Info

Report No.: SA981223H11 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA981223H11 MODEL NO.: CPEo 25450 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Motorola Home & Networks Mobility · Broadband Access Solutions ADDRESS: 1475 W. Shure Drive · MD: 340 · Arlington Heights, IL 60004-7810 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA981223H11 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA981223H11 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 50cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by client enabled the EUT to transmit and receive data at specific channel frequencies individually. 5. Classification The antenna of this product, under normal use condition, is at least 50cm away from the body of the user. Warning statement to the user for keeping at least 50cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Temporary Fixed Device Report No.: SA981223H11 Report Format Version 3.0.1 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 12.5dBi or 17.78279 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 50cm: CHANNEL BANDWIDTH: 5MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2498.5 416.9 0.236 1.0 Middle 2600 416.9 0.236 1.0 High 2687.5 407.4 0.231 1.0 CHANNEL BANDWIDTH: 10MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2501 407.4 0.231 1.0 Middle 2600 416.9 0.236 1.0 High 2685 416.9 0.236 1.0 --- END ---

Test Report

Report No.: RF981223H11 1 Report Format Version 3.0.1 FCC TEST REPORT (PART 27) REPORT NO.: RF981223H11 MODEL NO.: CPEo 25450 RECEIVED: Dec. 24, 2009 TESTED: Jan. 04 to 15, 2010 ISSUED: Feb. 02, 2010 APPLICANT: Motorola Home & Networks Mobility · Broadband Access Solutions ADDRESS: 1475 W. Shure Drive · MD: 340 · Arlington Heights, IL 60004-7810 ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981223H11 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1 CERTIFICATION..............................................................................................4 2 SUMMARY OF TEST RESULTS......................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3 GENERAL INFORMATION...............................................................................7 3.1 GENERAL DESCRIPTION OF EUT.....................................................................7 3.2 DESCRIPTION OF TEST MODES.......................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL......................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................13 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................14 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST................................................15 4 TEST TYPES AND RESULTS........................................................................16 4.1 OUTPUT POWER MEASUREMENT.................................................................16 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT...............................................16 4.1.2 TEST INSTRUMENTS.......................................................................................16 4.1.3 TEST PROCEDURES........................................................................................16 4.1.4 TEST SETUP.....................................................................................................16 4.1.5 EUT OPERATING CONDITIONS.......................................................................17 4.1.6 TEST RESULTS.................................................................................................18 4.2 FREQUENCY STABILITY MEASUREMENT......................................................20 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT..................................20 4.2.2 TEST INSTRUMENTS.......................................................................................20 4.2.3 TEST PROCEDURE..........................................................................................21 4.2.4 TEST SETUP.....................................................................................................21 4.2.5 TEST RESULTS.................................................................................................22 4.3 EMISSION BANDWIDTH MEASUREMENT.......................................................23 4.3.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT....................................23 4.3.2 TEST INSTRUMENTS.......................................................................................23 4.3.3 TEST SETUP.....................................................................................................23 4.3.4 TEST PROCEDURES........................................................................................24 4.3.5 TEST RESULTS.................................................................................................25 4.4 CHANNEL EDGE MEASUREMENT..................................................................29 4.4.1 LIMITS OF CHANNEL EDGE MEASUREMENT................................................29 4.4.2 TEST INSTRUMENTS.......................................................................................29 4.4.3 TEST SETUP.....................................................................................................29 4.4.4 TEST PROCEDURES........................................................................................30 4.4.5 EUT OPERATING CONDITION.........................................................................30 4.4.6 TEST RESULTS.................................................................................................31 4.5 CONDUCTED SPURIOUS EMISSIONS............................................................37 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT.............37 Report No.: RF981223H11 3 Report Format Version 3.0.1 4.5.2 TEST INSTRUMENTS.......................................................................................37 4.5.3 TEST PROCEDURE..........................................................................................38 4.5.4 TEST SETUP.....................................................................................................38 4.5.5 EUT OPERATING CONDITIONS.......................................................................38 4.5.6 TEST RESULTS.................................................................................................39 4.6 RADIATED EMISSION MEASUREMENT (BELOW 1GHz)................................51 4.6.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................51 4.6.2 TEST INSTRUMENTS.......................................................................................51 4.6.3 TEST PROCEDURES............................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST

Contact Information

Applicant

Steve Mitchell
[email protected]972-936-7500Fax: 972-936-7273

Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchGary Chang
[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan Hsien · Taiwan

Non-Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchEllis Wu
[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
2272.50 GHz - 2.69 GHz417.00 mW9M52W7D2.5 ppm
Confidentiality
Long Term
Grant Notes
Output power is conducted. The product is a WiMAX user station. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 50 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
