Motorola Inc. Datet20l0/01/21 Motorola Home & Networks Mobility Wireless Broadband 1475 W. Shure Drive, Arlington Heights, IL 60004 USA DECI.ARA'TION To whom it may concern: We, the undersigned llotorola Inc. hereby delare that the following WiMax product which is designed and manufactured by us will not support the AMC zone type. The conflguration parameter of the Beceem chipset soft are will be fixed to disable the AMC zone type during manufacturing.. FCC lD: VYO-US8W25200 Model Name: USBM5200 Product Name: WiMax USB dongle WiMax chipset provider: Beceem The Beceem software version: 5.2.64D2 Thank you! Sincerely yours, Motorola Inc. TELI 847-632-27 57 FAxt (847)632-4164 MSCHIRMI @motorola.com

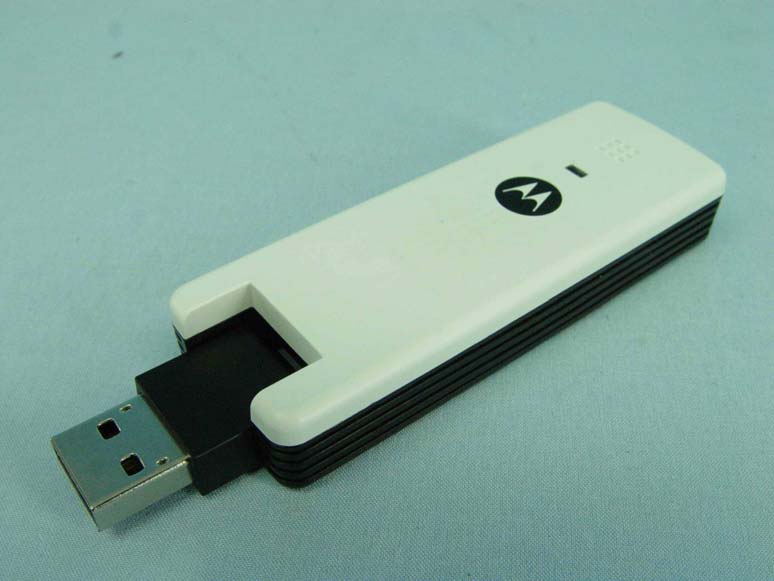

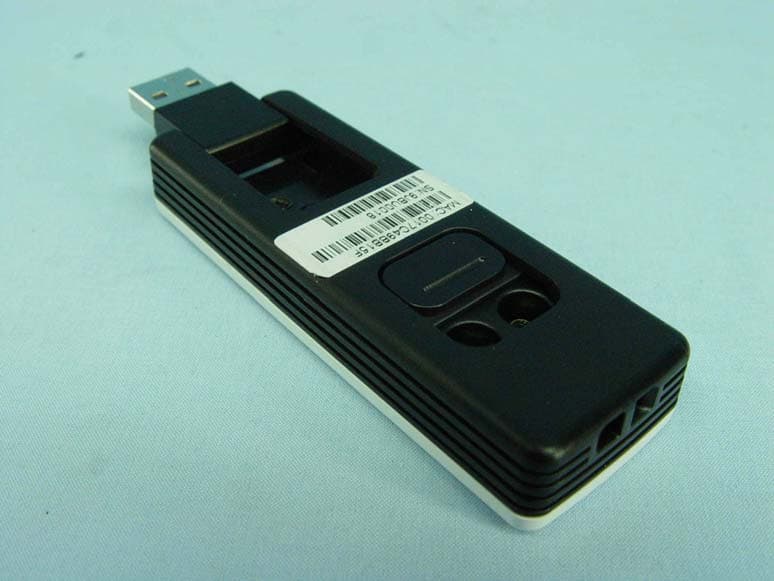

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

11 14.6 OTHER 7 1.8R FCC ID: VYO-USBW25200

Page 3 Page 4 Page 5 Page 6

Report No.: SA981118L05 1 Report Format Version 3.0.0 SAR TEST REPORT FCC ID : REPORT NO.: VYO-USBW25200 SA981118L05 MODEL NO.: USBw25200 RECEIVED: Dec. 5, 2009 TESTED: Dec. 09 ~ Jan. 12, 2010 ISSUED:Jan. 21, 2010 APPLICANT: Motorola, Inc. ADDRESS: 1475 W. SHURE DRIVE, ARLINGTON HEIGHTS, IL 60004 UNITED STATES ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 61 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA981118L05 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION ..................................................................................................................... 3 2. GENERAL INFORMATION ..................................................................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ........................................................................................ 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................... 21 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM .............................................................. 22 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ............................. 25 3. DESCRIPTION OF SUPPORT UNITS .................................................................................. 28 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS ............................................... 29 4.1. WORST CASE MODE FINDING PROCEDURE ................................................................... 29 4.2. FINAL TEST MODE LIST ...................................................................................................... 32 4.3. TEST SETUP AND TEST SIGNAL DETAIL ........................................................................... 33 5. TEST RESULTS .................................................................................................................... 34 5.1 TEST PROCEDURES ........................................................................................................... 34 5.2 MEASURED SAR RESULTS ................................................................................................ 36 5.3 SAR LIMITS .......................................................................................................................... 44 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................. 45 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY .................................................................... 48 6. SYSTEM VALIDATION .......................................................................................................... 49 6.1 TEST EQUIPMENT ............................................................................................................... 49 6.2 TEST PROCEDURE ............................................................................................................. 50 6.3 VALIDATION RESULTS ........................................................................................................ 52 6.4 SYSTEM VALIDATION UNCERTAINTIES ............................................................................ 53 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES ..................................................... 54 7.1. PROBE CALIBRATION UNCERTAINTY ............................................................................... 54 7.2. ISOTROPY UNCERTAINTY ................................................................................................. 55 7.3. BOUNDARY EFFECT UNCERTAINTY ................................................................................. 55 7.4. PROBE LINEARITY UNCERTAINTY .................................................................................... 56 7.5. READOUT ELECTRONICS UNCERTAINTY ........................................................................ 56 7.6. RESPONSE TIME UNCERTAINTY ...................................................................................... 56 7.7. INTEGRATION TIME UNCERTAINTY .................................................................................. 57 7.8. PROBE POSITIONING ......................................................................................................... 58 7.9. PHANTOM UNCERTAINTY .................................................................................................. 59 7.10. DASY4 UNCERTAINTY BUDGET ........................................................................................ 60 8. INFORMATION ON THE TESTING LABORATORIES .......................................................... 61 APPENDIX A: SAR MEASUREMENT PLOTS APPENDIX B: SAR SYS CAL CERTIFICATE APPENDIX C: UL BURST PEAK-TO-AVERAGE POWER RATIO PLOTS APPENDIX D :DUTY CYCLE OF TEST SIGNAL Report No.: SA981118L05 3 Report Format Version 3.0.0 1. CERTIFICATION PRODUCT: WiMAX USB Dongle MODEL: USBw25200 BRAND: Motorola APPLICANT: Motorola, Inc. TESTED: Dec. 09 ~ Jan. 12, 2010 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: USBw25200) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characterist…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA for PUSC zone type Liquid Level Photo Tissue MSL2600MHz D=150mm A - 2 Date/Time: 2009/12/9 01:04:44 Test Laboratory: Bureau Veritas ADT M01-5M-QPSK1_2-Ch0 / Ant 2 / PUSC DUT: WiMax USB Dongle ; Type: USBw25200 Communication System: Wimax_2.6GHz 5M ; Frequency: 2498.5 MHz ; Duty Cycle: 1:3.21 ; Modulation type: QPSK Medium: MSL2600 Medium parameters used: f = 2498.5 MHz; = 2.08 mho/m; r = 54; = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The front side of the EUT to the Phantom) DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(7.53, 7.53, 7.53) ; Calibrated: 2009/1/21 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2009/7/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 80 ; Postprocessing SW: SEMCAD, V1.8 Build 186 Low Channel 0/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.917 mW/g Low Channel 0/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.0 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 1.99 W/kg SAR(1 g) = 0.807 mW/g; SAR(10 g) = 0.314 mW/g Maximum value of SAR (measured) = 1.16 mW/g Low Channel 0/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.0 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.589 mW/g; SAR(10 g) = 0.291 mW/g Maximum value of SAR (measured) = 0.744 mW/g A - 3 Date/Time: 2009/12/9 01:32:01 Test Laboratory: Bureau Veritas ADT M01-5M-QPSK1_2-Ch354 / Ant 2 DUT: WiMax USB Dongle ; Type: USBw25200 Communication System: Wimax_2.6GHz 5M ; Frequency: 2587 MHz ; Duty Cycle: 1:3.21 ; Modulation type: QPSK Medium: MSL2600 Medium parameters used: f = 2587 MHz; = 2.19 mho/m; r = 53.7; = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The front side of the EUT to the Phantom) DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(7.33, 7.33, 7.33) ; Calibrated: 2009/1/21 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2009/7/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 80 ; Postprocessing SW: SEMCAD, V1.8 Build 186 Mid Channel 354/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.29 mW/g Mid Channel 354/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.5 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 2.69 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.416 mW/g Maximum value of SAR (measured) = 1.52 mW/g Mid Channel 354/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.5 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 1.68 W/kg SAR(1 g) = 0.874 mW/g; SAR(10 g) = 0.371 mW/g Maximum value of SAR (measured) = 1.09 mW/g A - 4 A - 5 Date/Time: 2009/12/9 02:01:38 Test Laboratory: Bureau Veritas ADT M01-5M-QPSK1_2-Ch756 / Ant 2 DUT: WiMax USB Dongle ; Type: USBw25200 Communication System: Wimax_2.6GHz 5M ; Frequency: 2687.5 MHz ; Duty Cycle: 1:3.21 ; Modulation type: QPSK Medium: MSL2600 Medium parameters used: f = 2687.5 MHz; = 2.24 mho/m; r = 53.3; = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The front side of the EUT to the Phantom) DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(7.33, 7.33, 7.33) ; Calibrated: 2009/1/21 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2009/7/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 80 ; Postprocessing SW: SEMCAD, V1.8 Build 186 High Channel 756/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.35 mW/g High Channel 756/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.6 V/m; Power Drift = -0.112 dB Peak SAR (extrapolated) = 2.72 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.412 mW/g Maximum value of SAR (measured) = 1.43 mW/g High Channel 756/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.6 V/m; Power Drift = -0.112 dB Peak SAR (extrapolated) = 1.67 W/kg SAR(1 g) = 0.851 mW/g; SAR(10 g) = 0.362 mW/g Maximum value of SAR (measured) = 1.06 mW/g A - 6 Date/Time: 2009/12/9 02:30:32 Test Laboratory: Bureau Veritas ADT M02-5M-QPSK3_4-Ch354 / Ant 2 DUT: WiMax USB Dongle ; Type: USBw25200 Communication System: Wimax_2.6GHz 5M ; Frequency: 2587 MHz ; Duty Cycle: 1:3.21 ; Modulation type: QPSK Medium: MSL2600 Medium parameters used: f = 2587 MHz; = 2.19 mho/m; r = 53.7; = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The front side of the EUT to the Phantom) DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(7.33, 7.33, 7.33) ; Calibrated: 2009/1/21 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2009/7/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 80 ; Postprocessing SW: SEMCAD, V1.8 Build 186 Mid Channel 354/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.27 mW/g Mid Channel 354/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.1 V/m; Power Drift = -0.135 dB Peak SAR (extrapolated) = 2.64 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.411 mW/g Maximum value of SAR (measured) = 1.48 mW/g Mid Channel 354/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.1 V/m; Power Drift = -0.135 dB Peak SAR (extrapolated) = 1.61 W/kg SAR(1 g) = 0.834 mW/g; SAR(10 g) = 0.359 mW/g Maximum value of SAR (measured) = 1.16 mW/g A - 7 Date/Time: 2009/12/9 02:59:58 Test Laboratory: Bureau Veritas ADT M03-5M-16Q1_2-Ch354 / Ant 2 DUT: WiMax USB Dongle ; Type: USBw25200 Communication System: Wimax_2.6GHz 5M ; Frequen…

Text truncated - open the document above for the full version.

APPENDIX B: SAR SYS CAL CERTIFICATE

APPENDIX C UL BURST PEAK-TO-AVERAGE POWER RATIO FOR 5MHz BANDWIDTH / ANT 1 APPENDIX C UL BURST PEAK-TO-AVERAGE POWER RATIO FOR 5MHz BANDWIDTH / ANT 2 APPENDIX C UL BURST PEAK-TO-AVERAGE POWER RATIO FOR 10MHz BANDWIDTH / ANT 1 APPENDIX C UL BURST PEAK-TO-AVERAGE POWER RATIO FOR 10MHz BANDWIDTH / ANT 2

APPENDIX D DUTY CYCLE OF TEST SIGNAL FOR 5MHz BANDWIDTH APPENDIX D DUTY CYCLE OF TEST SIGNAL FOR 10MHz BANDWIDTH

Report no.: RF981118L05 1 Report Format Version 3.0.0 FCC TEST REPORT (PART 27) REPORT NO.: RF981118L05 MODEL NO.: USBw25200 RECEIVED: Nov. 18, 2009 TESTED: Nov. 20 ~ Dec. 11, 2009 ISSUED: Dec. 15, 2009 APPLICANT: Motorola, Inc. ADDRESS: 1475 W. SHURE DRIVE, ARLINGTON HEIGHTS, IL 60004 UNITED STATES ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report no.: RF981118L05 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1 CERTIFICATION...........................................................................................................4 2 SUMMARY OF TEST RESULTS ..................................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................5 3 GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................10 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................................10 4 TEST TYPES AND RESULTS ....................................................................................12 4.1 OUTPUT POWER MEASUREMENT .........................................................................12 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT .......................................................12 4.1.2 TEST INSTRUMENTS................................................................................................13 4.1.3 TEST PROCEDURES ................................................................................................14 4.1.4 TEST SETUP..............................................................................................................15 4.1.5 EUT OPERATING CONDITIONS ...............................................................................15 4.1.6 TEST RESULTS .........................................................................................................16 4.2 FREQUENCY STABILITY MEASUREMENT..............................................................21 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ..........................................21 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURE...................................................................................................22 4.2.4 TEST SETUP..............................................................................................................22 4.2.5 EUT OPERATING CONDITIONS ...............................................................................22 4.2.6 TEST RESULTS .........................................................................................................23 4.3 EMISSION BANDWIDTH MEASUREMENT ..............................................................25 4.3.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT ............................................25 4.3.2 TEST INSTRUMENTS................................................................................................25 4.3.3 TEST PROCEDURE...................................................................................................25 4.3.4 TEST SETUP..............................................................................................................26 4.3.5 EUT OPERATING CONDITIONS ...............................................................................26 4.3.6 TEST RESULTS .........................................................................................................27 4.4 CHANNEL EDGE MEASUREMENT...........................................................................31 4.4.1 LIMITS OF CHANNEL EDGE MEASUREMENT ........................................................31 4.4.2 TEST INSTRUMENTS................................................................................................31 4.4.3 TEST SETUP..............................................................................................................31 4.4.4 TEST PROCEDURES ................................................................................................32 4.4.5 EUT OPERATING CONDITION..................................................................................32 4.4.6 TEST RESULTS .........................................................................................................33 4.5 CONDUCTED SPURIOUS EMISSIONS ....................................................................39 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT.....................39 4.5.2 TEST INSTRUMENTS................................................................................................39 4.5.3 TEST PROCEDURE...................................................................................................40 4.5.4 TEST SETUP.................................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST 2 (SAR Test Set Up Photos) A: Front position B: Bottom position C: Right edge position D: Left edge position E: Tip position TEST SET UP PHOTO 3 DESCRIPTION OF ANTENNA LOCATION: DESCRIPTION OF ANTENNA LOCATION
