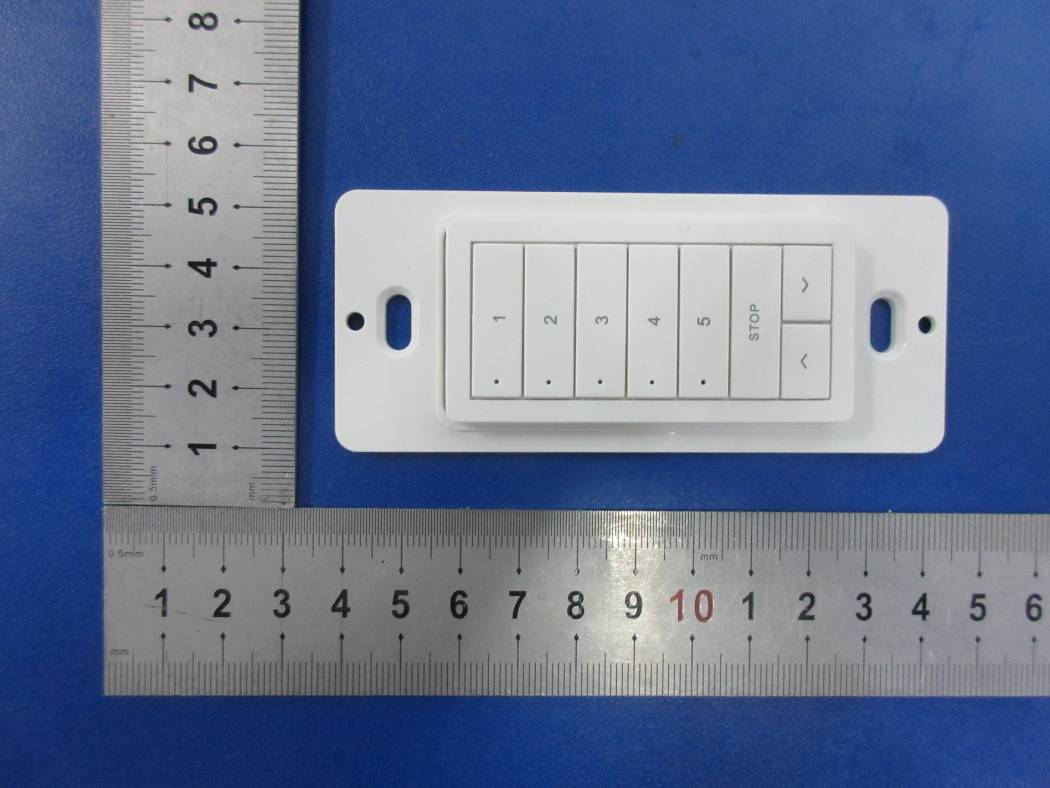

Technical support Fucntion instruction Technical specification Input voltage ᱶ 3V(CR2430) Transmitting frequency ᱶ 433MHz Transmitting power ᱶ 10 milliwatt Operating temperature ᱶ -10 0 C—50 0 C Transmssion distance ᱶ 200 meters open office ᱨ 35 meters on two walls CAUTIONRISK OF EXPLOSION IF BATTERY IS REPLACEDBY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDINGTO THE INSTRUCTIONSNotice: transmitter do not exposed to moisture and strike, so as not toaffect life.When you use transmitter, if found emission distance obviouslyshort or less sensitive, please change another same new battery. Please have batteries for recycling. Type specification Version NO. : A/00 5-channel emitter DD6010 is 5-channel emitter,red light represents the currently selected channel, press the current channel again, cancel selected channel, when all the red light is bright, on behalf of the group control state. Press stop, up, down key when the red light fast flash tips. DD6010 Emitter Specification Back Bracket LED Channel selection ` Up button Down button When you press the Setting button, the required use of tools,don’t be too sharp tool. Setting button (P2)
