DC146/DC147 special-purpose emitter for curtain motor DC147 five channels double way emitterD C 1 4 7 f i v e c h a n n e l s d o u b l e w a y e m i t t e r DC146 single channel double way emitterD C 1 4 6 s i n g l e c h a n n e l d o u b l e w a y e m i t t e r DC146 single channel double way emitter: A way and B way can be chosen,each way cancontrol one set curtain motor separately.A way and B way don`t interfere each otherDC147 five channels double way emitter: Each channel had the same function with DC146.When pressing channel-shift button and all the channel-shift display lamps light,that means the group control status.Under the status of group control,Pressing A way buttons will start the group-control function of A way,A way of all the channels will be availabe.Pressing B way buttons will start the group-control function of B way,b way of all the channels will be availabe. The backside of DC147 The backside of DC146 Version No: A 01 B way set button(P2b) Special-purpose emitter for curtain motorS p e c i a l - p u r p o s e e m i t t e r f o r c u r t a i n m o t o r DC146 DC146 DC147 DC147 Press the set button of curtain motor for about 2S The display lamp of the curtain motor is constant on,loosen the set button of curtain motor Press the emitter A way curtain-close button once Press the emitter A way curtain-open button once OK Emitter A way programming adding emitter set are finished Cancelling all emitters is finished The curtain motor are connecting with the power Press the set button of curtain motor for about 2S The display lamp of the curtain motor is constant on,loosen the set button of curtain motor The curtain motor are connecting with the power 1 2 1 2 1 The display lamp of curtain motor flashes a few times and then goes out The display lamp of curtain motor flashes a few times and then goes out Emitter A way cancelling is finished Switch off the power for curtain motor Press the set button of curtain motor and don`t lossen Swich on the power of curtain motor When the curtain motor display lamp flashes several times and then goes out,loosen the set button The curtain motor are connecting with the power The function of pulling and guiding by handT h e f u n c t i o n o f p u l l i n g a n d g u i d i n g b y h a n d Pull once the curtain by hand to the desired derection The curtain will move toward the function automatically Press the set button of curtain motor for about 2S The display lamp of the curtain motor is constant on,loosen the set button of curtain motor Press the emitter A way curtain-stop button once The display lamp of curtain motor flashes a few times and then goes out Pull once the curtain by hand to the desired derection The curtain is unmoved,the function of pulling and guiding by hand is closed Repeat the above set,the function of pulling and guiding by hand will start Cancelling all emitters is finishedC a n c e l l i n g a l l e m i t t e r s i s f i n i s h e d Cancel one channel of emitterC a n c e l o n e c h a n n e l o f e m i t t e r Set up and add emitterS e t u p a n d a d d e m i t t e r AdditionalFunction A A AdditionalFunction A A AdditionalFunction A A AdditionalFunction A A The interval of re-switch on mustover 10 seconds A way curtain-open button A way curtain-close button A way curtain-stop button A way curtain-open button A way curtain-close button A way curtain-stop button B way curtain-close buttonB way curtain-open buttonB way curtain-stop button B way curtain-close button B way curtain-open button B way curtain-stop button Channel shift button Channel display B way set button P2b A way set button P2a B way set button P2b A way set button P2a This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 this device may not cause harmful interference, and 2 this device must accept any interference received, including interference that may cause undesired operati on. changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to oper ate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of t he FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferen ce to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio TV technician for help.RF Exposure Statement FCC RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in port able exposure condition without restriction. NoticesN o t i c e s

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2011-7-25Sheet of File:E:\\..\DC147 V00.SchDocDrawn By: DC146/DC147 BLOCK DIAGRAM Ningbo Dooya Mechanic & Electronic Technology Co.,Ltd SAW RF ANT 433.92MHz MCU DATA OUT A23 12V Battery GND 1 1 2 2 X1 4MHz S6UP2 S8 DOWN2 S7STOP2 S9 SETUP2 S10 Chunnel+ S4 SETUP1 S3 DOWN1 S2 STOP1 S1UP1 LED2 LED1 VCCVCC GND

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. 2011-7-25 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Emitter, DC146, DC147) We affirm that between SIEMIC and NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Qiwei Zhang / MANAGER E-mail: : [email protected] Phone: 86-574-86571666 Fax: 86-574-86580685 Address : Loutou Industrial Area, Zhenhai, Ningbo, Zhejiang, China

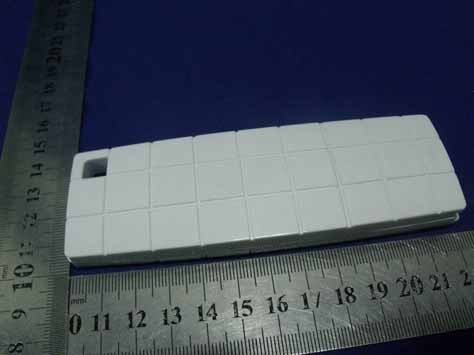

External of EUT

FCC ID Label FCC ID：VYYDC146 Model Number: DC146 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Label Location Proposed Label Location on EUT

Internal of EUT Antenna

Product Diagram Information 1． Product function introduce DC146/DC147 is one emitter specialized for curtain motor control system. 2． Structure 2.1 Structure Introduce This system mainly consist s of single chip microcomputer MC363BN, high frequency triode R25 and saw resonators, etc. Frequency Range: 433.92MHz Modulation Type: ASK 2.2 Description Code signals emitted from MCU (U1) is one complete serial data which consists of address code, data code, and synchronous code. Press Function button, then the data out will output serial data impulse (LED work as indicator of the button you pressed). When the output impulse is in high electrical level, the high frequency emitter circuit will oscillate and emit constant amplitude carrier high frequency signals. When the data out is in low level, the high frequency emitter circuit will stop oscillating so that it can be completely under the control of data code emitted from date out pin of MCU (U1). In this way, the ASK modulation for high frequency emitter circuit has been finished.

Ti t l e NumberRevisionSi ze A3 Dat e:2011- 7- 21Sheet of Fi l e:E: \ 工作进度\ . . \ DC147 线路图. SchDr awn By: BT1 12V VCC12V Q22N3906 R5 5.6K R6 5.6K VCC12V D3 LBAT54HT1G UP_POWER R19 2K LED3 RED LED LED1 RED LED LED2 RED LED R21 2K R20 2K LED4 RED LED LED5 RED LED R22 2K C14 0.1uF S6UP2 S8DOWN2 S7STOP2 S9SETUP2 K_UP K_DOWN R15 10K R16 10K R17 10K A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U3 24C0X SCL SDA VCC REMOUT K_DOWN K_UP C1 0.1uF SCL SDA LED1 LED2 LED3 LED4LED5 VCC R23 2K VCCVCCVCCVCC LED1LED2LED3LED4LED5 VCC C13 1uF/6.3V VCC R7 10K R8 10K D1 Comment: LBAT54HT1G Vi n 3 Vout 1 GND 2 U2 78L05 Power_ON R10 10K R11 100K Power_ON K_SETUP ZX1 4MHz C2 30pF C3 30pF VCC K_SETUP K_STOP K_STOP R18 10K Q3 2N7002 VCC12V R2 10 C6 10nF C4 33pF 1 3 2 Q1 2SC3356 R3 22K C5 100pF R1 1K REMOUTC9 3.3pF C15 15pF R9 470R C81pF L2 56nHC7 1.5pF L1 39nH P0. 1/ I NT1 1 P1. 2 2 P1. 3 3 P0. 0/ I NT0 4 P1. 5/ RST/ VPP 5 VSS 6 P5. 0 7 P5. 1 8 P5. 2 9 P5. 3 10 P5. 4/ BZ0/ PWM0 11 P5. 5 12 P5. 6 13 P5. 7 14 VDD 15 XOUT/ P1. 4 16 XI N/ P1. 6 17 P1. 0 18 P1. 1 19 P1. 7 20 U1 MC263BN S10Chunnel+ K_Chunnel R12 10K K_Chunnel LED6 RED LED LED7 RED LED R24 0R S4SETUP1 S3DOWN1 S2STOP1 S1UP1 D5 Comment: BAT43WS D4 Comment: BAT43WS D6 Comment: BAT43WS D2 Comment: BAT43WS UP_POWER Group1_key Group1_key Group2_key Group2_key R25 1K NC 1 Ter mi nal 1 2 NC 3 GND 4 NC 5 Ter mi nal 2 6 NC 7 GND 8 Y1 NDR433 Ningbo Dooya Mechanic & Electronic Technology Co.,Ltd C1210nH C10 2.2pF C11 NC R4 1P R200 0 GND
