VZB-CM6623RRF Remote Controller

CM6623 RF remote controller PLEASE READ THE INSTRUCTIONS BEFORE USE CM6623 RF remote controller is for LED series WL66231Y, WL66251Y, WL6640Y. It use RF remote technology and was very convenient for user. 1. Function introduction 1.1 The functions of the three buttons are as followed: Dimmer & Memory button : Pressing for the first time, the color will change gradually, pressing the button for the second time 1 second, it will remember the current color, and then you can press to withdraw the memory color. Pressing the button for the third time is for turn off... Multiple choice & Candle button : When pressing the button, the collaboration of the color is white, RGB candle, red, green, blue, yellow, purple, cyan, light yellow, light purple, RGB white, and off. Light adjust button : there are 7 levels different intensity brightness. 1.2 Keep the distance of the LED light and remote, you can control the LED light by remote. 2. Technical specifications 2.1. Dimensions: （L）86.2 mm *（W）40.2*（H）13.3 mm；Weight: 28.5g 2.2 RF characteristic: Transmission frequency: 433.92MHZ； Remote distance: 10-15M 2.3 Working current: 20mA, standby mode current: 2-5uA 2.4 Working pressure: Alkaline dry battery, 12V 23A 3. Notes: Please read carefully the following items and use it according the rules. 3.1 Use outdoor or indoor, do not put in the fire or burn, to avoid environmental pollution. 3.2 Do not clean it with corrosive liquid. Avoid any scratched to its face. 3.3 Do not put it under where too hot, too cold, and too wet or too dust, avoid the sun shine directly. 3.4 Clean its face with dry cloth, do not use corrosive liquid. 3.5 Do not dismantle or modify any part of this product, otherwise it will broken. If you want to drop it, please give it to the recycle station. 3.6. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause Harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4. Package 4.1 remote 1 pcs 4.2 manual 1 pcs 5. Contact Add: Building 49, Baotian Industrial Zone, Xixiang town, Baoan District, Shenzhen, China Tel: 86-755-33881688/33881689 Fax: 86-755-27455440 Post code: 518126

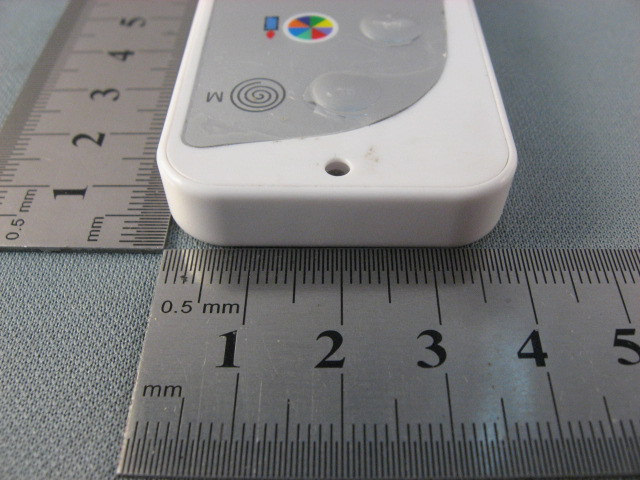

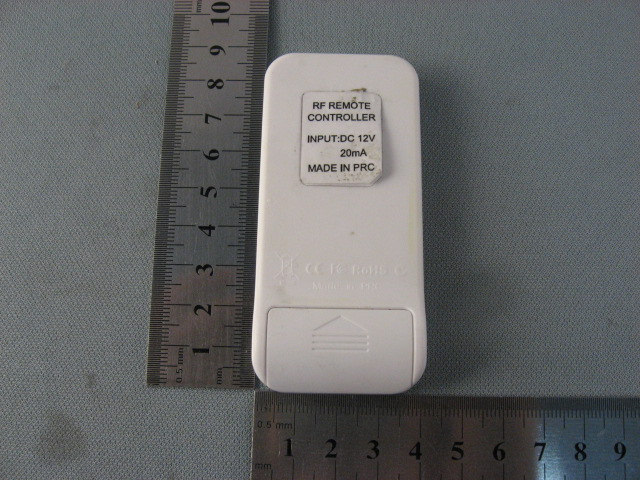

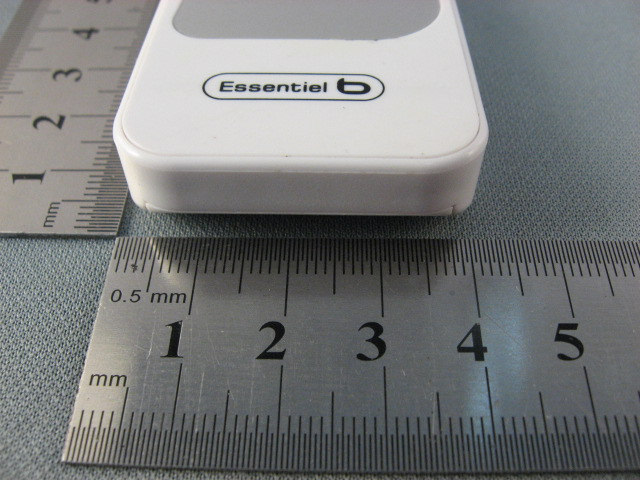

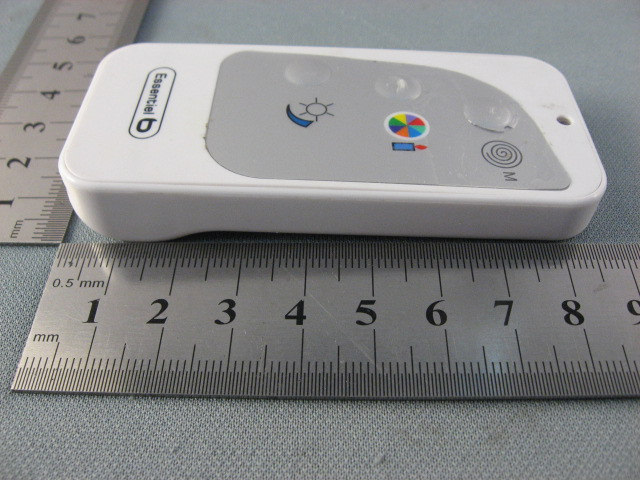

1 Photographs - EUT Constructional Details

Authorized Signature: Jack Zhang Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEMO10100668001 Page : 1 of 19 1 Cover Page FCC REPORT Application No. : SZEMO101006680RF Applicant: Shenzhen Xinzhensheng electronics CO LTD Product Name: RF Remote Controller Model No.: CM6623 Operation Frequency : 433.92MHz FCC ID: VZB-CM6623R Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231: 2009 Date of Receipt: 2010-10-27 Date of Test: 2010-10-27 to 2010-11-05 Date of Issue: 2010-11-05 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEMO10100668001 Page : 2 of 19 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.......................................................................................................................................................... 1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION.................................................................................................................................... 4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 4 4.3 E.U.T OPERATION MODE.................................................................................................................................. 5 4.4 TEST FACILITY................................................................................................................................................... 6 4.5 TEST LOCATION................................................................................................................................................ 6 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 6 4.7 TEST INSTRUMENTS LIST.................................................................................................................................. 7 5 TEST RESULTS AND MEASUREMENT DAT…

Text truncated - open the document above for the full version.

1 Photographs-test setup photo Radiated Emission
