VZBST8002Bluetooth Eyeclick/ Bluetooth Shutter

Link Link 1 2 3 4 5 6 7 8 1 2 4 5 6 7 9 ST8002 is special auto photograghing controller delicated for iPhone4, 4s, 5, iPad, Samsung S3, Android 4.0 version + smartphone/tablet. It is with noval, beautiful looking, easy operation, with built-in rechargeable lithium battery and anti-lost function. 1.Apperance Description 1 2 3 4 5 6 7 Shutter Buzzer Switch Indicator USB charging socket Controller---------1pc USB cable---------1pc Bracket ------------1pc Instruction---------1pc 2.Packaging 3.Instruction Long press` ` for 3 seconds to be matched, green light frinkle for 5times in 1 second, then if success in matching it will frinkle 1 time within 5 seconds. If not in 3 mins, then it will get into sleeping. link Turn on your phone/ipad blue tooth, search `` bluetooth deviceMadcow Click it and show ``connected Turn on your camera , Samsung and need to download `` and set sound key to be camera iphone/ ipadAndroid Ucam You can use remote cotrol to photograph right now Please dial switch `` after your operating done off Second time for using, please turn on the switch ``, green light on will last long , remote control will auto match to device, it can be successful connect in 2-5seconds if the device is in open mode If you need it connect to other device, please long press `` for 3 seconds will be matched link Turn on the switch in bottom of remote control, green light on 3 8 4.Supplementary It will be into sleeping mode once disconnection, press link will restart Warning alarm: ST8002 with anti-lost function, when remote control connect to device, if device left remote control bluetooth disconnect, remote will warn alarm, at this moment, should be reconnect bluetooth or click any key on remote or turn off remote can stop warning, after alarm last 1min, remote will be i nto sleeping mode, alarming stop Charging： Can charge with 5v USB cable, red light flash when is charging, it will change to be blue once full charging Low power warning: Red light flash slowly when it is in low power 3.2v, remote will auto power off when power is below 3v Photographing instruction: Green light flash fast 1 second(5 times), when you press shutter Auto sleeping: built-in battery:3.7v/240mAh c harging current & time: 5v/140- 180mAh in charging for 2-2.5hrs working current & voltage:3.7-4.2v/ 2.5mAh service time: 96hrs working frequency:2.4GHz valid distance:10m remote mode: wireless bluetooth Dimension:(L)72mm*(W)30mm* (H)12mm 5.Parameter Keep it away below place: too heated, too cold, too wet and dusty keey it away close window car (especially in summer) Don't touch it when your hand's wet Don't disa ssemble or revert keep it away from children Not allow throwing dropping or crashing Please deal with in right way when you need to throw it away as this made of plastic and metal 6.Attention read beblow attention and keep it for checking in future Please use this device as blow standard Before you use this device,please This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. undesired operation. Changes or modifications User Manual Model:ST8002 FCC ID:VZBST8002

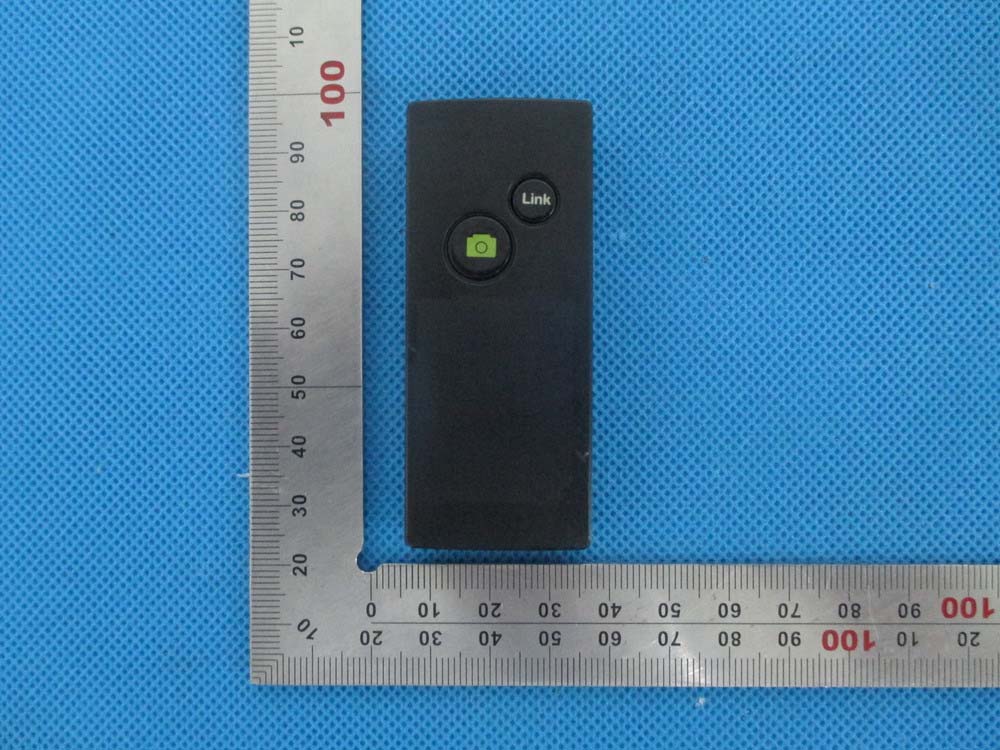

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: VZBST8002

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-2 BT Antenna

Report No.: AGC01999140701FE03 Page 1 of 60 FCC Test Report Report No.: AGC01999140701FE03 FCC ID : VZBST8002 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Eyeclick/ Bluetooth Shutter BRAND NAME : MADCOW MODEL NAME : ST8002 CLIENT : ShenZhen Xinzhensheng electronics CO LTD DATE OF ISSUE : Jul.16, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01999140701FE03 Page 2 of 60 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Jul.16, 2014 Valid Original Report Report No.: AGC01999140701FE03 Page 3 of 60 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 15 8.1. MEASUREMENT PROCEDURE ................................................................................................ 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 18 9.1. MEASUREMENT PROCEDURE ................................................................................................ 18 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 18 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 18 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 18 10. RADIATED EMISSION ..................................................................................................... 25 10.1. MEASUREMENT PROCEDURE .............................................................................................. 25 10.2. TEST SETUP ............................................................................................................................ 27 10.3. TEST RESULT (Worst Modulation: GFSK) ............................................................................... 28 Report No.: AGC01999140701FE03 Page 4 of 60 11. BAND EDGE EMISSION .................................................................................................. 40 11.1. MEASUREMENT PROCEDURE .............................................................................................. 40 11.2. TEST SET-UP ........................................................................................................................... 40 11.3. TEST RESULT .......................................................................................................................... 41 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 45 12.1. MEASUREMENT PROCEDURE .............................................................................................. 45 12.2. TEST SETUP (BLOCK …

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
