VZI01905Licensed Non Broadcast Station, Aviation Transponder

DRAFT COPY 1 KT 86 and KT 86G Mode S Transponder Operating Manual 02114-00-AA 17 June 2021 Bendix/King, 9201-B San Mateo Blvd. NE Albuquerque, New Mexico 87113 USA © BendixKing, 2021 KT86 EN 2 DRAFT COPY Front Panel Display The display shows the operating mode of the transponder, the reported pressure altitude, and the current squawk code and Flight ID. The reply indicator is active when the transponder replies to interrogations. The pressure altitude is displayed as a Flight Level, which is the pressure altitude in hundreds of feet. When non-standard atmospheric conditions apply, this may not match the altimeter indicated altitude, but will be correctly displayed by the ATC radar. Mode Selector Knob The knob on the right hand side controls the power to the transponder and the operating mode. OFF Power is removed from the transponder. SBY The transponder is on, but will not reply to any interrogations. ON The transponder will respond to all interrogations, but altitude reporting is suppressed. ALT The transponder will respond to all interrogations. When airborne, the transponder should always be set to ALT unless otherwise directed by Air Traffic Control. Aircraft installations that include a gear squat switch or configured with an automatic air/ground system will automatically switch the transponder to Ground Mode on landing or whilst taxiing. GND will be indicated on the display. KT86 DRAFT COPY 3 Push Buttons IDENT Press the IDENT button when ATC instructs you to “Ident” or “Squawk Ident”. This activates the SPI pulse in the transponder replies for 18 seconds. IDENT will appear in the display. VFR Pressing the VFR button sets the transponder to the pre-programmed conspicuity code. Pressing the button again restores the previous squawk code. Pressing the VFR button whilst in Flight ID edit changes the Flight ID to the pre-programmed ID set up during the configuration of the transponder. FUNC Pressing the FUNC button provides access to the flight timer, stopwatch, Flight ID editing, ADS-B monitor (depending on installation) and altitude monitor function. ENT The ENT button confirms selection or presented options. Squawk code entry Press any of the numeric buttons (0 through 7) to change the squawk code. A new squawk code is set when the fourth digit is entered. If the code entry is not completed within 7 seconds, the changes are ignored and the previous code restored. Some standard squawk codes are listed below 1200 VFR code in the USA 7000 VFR code commonly used in Europe 7500 Hijack code 7600 Loss of communications 7700 Emergency code Flight Timer The Flight Timer records the time for which the transponder has been powered on and operating in flight mode – either ON or ALT. Press the FUNC button to display the Flight Timer. Stopwatch The stopwatch can be used as a convenient timer. Press the FUNC button to display the stopwatch. Pressing ENT will reset and start the timer. Pressing ENT again will stop the timer. EN 4 DRAFT COPY Flight ID entry Select the Flight ID screen using the FUNC button and then edit the Flight ID using the numeric buttons. The lower portion of the display shows the alpha numeric characters selectable through multiple presses of the numeric buttons. When the correct character is shown in the flight ID section of the screen, press the ENT button to accept and advance to the next digit. The flight ID is terminated with an “space ” character located on the 7 button. When ENT is pressed on the end space, the new Flight ID will replace the previous value. If a button is not pressed for 30 seconds, the changes are ignored and the previous code restored. The Flight ID should correspond to the aircraft call sign entered on your flight plan. If no flight plan is active, the aircraft registration should be used as your Flight ID. Use only letters and digits. If the Flight ID is less than 8 characters long, entering the “space” character will end it. Altitude Monitor The Altitude Monitor activates an audio annunciator or annunciator light (depending on installation) when the aircraft pressure altitude differs from the selected altitude by more than 200 feet. Press the FUNC button to display the altitude monitor enable screen. Pressing ENT toggles the altitude monitor at the current altitude. When altitude monitoring is in use, a small deviation pointer appears adjacent to the altitude display on the transponder. ADS-B Monitor The ADS-B Monitor is only available on installations that include an ADS-B position source. The ADS-B Monitor provides a display of the position information that is being transmitted in ADS-B position reports. This can provide confirmation that the correct information is being transmitted, particularly where the GPS source is remote from the transponder. In the event that valid position information is NOT available from the GPS, the latitude and longitude display will be replaced by dashes; if no valid latitude and longitude is shown then ADS-B position information is NOT being transmitted. Loss of ADS-B position information will also result in a WARNING message being displayed. DRAFT COPY 5 Warning Messages If the transponder detects a problem, the screen will indicate WARNING and a brief statement of the problem. Depending on the nature of the problem, your transponder may not be replying to interrogations. Note the message on the screen and pass that information to your avionics maintenance organisation. The WARNING message should clear when the event has cleared. Press ENT to clear the message at any time; if the fault is still present the message may reappear. Fault Annunciation If the transponder detects an internal failure, the screen will indicate FAULT and a brief statement of the problem. No replies will be made to interrogations when a fault is detected. Some FAULT indications can be recovered by switching the transponder off and back on again, although in all cases a FAULT code implies that there is a fault with the transponder or the inst…

Text truncated - open the document above for the full version.

DRAFT COPY TT32 and TT32G Transponder Operating Manual 01846-00-AB 17 June 2021 Trig Avionics Europe B.V. Hardwareweg 3 3821 BL Amersfoort Netherlands © Copyright 2021 EN DRAFT COPY This page intentionally left blank EN DRAFT COPY 1 Front Panel Display The display shows the operating mode of the transponder, the reported pressure altitude, and the current squawk code and Flight ID. The reply indicator is active when the transponder replies to interrogations. The pressure altitude is displayed as a Flight Level, which is the pressure altitude in hundreds of feet. When non-standard atmospheric conditions apply, this may not match the altimeter indicated altitude, but will be correctly displayed by the ATC radar. Mode Selector Knob The knob controls the power to the transponder and the operating mode. OFF Power is removed from the transponder. SBY The transponder is on, but will not reply to any interrogations. ON The transponder will respond to all interrogations, but altitude reporting is suppressed. ALT The transponder will respond to all interrogations. When airborne, the transponder should always be set to ALT unless otherwise directed by Air Traffic Control. If your installation includes a squat switch or is configured with an automatic air/ground system, the transponder should be left in ALT mode and it will switch automatically to GND mode on landing or whilst taxiing. GND will appear on the display. Push Buttons IDENT Press the IDENT button when ATC instructs you to “Ident” or “Squawk Ident”. This activates the SPI pulse in the transponder replies for 18 seconds. IDENT will appear in the display. EN 2 DRAFT COPY FUNC Pressing the FUNC button provides access to flight ID setup, flight timer, stopwatch, ADS-B monitor (depending on installation) and altitude monitor functions, in that order. VFR Pressing the VFR button sets the transponder to the pre-programmed conspicuity code. Pressing the button again restores the previous squawk code. ENT The ENT button confirms options and menu selections. Squawk Code Entry Press any of the numeric buttons (0 through 7) to change the squawk code. A new squawk code is set when the fourth digit is entered. If the code entry is not completed within 7 seconds, the changes are ignored and the previous code restored. Some standard squawk codes are listed below 1200 VFR code in the USA 7000 VFR code commonly used in Europe 7500 Hijack code 7600 Loss of communications 7700 Emergency code Setting Flight ID Select the Flight ID screen using the FUNC button and press ENT to edit the Flight ID using the number buttons corresponding to the letters A-Z and numbers 8 and 9. Repeatedly pressing the number button will cycle through the letters shown underneath the number on the lower portion of the display. Press ENT to select the character and advance to the next character. The flight ID is terminated with a “space” character located on the 7 button or when all eight characters are set. When ENT is pressed on the last character, the new Flight ID will replace the previous value. The Flight ID should correspond to the aircraft call sign entered on your flight plan. If no flight plan is active, the aircraft registration should be used as your Flight ID. Use only letters and digits. EN DRAFT COPY 3 Flight Timer The Flight Timer records the time for which the transponder has been powered on and operating in flight mode – either ON or ALT. Press the FUNC button to display the Flight Timer. Timer The stopwatch can be used as a convenient timer. Press the FUNC button to display the stopwatch. Pressing ENT will reset and start the timer. Pressing ENT again will stop the timer. ADS-B Position Monitor The ADS-B Monitor is only available on installations that include an ADS-B position source. The ADS-B Monitor provides a display of the position information that is being transmitted in ADS-B position reports. This can provide confirmation that the correct information is being transmitted, particularly where the GPS source is remote from the transponder. In the event that valid position information is NOT available from the GPS, the latitude and longitude display will be replaced by dashes; if no valid latitude and longitude is shown then ADS-B position information is NOT being transmitted. Loss of ADS-B position information will also result in a WARNING message being displayed. Altitude Monitor The Altitude Monitor activates an audio annunciator or annunciator light (depending on installation) when the aircraft pressure altitude differs from the selected altitude by more than 250 feet. Press the FUNC button to display the altitude monitor enable screen. Pressing ENT toggles the altitude monitor at the current altitude. When altitude monitoring is in use, a small deviation pointer appears adjacent to the altitude display on the transponder. Warning Messages If the transponder detects a problem, the screen will indicate WARNING and a brief statement of the problem. Depending on the nature of the problem, your transponder may not be replying to interrogations. Note the message on the screen and pass that information to your avionics maintenance organisation. Press ENT to clear the message; if the fault is still present the message will reappear. Fault Annunciation If the transponder detects an internal failure, the screen will indicate FAULT and a brief statement of the problem. No replies will be made to interrogations when a fault is detected. EN 4 DRAFT COPY Some FAULT indications can be recovered by switching the transponder off and back on again, although in all cases a FAULT code implies that there is a fault with the transponder or the installation. Note the FAULT message at the bottom of the screen and pass that information to your avionics maintenance organisation. Configuration Mode The system is configured when it is first installed by your avionics supplier. Configuration items include the Mode S aircraft address, the interface to the other aircraft systems, the ai…

Text truncated - open the document above for the full version.

July 30, 2021 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Trig Avionics Limited Equipment: FCC ID: VZI01905 Heriot Watt Research Park, Riccarton CORES number: 0017 3590 84 Currie EH14 4AP United Kingdom FCC Rules: Part 87 Re: Short-term Confidentiality request for submittal information regarding FCC ID: VZI01905 Product: Aviation Transponder operating under part 87 Dear Sirs: Trig Avionics Limited requests that the following information be withheld from public disclosure until 180 days after the Grant of Equipment Authorization in accordance with DA- 04-1705 of the Commission’s public notice. Short term confidential files External Photos VZI01905 Short Term Conf ExtPho.pdf Internal Photos VZI01905 Short Term Conf IntPho.pdf Test Setup Photos VZI01905 Short Term Conf Tsup.pdf User Manual VZI01905 Short Term Conf UserMan.pdf User Manual VZI01905 Short Term Conf UserMan1.pdf Permanent Confidential files Schematic VZI01905 Conf Schem.pdf Block diagram VZI01905 Conf BlkDia.pdf Operational Description VZI01905 Conf OpDes.pdf Parts Lists VZI01905 Conf PartList.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053

July 30, 2021 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Trig Avionics Limited Heriot Watt Research Park Riccarton Currie EH14 4AP United Kingdom Re: Confidentiality for submittal information regarding FCC ID: VZI01905 PRODUCT: Aviation Transponder operated under part 87 Dear Sirs: Trig Avionics Limited requests that the material in the Schematics, Operational Description, block diagram, and parts lists be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Trig Avionics Limited submits the following: CONFIDENTIAL FILES Schematic VZI01905 Conf Schem.pdf Block diagram VZI01905 Conf BlkDia.pdf Operational Description VZI01905 Conf OpDes.pdf Parts Lists VZI01905 Conf PartList.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: VZI01905 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Trig Avionics Limited’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Trig Avionics Limited 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Trig Avionics Limited and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

800 Independence Ave., S. W. Washington, D. C. 20591 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Mr. Corey Cahill: The Federal Aviation Administration, Spectrum Engineering Services Group received the Trig Avionics notification letter of its filing with the Federal Communications Commission (FCC). The application is for certification of the Trig Avionics TT32, TT32G, KT86 and KT86G transponders with FCC ID: VZI01905. We have completed the review process of the information submitted by Trig Avionics and concluded that we have no objection to the FCC granting certification for this equipment. If you require any additional information, please contact Mr. Jae Shin, Electronics Engineer, Spectrum Planning and International Group, at (202) 267-7365 or via e-mail [email protected]. Sincerely, James D. Linney Director Operations Support, AJW-1 June 22, 2021

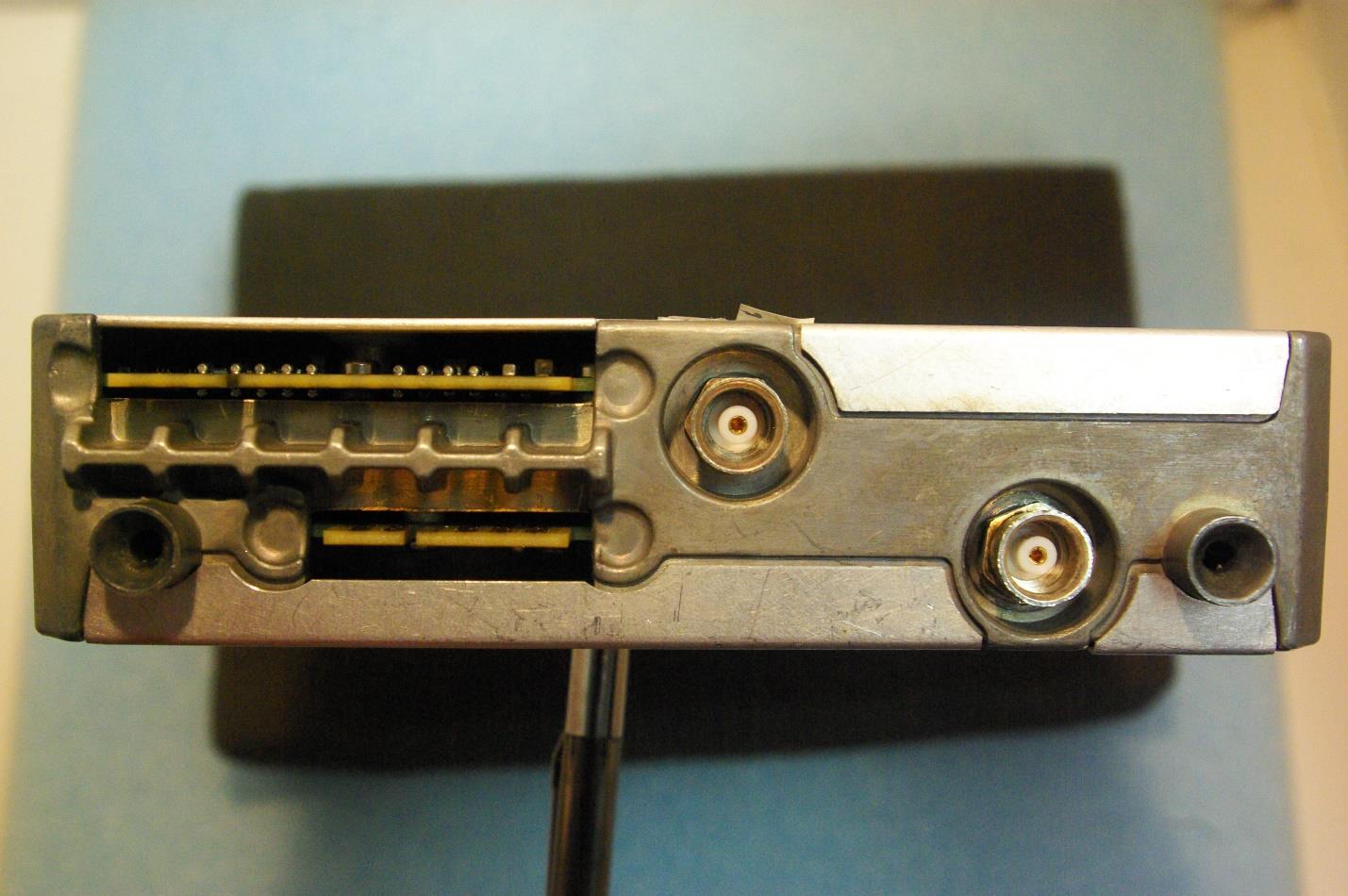

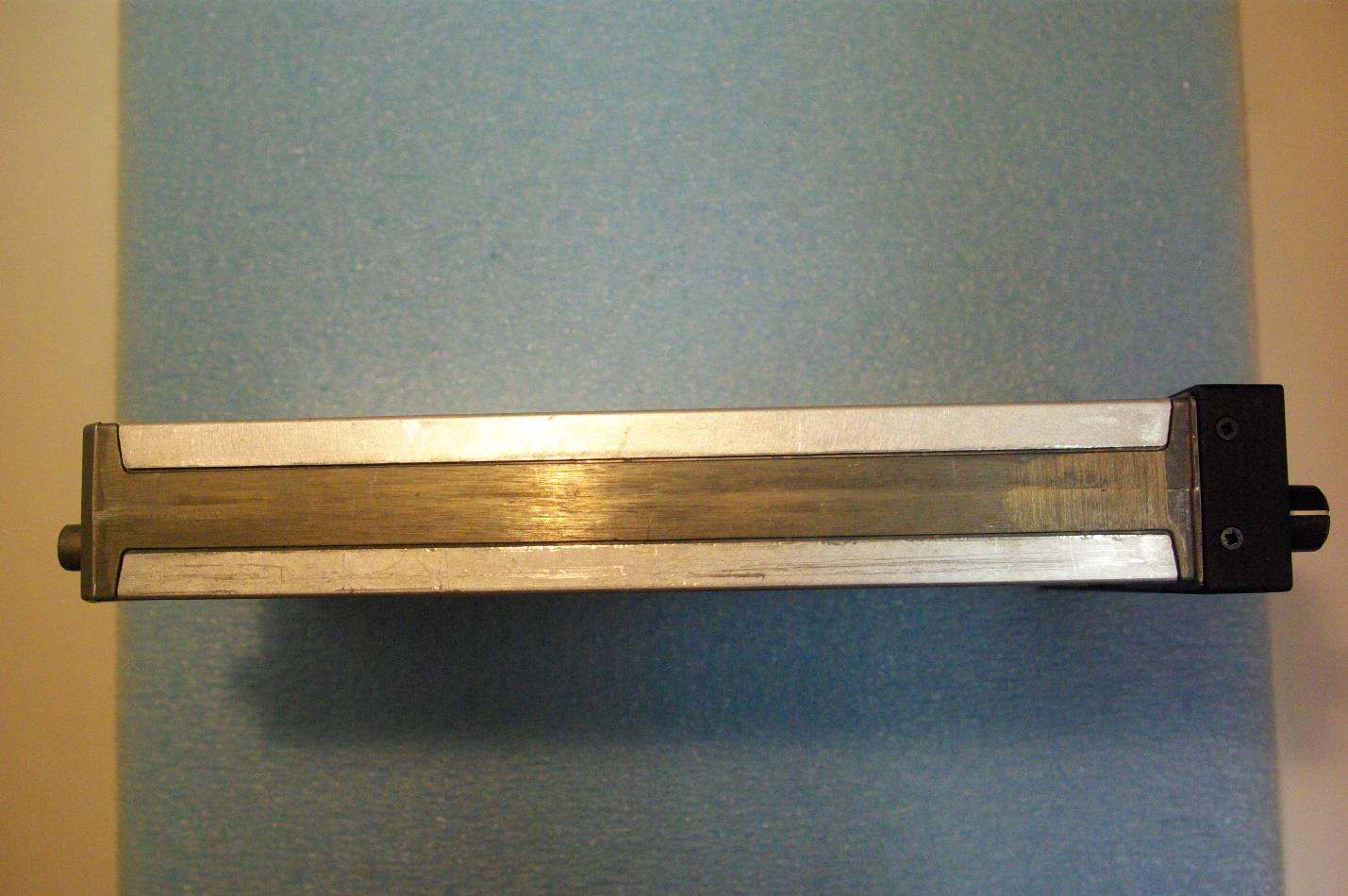

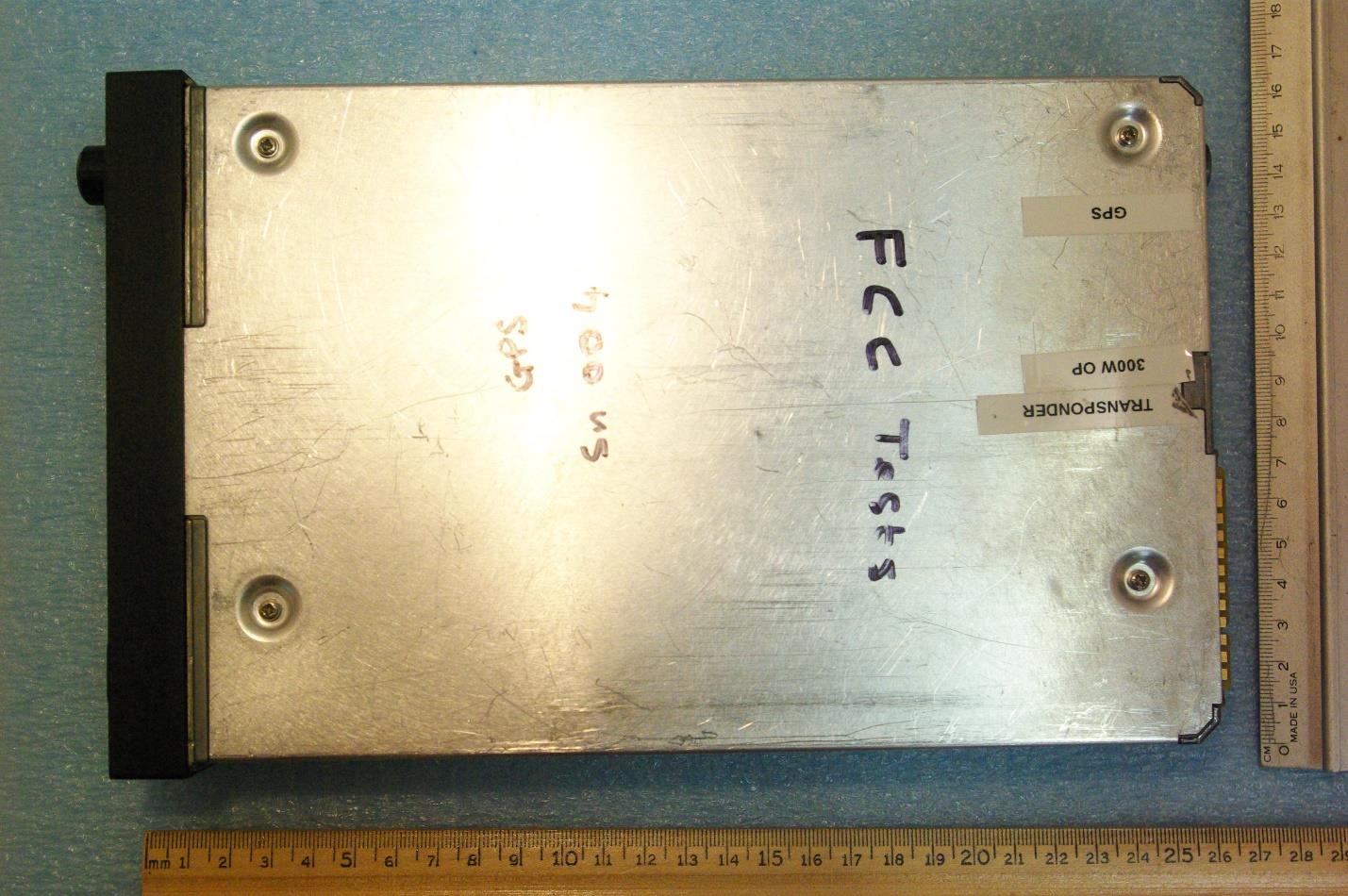

Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf ExtPho Page 1 of 4 External photographs of equipment under test Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf ExtPho Page 2 of 4 Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf ExtPho Page 3 of 4 Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf ExtPho Page 4 of 4 KT Front

TT32/TT32G/KT86/KT86G Label Information Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 LabelSmpl Page 2 of 2 Trig Avionics Model Number: TT32/TT32G/KT86/KT86G FCC: VZI01905 Date: Jun 10 2021 Product Labels All dimensions in mm TT32/TT32G/KT86/KT86G Label Information Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 LabelSmpl Page 2 of 2 Label Placement Product Label location

Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf IntPho Page 1 of 5 Internal Photographs - Transmitter Bord Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf IntPho Page 2 of 5 Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf IntPho Page 3 of 5 Receiver Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf IntPho Page 4 of 5 Daughter Board Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File: VZI01905 Short Term Conf IntPho Page 5 of 5 GPS Board

Rogers Labs, Inc. Trig Avionics Limited SN: 4 4405 West 259th Terrace Models: TT32, TT32G, KT86, KT86G FCC ID: VZI01905 Louisburg, KS 66053 Test: 210712 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2 and 87 Date: July 30, 2021 Revision 1 File VZI01905 RFExp Page 1 of 1 MPE Calculation page Model: TT32 Test Number: 210712 MPE Calculator RF Exposure uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Transmitter Output power (dBm) 54.60 Transmitter Output power (mW) 288,403.15 Output Power for % duty Cycle operation (Watts) 1 288.4032 Antenna Gain (dBi) 2.2 Output Power for 1% duty Cycle operation (Watts) 2.88 Antenna Gain (Numeric) 1.66 Tx Frequency (MHz) 1090 Calcualtion power (Watts) 2.88 dBd + 2.17 = dBi dBi to dBd 2.2 Antenna Gain (dBd) 0.03 Cable Loss (dB) 0.0 Adjusted Power (dBm) 34.60 Antenna minus cable (dBi) 2.20 Calculated ERP (mw) 2904.023 EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 4786.301 Radiated (EIRP) dBm 36.800 ERP = EIRP - 2.17 dB Radiated (ERP) dBm 34.630 Occupational Limit 3.633333333 mW/cm 2 Frequency (MHz) Occupational Limit (mW/cm 2 ) Public Limit (mW/cm 2 ) 36 W/m 2 30-300 1 0.2 General Public Limit 300-1,500 f/300 f/1500 0.726666667 mW/cm 2 1,500-10,000 5 1 7 W/m 2 Occupational Limit 0.6455ƒ 0.5 W/m 2 26.5 W/m 2 Frequency (MHz) Occupational Limit (W/m 2 ) Public Limit (W/m 2 ) General Public Limit 100-6,000 0.6455ƒ 0.5 0.02619ƒ 0.6834 W/m 2 6,000-15,000 50 3.1 W/m 2 48-300 1.291 300-6,000 0.02619ƒ 0.6834 6,000-15,000 50 10 f = Transmit Frequecny (MHz) f (MHz) = 1090 MHz P T = Power Input to Antenna (mW) P T (mW) = 288,403.1503 mW Duty cycle (percentage of operation) % = 1 % P A = Adjusted Power due to Duty cycle or Cable Loss (mW) P A (mW) = 2,884.03 mW G N = Numeric Gain of the Antenna GN (numeric) = 2.17 numeric S 20 = Power Density of device at 20cm (mW/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (mW/m 2 ) = 1.25 mW/m 2 S 20 = Power Density of device at 20cm (W/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (W/m 2 ) = 12.45 W/m 2 S L = Power Density Limit (W/m 2 ) S L (W/m 2 )= 7.267 W/m 2 R C = Minimum distance to the Radiating Element for Compliance (cm) R C =√ (P A G N /4π S L ) R C (cm) = 26.2 cm S C = Power Density of the device at the Compliance Distance R C (W/m 2 ) S C =(P A G N )/(4πR C ) 2 S C (W/m 2 ) = 7.27 W/m 2 R 20 = 20cm R20= 20 cm For Complaince with General Population Limit 26.2 cm Or in Meters for Complaince with General Population Limits 0.26 Meters FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW) EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW)
