VZPTM-007-MININFC Reader

1 TM-007-Mini User’ manual TM-007-Mini User’s manual Jogtek Corp. 2 Table of Contents Chapter 1 – Product overview...................................................3 Chapter 2 – Mechanical Characteristics.......................................4 Chapter 3 – Software application................................................5 Chapter 4 –Safety Statements....................................................6 TM-007-Mini User’s manual Jogtek Corp. 3 1. Product overview 1. General Description The TM-007-Mini is an OEM NFC module for integration into Tablet, Notebook, Smartphone, label printers, handheld devices and in general any fixed or mobile short and medium range device requiring NFC technology. TM-007-Mini supports Near Field Communication Standards NFCIP-1 (ISO/IEC 18092) and NFCIP-2 (ISO/IEC21481) which defines the selection of any of the four possible communication modes (NFC peer-to-peer, card emulation, proximity reader/writer, ISO14443A/B or FeliCa and Vicinity reader/writer – ISO15693). TM-007-Mini , Its simplified UART interface, low power consumption and superior performance, make it easy to integrate any device with NFC technology. TM-007-Mini User’s manual Jogtek Corp. 4 2. Mechanical Characteristics 2.1 Dimensions: 10 x 20 x 2.35 mm TM-007-Mini User’s manual Jogtek Corp. 5 3. Software application 1.Open Program: 2.Press “open” 3. If the port communication is successful, the window below will display “Version : TM-007 V1.0”. TM-007-Mini User’s manual Jogtek Corp. 6 4. Safety Statements Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. TM-007-Mini User’s manual Jogtek Corp. 7 IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g. Verification , Doc) of the host device to be addressed by the integrator/manufacturer. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following "FCCID: VZPTM-007-MINI ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

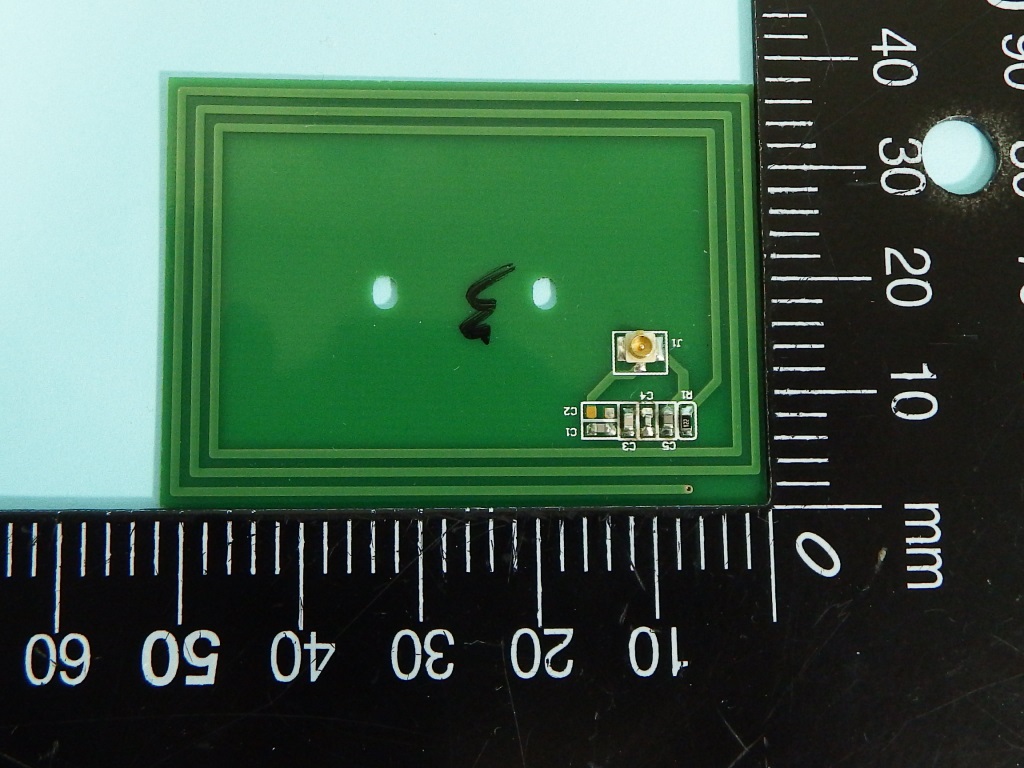

FCC Test Report Report No. : EP410204 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Apr. 30, 2014 FAX : 886-3-327-0973 NFC Module Location N APPENDIX B. Photographs of EUT NFC Antenna FCC Test Report Report No. : EP410204 SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Apr. 30, 2014 FAX : 886-3-327-0973

Label sample and Location information-------------1/1 Label Format: Label size: 22mm x 20mm Label Position:

FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : 1 of 32 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : NFC Reader Brand Name : TM-007-Mini Model No. : TM-007-Mini-EVM FCC ID : VZPTM-007-MINI Standard : 47 CFR FCC Part 15.225 Operating Band : 13.553 – 13.567 MHz (channel freq. 13.56 MHz) Equipment Class : DXX Applicant Manufacturer : Jogtek Crop. 2F., No .39, Ln. 365, Yangguang St., Neihu Dist., Taipei City 114, Taiwan The product sample received on Jan. 04, 2014 and completely tested on Jan. 10, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : 2 of 32 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 6 1.3 Testing Applied Standards ..................................................................................................................... 6 1.4 Testing Location Information .................................................................................................................. 6 1.5 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT ........................................................................................................ 8 2.1 The Worst Case Modulation Configuration ............................................................................................ 8 2.2 Test Channel Frequencies Configuration ............................................................................................... 8 2.3 The Worst Case Measurement Configuration ........................................................................................ 8 2.4 Test Setup Diagram ............................................................................................................................... 9 3 TRANSMITTER TEST RESULT .......................................................................................................... 10 3.1 AC Power-line Conducted Emissions .................................................................................................. 10 3.2 Emission Bandwidth ............................................................................................................................. 14 3.3 Field Strength of Fundamental Emissions and Spectrum Mask .......................................................... 16 3.4 Transmitter Radiated Unwanted Emissions ......................................................................................... 19 3.5 Frequency Stability ............................................................................................................................... 29 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 31 APPENDIX A. TEST PHOTOS ....................................................................................................................... A1 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B1 FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : 3 of 32 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.242932MHz 36.12 (Margin 15.88dB) - AV 51.41 (Margin 10.59dB) - QP FCC 15.207 Complied 3.2 15.215(c) Emission Bandwidth 20dB Bandwidth 2.64 [kHz] F L :13.55864 MHz F H :13.56128 MHz Fall in band F L ≥ 13.553 MHz F H ≤ 13.567 MHz Complied 3.3 15.225(a)~(d) Field Strength of Fundamental Emissions and Spectrum Mask Fundamental Emissions quasi peak:35.57 dBuV/m at 3m Device complies with spectrum mask – refer to test data 103.1 dBuV/m at 3 Complied 3.4 15.225(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 75.59MHz 33.81 (Margin 6.19dB) - PK FCC 15.209 Complied 3.5 15.225(e) Frequency Stability 14.75 ppm ± 0.01% (100ppm) Complied FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : 4 of 32 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR410204 Rev. 01 Initial issue of report Jan. 22, 2014 FR410204 Rev. 02 1. Add evaluation board information 2. Change Test Photos and Test Setup Diagram 3. Change EUT Photos Apr. 30, 2014 FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : 5 of 32 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range Modulation Ch. Frequency (MHz) Channel Number Field Strength (dBuV/m) 13.553 – 13.567 MHz ISO 14443-2 (ASK)13.56 1 35.57 Note 1: Field strength performed quasi peak level at 3m. 1.1.2 Antenna Information Antenna Category Equipment placed on…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR410204 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW
