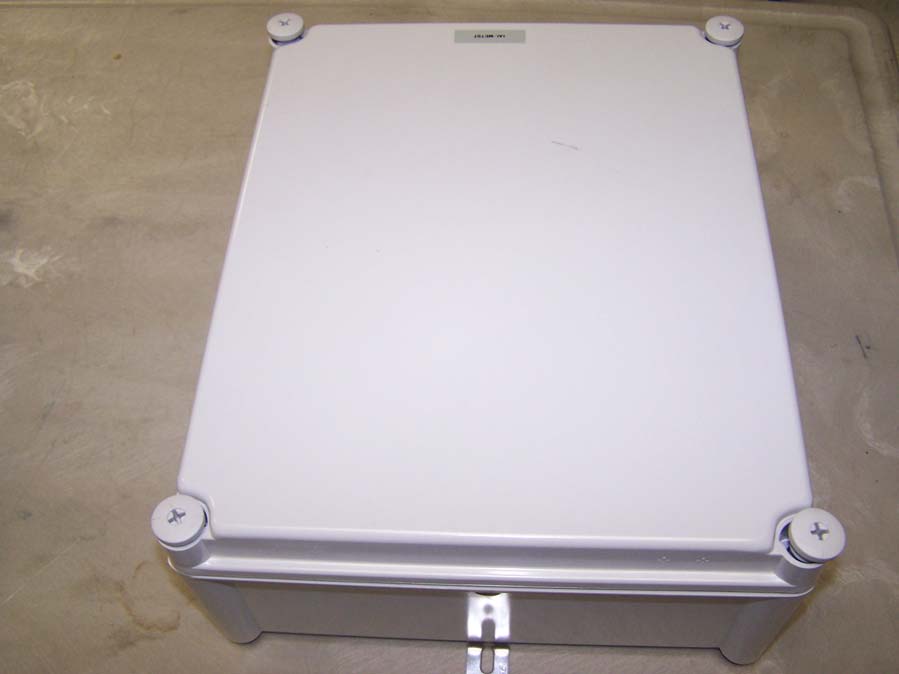

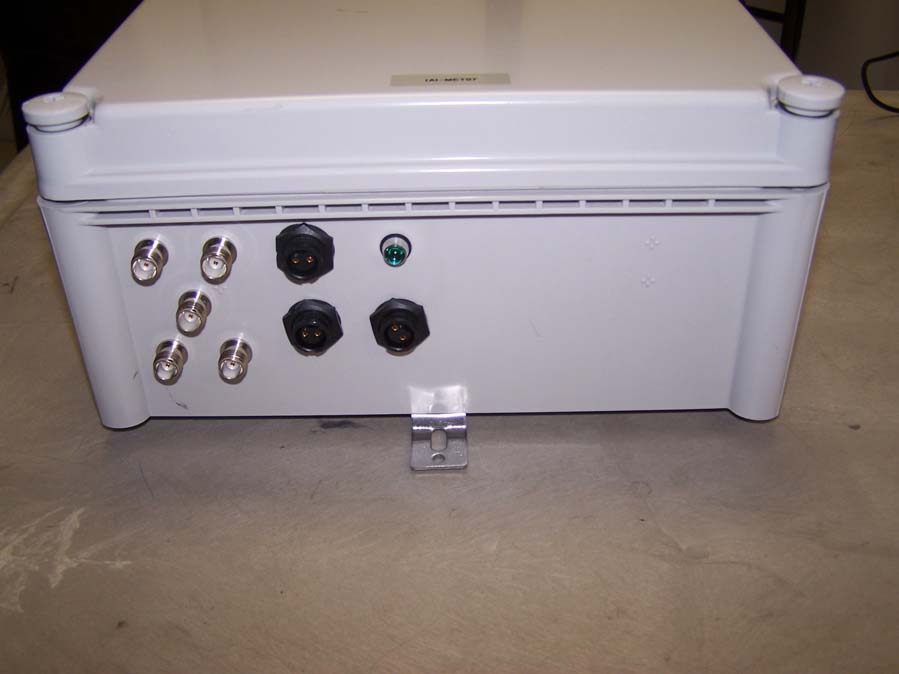

Photograph 1. BarMate System, SAM Photograph 2. BarMate System, SAM Photograph 3. BarMate System, SAM

Photograph 1. BarMate System, SAM Photograph 2. BarMate System, SAM Photograph 3. BarMate System, SAM Photograph 4. BarMate System, SAM Photograph 5. BarMate System, SAM

About BarMate BarMate is a wireless system that allows guests to request bar service with the press of a button. The wireless device sends a request for service signal to a nearby bar. Service is then provided by a waiter/waitress. After providing prompt service, the waiter/waitress clears the signal indicating the guest has been served. The BarMate system is designed to be scalable, flexible, and accurate for any resort environment. How BarMate works To request service, a guest presses a button on a Service Request Device (SRD), which sends a signal to the Management Centre (MC) or the Master Management Centre (MMC), usually located at the bar or refreshment area to request service. The Management Centre consists of a Gateway and a touchscreen personal computer (PC) running BarMate software. A Waiter will identify the location of the guest using the BarMate software, and promptly respond to the guest requesting service. An LED will illuminate on the SRD to help identify the guest requesting service. After responding to a guests request for service, the Waiter clears the signal on the SRD to indicate the guest has received the requested service. Clearing the signal will switch the LED on the SRD off and send relevant service data (date and time service request was fulfilled) to the Management Centre. Wireless communications between the SRD and the Gateway are managed by the Service Area Manager (SAM), inconspicuous devices located between the SRDs and the MC to manage wireless communication traffic between devices and assist with identifying the guests’ location. System description The following diagram illustrates the BarMate System. A description of system components follows. Figure 1: System Block Diagram. Technical description of system components The BarMate system sends and receives data using multiple devices. Each device is described below. Service Request Device (SRD) – A push button device that Transmits (TX) and Receives (RX) a signal to and from the Service Area Manager (SAM). An LED (Light Emitted Device) illuminates on the SRD, indicating service request. The illuminated LED identifies the guest requesting service and also lets the guest know the SRD is active. This is a battery powered, wireless device that attaches to a surface, typically on a sun lounger. Service Area Manager (SAM) – A device that manages service requests from SRDs. The SAM transmits and receives signals to and from SRDs using the Antenna Array. The SAM also uses a COM antenna to transmit and receive signals between the SAM and the Gateway. The SAM is powered with a battery that can be recharged using a solar panel and cable. For environmental protection against outdoor elements, the SAM shell (box casing) is a NEMA 4 rated enclosure. Antenna Array – Composed of four antennas that connect to a SAM. The array transmits and receives signals between SRDs and a SAM. The array locates the SRD requesting service by triangulation. COM Antennas – Connect to the SAM and to the Gateway (one antenna for each device) by coaxial cable. The COM antennas transmit and receive signals between the Gateway and the SAM. Solar Panel – Connects to the SAM to recharge the battery. Gateway – Communicates wirelessly with one or more SAMs using a COM antenna. The Gateway is part of the Management Centre (MC) and connects to the MC computer using a USB cable. The COM antenna attaches to the Gateway with a coaxial cable. Management Centre (MC) – Composed of a Gateway and a touchscreen computer running the BarMate software. The MC is usually located in the bar area, and provides the interface between the BarMate system and the site’s wait staff. A site may have multiple MCs. The MC computer connects to the Gateway with a USB cable. Master Management Center (MMC) – Like the MC, the MMC is composed of a Gateway and a touchscreen computer running the BarMate software. At sites that have multiple MCs, the MMC routes messages between MCs as required. The MMC can also function as an interface between the BarMate System and the site’s wait staff. BarMate software The BarMate software runs on the MC or MMC computer. The BarMate software enables waiters to identify the location of guests requesting service and to indicate when the guest has been served. The BarMate software enables Administrators to manage and assign waiters at specific MC locations.

e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 2.4 GHz 4 dBi High Performance Omnidirectional Wireless LAN Antenna - HyperGain ® Model: HGV-2404U Applications and Features Applications: • 2.4 GHz ISM Band • IEEE 802.11b and 802.11g Wireless LAN • Bluetooth® • Public Wireless Hotspot • WiFi • Multipoint and Mobile Applications Features: • High performance • Economical • Compact, lightweight design • Durable UV-stable fiberglass radome • Vented end cap and drain holes in base • All weather operation • Integral N-Female connector • Can be installed in up or down positions • Includes Mast Mounting Kit • RoHS Compliant Description High Performance The HyperGain® Model HGV-2404U is and economical yet high performance omnidirectional Wi-Fi antenna designed for the 2.4GHz ISM band. These compact and lightweight antennas are ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth, public wireless hotspot application and other multipoint applications where wide coverage is desired. Versatile and Economical This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure. Included with the HGV-2404U is a mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0" in diameter. All Weather Operation Constructed for all weather operation, the HGV-2404U features sealed collinear brass elements inside a durable UV-stable machine gray fiberglass radome. A vented end cap and drain holes in the base help prevent moisture build-up inside the antenna. These features allow the HGV-2404U to be mounted in up or down positions. e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 Specifications Frequency 2400-2500 MHz Gain 4 dBi Polarization Vertical Vertical Beam Width 50° Horizontal Beam Width 360° Impedance 50 Ohm Max. Input Power 100 Watts VSWR < 1.5:1 avg. Weight .21 lbs. (0.09 kg) Length 8.7 in. (22 cm) Base Diameter 1.27 in. (3.22 cm) Radome Diameter .75 in. (1.90 cm) Radome Material Gray Fiberglass Wind Survival >150 MPH Operating Temperature -40° C to to 85° C (-40° F to 185° F) Connector Integral N-Type Female (Bulkhead type) RoHS Compliant Yes RF Antenna Gain Pattern Guaranteed Quality This product is backed by Hyperlink's Limited Warranty. Mounting Options Ceiling/Wall Universal Antenna Mount can be used with HyperLink's 4.5" sq and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC bulkhead omni directional antennas. Includes ceiling/wall mounting hardware. HGX-UMOUNT02

e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 2.4 GHz 6 dBi High Performance Omnidirectional Wireless LAN Antenna - HyperGain ® Model: HGV-2406U Applications and Features Applications: • 2.4 GHz ISM Band • IEEE 802.11b and 802.11g Wireless LAN • Bluetooth® • Public Wireless Hotspot • WiFi • Multipoint and Mobile Applications Features: • High performance • Economical • Compact, lightweight design • Durable UV-stable fiberglass radome • Vented end cap and drain holes in base • All weather operation • Integral N-Female connector • Can be installed in up or down positions • Includes Mast Mounting Kit • RoHS Compliant Description High Performance The HyperGain® Model HGV-2406U is and economical yet high performance omnidirectional Wi-Fi antenna designed for the 2.4GHz ISM band. These compact and lightweight antennas are ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth, public wireless hotspot application and other multipoint applications where wide coverage is desired. Versatile and Economical This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure. Included with the HGV-2406U is a mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0" in diameter. All Weather Operation Constructed for all weather operation, the HGV-2406U features sealed collinear brass elements inside a durable UV-stable machine gray fiberglass radome. A vented end cap and drain holes in the base help prevent moisture build-up inside the antenna. These features allow the HGV-2406U to be mounted in up or down positions. e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 Specifications Frequency 2400-2500 MHz Gain 6 dBi Polarization Vertical Vertical Beam Width 28 ° Horizontal Beam Width 360° Impedance 50 Ohm Max. Input Power 100 Watts VSWR < 1.5:1 avg. Weight .24 lbs. (0.1 kg) Length 12 in. (30 cm) Base Diameter 1.27 in. (3.22 cm) Radome Diameter .75 in. (1.90 cm) Radome Material Gray Fiberglass Wind Survival >150 MPH Operating Temperature -40° C to to 85° C (-40° F to 185° F) Connector Integral N-Type Female (Bulkhead type) RoHS Compliant Yes RF Antenna Gain Pattern Guaranteed Quality This product is backed by Hyperlink's Limited Warranty. Mounting Options Ceiling/Wall Universal Antenna Mount can be used with HyperLink's 4.5" sq and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC bulkhead omni directional antennas. Includes ceiling/wall mounting hardware. HGX-UMOUNT02

MPE Limit Calculation: EUT’s operating frequencies @ 2450 MHz only; Highest conducted power = 1.21 dBm (peak). Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 . EUT maximum antenna gain =6 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 where, S = Power Density mW/m 2 P = Power Input to antenna mili Watts G = Numeric Antenna Gain R = Distance to the center of radiation of the antenna (20 cm for Mobile minimum distance) Antenna Numeric Gain = 10 dBi/10 Power at antenna port = 1.32 mW Antenna Gain = 6 dBi Numeric antenna gain = 10 6/10 = 3.98 S = (1.32)(3.98) / 4(3.1416)(20) 2 S = 0.001 mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 The Nation’s First Licensed Nationally Recognized Testing Laboratory February 29, 2008 BarMate LTD 1379 High Road, Northway House London N20 9LP, United Kingdom Dear Peter Teichman, Enclosed is the EMC test report for compliance testing of the BarMate LTD, The BarMate System - SAM as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-03 ed.), Part 15, Subpart C. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\BarMate LTD\EMC22250B-FCC247 Rev. 1) DOC EMC702 9/13/2007 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. BarMate LTD The BarMate System - SAM CFR Title 47, Part 15, Subpart C MET Report: EMC22250B-FCC247 Rev. 1 © 2008, MET Laboratories, Inc. Page i of ix DOC EMC702 9/13/2007 Electromagnetic Compatibility Test Report for the BarMate LTD The BarMate System - SAM Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C for Intentional Radiators MET Report: EMC22250B-FCC247 Rev. 1 February 29, 2008 Prepared For: BarMate LTD 1379 High Road, Northway House London N20 9LP, United Kingdom Prepared By: MET Laboratories, Inc. 914 W. Patapsco Avenue Baltimore, Maryland 21230 BarMate LTD The BarMate System - SAM CFR Title 47, Part 15, Subpart C MET Report: EMC22250B-FCC247 Rev. 1 © 2008, MET Laboratories, Inc. Page ii of ix DOC EMC702 9/13/2007 Electromagnetic Compatibility Test Report for the BarMate LTD The BarMate System - SAM Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C for Intentional Radiators Dusmantha Tennakoon Jennifer Warnell Project Engineer, Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15.247, of the FCC Rules under normal use and maintenance. Shawn McMillen, Wireless Coordinator, Electromagnetic Compatibility Lab BarMate LTD The BarMate System - SAM CFR Title 47, Part 15, Subpart C MET Report: EMC22250B-FCC247 Rev. 1 © 2008, MET Laboratories, Inc. Page iii of ix DOC EMC702 9/13/2007 Report Status Sheet Revision Report Date Reason for Revision ∅ February 21, 2008 Initial Issue. 1 February 29, 2008 Customer corrections. BarMate LTD Table of Contents The BarMate System - SAM CFR Title 47, Part 15, Subpart C MET Report: EMC22250B-FCC247 Rev. 1 © 2008, MET Laboratories, Inc. Page iv of ix DOC EMC702 9/13/2007 Table of Contents I. Executive Summary ......................................................................................................................................1 1.1 Purpose of Test .................................................................................................................................2 1.2 Executive Summary ..........................................................................................................................2 II. Equipment Configuration.............................................................................................................................3 2.1 Overview...........................................................................................................................................4 2.2 References.........................................................................................................................................5 2.3 Test Site ............................................................................................................................................5 2.4 Description of Test Sample ...............................................................................................................5 2.5 Equipment Configuration..................................................................................................................6 2.6 Ports and Cabling Information ..........................................................................................................7 2.7 Mode of Operation .....................................................…
