VZTAKRC131142-1Remote Radio Unit

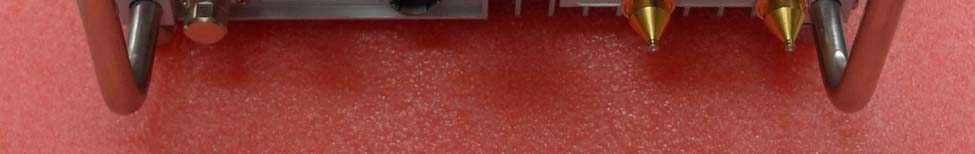

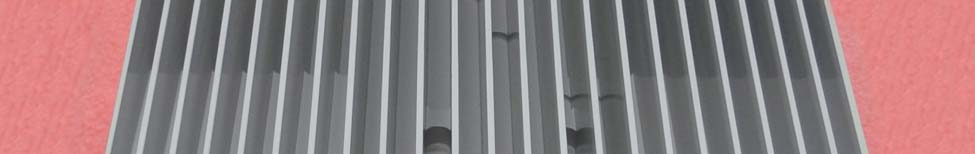

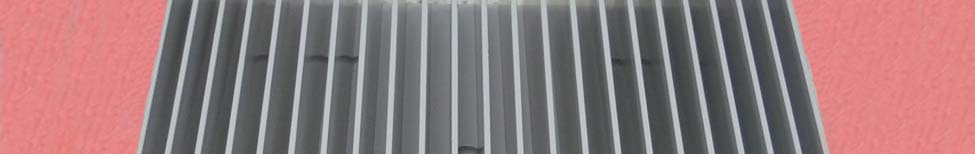

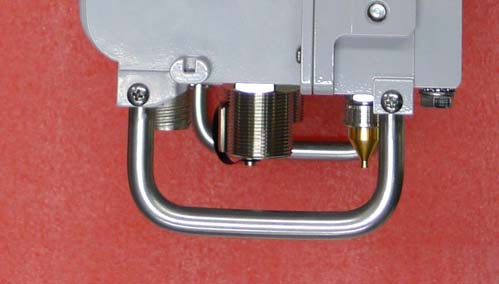

Ericsson Canada Proprietary Information RRUL 11 B12 Restricted Use and Duplication FCC ID: VZTAKRC131142-1 David Bolzon Regulatory Compliance 22/04/2010 Page 1 of 6 KRC 131 142-1 Photo Submission (External) RRUL 11 B12 – Remote Radio Module FCC ID: VZTAKRC131142-1 Date: 21 April 2010 Document: KRC131142/1 External Photo’s Author: David Bolzon File: RRUL 11 B12 Photo’s External CONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson Canada Inc. All Rights Reserved. The information contained in this document is the property of Ericsson Canada. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Ericsson Canada Proprietary Information RRUL 11 B12 Restricted Use and Duplication FCC ID: VZTAKRC131142-1 David Bolzon Regulatory Compliance 22/04/2010 Page 2 of 6 Figure 1: RRUL Front View (with Solar Shields) Figure 2: RRUL Side View (with Solar Shields) External Views (Mounted Radio) Ericsson Canada Proprietary Information RRUL 11 B12 Restricted Use and Duplication FCC ID: VZTAKRC131142-1 David Bolzon Regulatory Compliance 22/04/2010 Page 3 of 6 Figure 3: RRUL Front View (Solar Shield removed) Figure 4: RRUL Rear View (Solar Shield removed) External Views Ericsson Canada Proprietary Information RRUL 11 B12 Restricted Use and Duplication FCC ID: VZTAKRC131142-1 David Bolzon Regulatory Compliance 22/04/2010 Page 4 of 6 Figure 5: RRUL Side View (Solar Shield removed) Figure 6: RRUL Side View (Solar Shield removed) External Views Ericsson Canada Proprietary Information RRUL 11 B12 Restricted Use and Duplication FCC ID: VZTAKRC131142-1 David Bolzon Regulatory Compliance 22/04/2010 Page 5 of 6 Figure 7: RRUL Bottom Front View (Solar Shield removed) External Views Ericsson Canada Proprietary Information RRUL 11 B12 Restricted Use and Duplication FCC ID: VZTAKRC131142-1 David Bolzon Regulatory Compliance 22/04/2010 Page 6 of 6 Figure 7: RRUL Bottom View Connector Interface (Solar Shield removed) External Views

Ericsson Canada Confidential 21 April 2010 FCC ID: VZTAKRC131142-1 Product Name: KRC 131 142/1, RRUL 11 B12 700MHz Remote Radio Unit (LTE) Regulatory Label Format and Location 150 70 Input: -48V (12A max)Input: -48V (12A max) KRC 131 142/1 FCC ID: VZTAKRC131142-1 This device complies with Class B EMC limits Made In: xxxx RRUL 11 B12 IP 55 Type 3 Enclosure ETL LISTED Information Technology Equipment xxxxxxxxxxxxxx

RRUL 11 B12 – Remote Radio Unit 700MHz Radio Compliance FCC CFR 47 Part 27 Test Report Version: 1.0 Date: 03 May 2010 Document: RRUL 11 B12 FCC 47 Part 27_TR Status: Approved Pages: 223 Editor: David Bolzon File: RRUL 11 B12 700MHz FCC TR_A_1.0.doc CONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson Canada Inc. All Rights Reserved. The information contained in this document is the property of Ericsson Canada. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Report 03/05/2010 Status: Approved David Bolzon Page 2 of 223 Approvals and Key Reviewers Name Function Role Status David Bolzon Regulatory Prime Author / Approver Approved David Webster Regulatory Prime Reviewer 21 April 2010 Radu Trandafir SPIR TL Reviewer 21 April 2010 Revision History Issue Description of change Changed by Date 0.1 Draft David Bolzon 15 April 2010 1.0 Approved David Bolzon 3 May 2010 Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Report 03/05/2010 Status: Approved David Bolzon Page 3 of 223 Reference Documents 1. FCC 47 CFR Part 27 “Wireless Communications Services” 2. FCC 47 CFR Part 15 “Unintentional Radiators” 3. ICES-003 “Digital Apparatus” EMC 4. EN 50385:2002—Product Standard to Demonstrate the Compliance of Radio Base Stations and Fixed Terminal Stations for Wireless Telecommunication Systems with the Basic Restrictions or the Reference Levels Related to Human Exposure to Radio-Frequency Electromagnetic Fields (110 MHz– 40 GHz)—General Public 5. EN 55022, Limits and methods of measurement of radio disturbance characteristics of information technology equipment (CISPR22: 1997), 1998, European Committee for Electro-technical Standardization 6. SM.328: "Spectra and bandwidth of emissions". 7. CISPR 22: "Limits and methods of measurement of radio disturbance characteristics of information technology equipment". 8. CISPR 16-1-1: "Specification for radio disturbance and immunity measuring apparatus and methods - Measuring apparatus". 9. ETSI TS 136 141 V8.2.0 (2009-04) LTE; Evolved Universal Radio Access (E-UTRA); Base Station (BS) conformance testing (3GPP TS 36.141 version 8.2.0 Release 8) 10. ETSI TS 136 104 V8.5.0 (2009-04) LTE; Evolved Universal Terrestrial Radio Access (E-UTRA);Base Station (BS) radio transmission and reception (3GPP TS 36.104 version 8.5.0 Release 8) 11. ETSI TS 136 113 V8.1.0 (2009-01) LTE; Evolved Universal Terrestrial Radio Access (E-UTRA);Base Station (BS) and repeater Electro Magnetic Compatibility (EMC) (3GPP TS 36.113 version 8.1.0 Release 8) 12. 3GPP TS 36.141 V9.0.0 (2009-05): 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA) ; Base Station (BS) conformance testing (Release 9). 13. 3GPP TS 36.104 V9.0.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) radio transmission and reception (Release 9) 14. 3GPP TS 36.113 V9.0.0(2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) and repeater Electro Magnetic Compatibility (EMC) (Release 9) 15. 3GPP TS 36.211 V8.7.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Physical Channels and Modulation (Release 8) 16. 3GPP TS 36.212 V8.7.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Multiplexing and channel coding (Release 8) 17. 3GPP TS 36.213 V8.7.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Physical layer procedures (Release 8) 18. 700MHz LTE Remote Radio Unit, System Design Specification (RRUL 11) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Report 03/05/2010 Status: Approved David Bolzon Page 4 of 223 Table of Contents Approvals and Key Reviewers ................................................................................................................... 2 Revision History .......................................................................................................................................... 2 Reference Documents ................................................................................................................................. 3 Table of Contents ........................................................................................................................................ 4 List of Tables ............................................................................................................................................... 5 List of Figures.............................................................................................................................................. 6 Acronyms ................................................................................................................................................... 14 1 Summary ............................................................................................................................................. 15 2 Introduction ...........................................................................................…

Text truncated - open the document above for the full version.

Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 95 of 223 Figure 6-135: 10MHz Occupied Bandwidth TX1_QPSK at 737.0 MHz Figure 6-136: 10MHz Occupied Bandwidth TX2_QPSK at 737.0 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 96 of 223 Figure 6-137: 10MHz Occupied Bandwidth TX1_16QAM at 737.0 MHz Figure 6-138: 10MHz Occupied Bandwidth TX2_16QAM at 737.0 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 97 of 223 Figure 6-139: 10MHz Occupied Bandwidth TX1_64QAM at 737.0 MHz Figure 6-140: 10MHz Occupied Bandwidth TX2_64QAM at 737.0 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 98 of 223 Figure 6-141: 10MHz Occupied Bandwidth TX1_QPSK at 739.0 MHz Figure 6-142: 10MHz Occupied Bandwidth TX2_QPSK at 739.0 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 99 of 223 Figure 6-143: 10MHz Occupied Bandwidth TX1_16QAM at 739.0 MHz Figure 6-144: 10MHz Occupied Bandwidth TX2_16QAM at 739.0 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 100 of 223 Figure 6-145: 10MHz Occupied Bandwidth TX1_64QAM at 739.0 MHz Figure 6-146: 10MHz Occupied Bandwidth TX2_64QAM at 739.0 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 101 of 223 Figure 6-147: 10MHz Occupied Bandwidth TX1_QPSK at 739.7 MHz Figure 6-148: 10MHz Occupied Bandwidth TX2_QPSK at 739.7 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 102 of 223 Figure 6-149: 10MHz Occupied Bandwidth TX1_16QAM at 739.7 MHz Figure 6-150: 10MHz Occupied Bandwidth TX2_16QAM at 739.7 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 103 of 223 Figure 6-151: 10MHz Occupied Bandwidth TX1_64QAM at 739.7 MHz Figure 6-152: 10MHz Occupied Bandwidth TX2_64QAM at 739.7 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 104 of 223 Figure 6-153: 10MHz Occupied Bandwidth TX1_QPSK at 740.3 MHz Figure 6-154: 10MHz Occupied Bandwidth TX2_QPSK at 740.3 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 105 of 223 Figure 6-155: 10MHz Occupied Bandwidth TX1_16QAM at 740.3 MHz Figure 6-156: 10MHz Occupied Bandwidth TX2_16QAM at 740.3 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 106 of 223 Figure 6-157: 10MHz Occupied Bandwidth TX1_64QAM at 740.3 MHz Figure 6-158: 10MHz Occupied Bandwidth TX2_64QAM at 740.3 MHz Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 107 of 223 6.4 Spurious Emissions at the Antenna Terminal Clause 27.53(g) 2.1051 (g) For operations in the 698–746 MHz band, the power of any emission outside a licensee’s frequency band(s) of operation shall be attenuated below the transmitter power (P) within the licensed band(s) of operation, measured in watts, by at least 43 + 10 log (P) dB. Compliance with this provision is based on the use of measurement instrumentation employing a resolution bandwidth of 100 kilohertz or greater. However, in the 100 kilohertz bands immediately outside and adjacent to a licensee’s frequency block, a resolution bandwidth of at least 30 kHz may be employed. Test Setup: RIF Fiber Craft PC -48V PSU UDM/ME Power Meter Att Craft BH1 (RJ45) (SMB) CAM MAC 10MHz (SFP) (RJ45) GPS 50O (RJ45) (S FP ) ES (S M B ) (S M B) T1 (D S ub ) MXA RIF1 (SFP) RIF2 (SFP) RIF3 (SFP) RIF4 BH2 (S FP ) BH3 (R J 45 ) BH4 (R J 45 ) Craft XCVRDPM TX 1 TX 2 RX 1a RX 1b RX 2a RX 2b ANT 1 ANT 2 (QMA) (QMA) (QMA) (QMA) (QN) (QN) (7/16) 50 O 50 O (SFP) PWR (RJ45) (QN) (QN) (QMA) (QMA) RIF1 Att 50O UUT: RRU L 11 (7/16) RRU AIS G (8 pos DIN) GND RIF Fiber Craft PC -48V PSU UDM/ME Power Meter Att Craft BH1 (RJ45) (SMB) CAM MAC 10MHz (SFP) (RJ45) GPS 50O50O (RJ45) (S FP ) ES (S M B ) (S M B) T1 (D S ub ) MXAMXA RIF1 (SFP) RIF2 (SFP) RIF3 (SFP) RIF4 BH2 (S FP ) BH3 (R J 45 ) BH4 (R J 45 ) Craft XCVRDPM TX 1 TX 2 RX 1a RX 1b RX 2a RX 2b ANT 1 ANT 2 (QMA) (QMA) (QMA) (QMA) (QN) (QN) (7/16) 50 O50 O 50 O50 O (SFP) PWR (RJ45) (QN) (QN) (QMA) (QMA) RIF1 Att 50O50O UUT: RRU L 11 (7/16) RRU AIS G (8 pos DIN) GND Figure 6-159 RRU Radio Compliance Set Up / Configuration FCC Section 27.53(g): On any frequency outside the 698 - 746 MHz band, the pow…

Text truncated - open the document above for the full version.

Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 161 of 223 Figure 6-260 Spurious Emission TX1 64QAM 742.5MHz – 5MHz (5GHz - 8GHz) Figure 6-261 Spurious Emission TX2 64QAM 742.5MHz – 5MHz (5GHz - 8GHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 162 of 223 Figure 6-262 Spurious Emissions 733.7MHz TX1_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-263 Spurious Emissions 733.7MHz TX1_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 163 of 223 Figure 6-264 Spurious Emissions 733.7MHz TX2_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-265 Spurious Emissions 733.7MHz TX2_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 164 of 223 Figure 6-266 Spurious Emissions 733.7MHz TX1_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-267 Spurious Emissions 733.7MHz TX1_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 165 of 223 Figure 6-268 Spurious Emissions 733.7MHz TX2_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-269 Spurious Emissions 733.7MHz TX2_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 166 of 223 Figure 6-270 Spurious Emissions 733.7MHz TX1_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-271 Spurious Emissions 733.7MHz TX1_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 167 of 223 Figure 6-272 Spurious Emissions 733.7MHz TX2_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-273 Spurious Emissions 733.7MHz TX2_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 168 of 223 Figure 6-274 Spurious Emissions 735MHz TX1_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-275 Spurious Emissions 735MHz TX1_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 169 of 223 Figure 6-276 Spurious Emissions 735MHz TX2_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-277 Spurious Emissions 735MHz TX2_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 170 of 223 Figure 6-278 Spurious Emissions 735MHz TX1_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-279 Spurious Emissions 735MHz TX1_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 171 of 223 Figure 6-280 Spurious Emissions 735MHz TX2_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-281 Spurious Emissions 735MHz TX2_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 172 of 223 Figure 6-282 Spurious Emissions 735MHz TX1_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-283 Spurious Emissions 735MHz TX1_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 173 of 223 Figure 6-284 Spurious Emissions 735MHz TX2_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-285 Spurious Emissions 735MHz TX2_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 174 of 223 Figure 6-286 Spurious Emissions 739MHz TX1_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-287 Spurious Emissions 739MHz TX1_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bolzon Page 175 of 223 Figure 6-288 Spurious Emissions 739MHz TX2_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-289 Spurious Emissions 739MHz TX2_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B12 700 MHz Restricted Use and Duplication FCC ID: VZTAKRC131142-1 Version: 1.0 FCC CFR 47 Part 27 Test Results 03/05/2010 Status: Approved David Bol…

Text truncated - open the document above for the full version.
