VZTAKRC131144-1Remote Radio Unit RRUL 11 B2

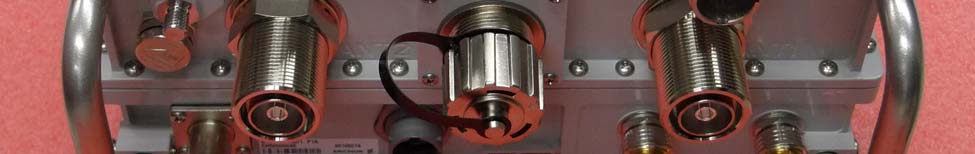

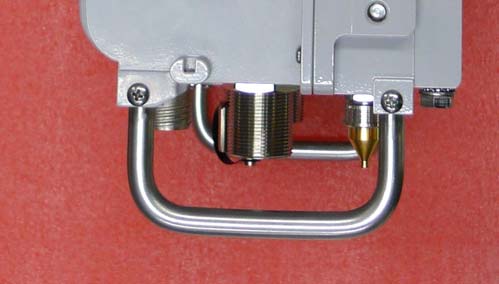

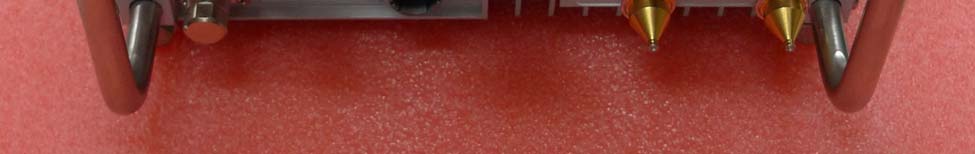

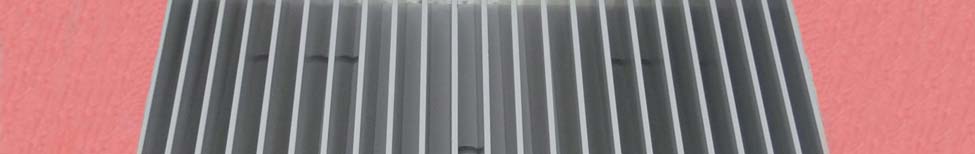

Ericsson Canada Proprietary Information RRUL 11 B2 Restricted Use and Duplication FCC ID: VZTAKRC131144-1 David Bolzon Regulatory Compliance 01/11/2010 Page 1 of 6 KRC 131 144/1 Photo Submission (External) RRUL 11 B2 – Remote Radio Module FCC ID: VZTAKRC131144-1 Date: 29 October 2010 Document: KRC131144/1 External Photo’s Author: David Bolzon File: RRUL 11 B2 Photo’s External CONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson Canada Inc. All Rights Reserved. The information contained in this document is the property of Ericsson Canada. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Ericsson Canada Proprietary Information RRUL 11 B2 Restricted Use and Duplication FCC ID: VZTAKRC131144-1 David Bolzon Regulatory Compliance 01/11/2010 Page 2 of 6 Figure 1: RRUL Front View (with Solar Shields) Figure 2: RRUL Side View (with Solar Shields) External Views (Mounted Radio) Ericsson Canada Proprietary Information RRUL 11 B2 Restricted Use and Duplication FCC ID: VZTAKRC131144-1 David Bolzon Regulatory Compliance 01/11/2010 Page 3 of 6 Figure 3: RRUL Front View (Solar Shield removed) Figure 4: RRUL Rear View (Solar Shield removed) External Views Ericsson Canada Proprietary Information RRUL 11 B2 Restricted Use and Duplication FCC ID: VZTAKRC131144-1 David Bolzon Regulatory Compliance 01/11/2010 Page 4 of 6 Figure 5: RRUL Side View (Solar Shield removed) Figure 6: RRUL Side View (Solar Shield removed) External Views Ericsson Canada Proprietary Information RRUL 11 B2 Restricted Use and Duplication FCC ID: VZTAKRC131144-1 David Bolzon Regulatory Compliance 01/11/2010 Page 5 of 6 Figure 7: RRUL Bottom Front View (Solar Shield removed) External Views Ericsson Canada Proprietary Information RRUL 11 B2 Restricted Use and Duplication FCC ID: VZTAKRC131144-1 David Bolzon Regulatory Compliance 01/11/2010 Page 6 of 6 Figure 7: RRUL Bottom View Connector Interface (Solar Shield removed) External Views

Ericsson Canada Confidential 29 October 2010 FCC ID: VZTAKRC131144-1 Product Name: KRC 131 144/1, RRUL 11 B2 Broadband PCS -1930MHz – 1990MHz Remote Radio Unit (LTE) Regulatory Label Format and Location 150 70 Input: -48V (12A max)Input: -48V (12A max) KRC 131 144/1 FCC ID: VZTAKRC131144-1 This device complies with Class B EMC limits Made In: xxxx RRUL 11 B2 IP 55 Type 3 Enclosure ETL LISTED Information Technology Equipment 113613

RRUL 11 B2 – Remote Radio Unit PCS Radio Compliance FCC CFR 47 Part 24 Test Report Version: 1.0 Date: 29 October 2010 Document: RRUL 11 B2 FCC CFR 47 Part 24_TR Status: Approved Pages: 134 Editor: David Bolzon File: RRUL 11 B2 PCS FCC TR_A.doc CONFIDENTIAL INFORMATION RESTRICTED USE AND DUPLICATION © Ericsson Canada Inc. All Rights Reserved. The information contained in this document is the property of Ericsson Canada. Except as specifically authorized in writing by Ericsson, the holder of this document shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties. Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Report 29/10/2010 Status: Approved Page 2 of 134 Approvals and Key Reviewers Name Function Role Status David Bolzon Regulatory/PI Object Leader Author / Approver Approved David Webster Regulatory Prime Reviewer 29 Oct 2010 Revision History Issue Description of change Changed by Date 0.1 Draft David Bolzon 21 October 2010 1.0 Approved David Bolzon 29 October 2010 Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Report 29/10/2010 Status: Approved Page 3 of 134 Reference Documents 1. FCC 47 CFR Part 24 “Personal Communications Services” 2. FCC 47 CFR Part 15 “Unintentional Radiators” 3. FCC 47 CFR Part 2 “Frequency Allocations and Radio Treaty maters; general rules and regulations” 4. ICES-003 “Digital Apparatus” EMC 5. EN 50385:2002—Product Standard to Demonstrate the Compliance of Radio Base Stations and Fixed Terminal Stations for Wireless Telecommunication Systems with the Basic Restrictions or the Reference Levels Related to Human Exposure to Radio-Frequency Electromagnetic Fields (110 MHz– 40 GHz)—General Public 6. EN 55022, Limits and methods of measurement of radio disturbance characteristics of information technology equipment (CISPR22: 1997), 1998, European Committee for Electro-technical Standardization 7. SM.328: "Spectra and bandwidth of emissions". 8. CISPR 22: "Limits and methods of measurement of radio disturbance characteristics of information technology equipment". 9. CISPR 16-1-1: "Specification for radio disturbance and immunity measuring apparatus and methods - Measuring apparatus". 10. ETSI TS 136 141 V8.2.0 (2009-04) LTE; Evolved Universal Radio Access (E-UTRA); Base Station (BS) conformance testing (3GPP TS 36.141 version 8.2.0 Release 8) 11. ETSI TS 136 104 V8.5.0 (2009-04) LTE; Evolved Universal Terrestrial Radio Access (E-UTRA);Base Station (BS) radio transmission and reception (3GPP TS 36.104 version 8.5.0 Release 8) 12. ETSI TS 136 113 V8.1.0 (2009-01) LTE; Evolved Universal Terrestrial Radio Access (E-UTRA);Base Station (BS) and repeater Electro Magnetic Compatibility (EMC) (3GPP TS 36.113 version 8.1.0 Release 8) 13. 3GPP TS 36.141 V9.0.0 (2009-05): 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA) ; Base Station (BS) conformance testing (Release 9). 14. 3GPP TS 36.104 V9.0.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) radio transmission and reception (Release 9) 15. 3GPP TS 36.113 V9.0.0(2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) and repeater Electro Magnetic Compatibility (EMC) (Release 9) 16. 3GPP TS 36.211 V8.7.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Physical Channels and Modulation (Release 8) 17. 3GPP TS 36.212 V8.7.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Multiplexing and channel coding (Release 8) 18. 3GPP TS 36.213 V8.7.0 (2009-05) 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Physical layer procedures (Release 8) 19. PCS LTE Remote Radio Unit, System Design Specification (RRUL 11 B2) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Report 29/10/2010 Status: Approved Page 4 of 134 Table of Contents Approvals and Key Reviewers ................................................................................................................... 2 Revision History .......................................................................................................................................... 2 Reference Documents ................................................................................................................................. 3 Table of Contents ........................................................................................................................................ 4 List of Tables ............................................................................................................................................... 5 List of Figures.............................................................................................................................................. 6 Acronyms ................................................................................................................................................... 10 1 Summary ............................................................................................................................................. 11 2 Introduction ...............................................................................…

Text truncated - open the document above for the full version.

Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 75 of 134 Figure 6-98 Spurious Emissions 1932.5MHz TX2_64QAM 5MHz Band Edge (ACP 15kHz –550kHz) Figure 6-99 Spurious Emissions 1932.5MHz TX2_64QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 76 of 134 Figure 6-100 Spurious Emissions 1960.0MHz TX1_QPSK 5MHz Band Edge (ACP 15kHz – 550kHz) Figure 6-101 Spurious Emissions 1960.0MHz TX1_QPSK 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 77 of 134 Figure 6-102 Spurious Emissions 1960.0MHz TX2_QPSK 5MHz Band Edge (ACP 15kHz – 550kHz) Figure 6-103 Spurious Emissions 1960.0MHz TX2_QPSK 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 78 of 134 Figure 6-104 Spurious Emissions 1960.0MHz TX1_16QAM 5MHz Band Edge (ACP 15kHz – 550kHz) Figure 6-105 Spurious Emissions 1960.0MHz TX1_16QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 79 of 134 Figure 6-106 Spurious Emissions 1960.0MHz TX2_16QAM 5MHz Band Edge (ACP 15kHz – 550kHz) Figure 6-107 Spurious Emissions 1960.0MHz TX2_16QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 80 of 134 Figure 6-108 Spurious Emissions 1960.0MHz TX1_64QAM 5MHz Band Edge (ACP 15kHz – 550kHz) Figure 6-109 Spurious Emissions 1960.0MHz TX1_64QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 81 of 134 Figure 6-110 Spurious Emissions 1960.0MHz TX2_64QAM 5MHz Band Edge (ACP 15kHz – 550kHz) Figure 6-111 Spurious Emissions 1960.0MHz TX2_64QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 82 of 134 Figure 6-112 Spurious Emissions 1987.5MHz TX1_QPSK 5MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-113 Spurious Emissions 1987.5MHz TX1_QPSK 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 83 of 134 Figure 6-114 Spurious Emissions 1987.5MHz TX2_QPSK 5MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-115 Spurious Emissions 1987.5MHz TX2_QPSK 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 84 of 134 Figure 6-116 Spurious Emissions 1987.5MHz TX1_16QAM 5MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-117 Spurious Emissions 1987.5MHz TX1_16QAM 5MHz Band Edge (ACP 650KHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 85 of 134 Figure 6-118 Spurious Emissions 1987.5MHz TX2_16QAM 5MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-119 Spurious Emissions 1987.5MHz TX2_16QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 86 of 134 Figure 6-120 Spurious Emissions 1987.5MHz TX1_64QAM 5MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-121 Spurious Emissions 1987.5MHz TX1_64QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 87 of 134 Figure 6-122 Spurious Emissions 1987.5MHz TX2_64QAM 5MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-123 Spurious Emissions 1987.5MHz TX2_64QAM 5MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 88 of 134 Figure 6-124 Spurious Emission TX1 64QAM 1932.5MHz - 5MHz (30MHz - 4GHz) Figure 6-125 Spurious Emission TX1 64QAM 1987.5MHz – 5MHz (30MHz - 4GHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 89 of 134 Figure 6-126 Spurious Emission TX2 64QAM 1932.5MHz - 5MHz (30MHz - 4GHz) Figure 6-127 Spurious Emission TX2 64QAM 1987.5MHz – 5MHz (30MHz - 4GHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 90 of 134 Figure 6-128 Spurious Emission TX1 64QAM 1932.5MHz - 5MHz (3.5GHz – 8.4GHz) Figure 6-129 Spurious Emission TX1 64QAM 1987.5MHz – 5MHz (3.5GHz – 8.4GHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 F…

Text truncated - open the document above for the full version.

Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 99 of 134 Figure 6-146 Spurious Emissions 1935.0MHz TX2_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-147 Spurious Emissions 1935.0MHz TX2_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 100 of 134 Figure 6-148 Spurious Emissions 1935.0MHz TX1_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-149 Spurious Emissions 1935.0MHz TX1_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 101 of 134 Figure 6-150 Spurious Emissions 1935.0MHz TX2_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-151 Spurious Emissions 1935.0MHz TX2_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 102 of 134 Figure 6-152 Spurious Emissions 1960.0MHz TX1_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-153 Spurious Emissions 1960.0MHz TX1_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 103 of 134 Figure 6-154 Spurious Emissions 1960.0MHz TX2_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-155 Spurious Emissions 1960.0MHz TX2_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 104 of 134 Figure 6-156 Spurious Emissions 1960.0MHz TX1_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-157 Spurious Emissions 1960.0MHz TX1_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 105 of 134 Figure 6-158 Spurious Emissions 1960.0MHz TX2_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-159 Spurious Emissions 1960.0MHz TX2_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 106 of 134 Figure 6-160 Spurious Emissions 1960.0MHz TX1_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-161 Spurious Emissions 1960.0MHz TX1_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 107 of 134 Figure 6-162 Spurious Emissions 1960.0MHz TX2_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-163 Spurious Emissions 1960.0MHz TX2_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 108 of 134 Figure 6-164 Spurious Emissions 1985.0MHz TX1_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-165 Spurious Emissions 1985.0MHz TX1_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 109 of 134 Figure 6-166 Spurious Emissions 1985.0MHz TX2_QPSK 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-167 Spurious Emissions 1985.0MHz TX2_QPSK 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 110 of 134 Figure 6-168 Spurious Emissions 1985.0MHz TX1_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-169 Spurious Emissions 1985.0MHz TX1_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 111 of 134 Figure 6-170 Spurious Emissions 1985.0MHz TX2_16QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-171 Spurious Emissions 1985.0MHz TX2_16QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 112 of 134 Figure 6-172 Spurious Emissions 1985.0MHz TX1_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-173 Spurious Emissions 1985.0MHz TX1_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 113 of 134 Figure 6-174 Spurious Emissions 1985.0MHz TX2_64QAM 10MHz Band Edge (ACP 15kHz – 550KHz) Figure 6-175 Spurious Emissions 1985.0MHz TX2_64QAM 10MHz Band Edge (ACP 650kHz – 2MHz) Ericsson Canada Proprietary Information RRUL 11 B2 PCS Restricted Use and Duplication FCC ID: VZTAKRC131144-1 Version: 1.0 FCC CFR 47 Part 24 Test Results 29/10/2010 Status: Approved Page 114 of 134 Figure 6-176 Spurious Emission TX1 64QAM 1935.0MHz - 10MHz (30MHz - 4GHz) Figure 6-177 Spurious Emission TX1 64QAM 1985.0MHz - 10MHz (30MHz - 4GHz) Ericsson Canada Propri…
