W23-WMXWAVE2AS4x4 Dual Band 802.11ac wave2 Wireless Module

User Guide jjPlus CORP. 13F-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan Product Overview The devices Mini PCI-e adapter cards contain a Qualcomm chip for Wireless LAN applications. The mini PCI-e adapter cards support key security features like Wi-Fi Protected Access (WPA), WPA2, WEP, 802.1x. Typical application of the card is integration into other wireless products such as AP/ Router which is used distance 20 cm away human body. Packaging Contents The mini PCI-e card package contains the following item(s): 1 x Wireless Mini PCI-e Adapter Installation guide  Shut down the power of the platform  Align the Mini PCI-e adapter with the Mini PCI-e socket on the platform  Adjust and push down the Mini PCI-e adapter gently until the metal locking levers on the Mini PCI-e socket is latched. (Please take note that the Mini PCI-e adapter can only fit in one direction due to the keyed notch. Wrong orientation will cause improper installation and may damage the Mini PCI-e socket)  Connect the antenna(s) on the mini PCI-e module  Reboot on the platform  Install drivers if necessary Frequency 2400-2483.5MHz 5150-5850MHz Connector: Reverse U.FL PLUG jjPlus CORP. 13F-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in visible area with the following: “Contains FCC ID: W23-WMXWAVE2AS ” En d Product Manual Info rmati on The user manual for end users must in clude the follo wing informatio n in a prominent lo ca tio n “I MPORTANT NOTE: To comply with FCC RF exposure co mpliance requirements, the antenna used for this transmitte r must be in st alled to pro vi de a se para tion distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any o ther antenna or transmitter.” T his device complies with part 15 of the FCC rules. Opera tion is subject to the following two conditions (1) This device may not cause harmful interf erence and (2) This device must accept any interf erence re ceived, including interference that may cause undesired operation. IMPORTANT NOTE: I n the eve nt that these conditions can not be met (for example certain la ptop config urations or colocation with another transmitter), then the FCC authorization is n o longer considere d valid and the FCC ID ca n not be used o n the final p ro duct . In these circumstance s, the OEM integrator will be re sp on sible for reevaluatin g the end product (including the transmitter) and obtaining a separate FCC authorization. This device is intended only for OEM integrators under t he following condit ions: The antenna must be installed su ch that 20 cm is main tain ed between the antenna and use rs. As long as a co ndition above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their e nd product for any addit io nal compliance requirements required with this module installed (for e xample, digital device e missions, PC peripheral requirements, etc.). jjPlus CORP. 13F-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Thi s transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. War ning This radio transmitter [24633-WMXWAVE2AS] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. The m ax. allowed antenna gain for Dipol…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 JJPlus Corporation 13F.-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan (2020-03-13) To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, JJPlus Corporation hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: W23-WMXWAVE2AS Product Description: 4x4 Dual Band 802.11ac wave2 Wireless Module Model: WMX6402-AS Sincerely, Client’s signature Client’s name / title Jeff Shu / CEO Contact information / address: 13F.-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 6.0 JJPlus Corporation 13F.-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan (2020/04/24) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: W23-WMXWAVE2AS P ursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e. g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The appl icant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sin cerely, Client’s signature: Client’s name & title: Jeff Shu / CEO Contact information / address: JJPlus Corporation / 13F.-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 6.0

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 12.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (obsolete) 7.0 8.0 Sept 05 2014 Updated template to meet RSP 100 issue 10 (obsolete) 8.0 9.0 Nov 20 2014 Updated template to meet RSP 100 issue 11 (obsolete)) 9.0 10.0 March 19 2015 Revised the Modular Requirement statements (obsolete) 10.0 11.0 July 28, 2016 Updated template with BV logo (current) 11.0 12.0 June 26, 2019

JJPlus Corporation 13F.-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan Feder al Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-04-28 To whom it may concern: W e, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID: W23-WMXWAVE2AS including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. W e also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. S incerely, Signature Name: Jeff Shu Title: CEO Company: JJPlus Corporation

JJPlus Corporation 15F-7, No. 2, Jianba Road, Zhonghe Dist., New Taipei City Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-07-26 To whom it may concern: We, JJPlus Corporation declare that the product, FCC ID is W23-WMXWAVE2AS, have been sold around 15 thousands units in US region. Considering the test results in the report are only with small margin between limitation and there is a tolerance for output power of Chipset. In case of appearing tolerance of chipset which may cause failure of market surveillance. All the setting value of output power has been reduced 1.5 dB during manufacturing. Factory reduce the default value of power table in product firmware. Before packing, QC team would confirm that if the output power value setting is lower 1.5 dB than in report with RF tools. Therefore, all products which have been sold to US region meet the FCC requirements. Sincerely, Signature Name: Jeff Shu Title: CEO Company: JJPlus Corporation

Supersede request letter From: Date: 2023/07/14 Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD The MIMO directional antenna gain of this device is over 6dBi. To comply with output power and power spectral density limit, the transmit power setting in original reports shall be reduced. However, we have reduced output power setting during manufacturing. The devices we manufactured comply with all limits and we would like to correct the FCC part 15.407 report test result as manufactured. The power setting during manufacturing 802.11A power setting BAND Channel Frequency(MHz) POWER SETTING Ant0 Ant1 Ant2 Ant3 B1 U-NII-1 36 5180 19 19 19 19 44 5220 19 19 19 19 48 5240 19 19 19 19 B2 U-NII-2A 52 5260 18 18 18 18 60 5300 18 18 18 18 64 5320 18 18 18 18 B3 U-NII-2C 100 5500 17 17 17 17 116 5580 17 17 17 17 140 5700 18 18 18 18 B4 U-NII-3 149 5745 17 17 17 17 157 5785 17 17 17 17 165 5825 17 17 17 17 802.11N20 power setting BAND Channel Frequency(MHz) POWER SETTING Ant0 Ant1 Ant2 Ant3 B1 36 5180 13 44 5220 12 48 5240 13 B2 52 5260 11 60 5300 10 64 5320 9 B3 100 5500 11 116 5580 11 140 5700 8.5 B4 149 5745 16 157 5785 15.5 165 5825 15.5 802.11N40 power setting BAND Channel Frequency(MHz) POWER SETTING Ant0 Ant1 Ant2 Ant3 B1 38 5190 13 46 5230 13 B2 54 5270 10 62 5310 11 B3 102 5510 12 110 5550 12 134 5670 10.5 B4 151 5755 15.5 159 5795 15.5 802.11AC80 power setting BAND Channel Frequency(MHz) POWER SETTING Ant0 Ant1 Ant2 Ant3 B1 42 5210 12 B2 58 5290 11 B3 106 5530 12 B4 155 5775 15 Please kindly let us know if you have any questions. Name: Jeff Shu Title: CEO Company: JJPlus Corporation

JJPlus Corporation 15F-7, No. 2, Jianba Road, Zhonghe Dist., New Taipei City Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Da te : 2023-03-03 To whom it may concern: We, JJPlus Corporation declare the product doesn’t have MIMO function and 4 antennas ports transmit separately for 802.11a mode. Please find the application information as below. P roduct Name: 4x4 Dual Band 802.11ac wave2 Wireless Module Model No.: WMX6402-AS FCC ID: W23-WMXWAVE2AS Sincerely, Signature Name: Jeff Shu Title: CEO Company: JJPlus Corporation

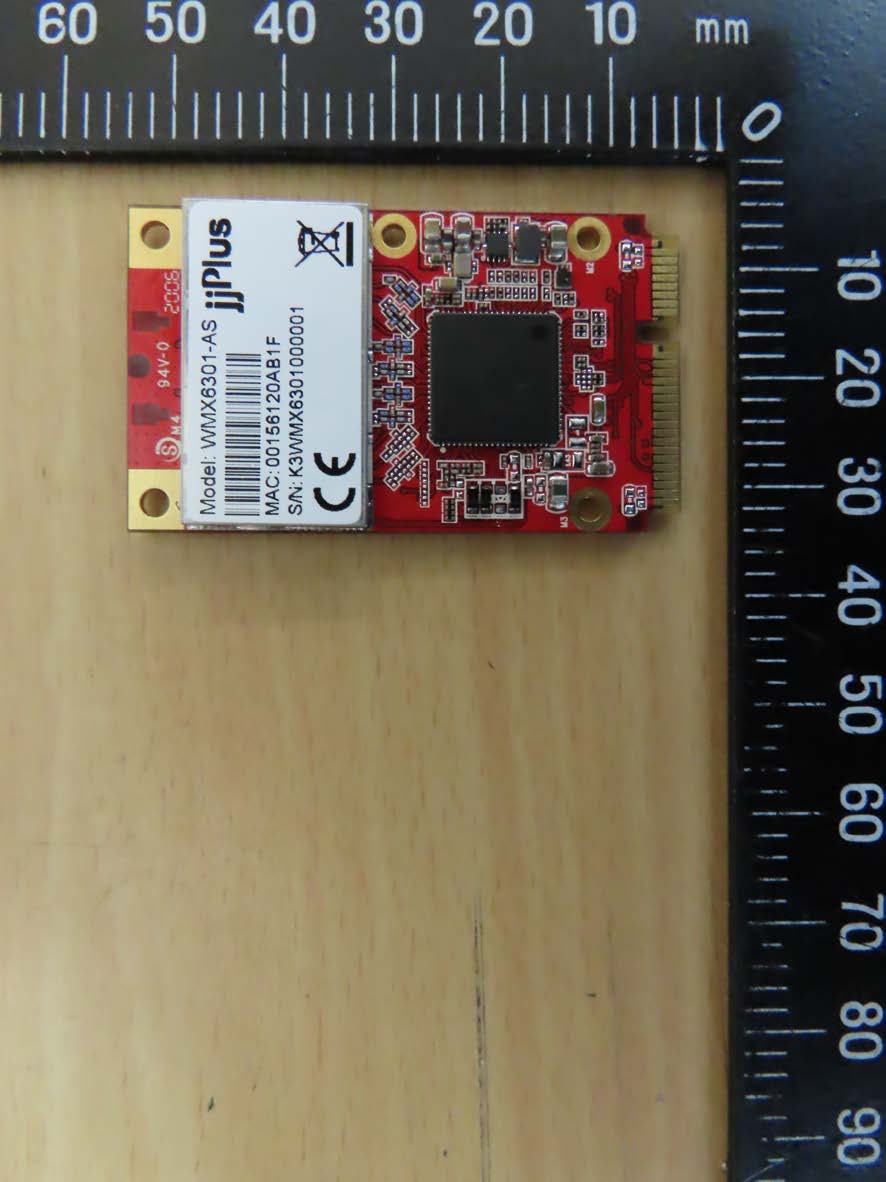

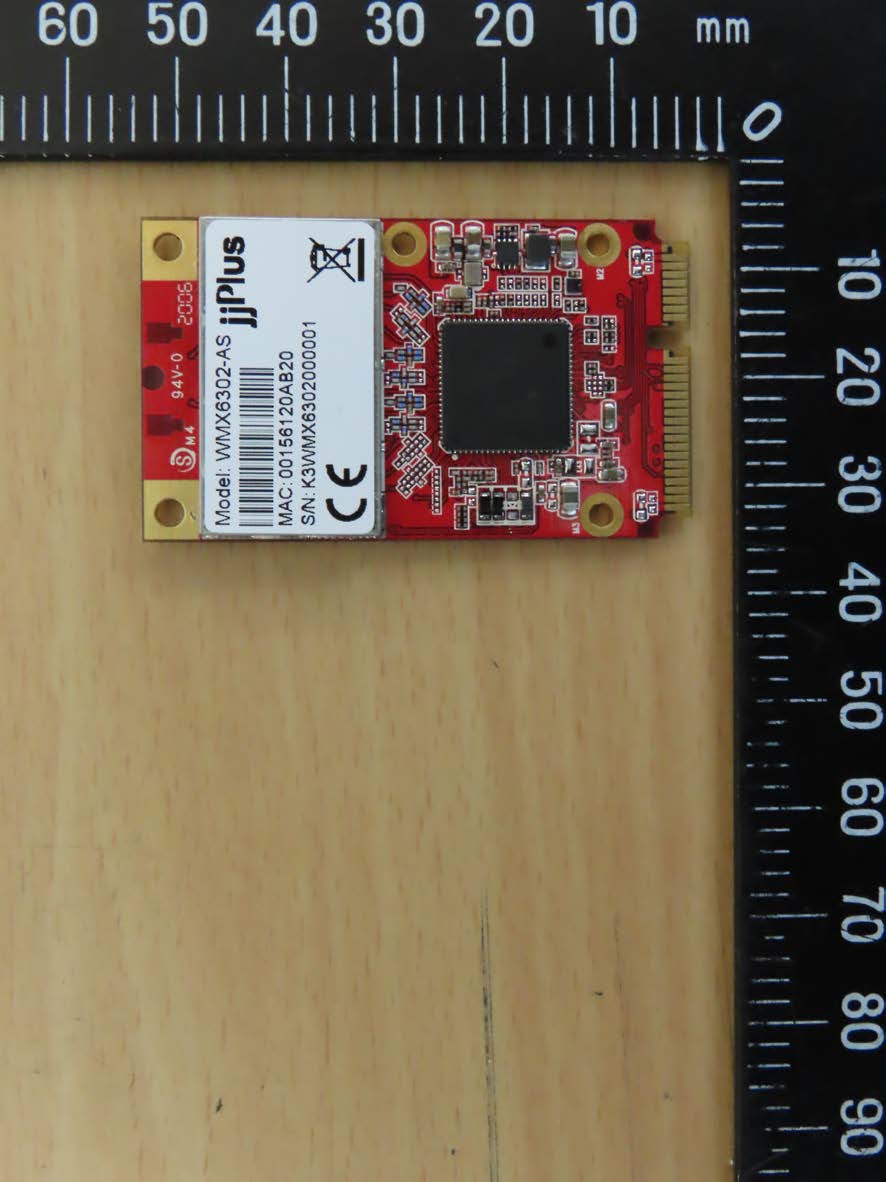

Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS External Photos Model No: WMX6402-AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Multi-listing Model No: WMX6301-AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Multi-listing Model No: WMX6302-AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 15

WMX6402-AS Wireless Module Label Drawing 28 mm WMX6402-AS Wireless Module Label Location 15 mm WMX2401-AS Wireless Module Label Drawing 28 mm WMX2401-AS Wireless Module Label Location 15 mm WMX6401-AS Wireless Module Label Drawing 28 mm WMX6401-AS Wireless Module Label Location 15 mm WMX6302-AS Wireless Module Label Drawing 28 mm WMX6302-AS Wireless Module Label Location 15 mm WMX6301-AS Wireless Module Label Drawing 28 mm WMX6301-AS Wireless Module Label Location 15 mm WMX5402-AS Wireless Module Label Drawing 28 mm WMX5402-AS Wireless Module Label Location 15 mm WMX5401-AS Wireless Module Label Drawing 28 mm WMX5401-AS Wireless Module Label Location 15 mm WMX2402-AS Wireless Module Label Drawing 28 mm WMX2402-AS Wireless Module Label Location 15 mm

Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Internal Photos Model No.: WMX6402-AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Multi-listing Model No: WMX6301-AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Multi-listing Model No: WMX6302-AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 15 Registration number: W6R22002-19655-FCC FCC ID: W23-WMXWAVE2AS Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 15

Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS 3.6 Automatic Discontinuation of transmission, FCC 15.407 (c) The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. This function will be declared by manufacturer. 3.7 Reserved, FCC 15.407 (d) 3.8 Indoor Operation Restriction, FCC 15.407 (e) Within the 5.15–5.25 GHz band, U- NII devices will be restricted to indoor operations to reduce any potential for harmful interference to co-channel MSS operations. This equipment has to be declared by manufacturer of the final product as content of the user manual. 3.9 Equivalent isotropic radiated power, FCC 15.407 (f) FCC Rule: 15.407(b)(3) Band 1 EIRP = max. conducted output power + antenna gain EIRP = 20.93 dBm+ (9.02 dBi [antenna gain claimed by manufacturer]) = 29.95 dBm = 988.55 mW Band 2 EIRP = max. conducted output power + antenna gain EIRP = 20.94 dBm+ (9.02 dBi [antenna gain claimed by manufacturer]) = 29.96 dBm = 988.55 mW Band 3 EIRP = max. conducted output power + antenna gain EIRP = 20.91 dBm+ (9.02 dBi [antenna gain claimed by manufacturer]) = 29.93 dBm = 984.01 mW Band 4 EIRP = max. conducted output power + antenna gain EIRP = 21.46 dBm+ (9.02 dBi [antenna gain claimed by manufacturer]) = 30.48 dBm = 1116.86 mW Test equipment used: ETSTW-RE 055 Worldwide Testing Services(Taiwan) Co., Ltd. Page 269 of 280 Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS 3.10 Exemption Limits for Routine Evaluation according to 47 CFR FCC Part 2 Subpart J, section 2.1091 FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. MPE Calculation Method Worldwide Testing Services(Taiwan) Co., Ltd. Page 270 of 280 Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS E ＝ Electric field (V/m) P ＝ output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to mW/cm 2 . Established separation distance is 20 cm. Operating frequency band: Band 1: 5.150 GHz-5.250 GHz, Band 2: 5.250 GHz-5.350 GHz Band 3: 5.470 GHz-5.725 GHz, Band 4: 5.725 GHz-5.850 GHz The product meets RF exposure requirement. Because the power density of 0.0279 mW/cm 2 at 5785 MHz is below the power density limit of 1 mW/cm 2 . Worldwide Testing Services(Taiwan) Co., Ltd. Page 271 of 280

of Applicant: JJPlus Corporation Address: 13F.-3, No.120, Qiaohe Rd., Zhonghe Dist., New Taipei City 235, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6R22002-19655-C-54 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] FCC PART 15 SUBPART E TEST REPORT for 4x4 Dual Band 802.11ac wave2 Wireless Module Model No.: WMX6402-AS FCC ID: W23-WMXWAVE2AS Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 N OTES .......................................................................................................................................... 2 1.2 T ESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .............................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ................................................................................................... 3 1.4 APPLICATION DETAILS ................................................................................................................. 3 1.5 G ENERAL INFORMATION OF TEST ITEM ........................................................................................ 3 1.6 TEST STANDARDS ....................................................................................................................... 15 2 TECHNICAL TEST ....................................................................................................................... 16 2.1 SUMMARY OF TEST RESULTS ...................................................................................................... 16 2.2 T EST ENVIRONMENT .................................................................................................................. 16 2.3 T EST EQUIPMENT LIST ............................................................................................................... 18 2.4 TEST PROCEDURE ...................................................................................................................... 21 3 TEST RESULTS (ENCLOSURE) ................................................................................................ 24 3.1 PEAK TRANSMIT POWER, FCC 15.407 (A) ................................................................................. 25 3.2 26 DB EMISSION BANDWIDTH, 99% OCCUPIED BANDWIDTH, FCC 15.407 (A) ......................... 108 3.3 6DB EMISSION BANDWIDTH, 99% OCCUPIED BANDWIDTH, FCC 15.407 (A) ........................... 164 3.4 PEAK POWER SPECTRAL DENSITY, FCC 15.407 (A) ................................................................ 182 3.5 UNDESIRABLE EMISSION LIMITS, FCC 15.407 (B) .................................................................... 261 3.6 AUTOMATIC DISCONTINUATION OF TRANSMISSION, FCC 15.407 (C) ....................................... 264 3.7 R ESERVED, FCC 15.407 (D) ..................................................................................................... 264 3.8 INDOOR OPERATION RESTRICTION, FCC 15.407 (E) ................................................................ 264 3.9 EQUIVALENT ISOTROPIC RADIATED POWER, FCC 15.407 (F) ................................................... 264 3.10 RF EXPOSURE COMPLIANCE REQUIREMENTS .......................................................................... 265 3.11 TRANSMIT POWER CONTROL (TPC) ........................................................................................ 267 3.12 D YNAMIC FREQUENCY SELECTION (DFS) ............................................................................... 268 3.12.1 DFS Detection Threshold ............................................................................................... 268 3.12.2 Channel move time plot of Type1 radar waveform on 5270MHz ................................... 270 3.12.3 30Minutes Non-Occupancy Time .................................................................................... 271 3.13 C HANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME ........................................... 272 3.14 RADIATED EMISSIONS FROM RECEIVER PART .......................................................................... 273 3.15 P OWER LINE CONDUCTED EMISSION ....................................................................................... 274 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 275 Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. T he test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requir…

Text truncated - open the document above for the full version.

Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS 5.25 GHz ~ 5.35 GHz A A t t 2 5 dB * O f fset 1 1 dB L V L R e f 25 dBm Ce nter 5. 21 GHz S p an 2 0 0 MHz 2 0 MHz/ * * 3 D B R B W 1 MHz V BW 3 MHz S W T 2 0 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 1 M a rker 1 [T1 ] -18.88 dBm 5.251800000 GHz 2 M arker 2 [T1 ] 4.45 dBm 5.225064103 GHz 1 D elta 1 [T1 ] -2.83 dB -83.840000000 MHz O B W 75.961538462 MHz T1 T emp 1 [T1 OBW] 0.87 dBm 5.172179487 GHz T 2 T emp 2 [T1 OBW] 0.63 dBm 5.248141026 GHz D1 -21.55 dBm 99% OBW & 26DB BANDWIDTH ANT3_11ac80_CH42 Date: 16.OCT.2019 15:12:13 A A tt 25 dB * Of fset 1 1 dB L VL R ef 25 dBm Center5.26 GHz S pan 6 0 MHz6 MHz/ * * 3DB R BW 300 kHz V BW 1 MHz SWT 20 ms 1 PK VIEW -70 - 60 -50 -40 - 30 -2 0 -10 0 1 0 2 0 1 M arker 1 [T1 ] -18.06 dBm 5.271200000 GHz 2 M arker 2 [T1 ] 10.00 dBm 5.262884615 GHz 1 Delta 1 [T1 ] 3.70 dB -21.600000000 MHz O BW 16.730769231 MHz T 1 Temp 1 [T1 OBW] 2.07 dBm 5.251634615 GHz T2 Temp 2 [T1 OBW] 1.36 dBm 5.268365385 GHz D 1 -16.002 dBm 99% OBW & 26DB BANDWIDTH ANT3_11a_CH52 Date: 16.OCT.2019 15:30:17 Worldwide Testing Services(Taiwan) Co., Ltd. Page 140 of 275 Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS A A t t 2 5 dB * O f fset 1 1 dB L V L R e f 25 dBm Ce nter 5. 3 GHz S p an 6 0 MHz 6 MHz/ * * 3 D B R B W 3 00 kHz V BW 1 MHz S W T 2 0 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 1 M a rker 1 [T1 ] -17.41 dBm 5.310800000 GHz 2 M arker 2 [T1 ] 9.84 dBm 5.302980769 GHz 1 D elta 1 [T1 ] 3.26 dB -21.216000000 MHz O B W 16.730769231 MHz T1 T emp 1 [T1 OBW] 2.34 dBm 5.291634615 GHz T 2 T emp 2 [T1 OBW] 1.27 dBm 5.308365385 GHz D 1 -16.156 dBm 99% OBW & 26DB BANDWIDTH ANT3_11a_CH60 Date: 16.OCT.2019 15:36:47 A A tt 25 dB * Of fset 1 1 dB L VL R ef 25 dBm Center5. 32 GHz Span60 MHz6 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz S WT 20 ms 1 PK V IEW - 70 -6 0 -50 -4 0 -30 -2 0 -10 0 1 0 20 1 M arker 1 [T1 ] -16.09 dBm 5.330400000 GHz 2 M arker 2 [T1 ] 10.02 dBm 5.322884615 GHz 1 D elta 1 [T1 ] 1.45 dB -20.640000000 MHz O BW 16.730769231 MHz T 1 T emp 1 [T1 OBW] 1.54 dBm 5.311634615 GHz T2 Temp 2 [T1 OBW] 1.22 dBm 5.328365385 GHz D 1 -15.98 dBm 99% OBW & 26DB BANDWIDTH ANT3_11a_CH64 Date: 16.OCT.2019 15:43:01 Worldwide Testing Services(Taiwan) Co., Ltd. Page 141 of 275 Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS A A t t 2 5 dB * O f fset 1 1 dB L V L R e f 25 dBm Ce nter 5. 26 GHz S p an 6 0 MHz 6 MHz/ * * 3 D B R B W 3 00 kHz V BW 1 MHz S W T 2 0 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 1 M a rker 1 [T1 ] -18.88 dBm 5.272800000 GHz 2 M arker 2 [T1 ] 7.60 dBm 5.255000000 GHz 1 D elta 1 [T1 ] -1.86 dB -25.824000000 MHz O B W 18.173076923 MHz T 1 T emp 1 [T1 OBW] -0.15 dBm 5.250961538 GHz T 2 T emp 2 [T1 OBW] -2.41 dBm 5.269134615 GHz D 1 -18.404 dBm 99% OBW & 26DB BANDWIDTH ANT3_11n20_CH52 Date: 16.OCT.2019 16:03:55 A A tt 25 dB * Of fset 1 1 dB L VL R ef 25 dBm Center5. 3 GHz Span60 MHz6 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz S WT 20 ms 1 PK V IEW - 70 -6 0 -50 -4 0 -30 -2 0 -10 0 1 0 20 1 M arker 1 [T1 ] -17.28 dBm 5.311700000 GHz 2 M arker 2 [T1 ] 8.56 dBm 5.307596154 GHz 1 D elta 1 [T1 ] -1.68 dB -24.576000000 MHz O BW 18.269230769 MHz T1 T emp 1 [T1 OBW] -0.65 dBm 5.290961538 GHz T 2 Temp 2 [T1 OBW] -3.35 dBm 5.309230769 GHz D 1 -17.441 dBm 99% OBW & 26DB BANDWIDTH ANT3_11n20_CH60 Date: 16.OCT.2019 16:09:47 Worldwide Testing Services(Taiwan) Co., Ltd. Page 142 of 275 Registration number: W6R22002-19655-C-54 FCC ID: W23-WMXWAVE2AS A A t t 2 5 dB * O f fset 1 1 dB L V L R e f 25 dBm Ce nter 5. 32 GHz S p an 6 0 MHz 6 MHz/ * * 3 D B R B W 3 00 kHz V BW 1 MHz S W T 2 0 ms 1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 1 M a rker 1 [T1 ] -17.26 dBm 5.332800000 GHz 2 M arker 2 [T1 ] 7.21 dBm 5.3179807…
