W2MXQ006TX49R/C Toys

DATE：May 29, 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _CENTRE TESTING INTERNATIONAL (Shenzhen) /Building C, Hongwei Industrial Zone, Baoan 70 District Corporation,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with _ XQ ARTS TOYS CO., LTD, North of Xing Ye Road, Lai Mei Industrial District City: Shan Tou 515800, China _ Dated this Agency agreement expiration date: May 29, 2012 to Dec. 30, 2012 By: ChengLiang Signature Printed Title: general manager On behalf of : XQ ARTS TOYS CO., LTD. Telephone: 0754-85513333

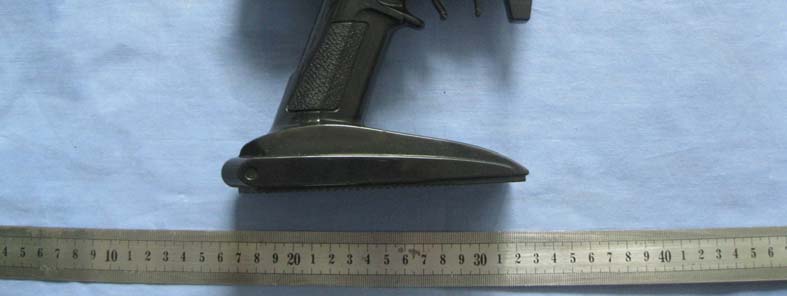

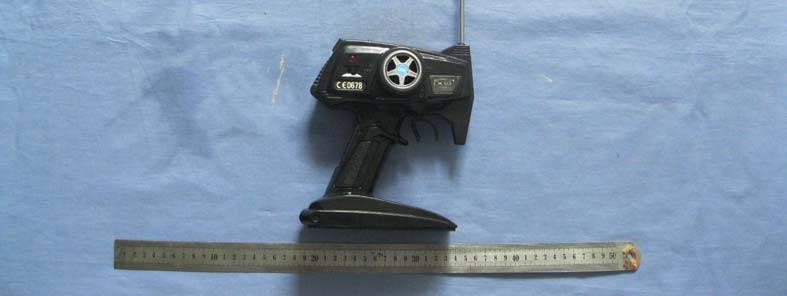

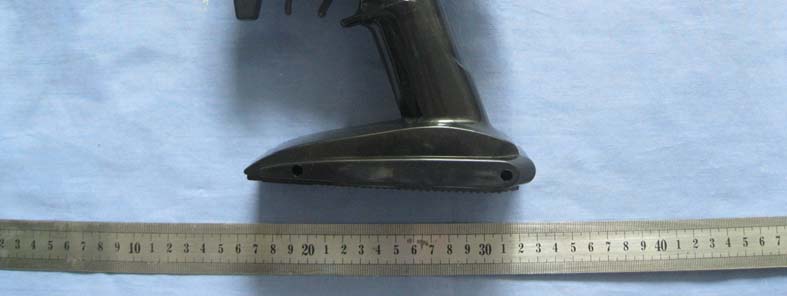

EXTERNAL PHOTOGRAPHS OF EUT The View of EUT-1 The View of EUT-2 The View of EUT-3

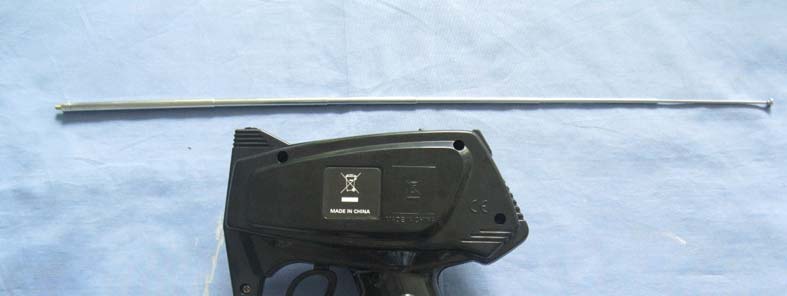

FCC ID : W2MXQ006TX49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Label Location Label Contents Label Size: L45mm*W15mm

INTERNAL PHOTOGRAPHS OF EUT Internal View of EUT Front View of PCB Rear View of PCB

Report No.: EESZE05250010-1 Page 2 of 15 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................... 3 2. TEST SUMMARY ..................................................................................................................................... 3 3. MEASUREMENT UNCERTAINTY ........................................................................................................... 3 4. PRODUCT INFORMATION ...................................................................................................................... 4 5. FACILITIES AND ACCREDITATIONS ..................................................................................................... 4 5.1 TEST FACILITY................................................................................................................................ 4 5.2 TEST EQUIPMENT LIST.................................................................................................................. 4 6. SYSTEM TEST CONFIGURATION.......................................................................................................... 5 6.1 JUSTIFICATION............................................................................................................................... 5 6.2 EUT EXERCISING SOFTWARE ...................................................................................................... 5 7. RADIATED EMISSIONS MEASUREMENT ............................................................................................. 6 7.1 LIMITS .............................................................................................................................................. 6 7.2 BLOCK DIAGRAM OF TEST SETUP............................................................................................... 6 7.3 TEST PROCEDURE ........................................................................................................................ 6 7.4 TEST RESULT AND GRAPHS......................................................................................................... 7 8. OUT OF BAND EMISSION MEASUREMENT ....................................................................................... 10 8.1 LIMITS ............................................................................................................................................ 10 8.2 BLOCK DIAGRAM OF TEST SETUP............................................................................................. 10 8.3 TEST PROCEDURE ......................................................................................................................10 8.4 TEST RESULT ............................................................................................................................... 10 8.5 TEST GRAPH................................................................................................................................. 10 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP......................................................................................... 11 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT ................................................................................... 12 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT..................................................................................... 14 N/A means not applicable. Report No.: EESZE05250010-1 Page 3 of 15 1. GENERAL INFORMATION Applicant: XQ ARTS TOYS CO., LTD North of Xing Ye Road, Lai Mei Industrial District, Shan Tou, Guang Dong, China Manufacturer: XQ ARTS TOYS CO., LTD North of Xing Ye Road, Lai Mei Industrial District, Shan Tou, Guang Dong, China Equipment Authorization: FCC Part 15 Certification FCC ID: W2MXQ006TX49 Product Name: R/C Toys Trade Name: XQ Model Name: 1:10/12 R/C Toys Serial Number: Not Applicable Report Number: EESZE05250010-1 Date of Test: May 25, 2012 to May 29, 2012 The above equipment was tested by Centre Testing International for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart C and the measurement procedure according to ANSI C63.4:2009. 2. TEST SUMMARY Clause Test Item Rule Result 1 Radiated Emission FCC 15.209 PASS 2 Out of Band Emission FCC 15.235(b) PASS 3 Antenna Requirements FCC 15.203 PASS* * Telescope-type antenna with unique antenna connector. 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Uncertainty Radiated Emissions / Out of Band Emission 4.5 dB Report No.: EESZE05250010-1 Page 4 of 15 4. PRODUCT INFORMATION Items Description Rating DC 9V EUT type Intentional Transmitter Modulation FSK Operated Frequency 49.86MHz 5. FACILITIES AND ACCREDITATIONS 5.1 TEST FACILITY All test facilities used to collect the test data are located at Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4, CISPR 16-1-1 and other equivalent standards. 5.2 TEST EQUIPMENT LIST Instrumentation: The following list contains equipments used at CTI for testing. The calibrations of the measuring instruments, including any accessories that may effect such calibration, are checked frequently to assure their accuracy. Adjustments are made and correction factors applied in accordance with instructions contained in the manual for the measuring instrument. Equipment used during the tests: 3M Semi-anechoic Chamber - Radiated Emission Test Equipment Manufacturer Model Serial No. Due Date 3M Chamber & Accessory Equipment ETS-LINDGRENFACT-3 3510 07/09/2012 Spectrum Analyzer Agilent E4440A MY46185649 03/07/2013 TRILOG Broadband Antenna schwarzbeck VULB 9136 401 07/06/2012 Multi device Controller ETS-LINGREN 2090 00057230 N/A Report No.: EESZE05250010-1 Page 5 of 15 6. SYSTEM TEST CONFIGURATION 6.1 JUS…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF TEST SETUP TEST SETUP OF RADIATED EMISSION
