DATE：May 29, 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _CENTRE TESTING INTERNATIONAL (Shenzhen) /Building C, Hongwei Industrial Zone, Baoan 70 District Corporation,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with _ XQ ARTS TOYS CO., LTD, North of Xing Ye Road, Lai Mei Industrial District City: Shan Tou 515800, China _ Dated this Agency agreement expiration date: May 29, 2012 to Dec. 30, 2012 By: ChengLiang Signature Printed Title: general manager On behalf of : XQ ARTS TOYS CO., LTD. Telephone: 0754-85513333

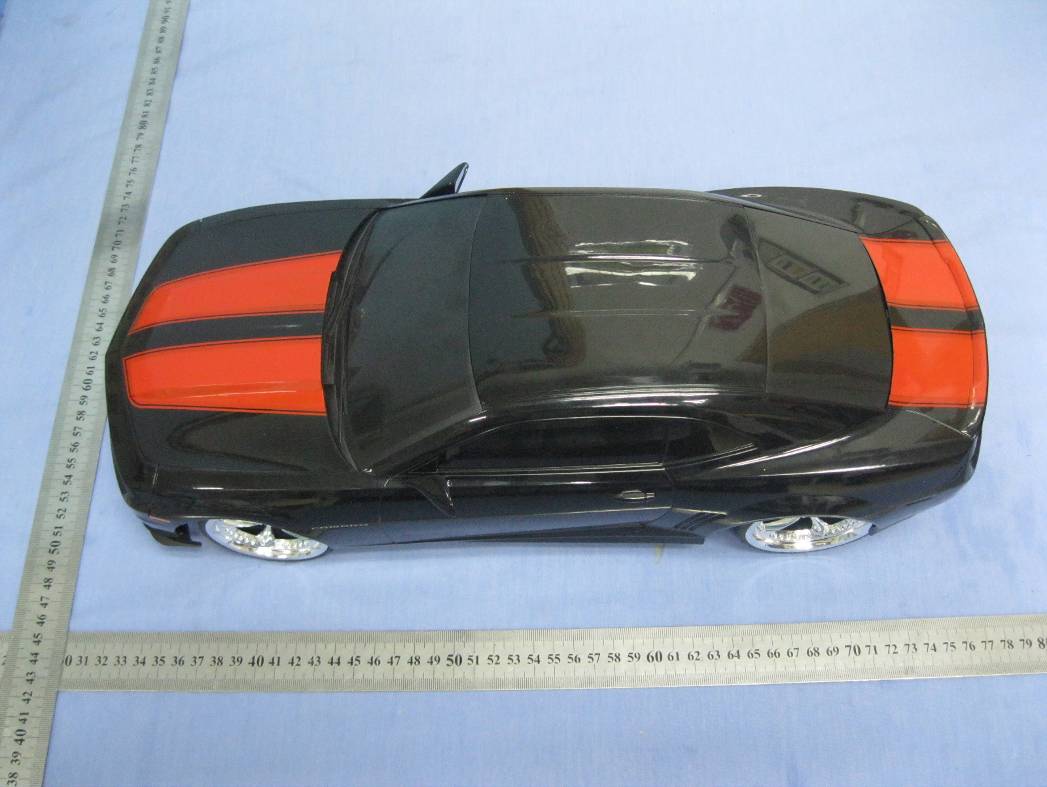

EXTERNAL PHOTOGRAPHS OF EUT View of EUT-1 View of EUT-2

FCC ID : W2MXQ042RX49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Label Location Label Contents Label Size: L45mm*W15mm

INTERNAL PHOTOGRAPHS OF EUT View of EUT-1 View of EUT-2 View of EUT-3

Report No. : EESZE05250010-2 Page 2 of 22 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..........................................................................................3 2. TEST SUMMARY .........................................................................................................3 3. MEASUREMENT UNCERTAINTY ...............................................................................3 4. PRODUCT INFORMATION AND TEST SETUP ..........................................................4 4.1. PRODUCT INFORMATION........................................................................................................................ 4 4.2. TEST SETUP CONFIGURATION.............................................................................................................. 4 5. FACILITIES AND ACCREDITATIONS .........................................................................4 5.1. TEST FACILITY............................................................................................................................................ 4 5.2. TEST EQUIPMENT LIST............................................................................................................................. 4 6. SYSTEM TEST CONFIGURATION...............................................................................6 6.1. JUSTIFICATION........................................................................................................................................... 6 6.2. EUT EXERCISING SOFTWARE................................................................................................................ 6 7. CONDUCTED EMISSION TEST ..................................................................................7 7.1. LIMITS............................................................................................................................................................ 7 7.2. BLOCK DIAGRAM OF TEST SETUP....................................................................................................... 7 7.3. PROCEDURE OF CONDUCTED EMISSION TEST............................................................................... 7 7.4. GRAPHS AND DATA.................................................................................................................................. 8 8. RADIATED EMISSION TEST.....................................................................................10 8.1. LIMITS.......................................................................................................................................................... 10 8.2. BLOCK DIAGRAM OF TEST SETUP ................................................................................................... 10 8.3. PROCEDURE OF RADIATED EMISSION TEST.................................................................................. 10 8.4. GRAPHS AND DATA................................................................................................................................12 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................18 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT ......................................................20 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT .......................................................21 (Note: N/A means not applicable) Report No. : EESZE05250010-2 Page 3 of 22 1. GENERAL INFORMATION Applicant: XQ ARTS TOYS CO., LTD North of Xing Ye Road, Lai Mei Industrial District, Shan Tou, Guang Dong, China Manufacturer: XQ ARTS TOYS CO., LTD North of Xing Ye Road, Lai Mei Industrial District, Shan Tou, Guang Dong, China Equipment Authorization: FCC Part 15 Certification FCC ID: W2MXQ042RX49 Product Name: R/C Toys Trade Name: XQ Model Name: 1:10/12 R/C Toys Serial Number: Not Applicable Report Number: EESZE05250010-2 Date of Test: May 25, 2012 to June 07, 2012 2. TEST SUMMARY The EUT has been tested according to the following specifications: Standard Test Item Test FCC 15.107 Conducted Emission Yes FCC 15.109 Radiated Emission Yes 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted Emission 3.2 Radiated Emission 4.5 Report No. : EESZE05250010-2 Page 4 of 22 4. PRODUCT INFORMATION AND TEST SETUP 4.1. PRODUCT INFORMATION Technical Data: DC 7.2V Adapter information: Model No.: ZX-072050US Input: AC120V 60Hz Output: DC 7.2V 0.5A Product Description: The equipment under test (EUT) is a receiver for a RC Car operating at 49.86 MHz. The EUT is powered by 7.2V DC. The EUT has a power switch. When the power switch is “ON”, the EUT can be controlled to run forward, backward, turning left and right directions by the corresponding controller. Related Submittal(s) Grants: This is a single application for certification of a receiver. The transmitter for this receiveris authorized by Certification procedure with FCC ID: W2MXQ006TX49. 4.2. TEST SETUP CONFIGURATION See test photographs attached in Appendix 1 for the actual connections between EUT and support equipment. Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 5. FACILITIES AND ACCREDITATIONS 5.1. TEST FACILITY All test facilities used to collect the test data are located at Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4, CISPR 16-1-1 and other equivalent standards. 5.2. TEST EQUIPMENT LIST Instrumentation: The following list contains equipments used at CTI for testing. The calibrations of the measuring in…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP-1 RADIATED EMISSION TEST SETUP-2
