W2MXQGS16TX27EXTREME MACHINES 1:16 PRO GRADE R/C

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145 MHz Encoder Control key ANT 27.145MHz U1 128KHz

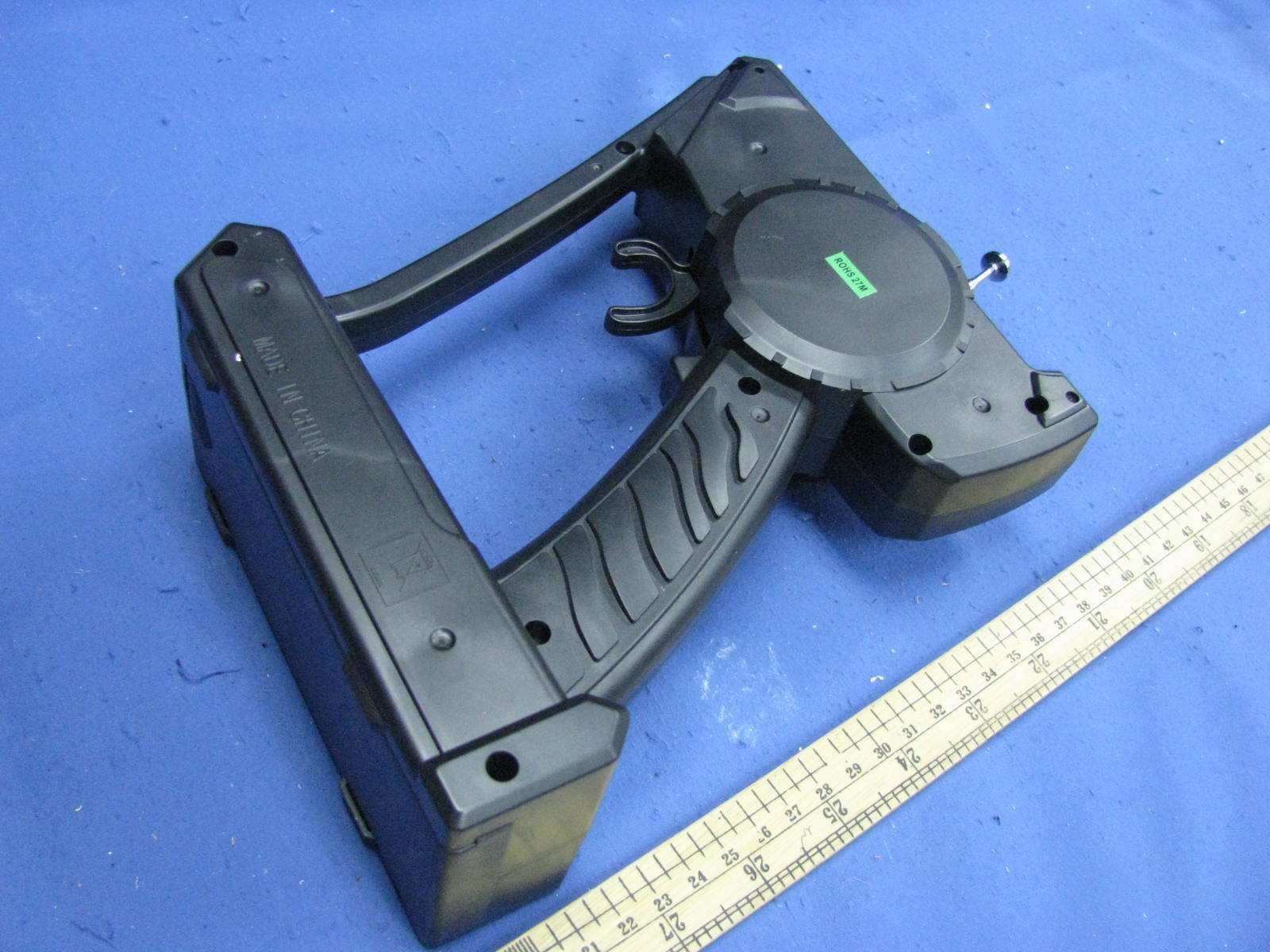

External Photos

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions C1,C2,C3,C4,C5,L3, T1 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q3 Oscillator Generate 27.145 MHz carrier Y1,Q1 Encoder IC Generate code signal to modulator U1 The tri-band is used to select 3 different operation channels with the receiver (RC car). The different channels have different control codes, but with the same operating frequency. Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation

Ref 0 dBmAtt 10 dB * CLRWR A SGL 3DB RBW 3 MHz * VBW 3 MHz *1 PK Center 27.145 MHz30 ms/ SWT 300 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -23.12 dBm 23.400000 ms 1 Delta 1 [T1 ] 1.51 dB 174.000000 ms Ref 0 dBmAtt 10 dB * *1 PK CLRWR A Center 27.145 MHz10 ms/ SGL 3DB RBW 3 MHz SWT 100 ms * VBW 3 MHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -53.35 dBm 5.000000 ms Ref 0 dBmAtt 10 dB * MAXH A SGL TDF * 3DB RBW 3 MHz VBW 3 MHz Center 27.145 MHz2.5 ms/ SWT 25 ms 1 PK -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 Ref 0 dBmAtt 10 dB * CLRWR A SGL 3DB RBW 3 MHz * VBW 3 MHz Center 27.145 MHz1 ms/ SWT 10 ms *1 PK -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -21.02 dBm 2.780000 ms 1 Delta 1 [T1 ] -1.85 dB 300.000000 μs Ref 0 dBmAtt 10 dB * MAXH A SGL TDF * Center 27.145 MHz1 ms/ 3DB RBW 3 MHz VBW 3 MHz SWT 10 ms 1 PK -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -34.79 dBm 2.940000 ms 1 Delta 1 [T1 ] 21.71 dB 1.480000 ms

Ref 0 dBmAtt 10 dB * A * * 3DB RBW 10 kHz VBW 30 kHz SWT 5 ms 1 PK MAXH Start 26.96 MHzStop 27.28 MHz32 kHz/ -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -9.03 dBm 27.145600000 MHz 2 Delta 2 [T1 ] -35.44 dB -185.600000000 kHz 3 Delta 3 [T1 ] -34.98 dB 134.400000000 kHz Date: 9.JUN.2010 20:47:42
