W2MXQTOYS49RX014R/C TOYS

XQ ARTS TOYS CO.LTD. North of Xing Ye Road, Lai Mei Industrial District, Cheng Hai, Shan Tou Guang Dong, China 022311 – 6 Authority to Act as Agent Date: ___April 21, 2011 ______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _______Centre Testing International Corporation 1 _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: ____________ ______ Chen Liang __________________ (Signature 2 ) (Print name) Title: _________ General Manager__________________ On behalf of: ________ XQ ARTS TOYS CO.LTD __________________ (Company Name) Telephone: _______0754-888513333_________ _________ 1 - If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who are authorized to take action on the application; or alternatively a statement must be provided indicating that as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / grantee and take action on the application. See https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=33316 . 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

XQ ARTS TOYS CO.LTD. North of Xing Ye Road, Lai Mei Industrial District, Cheng Hai, Shan Tou Guang Dong, China 091010 – 5 Request for Confidentiality Date: __ April 21, 2011______ Subject: Confidentiality Request for: W2MXQTOYS27TX1, W2MXQTOYS49TX1, W2MXQTOYS49RX014, W2MXQTOYS49RX010 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______ XQ ARTS TOYS CO.LTD ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __90___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _________ _________________ ____ Chen Liang________ (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

FCC ID : W2MXQTOYS49RX014 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Label Location Label Contents Label Size: L64mm*W27mm

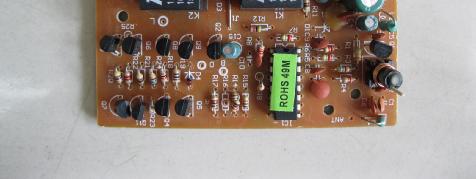

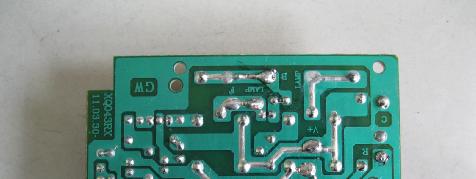

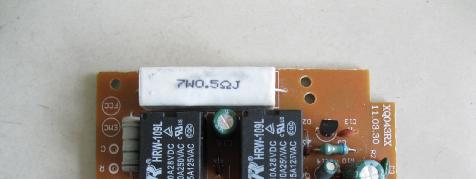

INTERNAL PHOTOS OF EUT

Report No. :EESZD04210006-1 Page 1 of 21 FCC TEST REPORT Product Name : R/C TOYS Trade Name : XQ Model Name : XQ014 49MHz RX(1) FCC ID : W2MXQTOYS49RX014 Serial Number : N/A Technical Data : DC 9.6V Report Number : EESZD04210006-1 Date : May 12, 2011 Regulations : See below Test Standards Results FCC Part 15 Subpart B: 2009 PASS Prepared for: XQ ARTS TOYS CO.LTD. North of Xing Ye Road, Lai Mei Industrial District, Cheng Hai, Shan Tou Guang Dong, China Prepared by: CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Check No.: 30002463 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Report No. :EESZD04210006-1 Page 2 of 21 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION..........................................................................................3 2. TEST SUMMARY........................................................................................................4 3. MEASUREMENT UNCERTAINTY...............................................................................4 4. PRODUCT INFORMATION AND TEST SETUP..........................................................4 5. SYSTEM TEST CONFIGURATION..............................................................................5 5.1. JUSTIFICATION...................................................................................................5 5.2. EUT EXERCISING SOFTWARE..........................................................................5 6. FACILITIES AND ACCREDITATIONS.........................................................................5 7. CONDUCTED EMISSION TEST..................................................................................7 8. RADIATED EMISSION TEST....................................................................................10 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP...........................................................18 APPENDIX 2 PHOTOGRAPHS OF EUT..........................................................................20 (Note: N/A means not applicable) Report No. : EESZD04210006-1 Page 3 of 21 1. GENERAL INFORMATION Applicant: XQ ARTS TOYS CO.LTD. North of Xing Ye Road, Lai Mei Industrial District, Cheng Hai, Shan Tou, Guang Dong, China Manufacturer: XQ ARTS TOYS CO.LTD. North of Xing Ye Road, Lai Mei Industrial District, Cheng Hai, Shan Tou, Guang Dong, China Equipment Authorization: FCC Part 15 (Certification) FCC ID: W2MXQTOYS49RX014 Product Name: R/C TOYS Trade Name: XQ Model Name: XQ014 49MHz RX(1) Serial Number: Not Applicable Report Number: EESZD04210006-1 Date of Test: April 21, 2011 to May 12, 2010 The results of this test report are only valid for the mentioned equipment under test. The test report with all its sub-reports, e.g. tables, photographs and drawings, is copyrighted. Unauthorized utilization, especially without permission of the test laboratory, is not allowed and punishable. For copying parts of the test report, a written permission by the test laboratory is needed. The test results of this report relate only to the tested sample identified in this report. Prepared by : Gavin Song Reviewed by : Louisa Lu Approved by : Date : May 12, 2011 Report No. : EESZD04210006-1 Page 4 of 21 2. TEST SUMMARY The EUT has been tested according to the following specifications: Standard Test Item Test FCC 15.107 Conducted Emission Yes FCC 15.109 Radiated Emission Yes 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted Emission 2.7 Radiated Emission 4.4 4. PRODUCT INFORMATION AND TEST SETUP 4.1. PRODUCT INFORMATION Technical Data: DC 9.6V Adapter information: Model No. :YXD09602501-18 Input : AC120V 60Hz 90mA Output: 9.6V DC 250mA Product Description: The equipment under test (EUT) is a receiver for a RC Car operating at 49.86 MHz. The EUT is powered by 9.6V DC (1.2V×8AA rechargeable battery). The EUT has a power switch. When the power switch is “ON”, the EUT can be controlled to run forward, backward, turning left and right directions by the corresponding controller. Related Submittal(s) Grants: This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure with FCC ID: W2MXQTOYS49TX1. 4.2. TEST SETUP CONFIGURATION See test photographs attached in Appendix 1 for the actual connections between EUT and support equipment. Report No. : EESZD04210006-1 Page 5 of 21 Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 5. SYSTEM TEST CONFIGURATION 5.1. JUSTIFICATION The system was configured for testing in a typical fashion (as a customer would normally use it), The EUT was placed on a turn table, which enabled the engineer to maximize emissions through its placement in the three orthogonal axes in receiving mode and in the confines as outlined in ANSI C63.4 (2003). The EUT was powered by 9.6V DC (1.2V×8AA rechargeable battery) during test. For maximizing emissions, the EUT was rotated through 360°, the antenna height was varied from 1 meter to 4 meters above the ground plane, and the antenna polarization was changed. The unit was operated standalone and placed in the center of the turntable when it works in receiving mode and placed at the rear edge of the turntable when it works in charging mode (please see the setup photo). All readings are extrapolated back to the equivalent three meter reading using inverse scaling with dista…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS TEST SETUP OF CONDUCTED EMISSION TEST SETUP OF RADIATED EMISSION TEST SETUP OF RADIATED EMISSION
