Ersteller: U. Rodemeier Revision: 04 Erstelldatum: 03.08.01 Datum: 11.05.07 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: Jul. 13, 2010 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: W2MXQTOYSTX72 ; W2MXQTOYSRX96 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Block • Schematics • Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company: Centre Testing International address : Bldg. C, Hongwei Industrial Park, Block 70, Bao’an District, Shenzhen, Guangdong, China Signature : ____________________________ Job Title and Dept. :Project Engineer, EMC

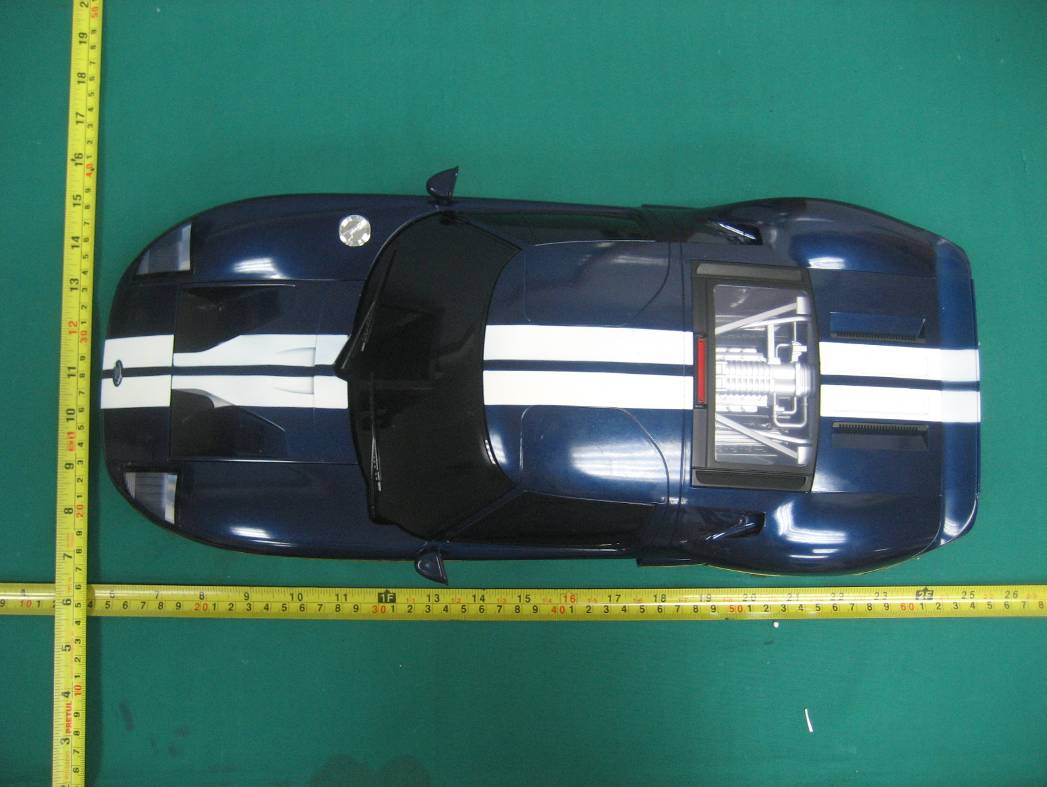

Report No. SZEE100630420232-2 Page 9 of 12 APPENDIX 2 EXTERNAL PHOTOS OF EUT View of EUT-1 View of EUT-2

Report No. SZEE100630420232-2 Page 10 of 12 APPENDIX 3 Internal PHOTOS OF EUT Uncovered View of EUT-1 Uncovered View of EUT-2 Report No. SZEE100630420232-2 Page 11 of 12 Uncovered View of EUT-3 Uncovered View of EUT-4 Report No. SZEE100630420232-2 Page 12 of 12 Uncovered View of EUT-5 ------- End of report -------

Report No. SZEE100630420232-2 Page 1 of 12 FCC CLASS B CONFORMITY REPORT Product Name : R/C Toys Trade Name : 1:10 Model Number : XQ FCC ID W2MXQTOYSRX96 Report Number : SZEE100630420232-2 Date : Jul. 13, 2010 Prepared for: XQ arts toys CO.,LTD, Laimei Industrial Distriet, Chenhai, Shantou City, Guangdong Province, China TEL:+86-754-8551 3333-2121 FAX: +86-754-8551 1888 Prepared by: CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results FCC Part 15B: 2009 PASS Report No. SZEE100630420232-2 Page 2 of 12 TABLE OF CONTENTS Description Page 1. CERTIFICATION OF CONFORMITY ...........................................................................3 2. TEST SUMMARY .........................................................................................................4 3. MEASUREMENT UNCERTAINTY ...............................................................................4 4. PRODUCT INFORMATION ..........................................................................................4 5. FACILITIES AND ACCREDITATIONS .........................................................................4 6. FCC RADIATED EMISSION TEST ..............................................................................5 6.1 LIMITS OF FCC RADIATED EMISSION TEST..........................................................5 6.2 BLOCK DIAGRAM OF TEST SETUP ........................................................................5 6.3 PROCEDURE OF RADIATED EMISSION TEST......................................................5 6.4 TEST RESULT OF RADIATED EMISSION TEST.....................................................6 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP..............................................................8 APPENDIX 2 EXTERNAL PHOTOS OF EUT .....................................................................9 APPENDIX 3 INTERNAL PHOTOS OF EUT ....................................................................10 Report No. SZEE100630420232-2 Page 4 of 12 2. TEST SUMMARY The EUT has been tested according to the following specifications: EMISSION Standard Test Type ResultRemark FCC Part 15 Radiated emission PASS See clause 6 in this report 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Value Radiated emission 4.6 dB 4. PRODUCT INFORMATION Technical Data: DC 7.2V 5. FACILITIES AND ACCREDITATIONS 5.1 TEST FACILITY All measurement facilities used to collect the measurement data are located at Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China. The sites are constructed in conformance with the requirements of ANSI C63.4, and CISPR 16. 5.2 TEST EQUIPMENT LIST Instrumentation: The following list contains equipments used at CTI for testing. The calibrations of the measuring instruments, including any accessories that may effect such calibration, are checked frequently to assure their accuracy. Adjustments are made and correction factors applied in accordance with instructions contained in the manual for the measuring instrument. Equipment used during the tests: 3M Semi-anechoic Chamber — Radiation Test Site Equipment Type Manufacturer Model Number Serial Number Due Date 3M Chamber & Accessory Equipment ETS-LINDGRENFACT-3 3510 10/16/2011 Spectrum Analyzer Agilent E4440A MY46185649 04/09/2011 Biconilog Antenna ETS-LINGREN 3142C 00044562 07/31/2011 Multi device Controller ETS-LINGREN 2090 00057230 08/25/2010 Report No. SZEE100630420232-2 Page 5 of 12 5.3 LABORATORY ACCREDITATIONS AND LISTINGS The measuring equipment utilized to perform the tests documented in this report has been calibrated once a year or in accordance with the manufacturer's recommendations, and is traceable under the ISO/IEC/EN 17025 to international or national standards. Equipment has been calibrated by accredited calibration laboratories. 6. FCC RADIATED EMISSION TEST 6.1 LIMITS OF FCC RADIATED EMISSION TEST Frequency (MHz) Distance (m) Maximum Field Strength Limit** (dBuV/m Q.P.) 30-88 3 40.0 88-216 3 43.5 216-960 3 46.0 Above 960 3 54.0 Note: the tighter limit applies at the band edges. 6.2 BLOCK DIAGRAM OF TEST SETUP For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. 6.3 PROCEDURE OF RADIATED EMISSION TEST a. The EUT was placed on the top of a turntable 0.8 meters above the ground in the chamber, 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. The table was rotated 360 degrees and the broadband antenna is varied from one to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna were set to make the measurement. Report No. SZEE100630420232-2 Page 6 of 12 b. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the turn table was turned from 0 degrees to 360 degrees to find the maximum reading. c. The test frequency analyzer system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 6.4 TEST RESULT OF RADIATED EMISSION TEST EUT : R/C Toys Voltage : DC 7.2V M/N : 1:10 Temperature : 23°C Mode : NORMAL Humidity : 60% Frequency = Emission frequency in MHz Reading level = Uncorrected frequency analyzer reading Correct Factor = Correction factors of antenna factor and cable loss Measurement = Reading level + Corre…

Text truncated - open the document above for the full version.

TEST SETUP OF RADIATED EMISSION
