W2STLG13UA06HED Wireless-GS UART Adapter

Characteristic Interface  2*4 pins of Interface: HDR254M-2X4  The range of baud rate: 1200~ 115200bps  RTS / CTS Hardware flow control  single 3.3V power supply Wireless  support IEEE802.11b/g wireless standards  support the range of frequency: 2.412~2.462 GHz  support two types of wireless networks: Ad hoc and Infrastructure  support multiple security authenti- cation mechanisms: WEP64/WEP128/ TKIP/CCMP(AES)WEP /WPA-PSK/WPA2-PSK  support quick networking  support wireless roam Others  support multiple network protocols: TCP/UDP/ICMP/DHCP/DNS/HTTP  support two types of work modes: auto and command  Support transparent transmission mode  support AT+ instruction set summarize TLG13UA06 is a new generation embedded Uart-Wifi modules studied by CEC Huada Electronic Design Co., Ltd. Uart-Wif is an embedded module based on the Uart serial,according with the WiFi wireless WLAN standards, It accords with IEEE802.11 protocol stack and TCP / IP protocol stack，and it enables the data conversion between the user serial and the wireless network module. through the Uart-Wifi module, the traditional serial devices can easily access to the wireless network. TLG13UA06, more functional and more convenient t, main features include:  Support transparent transmission of serial completely,and achieve a plug and play serial  Support new AT+instruction set  Lower consumption  Smaller size  Soft AP  Support more perfect TCP/IP protocol tack, support DHCP protocol for dynamic assignation of IP address and DNS domain name parsing.  Embed WEB server, and achieve the long-range parameters configur -ation through wireless network with IE browser.  Support more prefect transmission performance,the maximum sending rate can reach to 11KB/s.  support a variety of parameters configuration methods: Serial/Web server/Wireless connection Application  intelligent bus network, such as wireless credit card machine  small financial payment network, such as wireless POS machine  industrial equipment networking, such as wireless sensor Contents 1 INTRODUCTION .................................................................................................................................................... 4 2 QUICK START WIZARD ....................................................................................................................................... 6 2.1 PREPARATION ....................................................................................................................................................... 6 2.2 SETTING PARAMETERS ........................................................................................................................................... 6 2.3 TESTING ................................................................................................................................................................ 8 3 CONFIGURATION MANAGEMENT MANUAL ............................................................................................... 10 3.1 CONFIGURATION THROUGH CONFIGURATION MANAGEMENT SOFTWARE ............................................................. 10 3.1.1 Introduction............................................................................................................................................... 10 3.1.2 Module management ................................................................................................................................. 10 3.1.3 Configuring parameter ............................................................................................................................. 12 3.1.4 Function test ............................................................................................................................................. 16 3.1.5 System information ................................................................................................................................... 25 3.1.6 Firmware upgrade .................................................................................................................................... 25 3.2 CONFIGURATION THROUGH WEB SERVER ........................................................................................................... 26 3.2.1 Query/set configuration parameter ........................................................................................................... 27 3.2.2 Firmware upgrade on line ........................................................................................................................ 28 3.3 CONFIGURATION THROUGH SUPER TERMINAL PROGRAM ..................................................................................... 28 1 Introduction TLG13UA06 is a new generation embedded Uart-Wifi modules studied by CEC Huada Electronic Design Co., Ltd (here in after referred to as HED). Uart-Wifi is an embedded module based on the Uart, according with the WiFi wireless WLAN standards, It accords with IEEE802.11 protocol stack and TCP / IP protocol stack，and it enables the data conversion between the serial device and the wireless network module. Through the Uart-Wifi module, the traditional serial devices can easily access to the wireless network. TLG13UA06 does a comprehensive hardware and software upgrades based on the products of the earlier generations, now it’s more functional and more convenient to use, its main features include: Interface:  2*4 pins of Interface: HDR254M-2X4  The range of baud rate: 1200~115200bps  RTS / CTS Hardware flow control  single 3.3V power supply Wireless  support IEEE802.11b / g wireless standards  support the range of frequency: 2.412~2.462 GHz  support two types of wireless networks: Ad hoc and Infrastructure  support multiple security authentication mechanisms: WEP64/WEP128/ TKIP/CCMP(AES) WEP/WPA-PSK/WPA2-PSK  support quick networking  support wireless roam Others  support multiple network protocols TCP/UDP/ICMP/DHCP/DNS/HTTP  support two types of w…

Text truncated - open the document above for the full version.

信达电子技术(深圳)有限公司 SinTek Laboratory Co.,Ltd. TEL: 0755-27608353; 27604866; 27607544 FAX: 0755-27608359 Test Lab Attestation Letter This attestation is to confirm that the below listed device was tested at our Test Facilities located at: Test Lab Name: Test Lab Address: Test Lab Registration Number: Date of Test: Test Report Number: Applicant Name: FCC ID: Name of Engineer(s) Performing Test: Company Name of Engineer(s) Performing Test: SinTek Laboratory Co., Ltd. No.7, Xinshidai Industrial, Guantian Village,,Shiyan Town, Bao’an District, Shenzhen, Guangdong, 518108 China 963441 May 28~June 3, 2013 KSZ2013051402J CEC Huada Electronic Design Co., Ltd. W2STLG13UA06 Eric Guo Ke Mei Ou Laboratory Co., Ltd. TEST LABORATORY: Signature of Authorized Representative of the Test Laboratory: Full Contact Name: Salon Ouyang Position/Title: Manager Address:深圳宝安区石岩镇官田村新时代工业区

CEC Huada Electronic Design Co., Ltd. Floor 5 & 6, Building A, Wangjing Science and Technology Park，No.2.,Lizezhonger Rd. Chaoyang District, Beijing,100102, P.R.China Date: 07/09/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, CEC Huada Electronic Design Co., Ltd., hereby authorize Apollo Liu (Ke Mei Ou Laboratory Co., Ltd.) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (05/14/2013 to 05/14/2014). Sincerely, Yours sincerely, Company Officer: Ms. Gao Ning Telephone Number: 010-64365577-3451

CEC Huada Electronic Design Co., Ltd. Floor 5 & 6, Building A, Wangjing Science and Technology Park，No.2.,Lizezhonger Rd. Chaoyang District, Beijing,100102, P.R.China Date: 07/09/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: W2STLG13UA06 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, CEC Huada Electronic Design Co., Ltd., hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Ms. Gao Ning Telephone Number: 010-64365577-3451

EUT top view EUT bottom view

The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: W2STLG13UA06

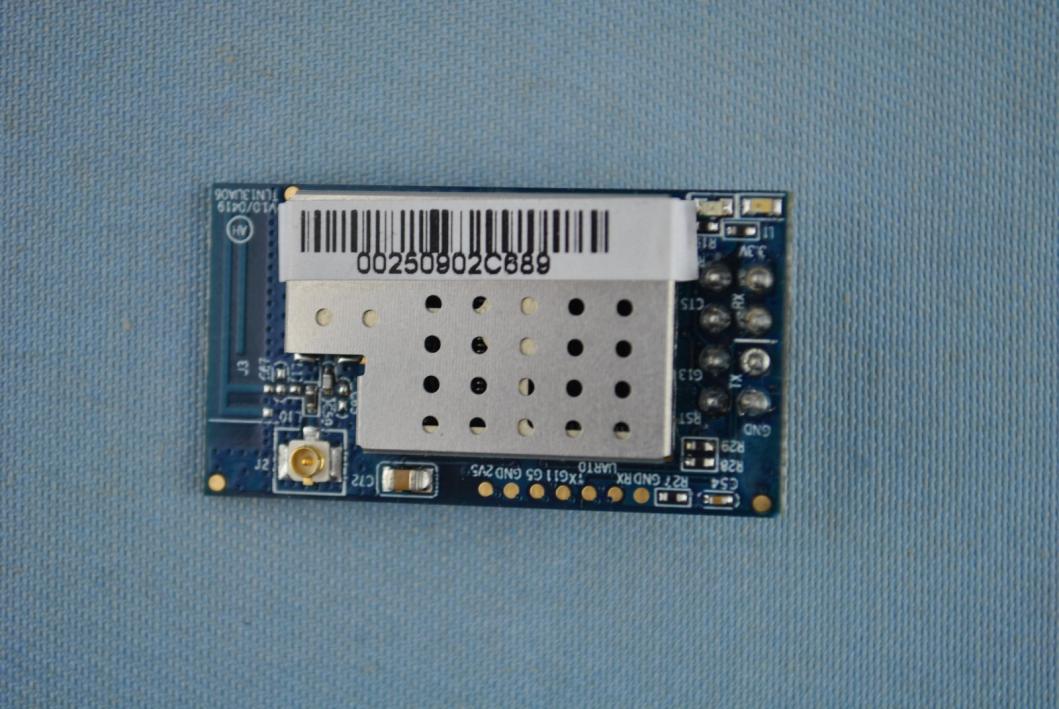

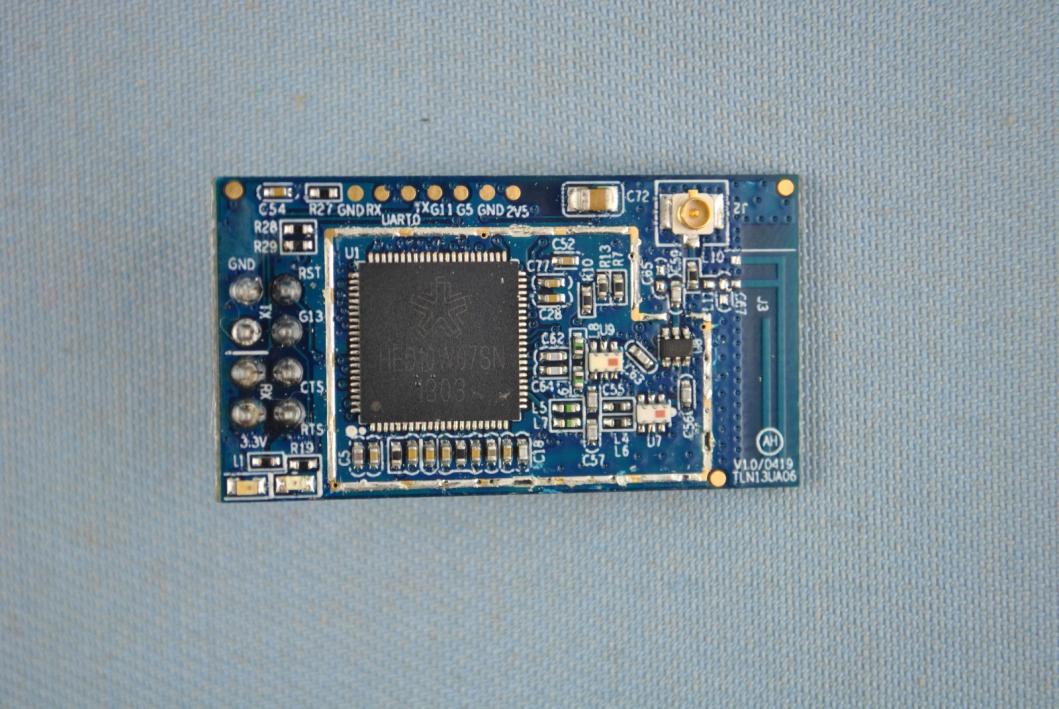

Main & RF board component side Main & RF board solder side

7. RF Exposure Requirements 7. 1 Test Equipment Please refer to Section 10 this report. 7. 2 Limit According to FCC 15.247(i), Systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commissions guidelines. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b)(1) of this chapter. 7. 3 Test Result Product HED Wireless-GS UART Adapter Test Mode : IEEE 802.11b/g Test Item : RF Exposure Temperature : 25 °C Test Voltage : DC 3.3V(by DC power supply) Humidity : 56%RH Test Result : PASS Evaluation of RF Exposure Compliance Requirements MPE Prediction of MPE according to equation from page 19 of OET Bulletin 65, Edition 97-01 RF Exposure Requirements Compliance with FCC Rules S=PG/4∏R2 Where: S=Power density P=Power input to antenna G=Power gain of the antenna relative to an isotropic radiator R=Distance to the center of radiation of the antenna Maximum output power at antenna input terminal: 16.64 dBm = 46.13 mW (802.11b/g, 2437MHz) Prediction distance: 20 cm Antenna gain : 0.0 dBi MPE limit for uncontrolled exposure at prediction frequency: 1.0 mW/cm 2 Power density at 20 cm: Antenna: 0.009178 mW/cm 2

The test report consists 38 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.247 Operating in 2400 ~ 2483.5 MHz Band Prepared For : CEC Huada Electronic Design Co., Ltd. Floor 5 & 6, Building A, Wangjing Science and Technology Park，No.2.,Lizezhonger Rd. Chaoyang District, Beijing,100102, P.R.China FCC ID: W2STLG13UA06 EUT: HED Wireless-GS UART Adapter Model: TLG13UA06 July 17, 2013 Issue Date: Original Report Report Type: Test Engineer: Eric Guo Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. E506, 5th Floor, No.39 Keji Middle 2nd Rd, Science & Technology Park, Nanshan District, Shenzhen, P. R. China Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com CEC Huada Electronic Design Co., Ltd. FCC ID: W2STLG13UA06 KMO FCC ID Report Report #: KSZ2013051402J Page 2 of 38 TABLE OF CONTENTS 1. General Information ........................................................................................................................................................... 3 1. 1 Notes ............................................................................................................................................................................... 3 1. 2 Testing Laboratory .......................................................................................................................................................... 3 1. 3 Details of Applicant ........................................................................................................................................................ 3 1. 4 Application Details ......................................................................................................................................................... 3 1. 5 Test Item ......................................................................................................................................................................... 3 1. 6 Test Standards ................................................................................................................................................................. 3 2. Technical Test ....................................................................................................................................................................... 4 2. 1 Summary of Test Results ................................................................................................................................................ 4 2. 2 Antenna Requirement ..................................................................................................................................................... 4 3. EUT Modifications .............................................................................................................................................................. 4 4. Conducted Power Line Test ................................................................................................................................................ 5 4. 1 Test Equipment ............................................................................................................................................................... 5 4. 2 Test Procedure ................................................................................................................................................................ 5 4. 3 Test Setup ....................................................................................................................................................................... 5 4. 4 Configuration of the EUT ............................................................................................................................................... 6 4. 5 EUT Operating Condition ............................................................................................................................................... 8 4. 6 Conducted Power Line Emission Limits ........................................................................................................................ 8 4. 7 Conducted Power Line Test Result ................................................................................................................................. 9 5. FCC Part 15.247 Requirements for 802.11b/g Systems ................................................................................................... 11 5. 1 Test Equipment ..............................................................................................................................................................11 5. 2 Test Procedure ...............................................................................................................................................................11 5. 3 Test Setup ......................................................................................................................................................................11 5. 4 Configuration of the EUT ..............................................................................................................................................11 5. 5 EUT Operating Condition ..............................................................................................................................................11 5. 6 Limit ............................................................................................................................................................................. 12 5. 7 Test Result .................................................................................................................................................................... 13 6. Transmitter Spurious Radiated Emission at 3 Meters .....…

Text truncated - open the document above for the full version.

Conducted emission test view Radiated emission test view
