W3QWIFIHDDJEWWi-Fi HDD

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. The SAR data in this filing is applicable to demonstrate compliance for body operating conditions and is limited to the specific configuration all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions tested for this filing. SAR has been evaluated at 0 mm. This de vice complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Wi-Fi HDD

RF_160, Issue 02 Declaration of Authorization We Name: Dexxon Data Media Address: 79 av Louis Roche 92238, Gennevilliers, France City: Gennevilliers Country: France Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Wi-Fi HDD Type designation: Wi-Fi HDD/P600 Trademark: EMTEC on our behalf. Date: 2014-7-25 City: Gennevilliers Name: Benoit Commin Function: Technical Director Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Dexxon Data Media Address: 79 av Louis Roche 92238, Gennevilliers, France City: Gennevilliers Country: France To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: W3QWIFIHDDJEW Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014-7-25 Name and signature of applicant: Benoit Commin Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Autho Rules criteri Subp a Equi p Mode Brand Appli Addr Stan d Rep o The t was(w accre techn samp orized unde s. The produ a limits Clas art B, estab pment el Name d Name icant ress dard(s) ort(s) test data, d were) obta edited by th nical standa ple and item C r Declaratio uct listed in ss B of cond blished by th Wi-Fi HDD Wi-Fi HDD EMTEC Dexxon D 79 avenu e FCC Part ANSI C63 BTL-FCC E ata evaluat ined utilizin e Authority ard(s). The t m(s) tested. CERTIF on of Confo follows was ducted and he FCC, US D D/P600 ata Media e Louis Roc 15, Subpar .4-2009 E-1-1407C0 tion, and eq ng the tes y of TAF ac test data co A B1, No.3 NeiHu T F IFICAT ormity acco s (were) tes radiated e m SA. che 92238, rt B: 2013 061 quipment co t procedure cording to t ontained in Andy Authorized BTL 37, Lane 36 u District 114 TEL:+886-2 FAX:+886-2 ATE OF rding to 47 ted in the B missions of ,Gennevilli onfiguration es, test in the ISO-17 the refere n Chiu d Signatory INC. 65, Yang Gu 4., Taipei, T 2-2657-3299 2-2657-3331 F COM CFR, Part BTL EMC La the Technic ers Cedex n contained struments, 025 qualit y nced test re y uang St., Taiwan 9 1 MPLIA t 2 and Par aboratory to cal Standar France in our test test sites y assessme eport relate ANCE rt 15 of the o comply wit rds FCC Pa report(s) a that has ent standard only to the FCC th the rt 15, above been d and EUT

44.6 mm 19.6 mm FCC ID: W3QWIFIHDDJEW Label location

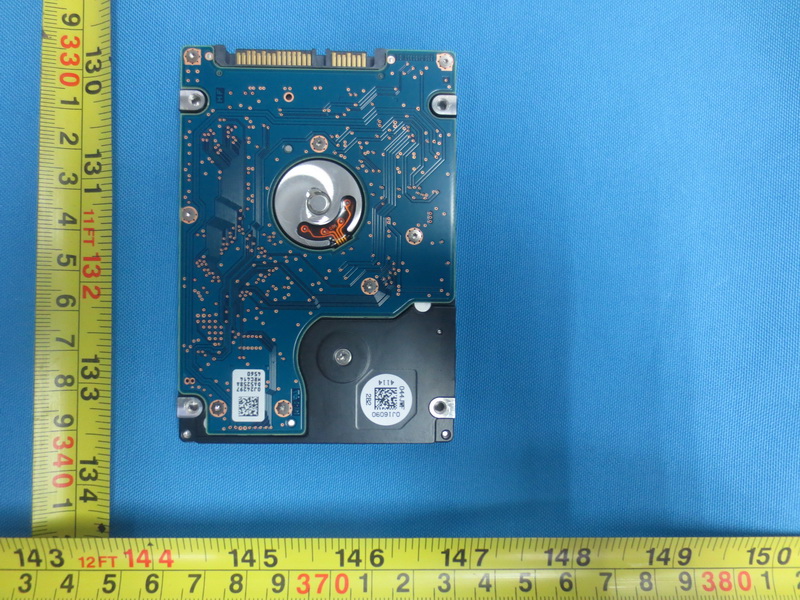

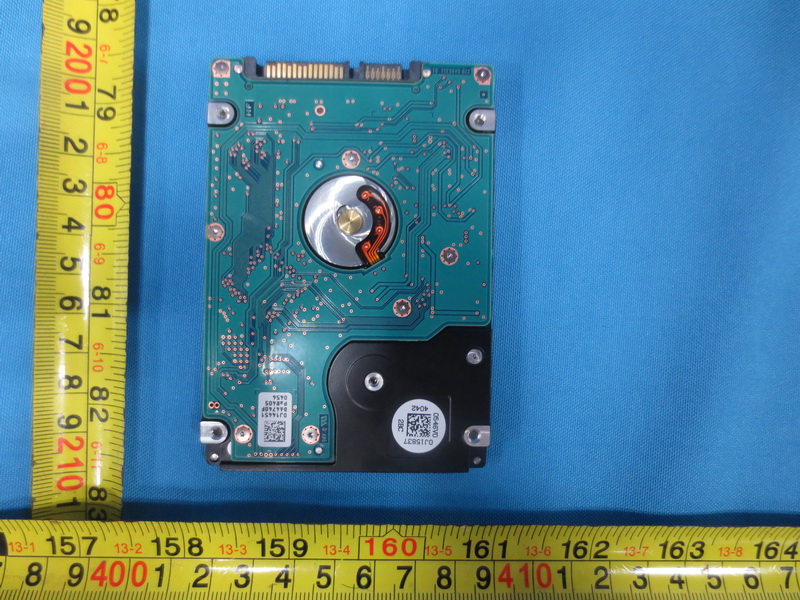

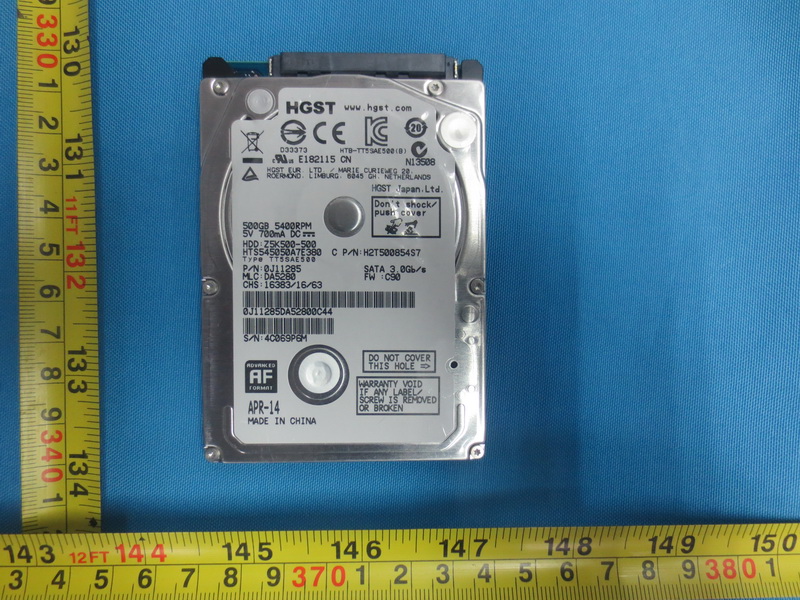

Project No.: 1407C061 Page 4 of 1 0 Project No.: 1407C061 Page 5 of 1 0 Project No.: 1407C061 Page 6 of 1 0 Project No.: 1407C061 Page 7 of 1 0 Project No.: 1407C061 Page 8 of 1 0 HGST / HTS541010A9E680 Project No.: 1407C061 Page 9 of 1 0 HGST / HTS545050A7E380 Project No.: 1407C061 Page 10 of 1 0 Seagate / ST500LT012

Report No.: BTL-FCC-SAR-1407C061 Page 1 of 62 FCC SAR Test Report FCC ID: W3QWIFIHDDJEW Project No. : 1407C061 Equipment : Wi-Fi HDD Model Name : Wi-Fi HDD/P600 Applicant : Dexxon Data Media Address : 79 avenue Louis Roche 92238,Gennevilliers Cedex France Date of Receipt : Jul. 14, 2014 Date of Test : Jul. 14, 2014 ~ Jul. 22, 2014 Issued Date : Jul. 24, 2014 Tested by : BTL Inc. Testing Engineer : ( Super Jiang) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) B T L I N C . No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCC-SAR-1407C061 Page 2 of 62 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML), or National Institute of Standards and Technology (NIST) . BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCC-SAR-1407C061 Page 3 of 62 Table of Contents Page 1 . GENERAL SUMMARY 6 2 . RF EMISSIONS MEASUREMENT 7 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 THE MAXIMUM SAR 1G VALUES 9 3.3 LABORATORY ENVIRONMENT 9 3.4 MAIN TEST INSTRUMENTS 10 4 . SAR MEASUREMENTS SYSTEM CONFIGURATION 11 4.1 SAR MEASUREMENT SET-UP 11 4.2 DASY5 E-FIELD PROBE SYSTEM 12 5 . TISSUE-EQUIVALENT LIQUID 19 5.1 TISSUE-EQUIVALENT LIQUID INGREDIENTS 19 5.2 TISSUE-EQUIVALENT LIQUID PROPERTIES 19 6 . SYSTEM CHECK 20 6.1 DESCRIPTION OF SYSTEM CHECK 20 6.2 DESCRIPTION OF SYSTEM CHECK 21 7 . OPERATIONAL CONDITIONS DURING TEST 22 7.1 GENERAL DESCRIPTION OF TEST PROCEDURES 22 7.2 TEST POSITION 22 7.2.1 TEST POSITION REQUIREMENTS 22 7.2.2 SAR TEST REDUCTION AND EXCLUSION GUIDANCE 22 8 . TEST RESULT 25 8.1 CONDUCTED POWER RESULTS 25 8.2 SAR TEST RESULTS 27 APPENDIX 28 1. TEST LAYOUT 28 2. SYSTEM CHECK RESULTS 29 3. GRAPH RESULTS 30 4. PROBE CALIBRATION CERTIFICATE 36 Report No.: BTL-FCC-SAR-1407C061 Page 4 of 62 Table of Contents Page 5. (1) D2450V2 DIPOLE CALIBRATION CERTIFICATE 47 6. DAE4 CALIBRATION CERTIFICATE 55 7. EUT TESTING POSITION AND ANTENNA LOCATION 60 Report No.: BTL-FCC-SAR-1407C061 Page 5 of 62 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCC-SAR-1407C061 Original Issue. Jul. 24, 2014 Report No.: BTL-FCC-SAR-1407C061 Page 6 of 62 1. GENERAL SUMMARY Equipment Wi-Fi HDD Model Name Wi-Fi HDD/P600 Brand Name EMTEC Model Difference N/A Power Source #1 Supplied from PC USB port. #2 Supplied from Li-ion Battery. Power Rating #1 I/P: 5V 1.5A #2 DC 3.7V 3000mAh Manufacturer Dexxon Data Media Address 79 avenue Louis Roche 92238,Gennevilliers Cedex France Standard(s) FCC 47CFR §2.1093 Radio frequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1999 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1999) IEEE 1528 2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB 248227 D01 v01r02 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters KDB 447498 D01 General RF Exposure Guidance v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies. KDB 865664 D01 SAR measurement 100 MHz to 6GHz v01r03: SAR Measurement Requirements for 100MHz to 6GHz The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCC-SAR-1407C061 ) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCC-SAR-1407C061 Page 7 of 62 2. RF EMISSIONS MEASUREMENT 2.1 TEST FACILITY The test facilities used to collect the test data in this report is SAR room at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 2.2 MEASUREMENT UNCERTAINTY Uncertainty Conponent Uncertainty Value Probability Distribution Divisor C i (1g) Standard Uncertainty ±1% V i or V eff Measurement System Probe Calibration (k=1) 5.9 Normal 1 1 5.9 ∞ Axial Isotropy 4.7 Rectangular 3 5.0 1.9 ∞ Hemispherical Isotropy 9.6 Rectangular 3 5.0 3.9 ∞ Boundary Effect 1.0 Rectangular 3 1 0.6 ∞ Linearity 4.7 Rectangular 3 1 2.7 ∞ System Detection Limit 1.0 Rectangular 3 1 0.6 ∞ Readout Electronics 0.3 Normal 1 1 0.3 ∞ Response Time 0.8 Rectangular 3 1 0.5 ∞ Integration Time 2.6 Rectangular 3 1 1.5 ∞ RF Ambient Conditions-Noise 3.0 Rectangular 3 1 1.7 ∞ RF Ambient Reflections 3.0 Rectangular 3 1 1.7 ∞ Probe Positioner Mechanical …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1407C061 Page 1 of 124 FCC Radio Test Report FCC ID: W3QWIFIHDDJEW This report concerns (check one): Original Grant Class II Change Project No. : 1407C061 Equipment : Wi-Fi HDD Model Name : Wi-Fi HDD/P600 Applicant : Dexxon Data Media. Address : 79 avenue Louis Roche 92238,Gennevilliers Cedex France. Date of Receipt : Jul. 11, 2014 Date of Test : Jul. 11, 2014 ~ Jul. 28, 2014 Issued Date : Jul. 29, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1407C061 Page 2 of 124 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1407C061 Page 3 of 124 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FCCP-1-1407C061 Page 4 of 124 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 101 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 103 ATTACHMENT H - POWER SPECTRAL DENSITY 116 Report No.: BTL-FCCP-1-1407C061 Page 5 of 124 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1407C061 Original Issue. Jul. 29, 2014 Report No.: BTL-FCCP-1-1407C061 Page 6 of 124 1. CERTIFICATION Equipment : Wi-Fi HDD Brand Name : EMTEC Model Name : Wi-Fi HDD/P600 Applicant : Dexxon Data Media. Manufacturer : Dexxon Data Media. Address : 79 avenue Louis Roche 92238,Gennevilliers Cedex France. Factory : Power7 Technology Co., Ltd. Address : No.28 Binjiang St.Shishuikou Village, Qiaotou Town, Dongguan City. Guang Dong Province PR. China Date of Test : Jul. 11, 2014 ~ Jul. 28, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1407C061) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1407C061 Page 7 of 124 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2013 Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission P…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1407C061 Page 46 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2412MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 47 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2412MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 48 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 49 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 50 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 51 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 52 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2462MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 53 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2462MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 54 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2462MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 55 of 124 Orthogonal Axis : X Test Mode : TX B MODE 2462MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 56 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2412MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 57 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2412MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 58 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2412MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 59 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2412MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 60 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2437MHz Vertical

Report No.: BTL-FCCP-1-1407C061 Page 61 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 62 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 63 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 64 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2462MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 65 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2462MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 66 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2462MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 67 of 124 Orthogonal Axis : X Test Mode : TX G MODE 2462MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 68 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 69 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 70 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 71 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 72 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 73 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 74 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 75 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 76 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 77 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Vertical

Report No.: BTL-FCCP-1-1407C061 Page 78 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 79 of 124 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 80 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 81 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 82 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 83 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 84 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 85 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 86 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 87 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 88 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 89 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Report No.: BTL-FCCP-1-1407C061 Page 90 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 91 of 124 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Report No.: BTL-FCCP-1-1407C061 Page 92 of 124 ATTACHMENT E - BANDWIDTH Report No.: BTL-FCCP-1-1407C061 Page 93 of 124 Test Mode : TX B Mode_CH01/06/11 6dB Bandwidth 99% Occupied BW Min. LimitTest Result (MHz)(MHz)(kHz) 2412 MHz12.1214.55500Complies 2437 MHz12.0714.55500Complies 2462 MHz12.1214.60500Complies Frequency TX CH01 Report No.: BTL-FCCP-1-1407C061 Page 94 of 124 TX CH06 TX CH11 Report No.: BTL-FCCP-1-1407C061 Page 95 of 124 Test Mode: TX G Mode_CH01/06/11 6dB Bandwidth 99% Occupied BW Min. LimitTest Result (MHz)(MHz)(kHz) 2412 MHz16.0616.40500Complies 2437 MHz15.8116.04500Complies 2462 MHz15.8116.40500Complies Frequency TX CH01 Report No.: BTL-FCCP-1-1407C061 Page 96 of 124 TX CH06 TX CH11 Report No.: BTL-FCCP-1-1407C061 Page 97 of 124 Test Mode : TX N-20MHz Mode_CH01/06/11 6dB BandwidthBWMin. LimitTest Result (MHz)(MHz)(kHz) 2412 MHz15.8117.50500Complies 2437 MHz16.1117.45500Complies 2462 MHz15.5117.45500Complies Frequency TX CH01 Report No.: BTL-FCCP-1-1407C061 Page 98 of 124 TX CH06 TX CH11 Report No.: BTL-FCCP-1-1407C061 Page 99 of 124 Test Mode : TX N-40MHz Mode_CH03/06/09 6dB BandwidthBWMin. LimitTest Result (MHz)(MHz)(kHz) 2422 MHz35.2135.60500Complies 2437 MHz35.2135.60500Complies 2452 MHz34.3135.60500Complies Frequency TX CH03 Report No.: BTL-FCCP-1-1407C061 Page 100 of 124 TX CH06 TX CH09 Report No.: BTL-FCCP-1-1407C061 Page 101 of 124 ATTACHMENT F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-1-1407C061 Page 102 of 124 Frequency Conducted Power (dBm) Conducted Power (W) Max. Limit(dBm)Max. Limit(W)Result 2412 MHz15.980.039630.001.00Complies 2437 MHz15.730.037430.001.00Complies 2462 MHz15.270.033730.001.00Complies Test Mode : TX B Mode Frequency Conducted Power (dBm) Conducted Power (W) Max. Limit(dBm)Max. Limit(W)Result 2412 MHz13.550.022630.001.00Complies 2437 MHz13.520.022530.001.00Complies 2462 MHz13.540.022630.001.00Complies Test Mode : TX G Mode Frequency Conducted Power (dBm) Conducted Power (W) Max. Limit(dBm)Max. Limit(W)Result 2412 MHz13.540.022630.001.00Complies 2437 MHz13.370.021730.001.00Complies 2462 MHz13.670.023330.001.00Complies Test Mode : TX N-20M Mode_ANT 1 Frequency Conducted Power (dBm) Conducted Power (W) Max. Limit(dBm)Max. Limit(W)Result 2422 MHz13.630.023130.001.00Complies 2437 MHz13.530.022530.001.00Complies 2452 MHz13.470.022230.001.00Complies Test Mode : TX N-40M Mode_ANT 1 Report No.: BTL-FCCP-1-1407C061 Page 103 of 124 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION Report No.: BTL-FCCP-1-1407C061 Page 104 of 124 Test Mode : TX B Mode TX B mode CH01 TX B mode CH11 Report No.: BTL-FCCP-1-1407C061 Page 105 of 124 TX B mode CH01 (10 Harmonic of the frequency) TX B mode CH06 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 106 of 124 TX B mode CH11 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 107 of 124 Test Mode : TX G Mode TX G mode CH01 TX G mode CH11 Report No.: BTL-FCCP-1-1407C061 Page 108 of 124 TX G mode CH01 (10 Harmonic of the frequency) TX G mode CH06 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 109 of 124 TX G mode CH11 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 110 of 124 Test Mode : TX N-20M Mode TX HT20 mode CH01 TX HT20 mode CH11 Report No.: BTL-FCCP-1-1407C061 Page 111 of 124 TX HT20 mode CH01 (10 Harmonic of the frequency) TX HT20 mode CH06 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 112 of 124 TX HT20 mode CH11 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 113 of 124 Test Mode : TX N-40M Mode TX HT40 mode CH03 TX HT40 mode CH09 Report No.: BTL-FCCP-1-1407C061 Page 114 of 124 TX HT40 mode CH03 (10 Harmonic of the frequency) TX HT40 mode CH06 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 115 of 124 TX HT40 mode CH09 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1407C061 Page 116 of 124 ATTACHMENT H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-1407C061 Page 117 of 124 Test Mode :TX B Mode_CH01/06/11 Frequency Power Density (dBm/3kHz) Power Density (mW/3kHz) Max. Limit (dBm)Result 2412 MHz-12.270.068.00Complies 2437 MHz-12.030.068.00Complies 2462 MHz-10.660.098.00Complies TX CH01 Report No.: BTL-FCCP-1-1407C061 Page 118 of 124 TX CH06 TX CH11 Report No.: BTL-FCCP-1-1407C061 Page 119 of 124 Test Mode :TX G Mode_CH01/06/11 Frequency Power Density (dBm/3kHz) Power Density (mW/3kHz) Max. Limit (dBm)Result 2412 MHz-12.290.068.00Complies 243…

Text truncated - open the document above for the full version.

Report No.: BTL-FCC-SAR-1407C061 Page 60 of 62 7. EUT Testing Position and Antenna Location Test Position 1 Test Position 2 Report No.: BTL-FCC-SAR-1407C061 Page 61 of 62 Test Position 3 Test Position 5

Report No.: NEI-FCCP-1-1407C061 Page 27 of 128 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: NEI-FCCP-1-1407C061 Page 28 of 128 Radiated Measurement Photos 9KHz to 30MHz Report No.: NEI-FCCP-1-1407C061 Page 29 of 128 Radiated Measurement Photos 30MHz to 1000MHz Report No.: NEI-FCCP-1-1407C061 Page 30 of 128 Radiated Measurement Photos Above 1000MHz
