W3TM8811CU5WiFi BL-M8811CU5

FCC 15.19 Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC 15.105Warning (a) For a Class A digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC 15.21 Warning Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This device and itsantenna must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Modular Approval OEM INTEGRATION INSTRUCTIONS: This device is intended only for OEM integrators under the following conditions: 1) The module must be installed in the host equipment such that 20 cm is maintained between the antenna and users, and 2) the transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. USERS MANUAL OF THE END PRODUCT: The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: W3TM8811CU5 ". The following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Warning RSS-Gen Issue 4 8.4 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Industry Canada ICES-003 Compliance Label: CAN ICES-3 (A)/NMB-3(A) Co-located This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Cet appareil et son antenne (s) ne doivent pas être situés ou fonctionner en conjonction avec une autre antenne ou émetteur. This radio transmitter (26044-M8811CU5) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. (i)the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (For devices installed in vehicles point i. is not required.) (ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; (iii) for devices with det…

Text truncated - open the document above for the full version.

DTS‐UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : W3TM8811CU5 (1) DFS Device -- Master, Client with Radar detection capability, Client without radar detection capability, N/A (2) Active / Passive Scanning , Ad hoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412-2462 Yes, No Yes, No Yes, No Yes, No 2422-2452 Yes, No Yes, No Yes, No Yes, No 5180-5240 Yes, No Yes, No Yes, No Yes, No 5260-5320 Yes, No Yes, No Yes, No Yes, No 5500-5700 Yes, No Yes, No Yes, No Yes, No 5745-5825 Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes, No If yes, pls explain how it was implemented: (pls also help to provide detail of options for each country selection) (4) Meet 15.202 requirement - Yes, No , Pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices. A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply, No Apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) (6) Please help to provide justification how device was restricted to operate in 5600-5650MHz in below. The frequency bands of 5600-5650MHz is disabled in the frequency table, so the DVR wireless transmitter will not be operated in 5600-5650MHz. _________________________ Fleetmind Seon Solutions Inc Matthew Thompson / Engineering Manager Phone: 604 941 0880 E-Mail: [email protected]

Cover Letter-Modular Approval FCC ID: W3TM8811CU5 Date: May 7, 2020 Gentlemen: There’s a WiFi BL-M8811CU5 that would like to have your authorization as a modular approval. The specific product as below, WiFi BL-M8811CU5 with its designed features and specified description, meets special requirements for Full modular approval on FCC KDB996369 by cross-reference list below. Company Fleetmind Seon Solutions Inc Equipment Name WiFi BL-M8811CU5 Model Number WiFi BL-M8811CU5 FCC ID W3TM8811CU5 Requirement of FCC KDB996369 Comply（Y/N） 1. The modular tansmitter must have its own RF shielding. Y The EUT provides the RF shielding. See EUT photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. Y The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during Y The EUT was tested with a test board, Please see test report and setup photo testing. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AKZA-QCA9377” or “Contains FCC ID: 2AKZA-QCA9377” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Y Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure Y The EUT complies with RF exposure requirement. compliance in accordance with Section 15.247(b)(4). Thank you. Sincerely, Fleetmind Seon Solutions Inc Matthew Thompson / Engineering Manager Phone: 604 941 0880 E-Mail: [email protected]

Date: May 7, 2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: W3TM8811CU5 To whom it may concern: We, the undersigned, hereby authorize Kevin Tsai / Deputy Manager of SGS Compliance Certification Services Inc. to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Fleetmind Seon Solutions Inc. This authorization is valid until further written notice from the applicant. Fleetmind Seon Solutions Inc Matthew Thompson / Engineering Manager Phone: 604 941 0880 E-Mail: [email protected]

Date: May 7, 2020 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Fleetmind Seon Solutions Inc Unit 111 - 3B Burbidge Street Coquitlam Canada V3K 7B2 Regarding: Confidentiality Request regarding application for FCC ID: W3TM8811CU5 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Fleetmind Seon Solutions Inc Matthew Thompson / Engineering Manager Phone: 604 941 0880 E-Mail: [email protected]

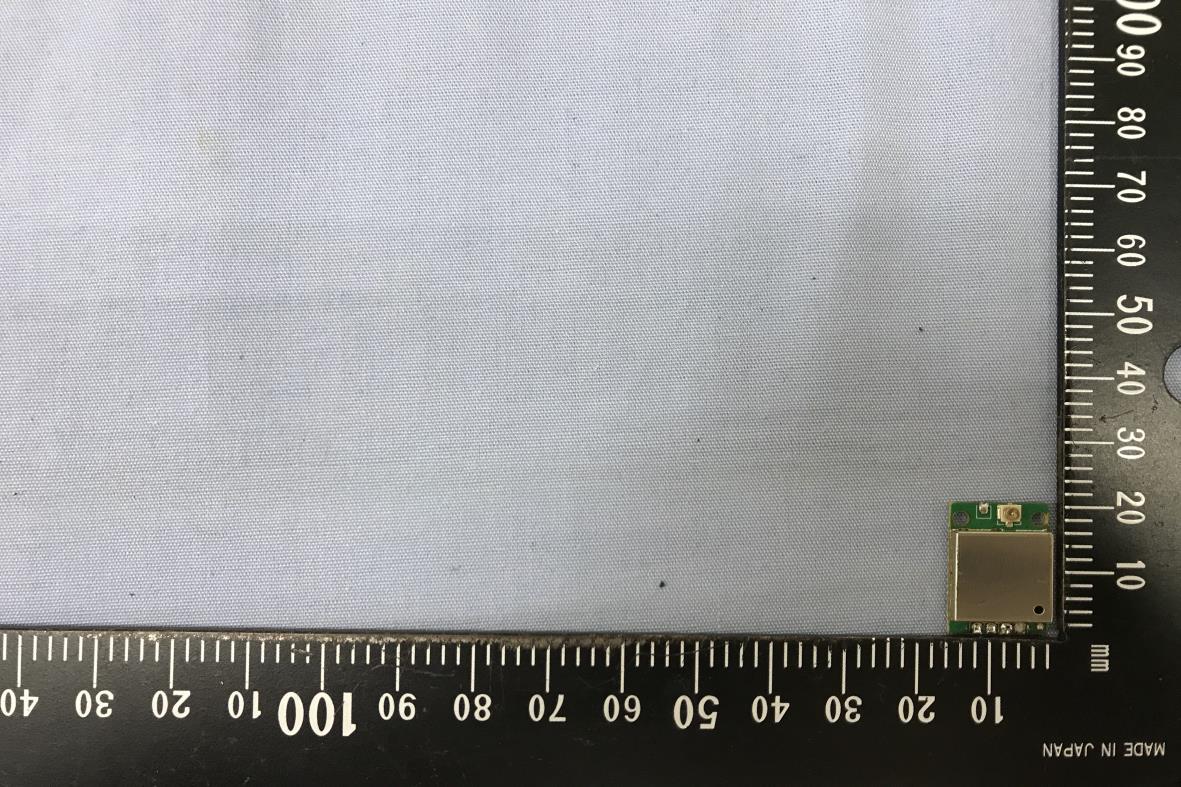

Page: 1 / 4 Report No.: T200316C02 Rev.: 01 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Page: 2 / 4 Report No.: T200316C02 Rev.: 01 Antenna

Label & Label location

Page: 3 / 4 Report No.: T200316C02 Rev.: 01 INTERNAL PHOTOGRAPHS OF EUT Page: 4 / 4 Report No.: T200316C02 Rev.: 01

FCC ID: W3TM8811CU5 Page 1 / 9 Report No.: T200316C02-MF Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For WiFi BL-M8811CU5 Model: WiFi BL-M8811CU5 Trade Name: Safe Fleet Issued to Fleetmind Seon Solutions Inc Unit 111 – 3B Burbidge Street, Coquitlam, BC, V3K 7B2 Canada Issued by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: May 12, 2020 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Page 2 / 9 Report No.: T200316C02-MF Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 12, 2020 Initial Issue ALL Doris Chu Page 3 / 9 Report No.: T200316C02-MF Rev.: 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................ 4 2. LIMIT .................................................................................................................... 5 3. EUT SPECIFICATION .......................................................................................... 6 4. TEST RESULTS................................................................................................... 8 5. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 9 Page 4 / 9 Report No.: T200316C02-MF Rev.: 00 1. TEST RESULT CERTIFICATION We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. APPLICABLE STANDARDS STANDARD TEST RESULT KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 No non-compliance noted Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Approved by: Kevin Tsai Deputy Manager Compliance Certification Services Inc. Page 5 / 9 Report No.: T200316C02-MF Rev.: 00 2. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. Page 6 / 9 Report No.: T200316C02-MF Rev.: 00 3. EUT SPECIFICATION EUT WiFi BL-M8811CU5 Model WiFi BL-M8811CU5 Model Discrepancy N/A Frequency band (Operating) 802.11b/g/n HT20: 2412MHz ~ 2462 MHz 802.11n HT40: 2422MHz ~ 2452MHz 802.11a/n HT20: 5180MHz ~ 5240MHz / 5260 ~ 5320MHz 5500 ~ 5700MHz / 5745MHz ~ 5825MHz 802.11n HT40: 5190MHz ~ 5230MHz / 5270 ~ 5310MHZ 5510 ~ 5670MHz / 5755MHz ~ 5795MHz 802.11ac VHT80: 5210MHz / 5290MHz / 5530MHz / 5775MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Dual Band Omni Antenna 2.4GHz: Directional Gain :4.00 dBi(Numeric gain:2.51) Worst 5GHz: Directional Gain :4.00 dBi(Numeric gain:2.51)Worst Page 7 / 9 Report No.: T200316C02-MF Rev.: 00 Maximum Measurement Average Power 2.4GHz IEEE 802.11b Mode:21.24 dBm(133.045 mW) IEEE 802.11g Mode:16.64 dBm(46.132 mW) IEEE 802.11n HT 20 Mode: 16.59 dBm(45.604 mW) IEEE 802.11n HT 40 Mode: 16.73 dBm(47.098 mW) 5GHz IEEE 802.11a Mode:17.41 dBm(55.081 mW) IEEE 802.11n HT 20 Mode: 17.70 dBm(58.884 mW) IEEE 802.11n HT 40 Mode: 18.01 dBm(63.241 mW) IEEE 802.11ac VHT 80 Mode: 17.53 dBm(56.624 mW) Maximum tune up power 2.4GHz IEEE 802.11b Mode:21.50 dBm(141.254 mW) IEEE 802.11g Mode:17.00 dBm(50.119 mW) IEEE 802.11n HT 20 Mode: 17.00 dBm(50.119 mW) IEEE 802.11n HT 40 Mode: 17.00 dBm(50.119 mW) 5GHz IEEE 802.11a Mode:18.00 dBm(63.096 mW) IE…

Text truncated - open the document above for the full version.

FCC ID: W3TM8811CU5 IC: 26044-M8811CU5 Page: 1 / 208 Report No.: T200316C02-RP2 Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART E INDUSTRY CANADA RSS-247 Test Standard FCC Part 15.407+ RSS-247 issue 2 and RSS-GEN issue 5 Brand name Safe Fleet Product name WiFi BL-M8811CU5 Model No. WiFi BL-M8811CU5 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.(Wugu Laboratory) Approved by: Tested by: Kevin Tsai Dally Hong Deputy Manager Engineer Page: 2 / 208 Report No.: T200316C02-RP2 Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 12, 2020 Initial Issue ALL Doris Chu 01 May 28, 2020 See the following note Rev.(01) P.5, P.13, P.21 Allison Chen Rev.(01) 1. Revised operating frequency for U-NII-2C, 802.11ac VHT 80MHz in section 1.1 and 3.1. 2. Revised test result for 99%OBW @ 802.11n HT20 mode High CH. Page: 3 / 208 Report No.: T200316C02-RP2 Rev.: 01 Table of contents 1. GENERAL INFORMATION .................................................................................................. 4 1.1 EUT INFORMATION ............................................................................................................ 4 1.2 EUT CHANNEL INFORMATION .......................................................................................... 6 1.3 ANTENNA INFORMATION .................................................................................................. 7 1.4 MEASUREMENT UNCERTAINTY ....................................................................................... 7 1.5 FACILITIES AND TEST LOCATION .................................................................................... 8 1.6 INSTRUMENT CALIBRATION ............................................................................................. 9 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ......................................................... 11 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ..................................................... 11 2. TEST SUMMERY ............................................................................................................... 12 3. DESCRIPTION OF TEST MODES ..................................................................................... 13 3.1 THE EUT CHANNEL NUMBER OF OPERATING CONDITION ......................................... 13 3.2 THE WORST MODE OF MEASUREMENT ........................................................................ 14 3.3 EUT DUTY CYCLE ............................................................................................................ 15 4. TEST RESULT ................................................................................................................... 16 4.1 AC POWER LINE CONDUCTED EMISSION ..................................................................... 16 4.2 26DB BANDWIDTH, 6DB BANDWIDTH AND OCCUPIED BANDWIDTH(99%) ............... 19 4.3 OUTPUT POWER MEASUREMENT .................................................................................. 51 4.4 POWER SPECTRAL DENSITY ......................................................................................... 58 4.5 RADIATION BANDEDGE AND SPURIOUS EMISSION .................................................... 77 4.6 FREQUENCY STABILITY ................................................................................................ 204 APPENDIX-A TEST PHOTO ................................................................................................... A-1 APPENDIX 1 - PHOTOGRAPHS OF EUT Page: 4 / 208 Report No.: T200316C02-RP2 Rev.: 01 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant Fleetmind Seon Solutions Inc Unit 111 – 3B Burbidge Street, Coquitlam, BC, V3K 7B2 Canada Manufacturer Shenzhen Bilian Electronic Co., Ltd. 10-11/F,Building A1,Huaqiang idea park,Guanguang Rd,Guangming new district,Shenzhen,Guangdong,China. Equipment WiFi BL-M8811CU5 Model No. WiFi BL-M8811…

Text truncated - open the document above for the full version.

Page: 51 / 208 Report No.: T200316C02-RP2 Rev.: 01 4.3 OUTPUT POWER MEASUREMENT 4.3.1 Test Limit According to §15.407 (a)(1), 15.407(a)(2) and 15.407(a)(3), and RSS-247 section 6.2.1.1, section 6.2.2.1, section 6.2.3.1 and section 6.2.4.1 FCC: UNII-1 : For client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW(24 dBm), whichever power is less. B is the 99% emission bandwidth in megahertz, provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. UNII-2a and 2c: the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. and The maximum e.i.r.p. shall not exceed 1.0 W or 17 + 10 Log10 B, dBm, whichever power is less. B is the 99% emission bandwidth in MHz. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. UNII-3: For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500-kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Page: 52 / 208 Report No.: T200316C02-RP2 Rev.: 01 IC: UNII-1 : For OEM devices installed in vehicles, the maximum e.i.r.p. shall not exceed 30 mW or 1.76 + 10 log10B, dBm, whichever is less. Devices shall implement transmitter power control (TPC) in order to have the capability to operate at least 3 dB below the maximum permitted e.i.r.p. of 30 mW. For other devices, the maximum e.i.r.p. shall not exceed 200 mW or 10 + 10 log10B, dBm, whichever power is less. B is the 99% emission bandwidth in megahertz. The e.i.r.p. spectral density shall not exceed 10 dBm in any 1.0 MHz band. UNII-2a and 2c: For OEM devices installed in vehicles, the maximum e.i.r.p. shall not exceed 30 mW or 1.76 + 10 log10B, dBm, whichever is less. Devices shall implement TPC in order to have the capability to operate at least 3 dB below the maximum permitted e.i.r.p. of 30 mW. Devices, other than devices installed in vehicles, shall comply with the following: The max…

Text truncated - open the document above for the full version.
