Product Specification Revision V1.0 Date 2018-6-30 Model Name BL-R8812BU1 ProductName IEEE 802.11b/g/n/ac(2T2R) USB WLAN Module Bilian Approve Field Engineer QC Sales Customer Approve Field Engineer QC Manufactory Purchasing Shenzhen Bilian Electronic Co.，Ltd Address: 10-11/F,Building A1,Huaqiang idea park,Guanguang Rd,Guangming new district, Shenzhen, Guangdong, China. Homepage: www.b-link.net.cn 0 Table of Contents Revision History .......................................................................................... 1 1. Introduction .............................................................................................................. 1 1.1 General Description .............................................................................................. 1.2 Features ................................................................................................................ 1.3 Applications ........................................................................................................... 2. Functional Block Diagram .................................................................................... 2 3. Product Technical Specifications ........................................................................ 2 3.1 General Specifications .......................................................................................... 3.2 DC Power Consumption ........................................................................................ 3.3 RF Specifications .................................................................................................. 4. Pin Assignments ..................................................................................................... 9 5. Application Information ....................................................................................... 10 5.1 Supported Platform ............................................................................................... 6. Mechanical Specifications .................................................................................. 12 7. Others ..................................................................................................................... 12 7.1 Package Information ............................................................................................. 7.2 Storage Temperature and Humidity ...................................................................... 7.3 Recommended Reflow Profile ............................................................................... 1 Revision History Date Document Revision Product Revision Description 2018/5/29 0.1 V0.1 Preliminary release 2018/06/30 1.0 V1.0 Batch production 1. Introduction 1.1 General Description BL-R8812BU2 module design is based on Realtek RTL8812BU solution, The RTL8812BU is a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. The Module is a highly integrated MAC/BBP and 2.4/5GHz PA/LNA single chip which supports a 866.7Mbps PHY rate. The Module is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users thegreatest performance anytime and in any circumstance.This documentation describes the engineering requirements specification. Figure 1 Top View Figure 2 Bottom View Note:The above picturesare for reference only 1.2 Features ⚫ Operating Frequencies : 2.4~2.4835GHz and 5.15~5.85GHz ⚫ Host Interface is USB2.0 (It only changes can support USB3.0 ) ⚫ IEEE Standards : IEEE 802.11a/b/g/n/ac ⚫ Wireless data rate can reach up to 867Mbps ⚫ Connect to external antenna through the ipex connector ⚫ Power Supply:3.3V±0.2V 2 1.3 Applications ⚫ MID ⚫ IP Camera ⚫ STB ⚫ Smart TV ⚫ E-book ⚫ Other devices which need to be supported by wireless network 2. Functional Block Diagram Figure 3 BL-R8812BU1 block diagram 3. Product Technical Specifications 3.1 General Specifications Item Description Product Name BL-R8812BU1 Main Chip RTL8812BU-CG Host Interface USB2.0 IEEE Standards IEEE 802.11a/b/g/n/ac Operating Frequencies 2.4GHz~2.4835GHz /5.15~5.85Hz Modulation WIFI: 802.11b: CCK, DQPSK, DBPSK 3 802.11a/g: 64-QAM,16-QAM, QPSK, BPSK 802.11n: 64-QAM,16-QAM, QPSK, BPSK 802.11ac: 256-QAM,64-QAM,16-QAM, QPSK, BPSK Working Mode Infrastructure, Ad-Hoc Wireless Data Rate WIFI: 802.11b: 1, 2 ,5.5,11Mbps 802.11a/g: 6,9,12,18,24,36,48,54Mbps 802.11n: HT20 reach up to144.4Mbps, HT40 reach up to300Mbps 802.11ac: VHT20 reach up to173.3Mbps, VHT40 reach up to400Mbps, VHT80 reach up to866.7Mbps Rx Sensitivity -95dBm (Min) TX Power 18.5dBm (Max) Antenna Type Connect to external antenna through the half hole connector Dimension(L*W*H) 27.0*17.8*2.8mm (L*W*H) ，Tolerance: ±0.15mm Power Supply 3.3V±0.2V Power Consumption Standby 187mA (Max) TX mode 638mA (Max) Clock Source 40MHz Working Temperature 0°C to +60°C Storage Temperature -40°C to +85°C ESD CAUTION: Although this module is designed to be as robust as possible, Electrostatic Discharge (ESD) can damage this module. It must be protected from ESD at all times and handled under the protection of ESD. 3.2 DC Power Consumption Vcc=3.3V，Ta= 25 °C，unit: mA Supply current Typ. Max Standby (RF disabled) 187 208 802.11b 1Mbps 11Mbps Supply current Typ. Max. Typ. Max. TX mode 396 423 344 369 Rxmode 195 218 196 216 802.11g 6Mbps 54Mbps Supply current Typ. Max. Typ. Max. TX mode 387 419 303 368 Rxmode 196 218 198 216 4 802.11n HT20 MCS0 MCS7 Supply current Typ. Max. Typ. Max. TX mode 385 412 301 362 Rxmode 195 216 193 215 802.11n HT40 MCS0 MCS7 Supply current Typ. Max. Typ. Max. TX mode 369 401 272 373 Rxmode 193 218 196 217 802.11a 6Mbps 54Mbps Supply current Typ. Max. Typ. Max. TX mode 388 412 337 410 Rxmode 194 210 197 215 802.11n HT40(5G) MCS0 MCS7 Supply current Typ. Max. Typ. Max. TX mode 365 403 298 386 Rxmode 192 212 196 213 802.11ac MCS0 MCS9 Supply current Typ. Max. Typ. Max. TX mode 354 402 289 386 Rxmode 189 208 190 203 2T2R 802.11n HT40(2.4G) MCS8 MCS15 Supply …

Text truncated - open the document above for the full version.

DTS‐UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : W3TR8812BU1 (1) DFS Device -- Master, Client with Radar detection capability, Client without radar detection capability, N/A (2) Active / Passive Scanning , Ad hoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412-2462 Yes, No Yes, No Yes, No Yes, No 2422-2452 Yes, No Yes, No Yes, No Yes, No 5180-5240 Yes, No Yes, No Yes, No Yes, No 5260-5320 Yes, No Yes, No Yes, No Yes, No 5500-5700 Yes, No Yes, No Yes, No Yes, No 5745-5825 Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes, No If yes, pls explain how it was implemented: (pls also help to provide detail of options for each country selection) (4) Meet 15.202 requirement - Yes, No , Pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices. A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply, No Apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) (6) Please help to provide justification how device was restricted to operate in 5600-5650MHz in below. The frequency bands of 5600-5650MHz is disabled in the frequency table, so the W3TR8812BU1 will not be operated in 5600-5650MHz. __________________________(Signature) Fleetmind Seon Solutions Inc Matthew Thompson / Engineering Manager Phone: 604 941 0880 E-Mail: [email protected]

Date: June 4, 2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: W3TR8812BU1 To whom it may concern: We, the undersigned, hereby authorize Kevin Tsai / Deputy Manager of SGS Compliance Certification Services Inc. to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Fleetmind Seon Solutions Inc. This authorization is valid until further written notice from the applicant. Fleetmind Seon Solutions Inc Matthew Thompson / Engineering Manager Phone: 604 941 0880 E-Mail: [email protected]

Date: June 4, 2020 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Fleetmind Seon Solutions Inc Unit 111 - 3B Burbidge Street Coquitlam Canada V3K 7B2 Regarding: Confidentiality Request regarding application for FCC ID: W3TR8812BU1 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Fleetmind Seon Solutions Inc Matthew Thompson / Engineering Manager Phone: 604 941 0880 E-Mail: [email protected]

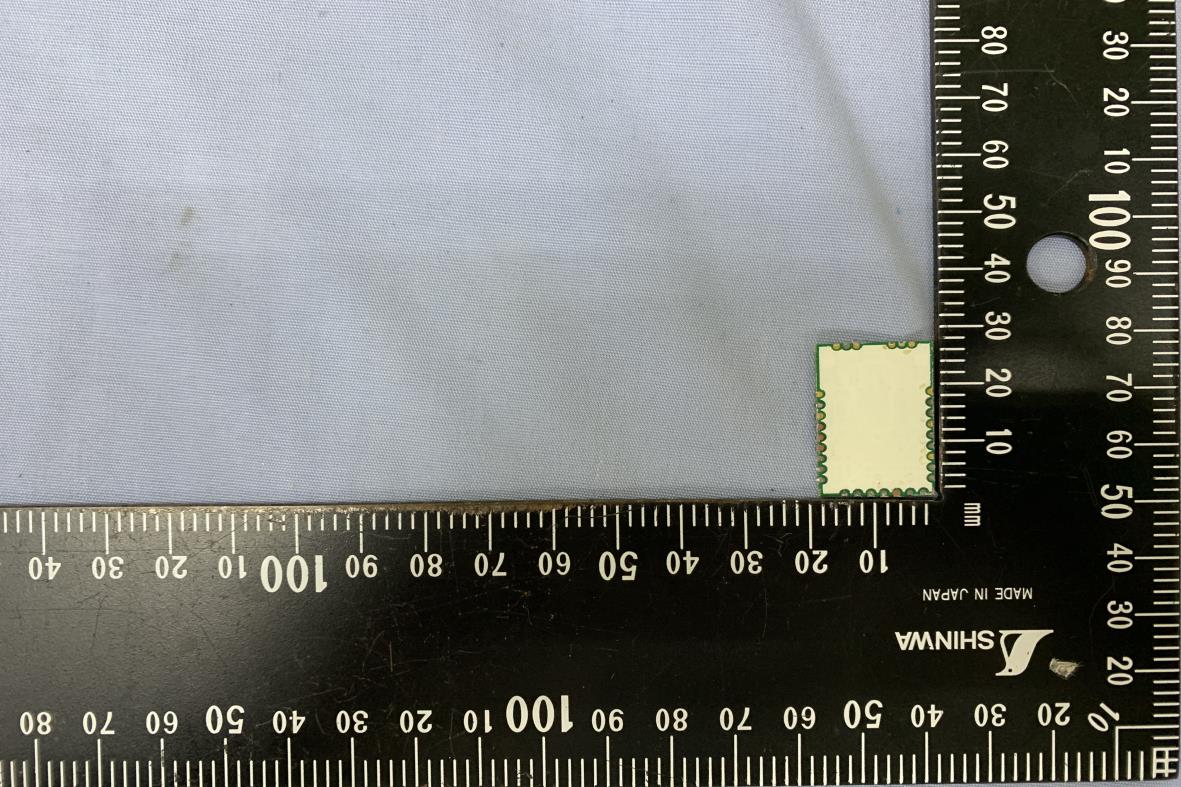

Page: 1 / 6 Report No.: T200416C04 Rev.: 02 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Page: 2 / 6 Report No.: T200416C04 Rev.: 02 WIFI Antenna

Label & Label location Model: BL-R8812BU1 FCC ID: W3TR8812BU1 IC: 26044-R8812BU1

Page: 3 / 6 Report No.: T200416C04 Rev.: 02 INTERNAL PHOTOGRAPHS OF EUT Page: 4 / 6 Report No.: T200416C04 Rev.: 02 Page: 5 / 6 Report No.: T200416C04 Rev.: 02 Page: 6 / 6 Report No.: T200416C04 Rev.: 02 Module & Crystal
